Mirage

Mirage

As an innovative member of the LED transparent screen family, the Mirage Series redefines spatial integration with its 2.4-meter seamless vertical splicing capability—the tallest unobstructed viewing height in its class. Engineered for architectural versatility, it supports both suspension and glass-mounted installation, blending seamlessly into windows and facades without compromising natural light.
Our proprietary Pixel Reinforcement Technology ensures unmatched durability, eliminating pixel drop-off risks while delivering industry-leading transparency for vivid imagery that coexists with ambient environments. Where clarity meets resilience, the Mirage Series transforms glass surfaces into dynamic visual canvases.

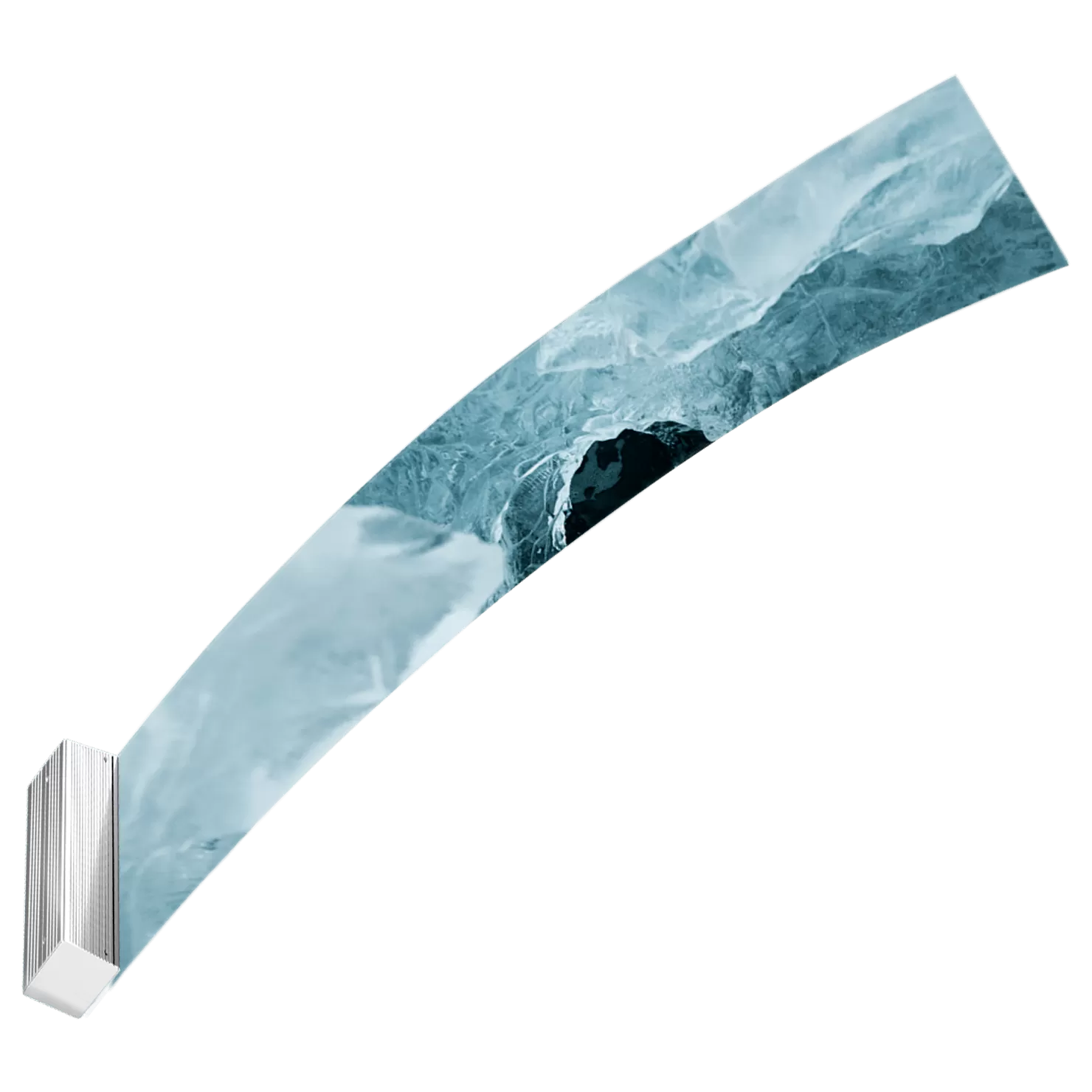

Mirage mm1
  • Pitch (mm):4/6/10
  • Applications :
    Glass facade ＆ windows
    Street-side stores

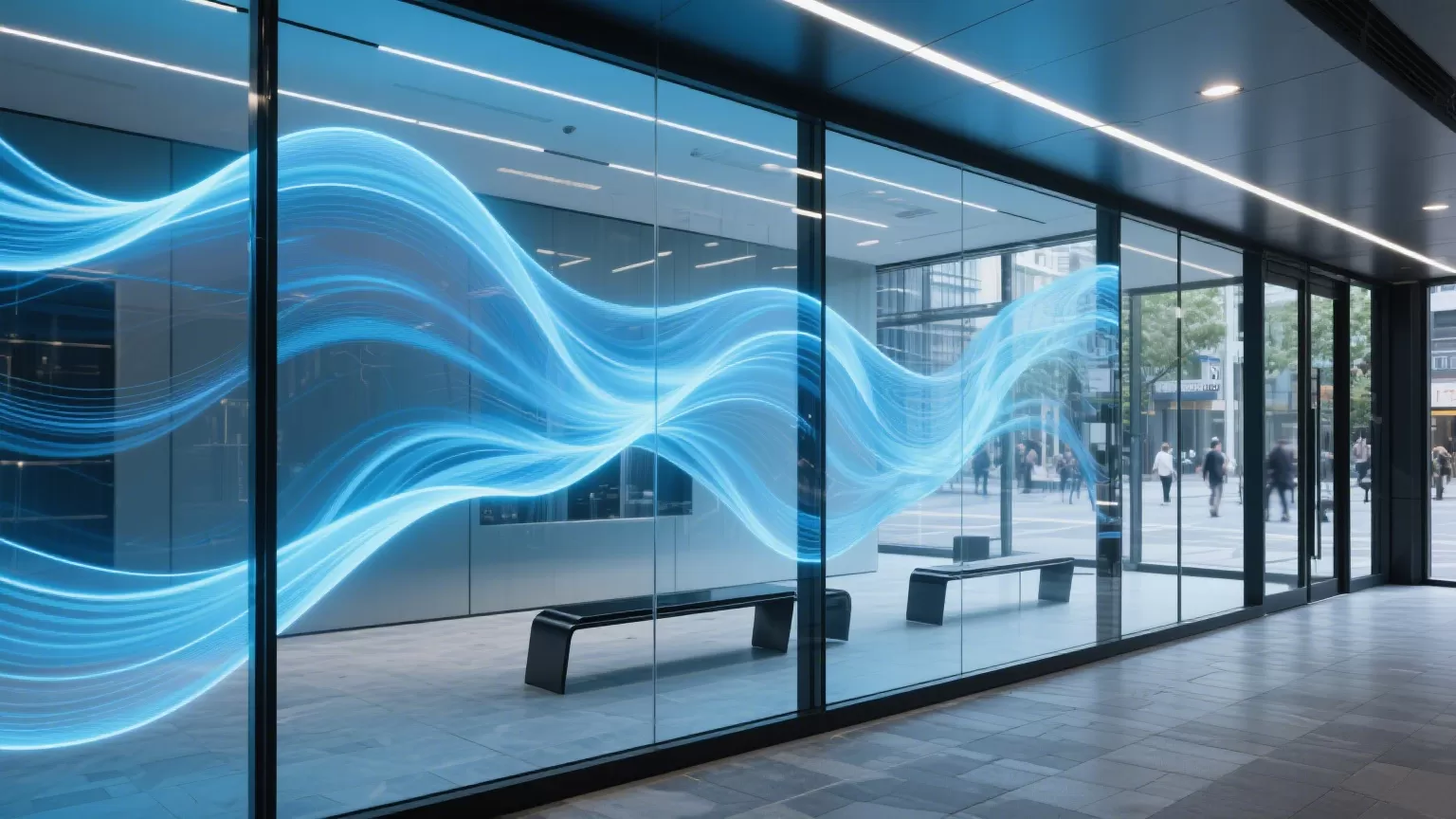

    Creative displays
    Visual decoration ＆ design

Product Features

  • 芯片升级

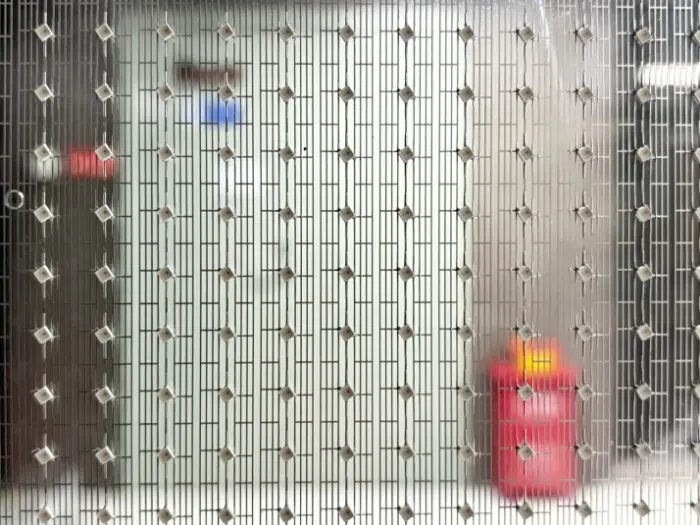

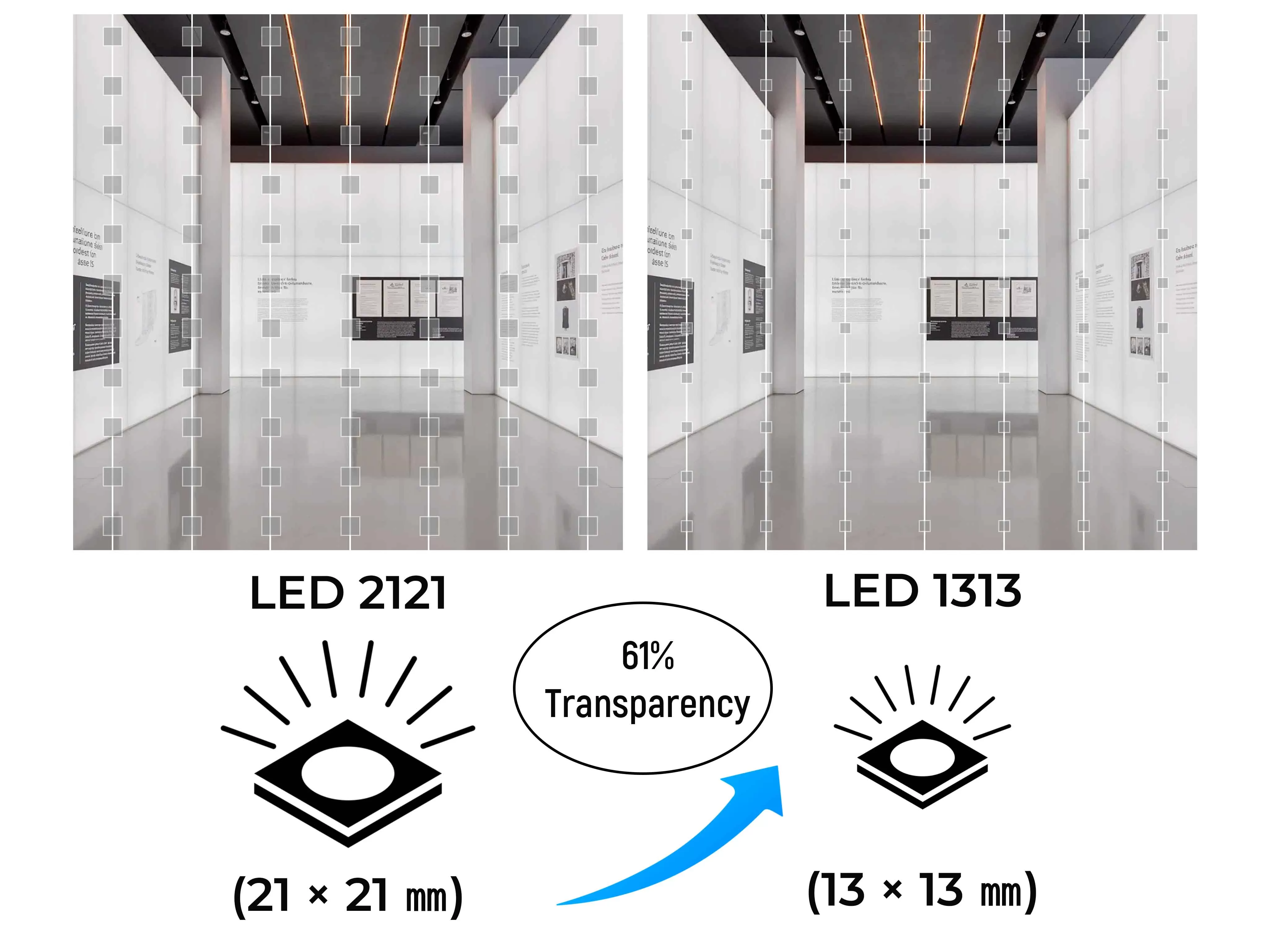

    Enhanced Transparency

    Mirage Film LED features a PET substrate with over 90% light transmittance, combined with smaller SMD 1313 LED chips—significantly enhancing overall transparency.

  • Mirage 11

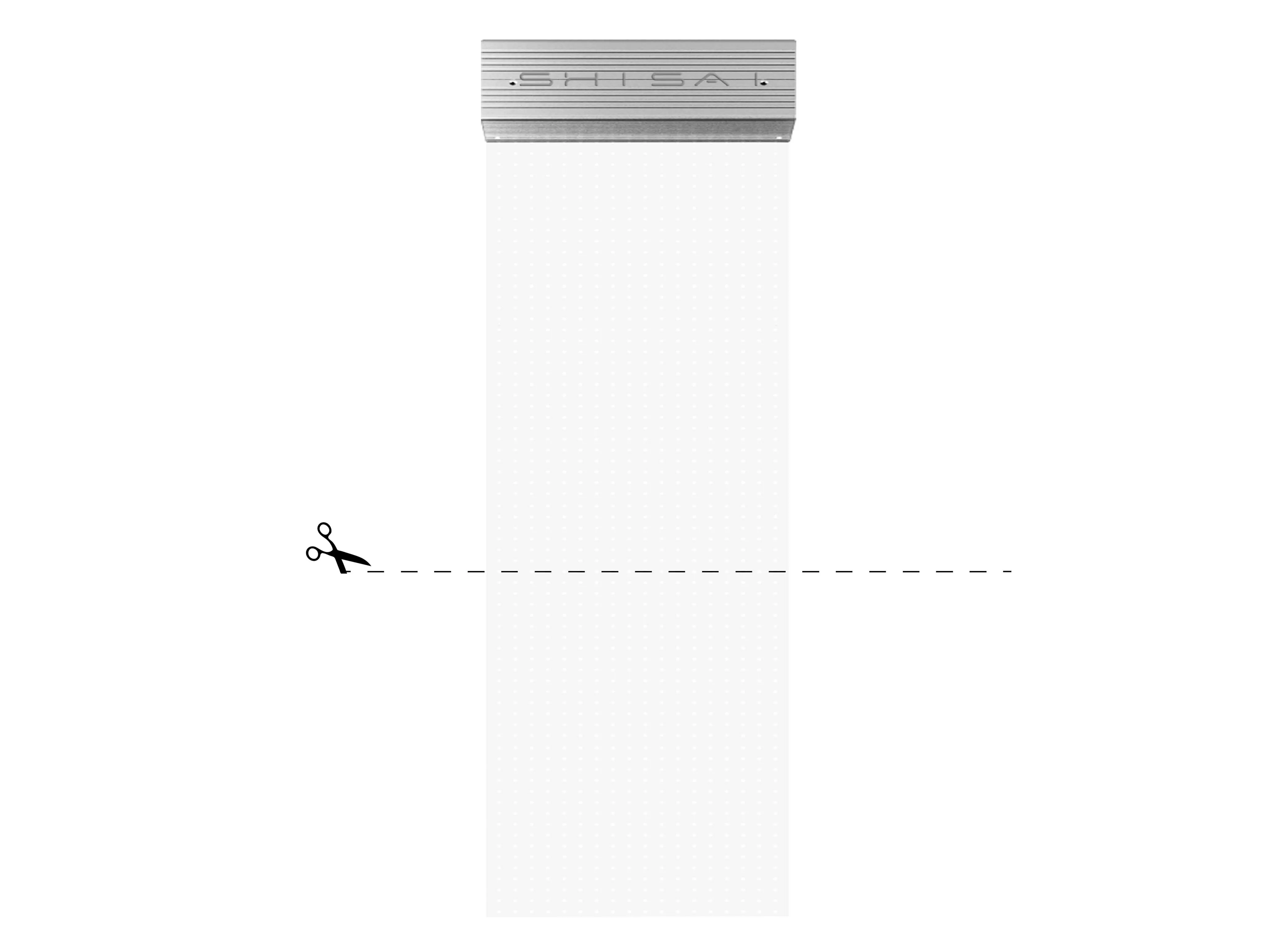

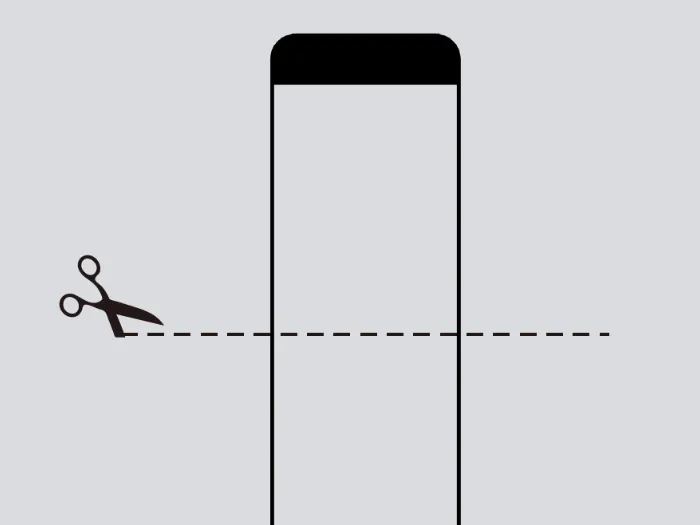

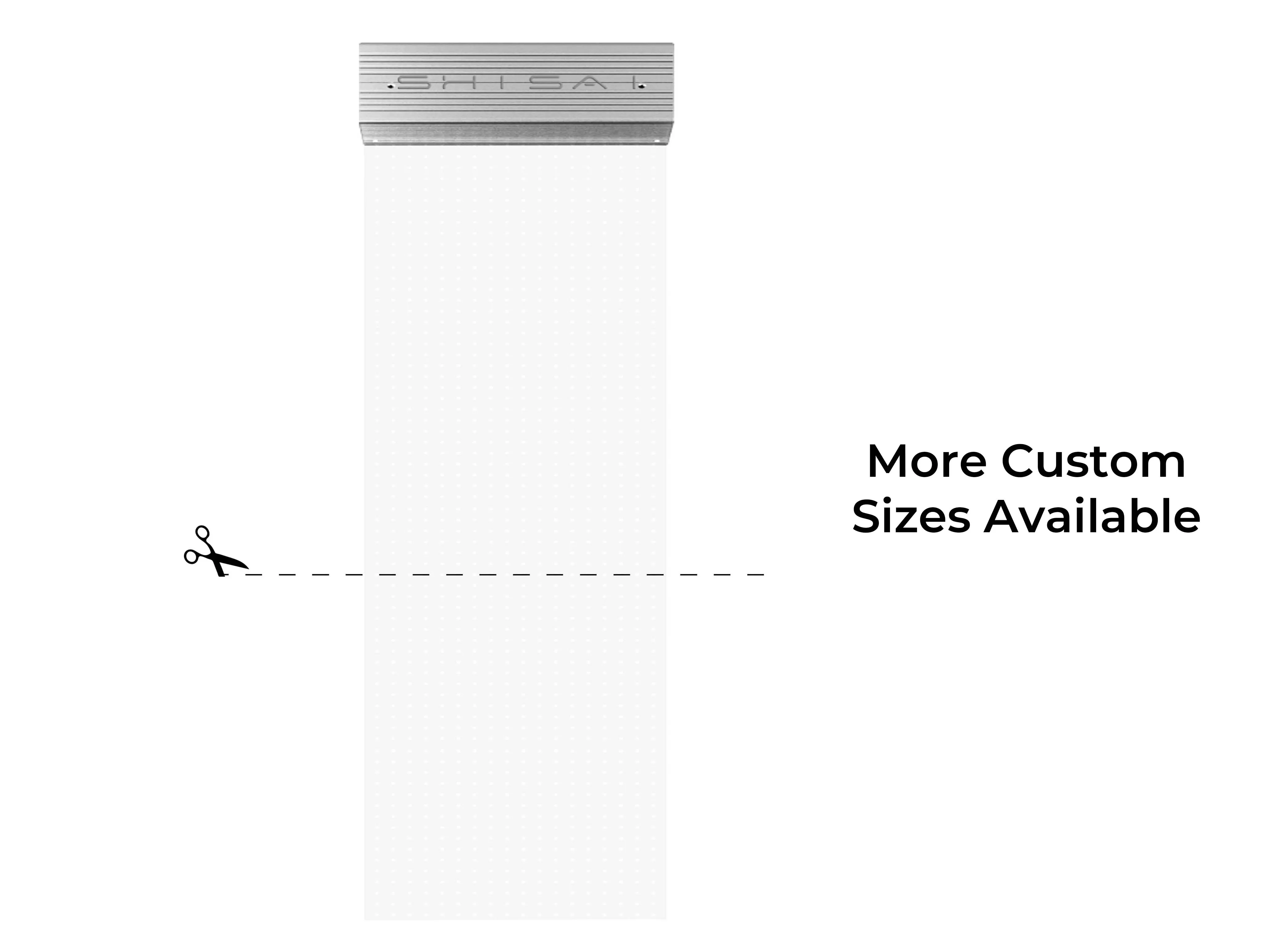

    Freely Vertical Cutting

    The mirage series offers the freely vertical cutting based on pixel count, allowing for more of window sizes matched. This innovative capability empowers designers to create a variety of creative shapes, enhancing the visual appeal and versatility of display solutions.

  • 安装

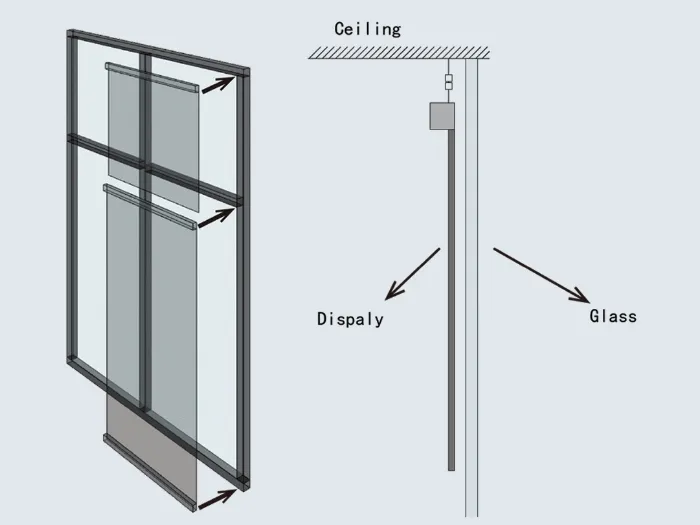

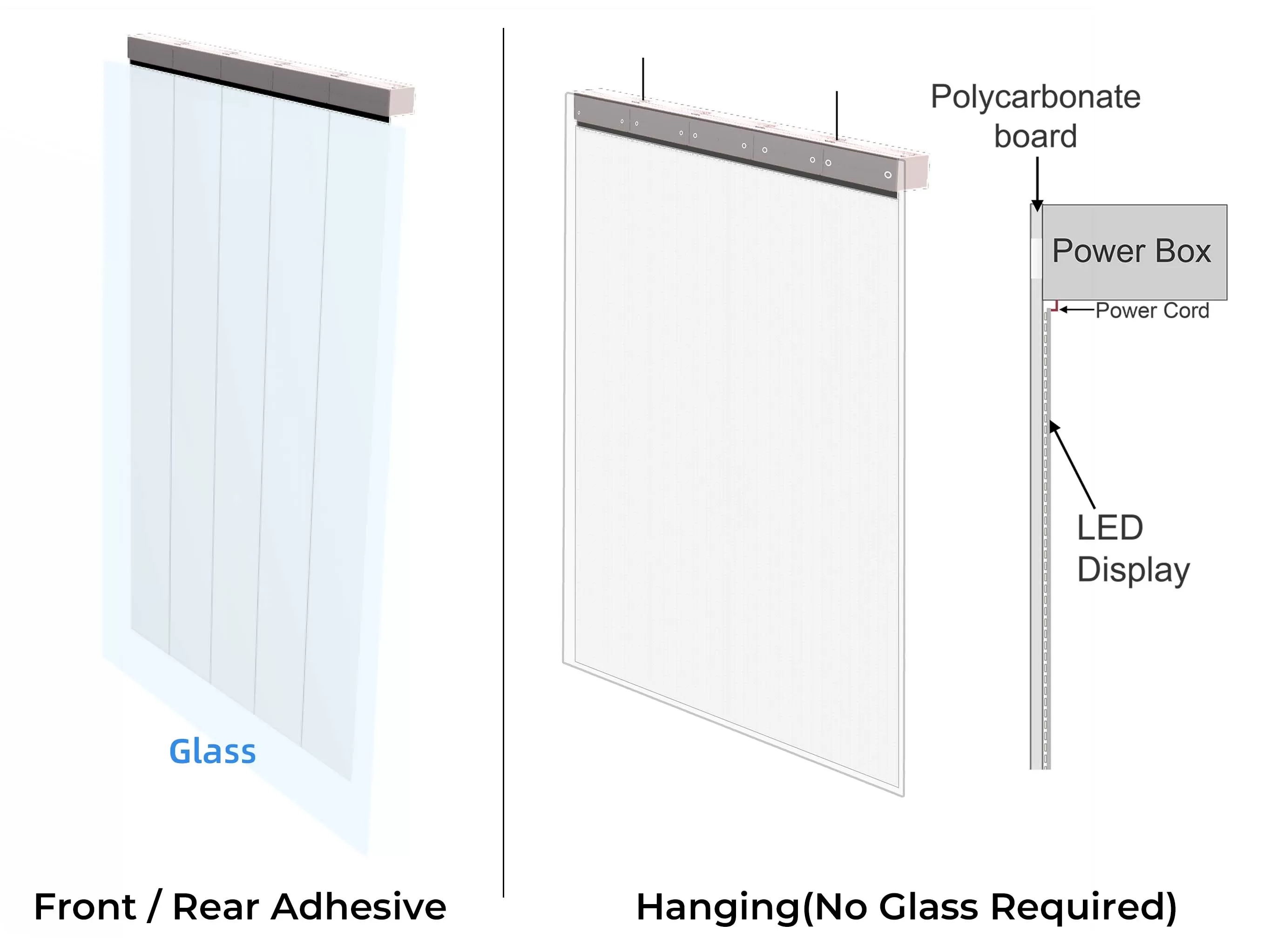

    Optional Installation Methods

    The mirage series supports a variety of installation methods, including front adhesive, rear adhesive, and hanging options. Additionally, we offer customizable frames that can be applied independently without the need for glasses, enabling the realization of even more amazing ideas.

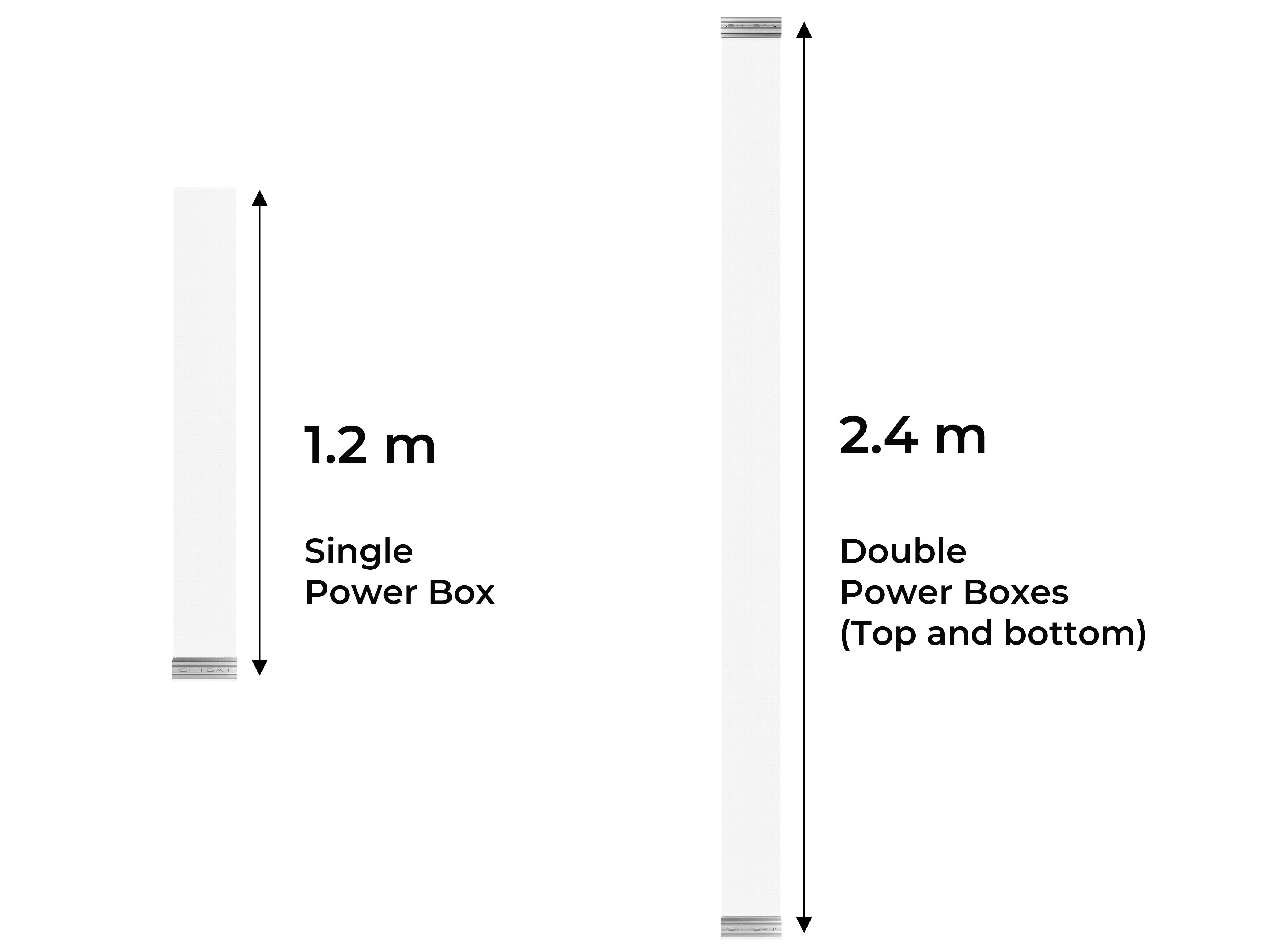

  • 长度
    Unobstructed Height of Up to 2.4 Meters

    Leveraging an innovative FPC process and specialized manufacturing equipment, we have successfully created the unit length with 1.2 m (excluding the power box area).

    When seamlessly spliced, this solution offers an unobstructed display height of up to 2.4 meters, perfectly accommodating larger glass windows or facades and a variety of related requirements.

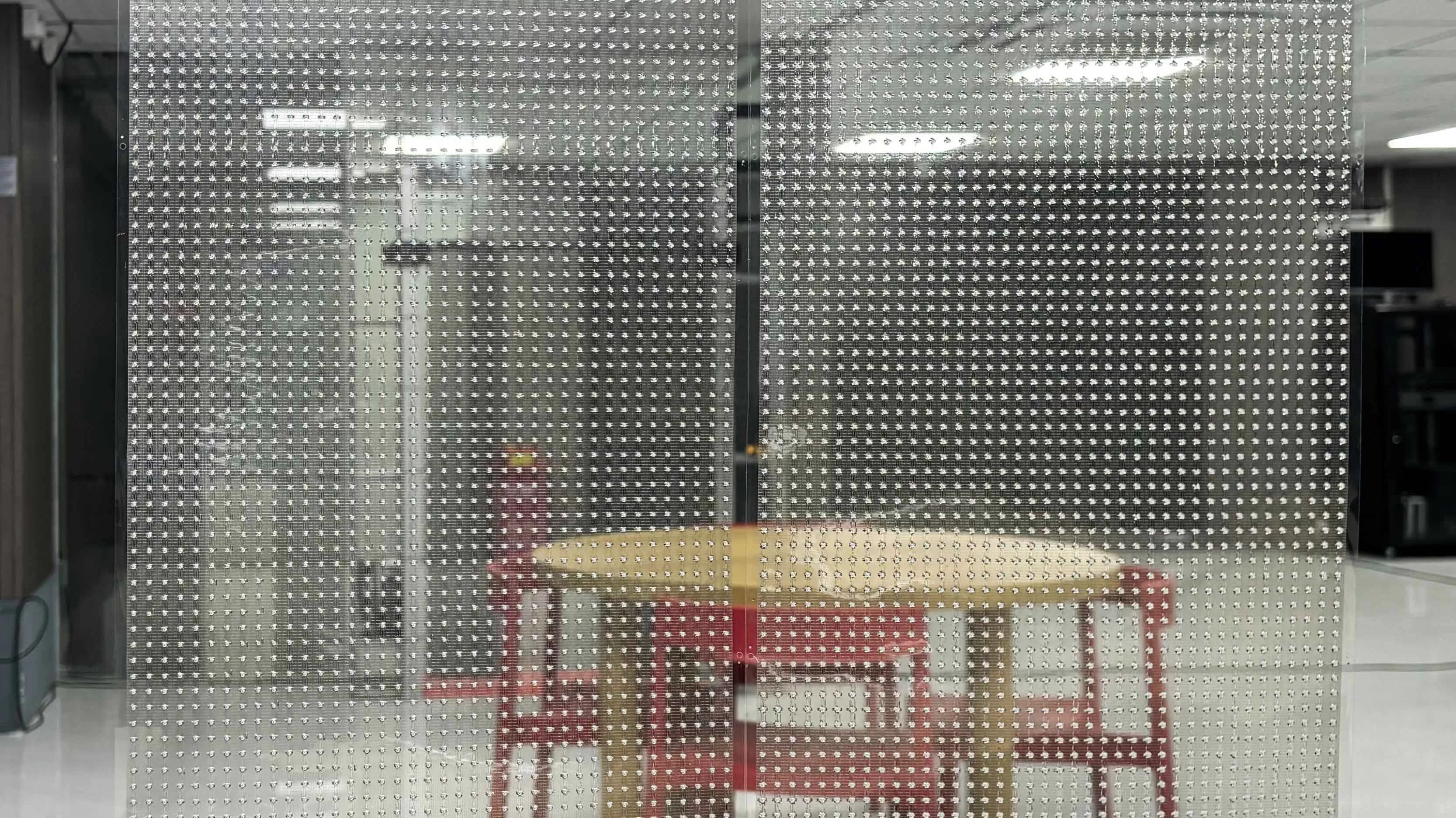

  • 1313
    High-End Substrate Material

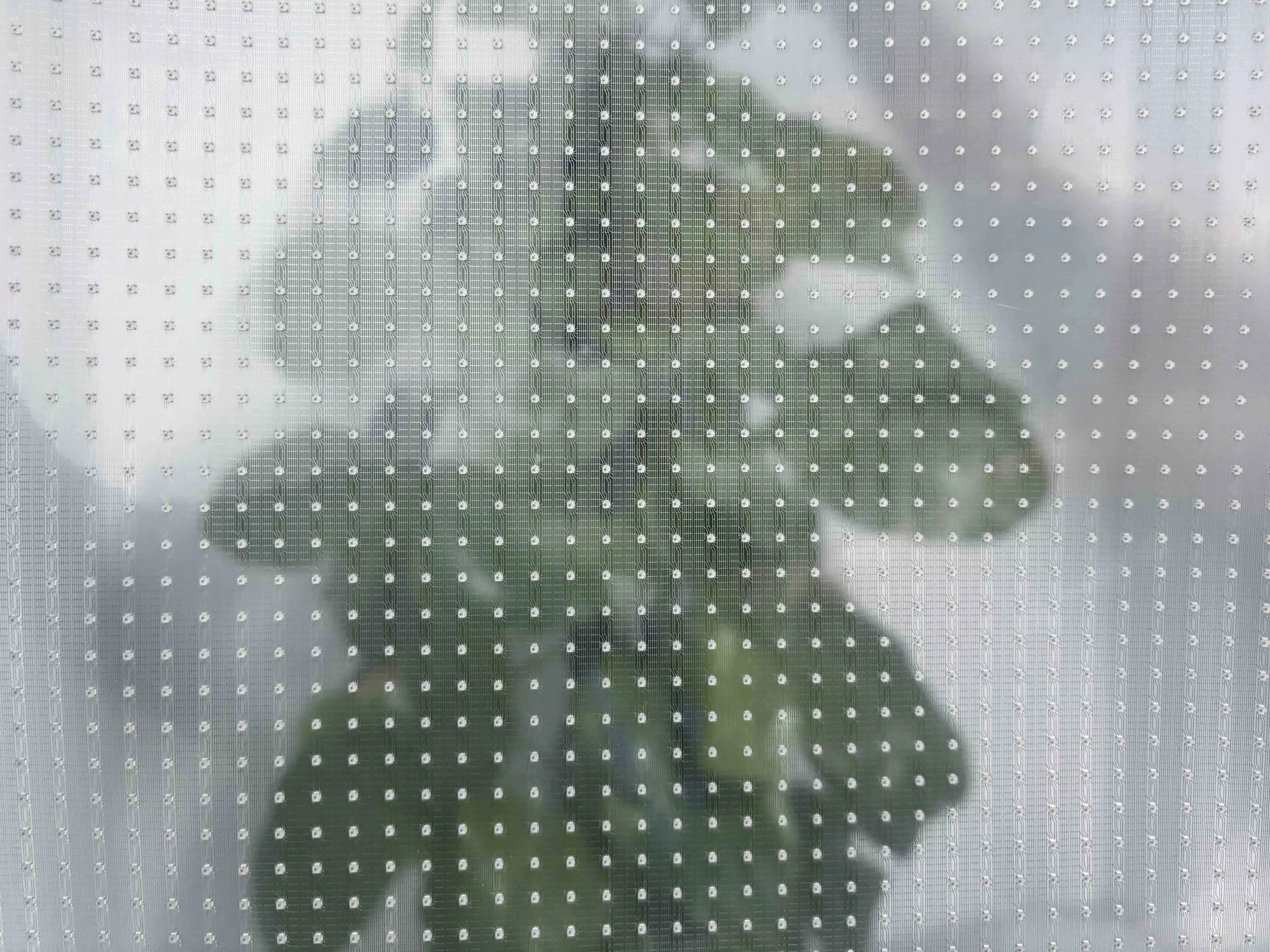

    Mirage Film LED utilizes a 90%+ light-transmittance PET substrate,
    achieving inherent material transparency (vs. mesh-based designs) with wider angles and shadow-free visuals. Ideal for high-transparency applications like retail displays or architectural integration.

Product Video

Product Parameter

Mirage Series P4 P6 P10
SMD Type 1313 1313 2121 1313 2121
Pixel Pitch (㎜) 4 6 10
Pixel Density (dots/㎡） 62500 27777 10000
Unit Size (㎜) 240 × 1200 240 × 1200 240 × 1200
Unit  Definition (dot) 60 × 300 40 × 200 24 × 120
Unit  Display Size (㎜) 240 × 1200 240 × 1200 240 × 1200
Material PET
Weight (kg/unit) ≤3.5
Brightness (cd/㎡) 1000-3000 1000-3000 1000-5000 1000-3000 1000-5000
Viewing Angle (H) 160°
Viewing Angle (V) 160°
Visual Transparency 89% 86% 95%
Max Power (W/㎡) 300-800
Avg Power (W/㎡) 100-267
Refresh Rate (Hz) Static Scan
IP Rate IP20    |    IP43 (Glue sealed)
Input Voltage 90～240 (50/60Hz)
Operating  T&H -10～40℃ & 10 %~80 % RH（No Condensation）
Storage T&H -20～60℃ & 10 %~85 % RH（No Condensation）
Installation Method Front adhesive    |    Rear  adhesive    |    Hanging
Osaka world hbanner
马赛dsc03482
1 / 2
Cases

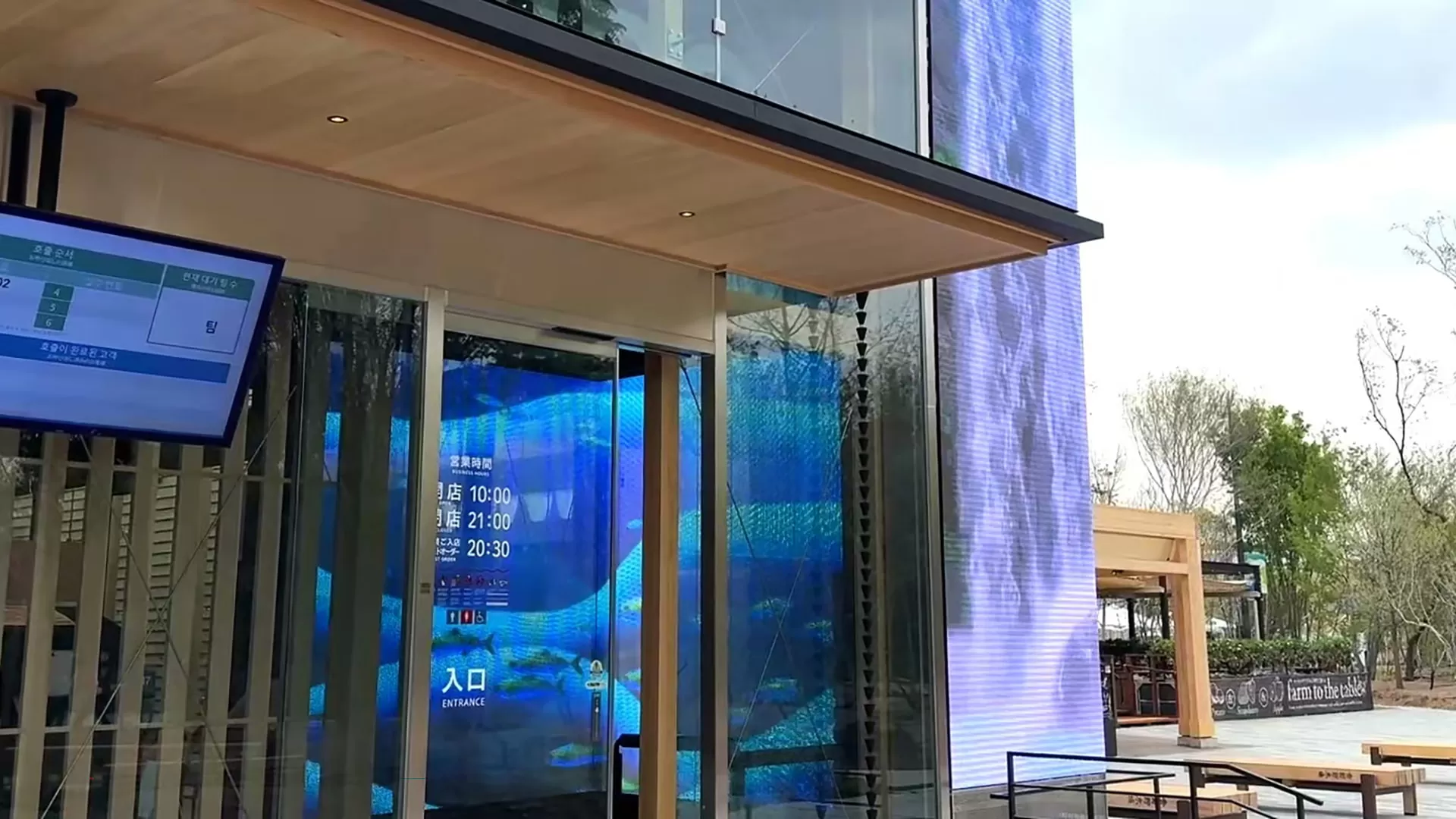

Famous Brand Sushi Store At Osaka Expo

Mirage-10

Space size:W8400×H3200mm, 26.88㎡

View More
Cases

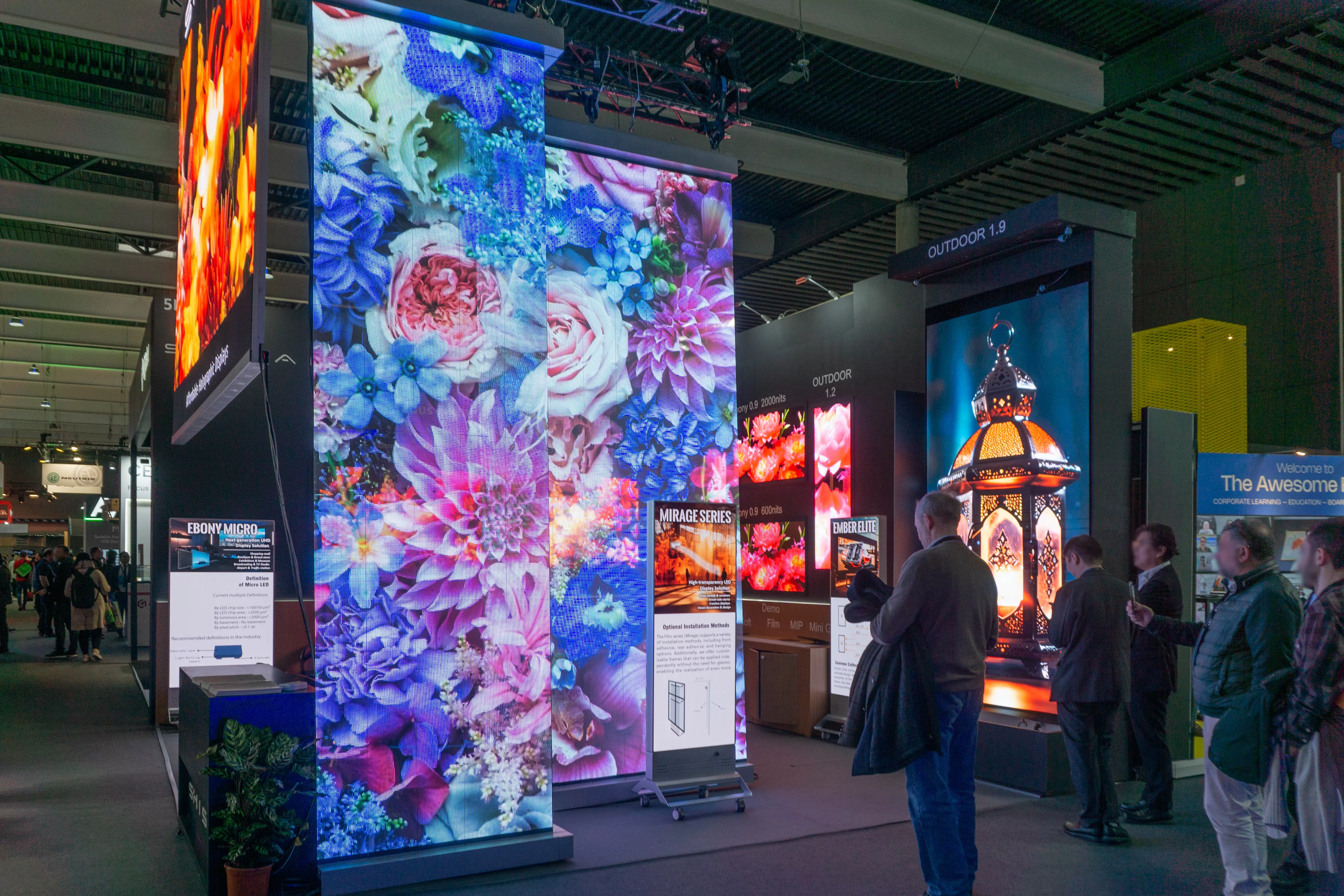

ISE 2025 Exhibition Booth-Mirage

Mirage-6

Space size:W(1200+960+1920) x H4000mm, 16.32㎡

View More
