Riddle R

Riddle R

The Riddle R Series, a transparent LED display designed for rental events, truly delivers the dual advantages of transparency and exceptional visual performance. Built within a die-cast aluminum frame optimized for rapid assembly and disassembly, it revolutionizes the industry with its lightweight panel design and high-precision surface mask. This innovation preserves transparency and image contrast while addressing the long-standing challenge of LED damage caused by collision and pressure during installation and dismantling
For clients and stage designers in the event rental sector, the Riddle R Series unlocks expanded creative possibilities and seamlessly adapts to commercial scenarios requiring simplified setups. Notably, our Separated IC design ensures this cutting-edge solution remains accessible at a cost-effective price point, balancing premium performance with affordability.

Riddler 0 banner
  • Pitch(mm) : 2.6V/3.9/3.9V/6.25/10
  • Applications :

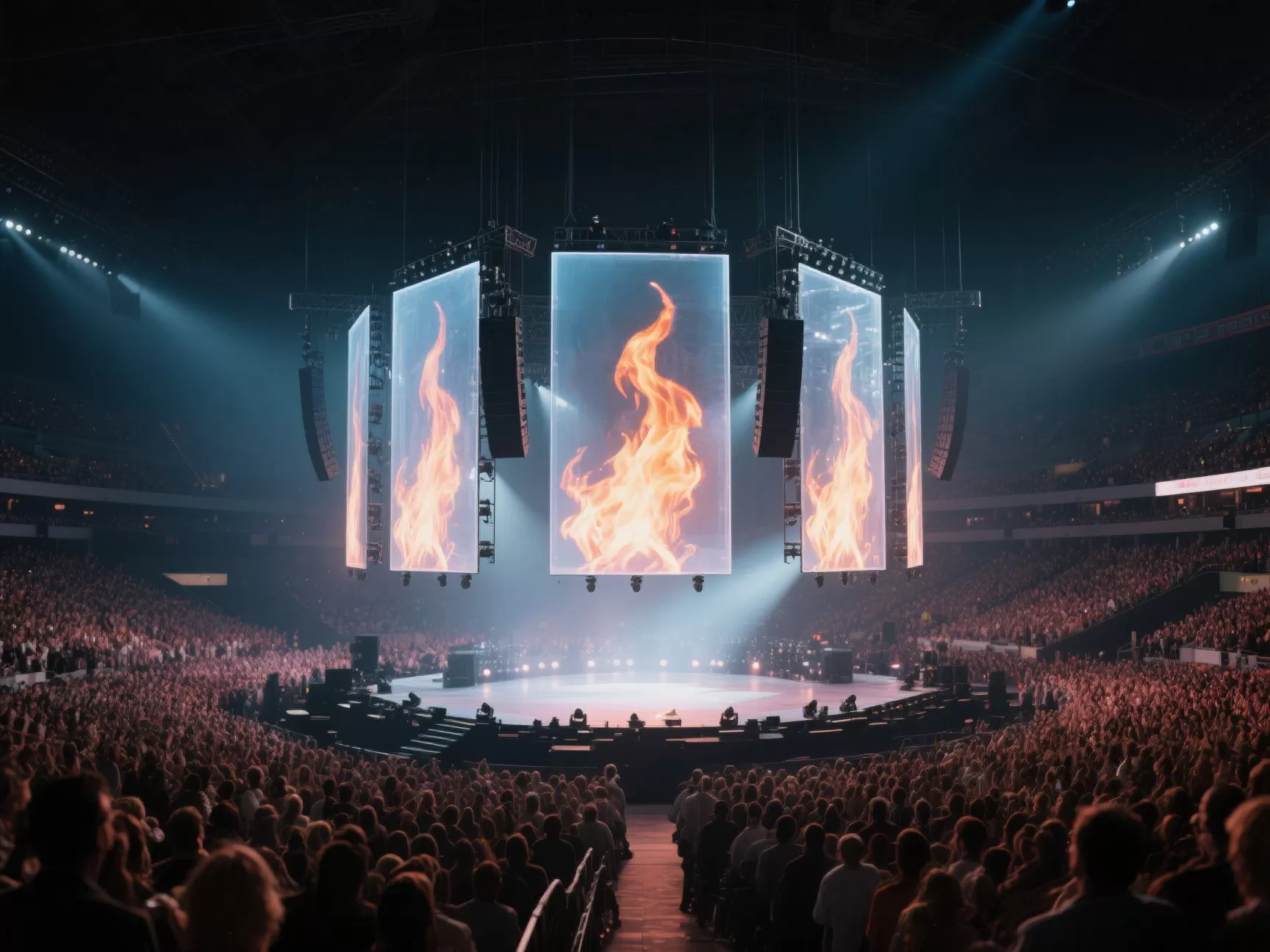

    Events & Stage
    Large glass facade

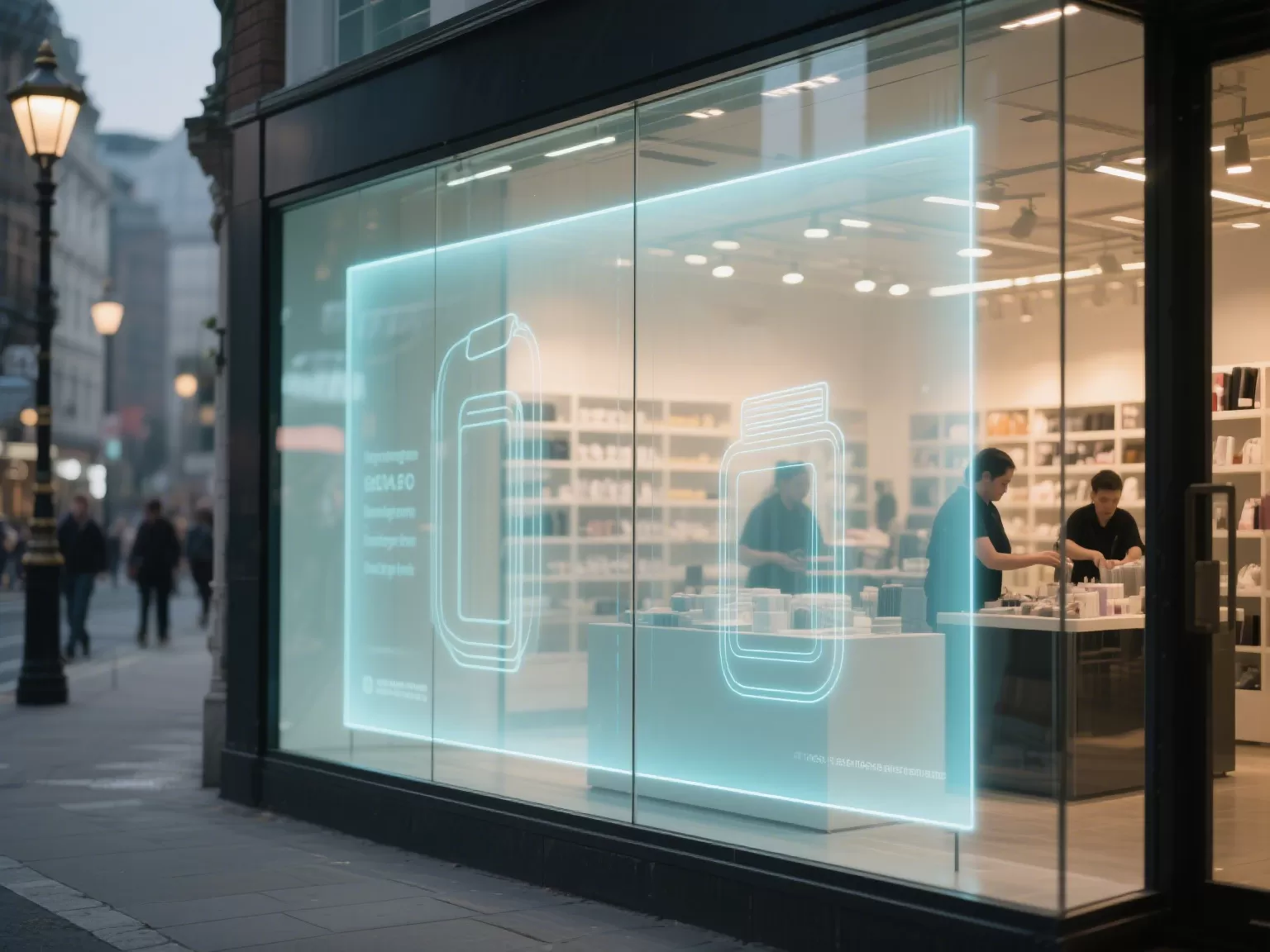

    Window display

Product Features

  • Riddle r x2

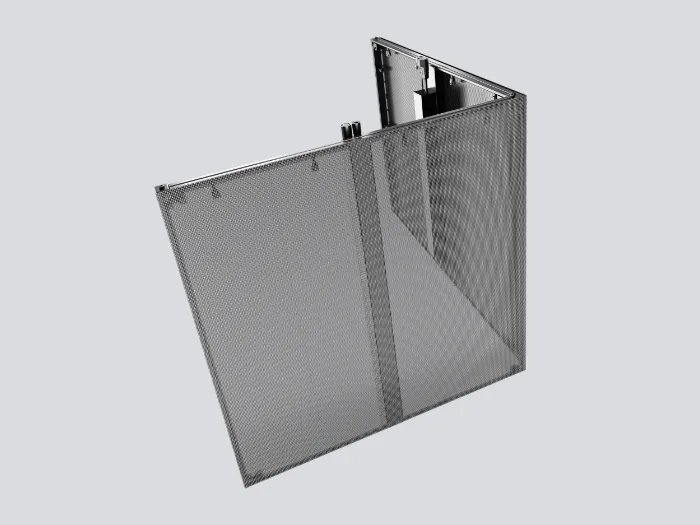

    Multiple sizes available

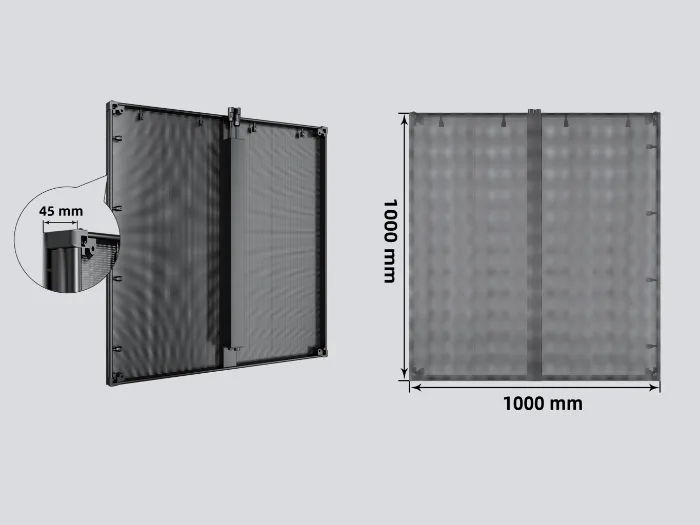

    Available in standard cabinet sizes of 1000×1500mm and 1000×1000mm, with custom dimensions also offered. This flexibility ensures optimal fit for any project area, reduces joint gaps, and improves installation efficiency and visual uniformity.

  • Riddle r x1

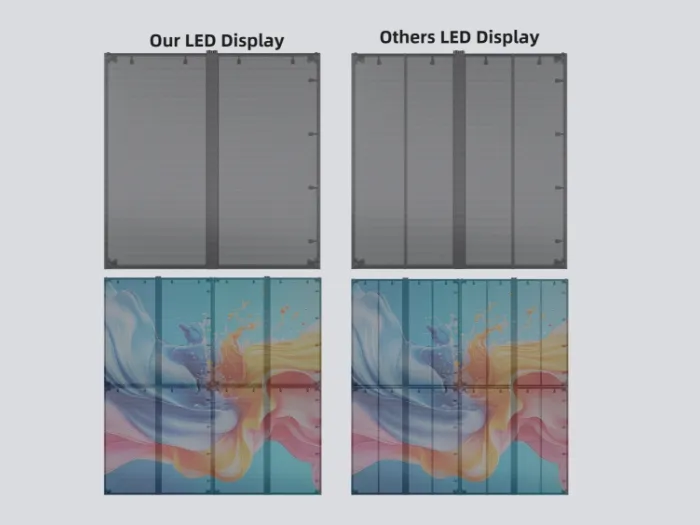

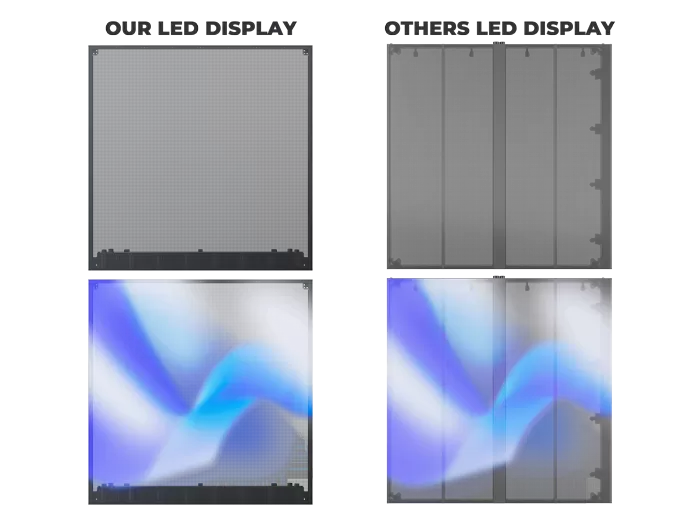

    Maximum Transparency

    Removed internal support bars for unobstructed views, ideal for immersive environments.

  • Riddle r x5

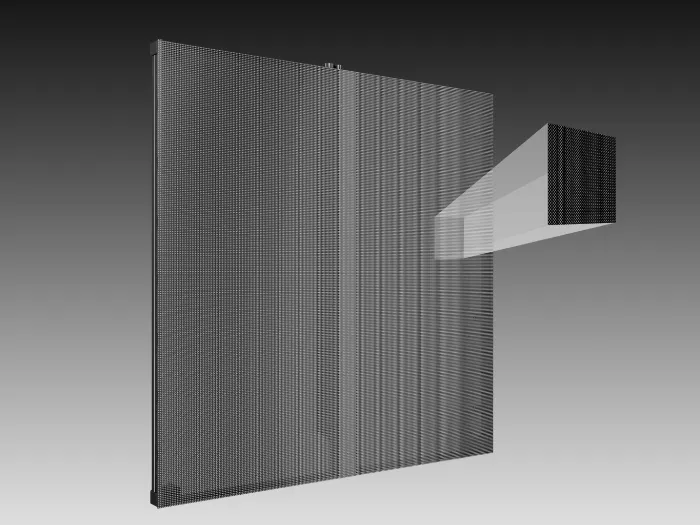

    Ultra-Thin & Lightweight Construction

    Built with an aluminum alloy profile frame, the power supply, receiver card, and HUB board are highly integrated within the frame, achieving an ultra-narrow bezel of just 71.2mm. The entire unit features a slim and compact structure that not only delivers a sleek and refined appearance but also significantly reduces installation space, making it well-suited for a wide variety of application scenarios.

  • Riddle r x9

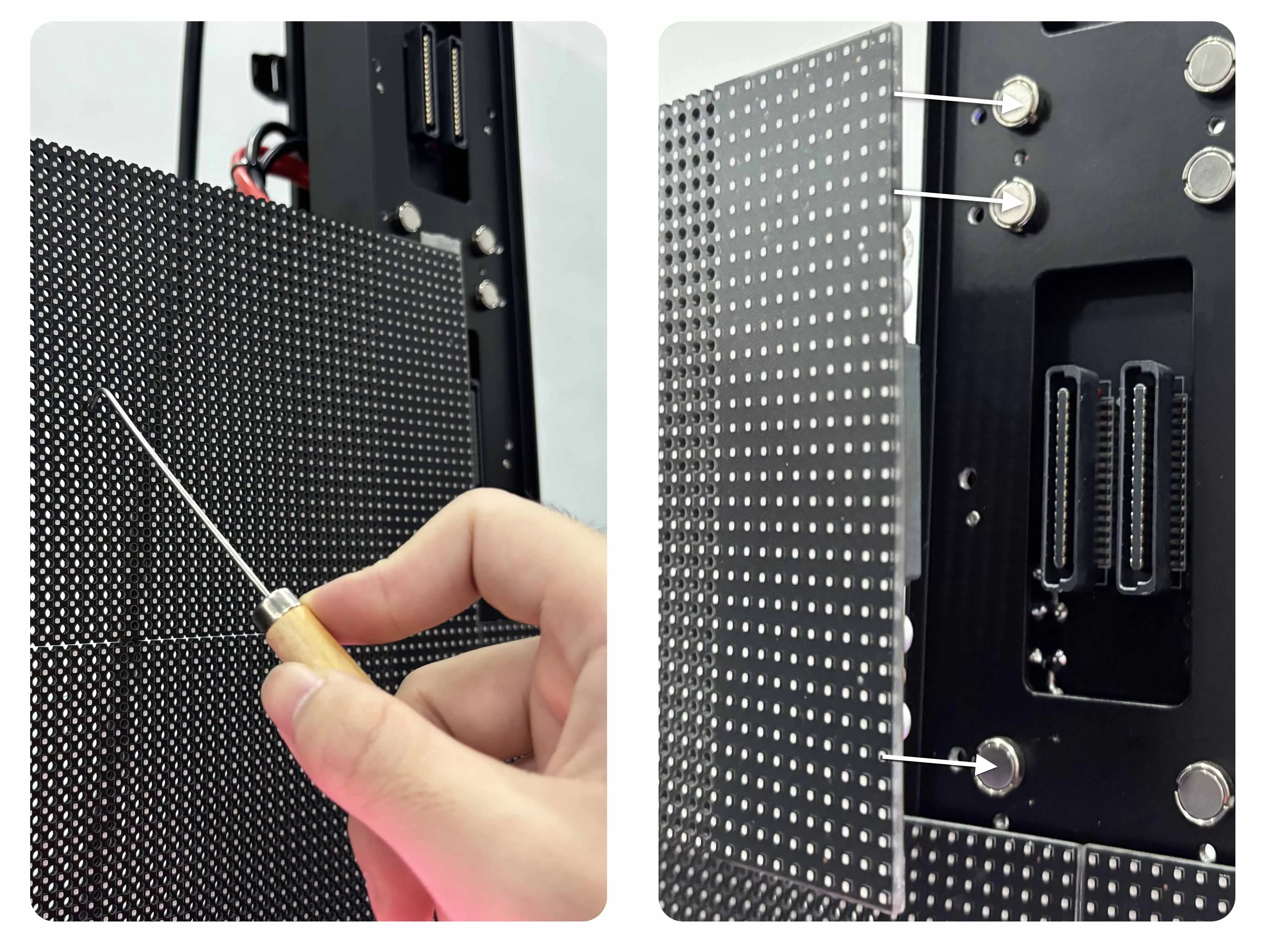

    Magnetic Docking & Alignment

    The modules utilize magnetic docking for front maintenance and quick assembly. Magnetic alignment posts guarantee a flush and even surface between modules.

  • Riddle r x91

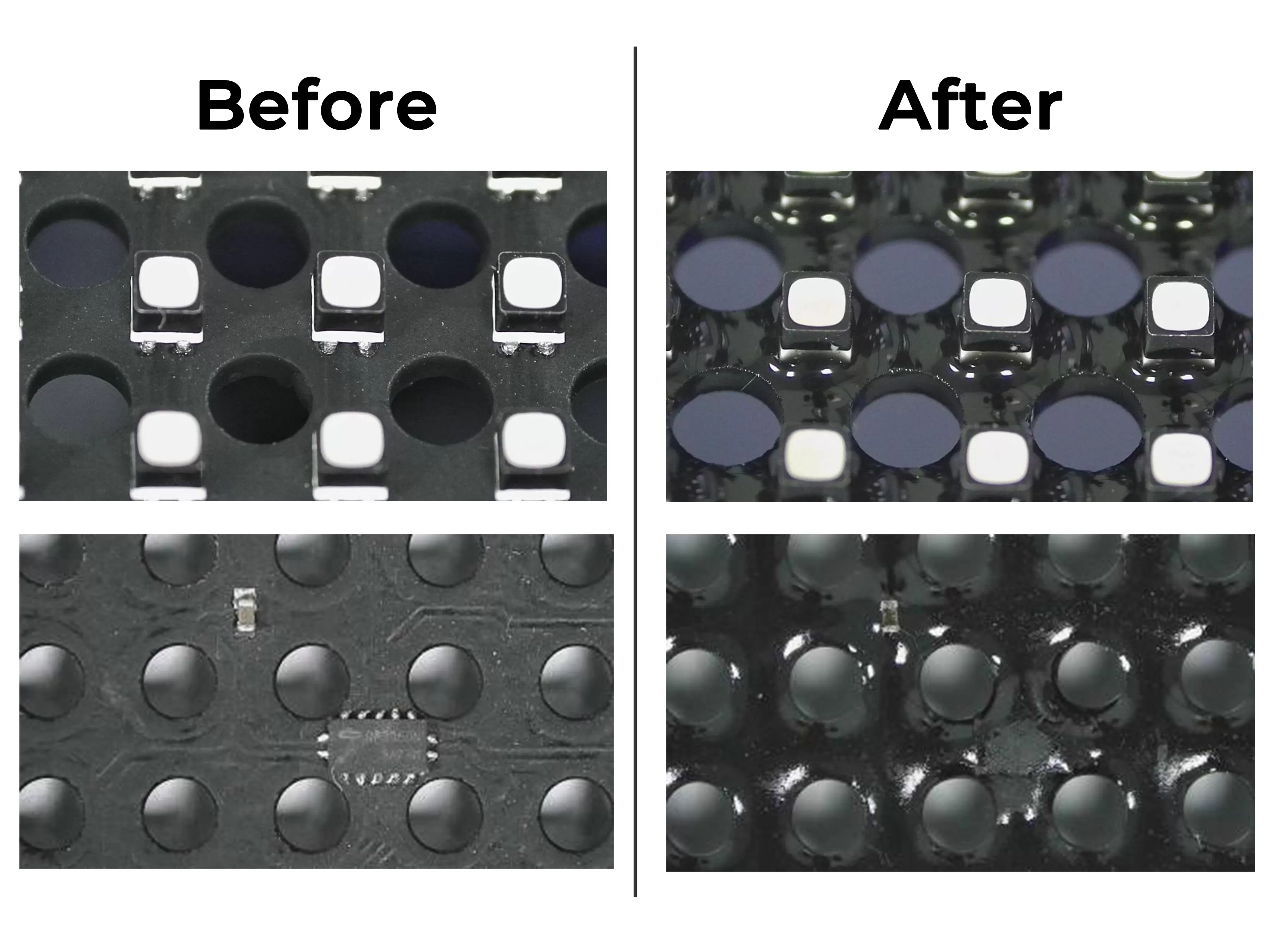

    Enhanced Protection

    An optional enhanced protection version uses advanced glue dispensing technology to create a durable sealed barrier that protects internal IC circuitry from moisture and dust, ensuring reliable waterproof performance.

  • Riddle r 声学

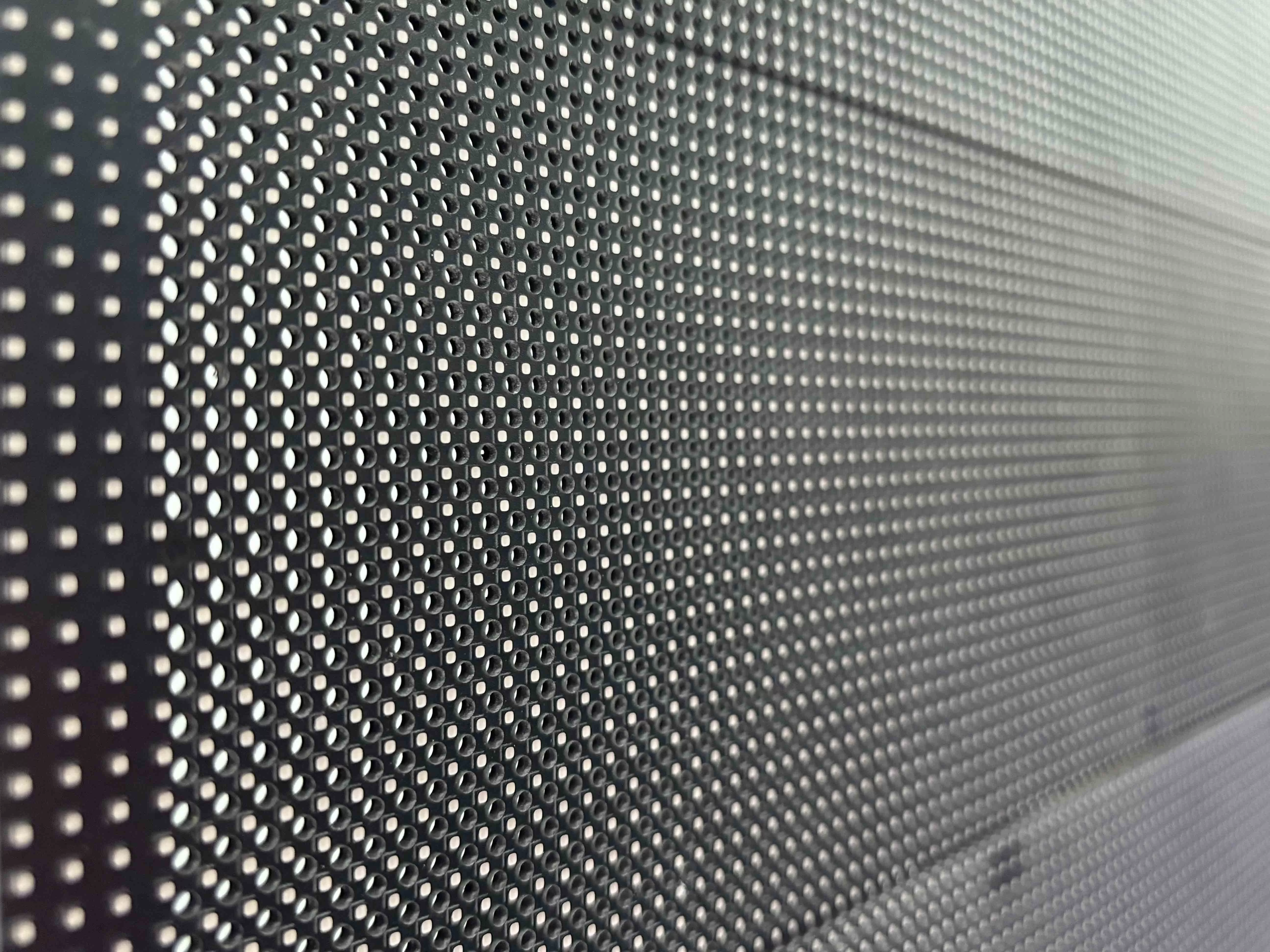

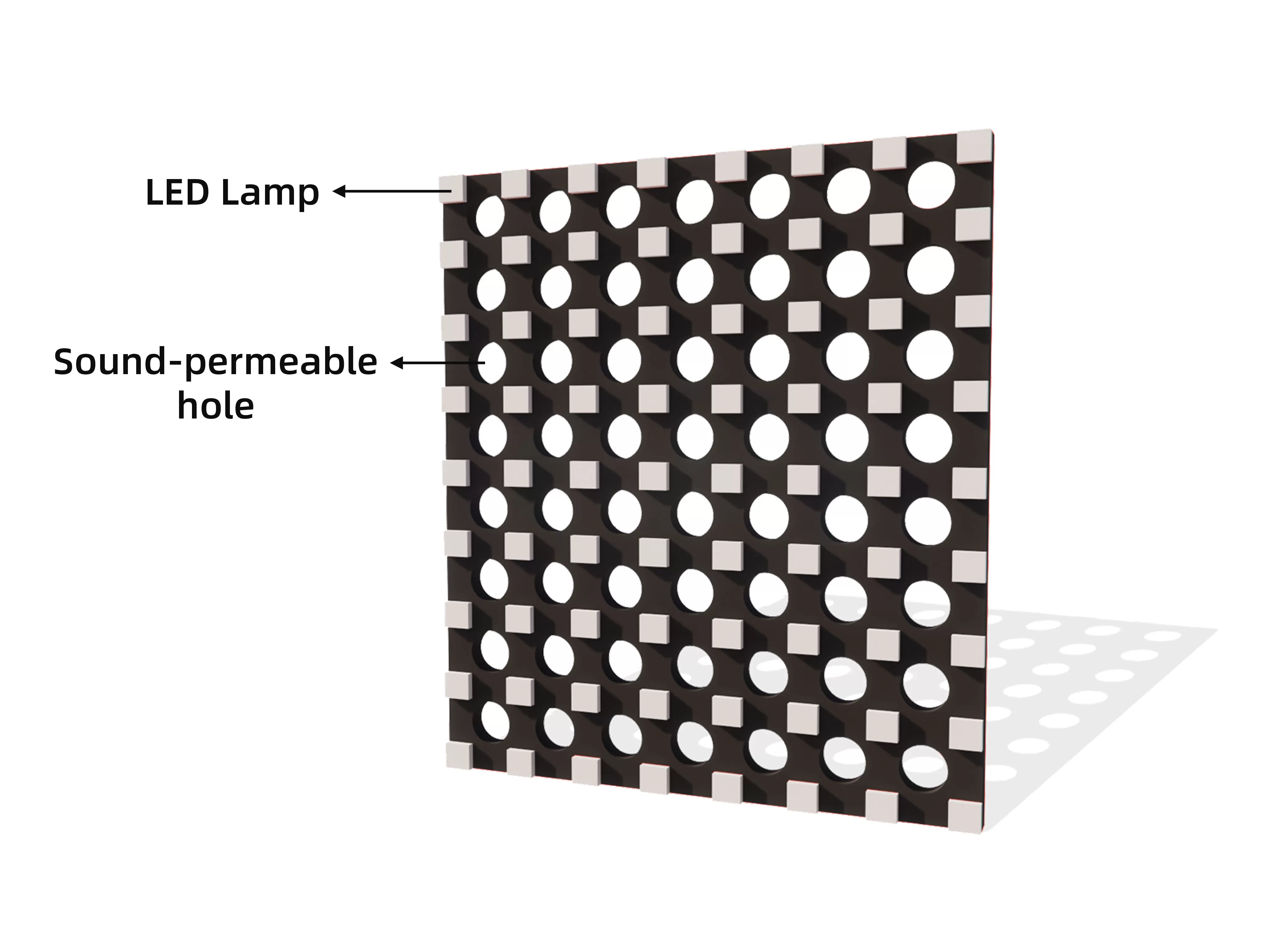

    Perforated Sound-Permeable Design

    Due to the uniform perforated substrate of Riddle R series, it reserves tiny sound-transmitting openings within the LED lamp array, allowing speaker sound waves to pass through unobstructed.

Product Parameter

Riddle R P2.6 P3.9 P6.2 P10.4
SMD Type 1415 1415 1921 2727
Pixel Pitch (㎜) 2.6 3.9 6.25 10.4
Pixel Density (dots/㎡） 73728 65536 25600 9216
Profile Dimension (㎜) 1000 × 1000 / 1000 × 500
Unit Size (㎜) 500 × 125
Unit Display Size (㎜)



 1000 × 1000 / 1000 × 500
Unit Definition (dot) 384 × 192

384 × 96

 256 × 256

256 × 128



 160 × 160

160 × 80

 96 × 96

96 × 48
Weight (kg/unit) 11 / 6.5
Brightness (cd/㎡) Black LED: 3000~4500

White LED: 4500~6000
Viewing Angle (H) 160°
Viewing Angle (V) 140°
Visual Transparency 78% 85% 88% 90%
Max Power (W/㎡) 800
Avg Power (W/㎡) 266
Refresh Rate (Hz)  3840
IP Rate         IP20    |    IP43（Nano Coating）
Operating  T&H -10～40℃ & 10 %~80 % RH（No Condensation）
Storage T&H -20～60℃ & 10 %~85 % RH（No Condensation）
Installation Method Fixed    |    Hanging
Maintenance Method Fully front & rear
Dsc05557
1 / 1
Cases

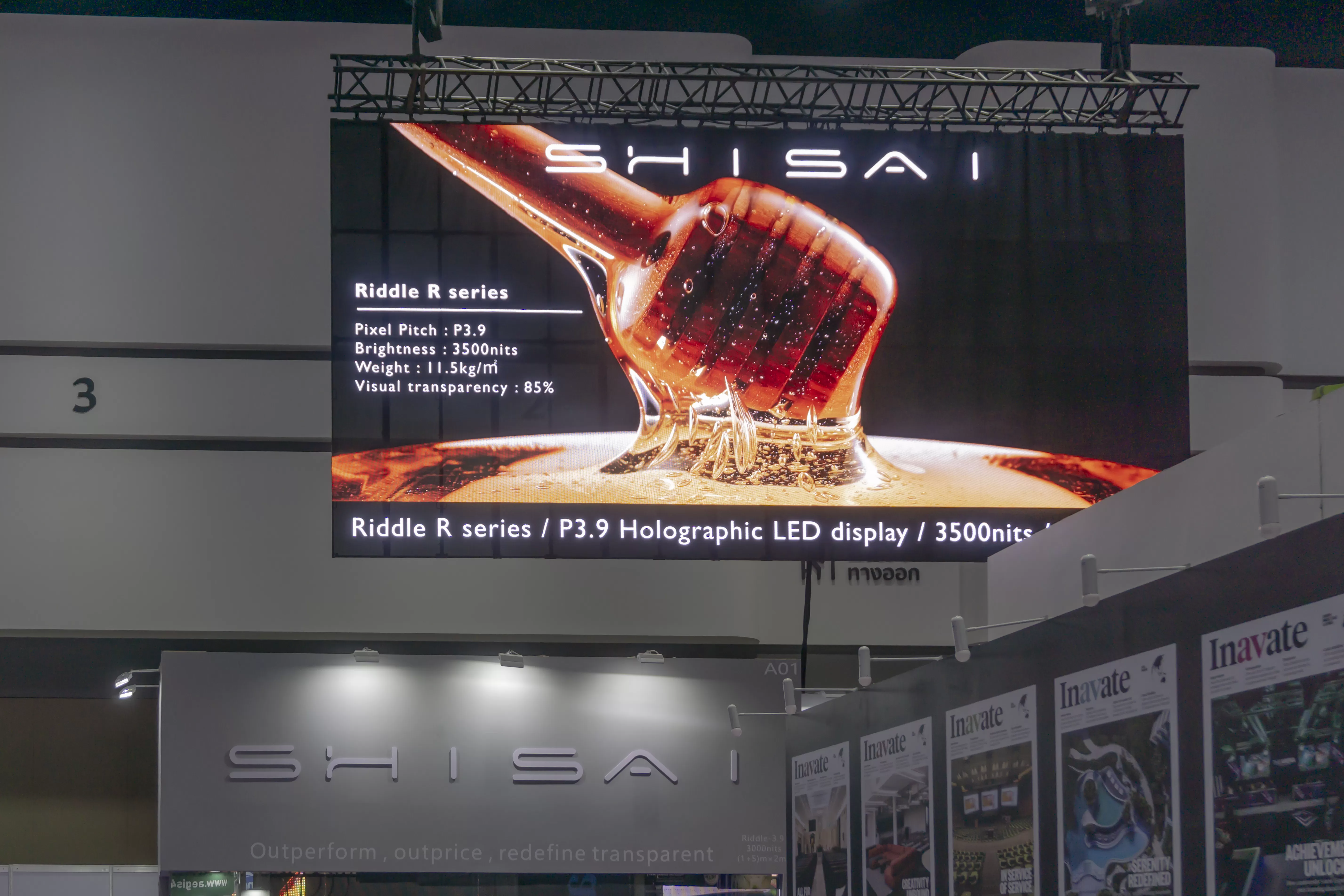

Infocomm Asia 2025 Exhibition Booth-Riddle R

Riddle R-3.9

Space size: W8000×H4000mm, 32㎡
