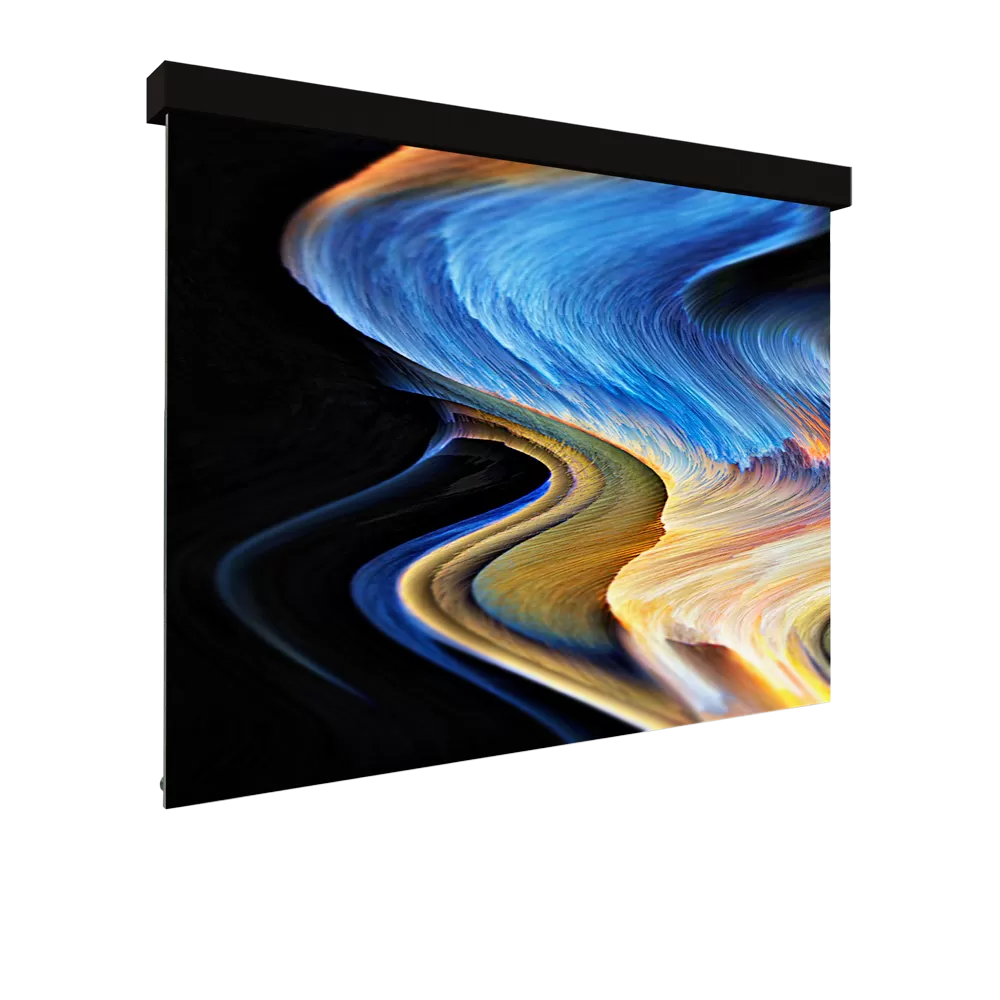

Slim

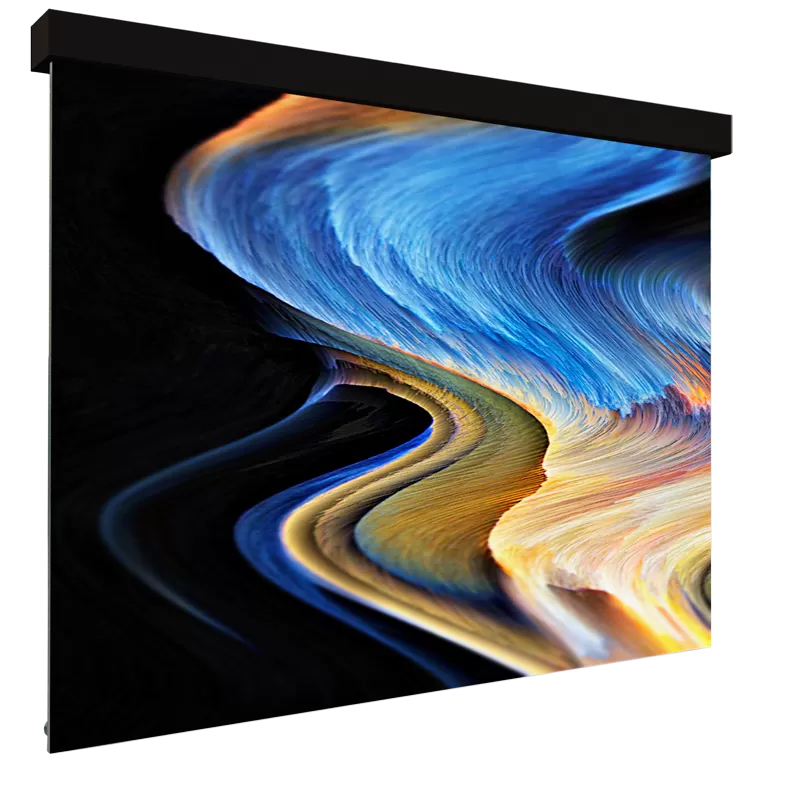

The Slim Series is a fine-pitch, high-brightness LED display that combines a lightweight design with ultra-clarity and a remarkably slim profile. It offers versatile installation options, including easy hanging and freestanding setups, to adapt to diverse spatial requirements. With integrated Wi-Fi cloud control for convenient remote content management, it serves as an ideal visual solution for commercial environments such as brand flagship stores, retail shops, shopping malls, supermarkets, and LED banner advertising.

Product Features

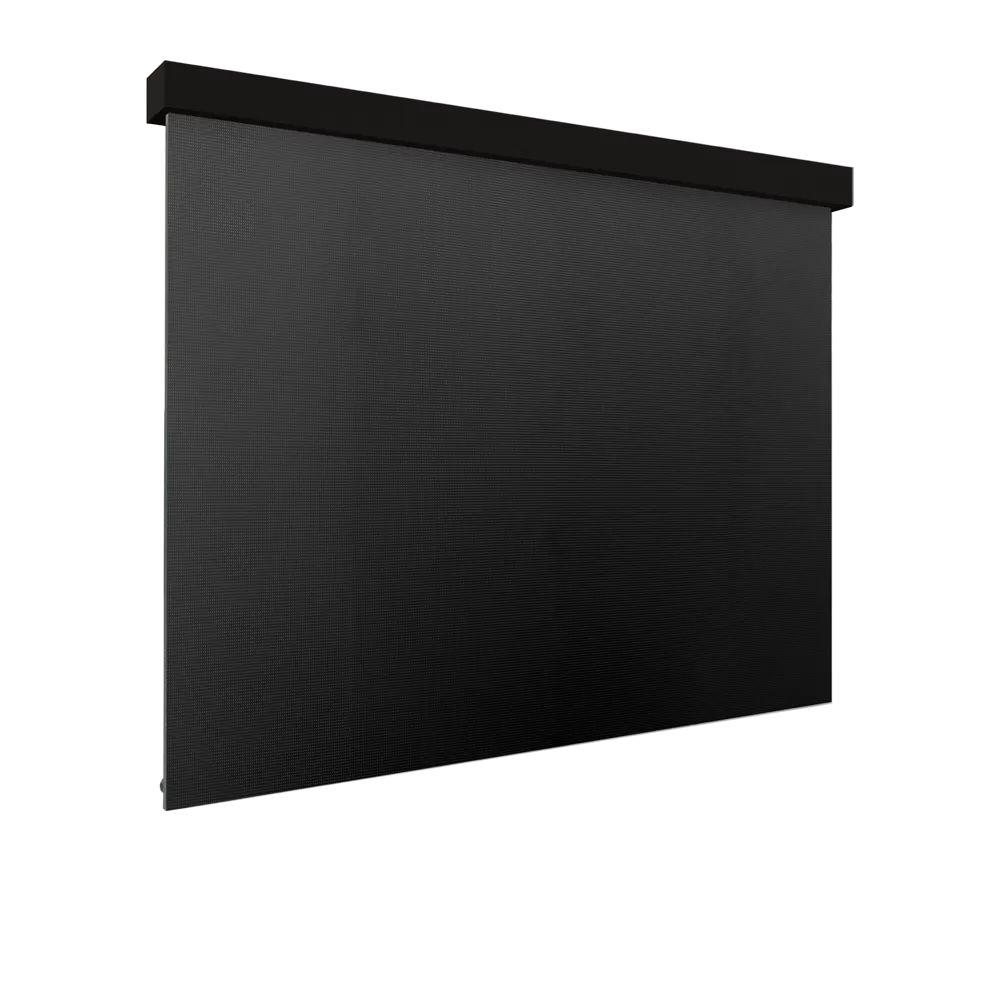

Ultra-Slim & Lightweight Easy Installation

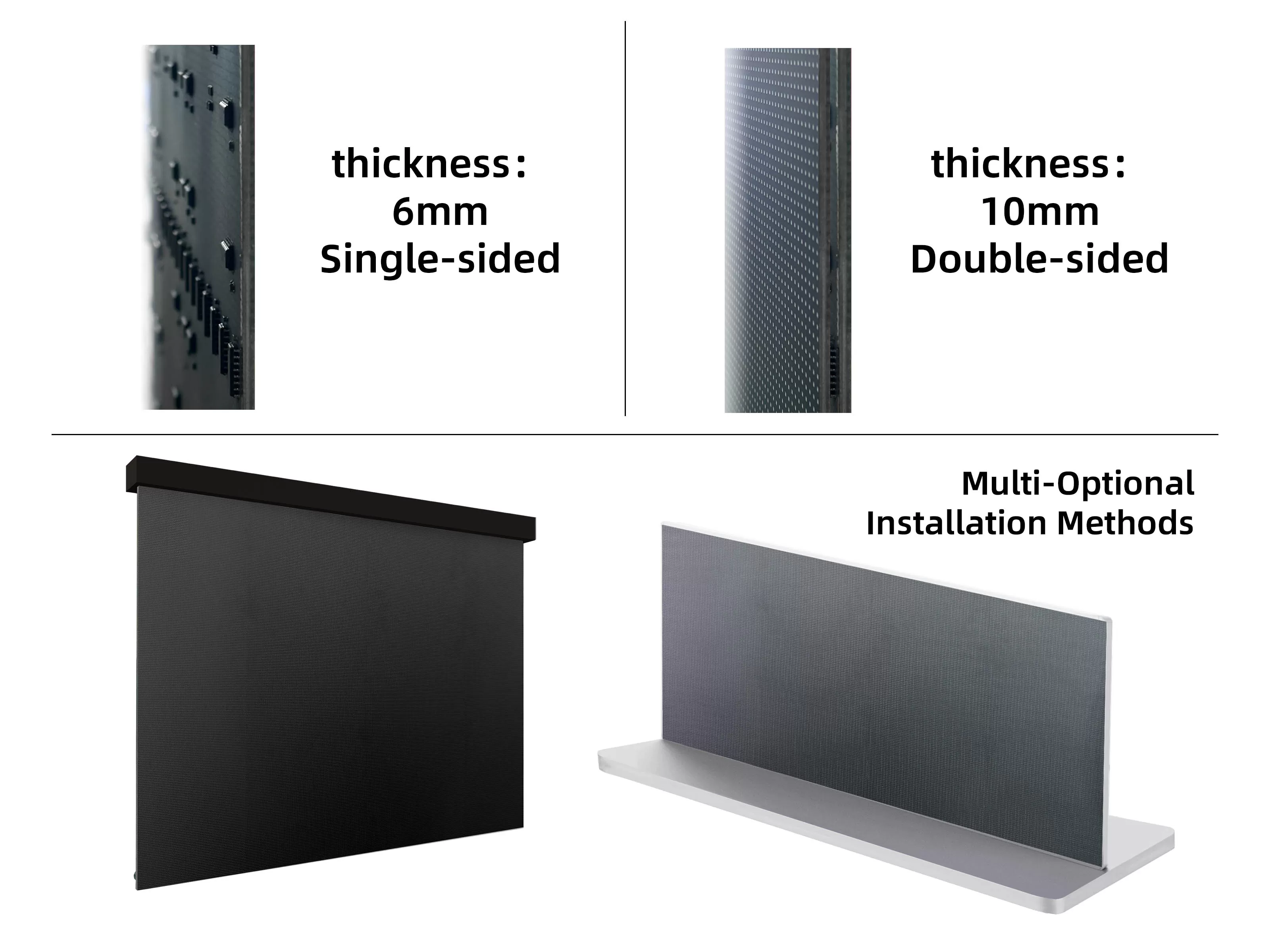

The display boasts an ultra-slim profile with a single-side thickness of only 6mm and a double-side thickness of 10mm.The weight per unit area is less than 10 kg/m². It reduces the demands on manpower and structural support for installation, enabling a quick and convenient setup experience.

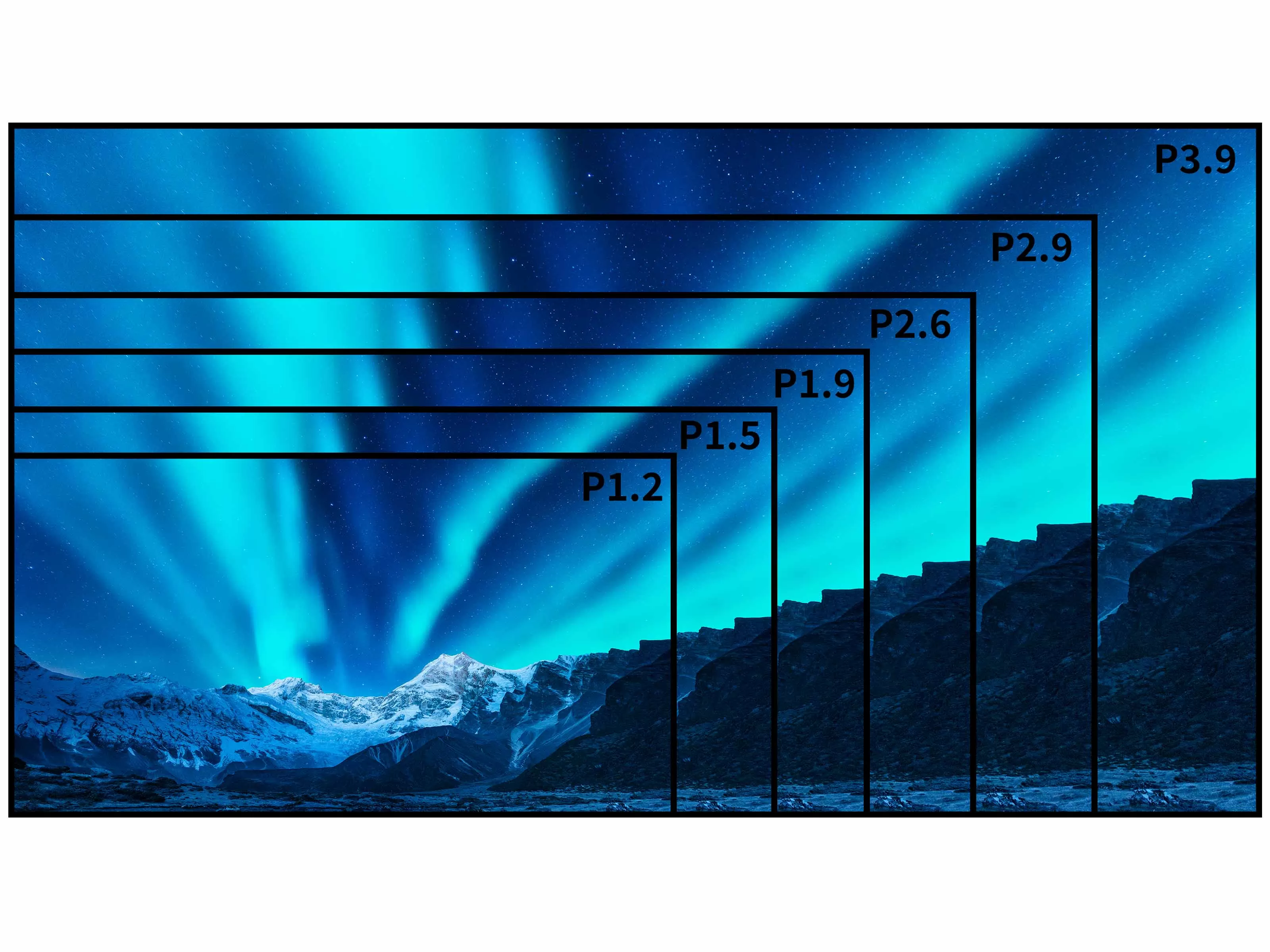

Fine Pixel Pitch for Stunning HD Detail

Featuring a 1.2-1.9mm pixel pitch, this display packs more pixels into a compact space. It delivers richer, more detailed content with stunning ultra-high-definition clarity for an impressive viewing experience.
High Brightness

Utilizing high-brightness LED lamps with advanced MIP packaging, this product achieves an impressive luminance of 1500 - 2000 cd/m². Whether in brightly lit indoor spaces or semi-outdoor environments, it ensures vivid, colorful, and standout imagery, guaranteeing optimal visibility and clarity around the clock.

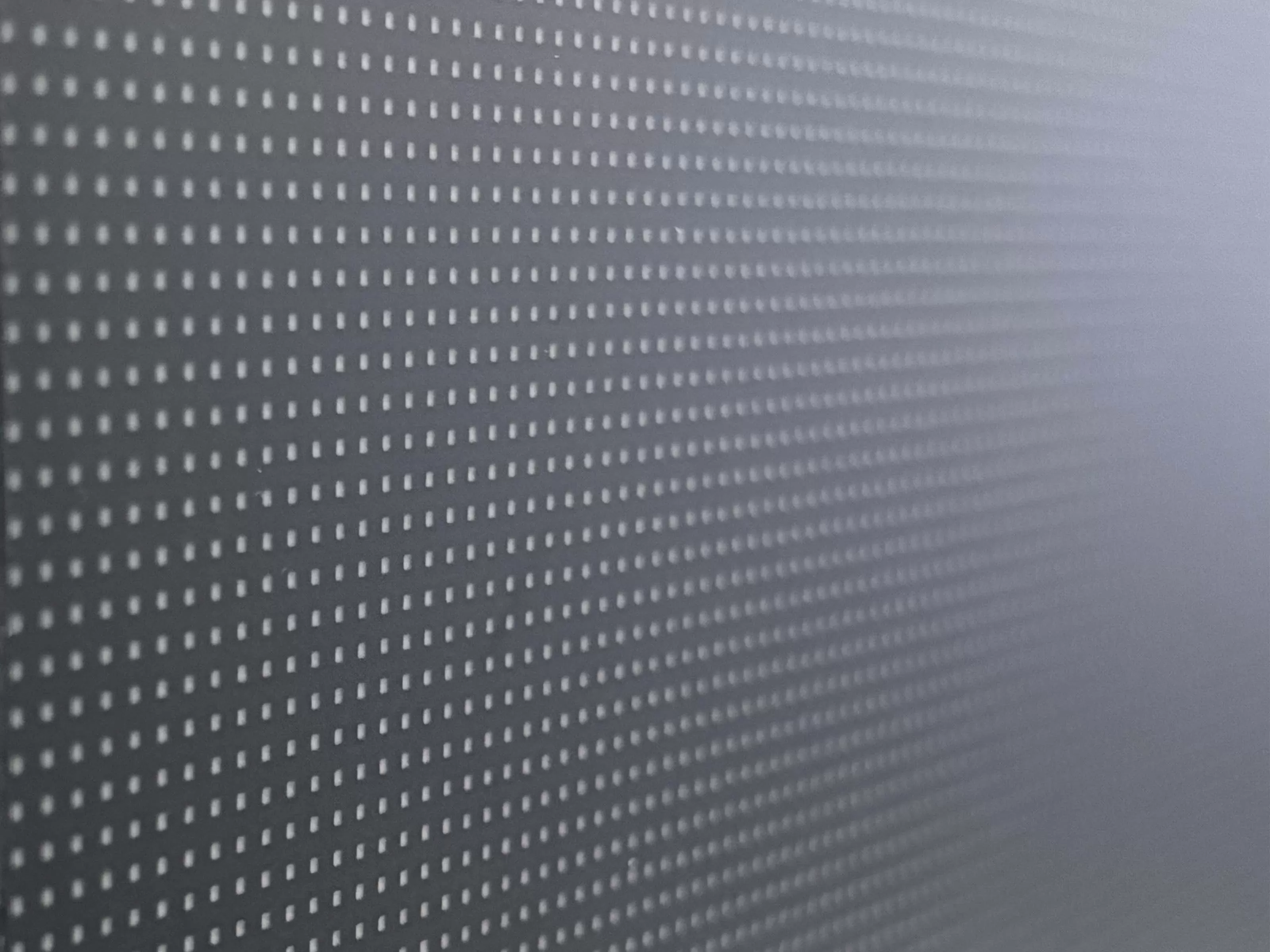

GOB Protection

Protected by GOB (Glue on Board) technology, the screen resists impacts and guards against damage from handling,installation, and daily use, ensuring long-term reliability.

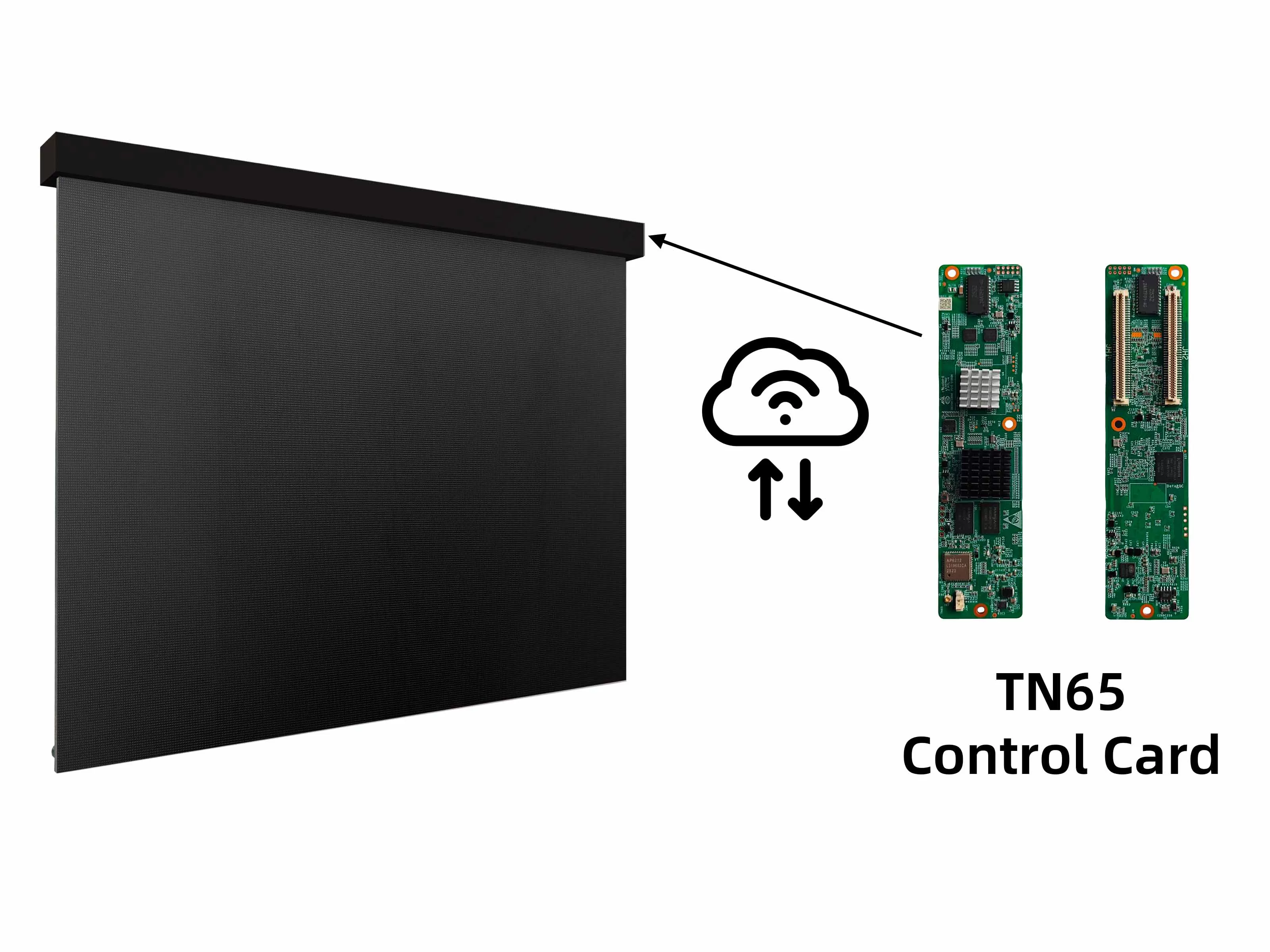

Smart Cloud Control for Effortless Management

Equipped with the high-performance TN65 control card, it supports Wi-Fi cloud control functionality. Remotely manage and update content in real-time over the network without the need for physical access. This enables convenient, efficient content scheduling, dramatically enhancing operational flexibility and management efficiency.

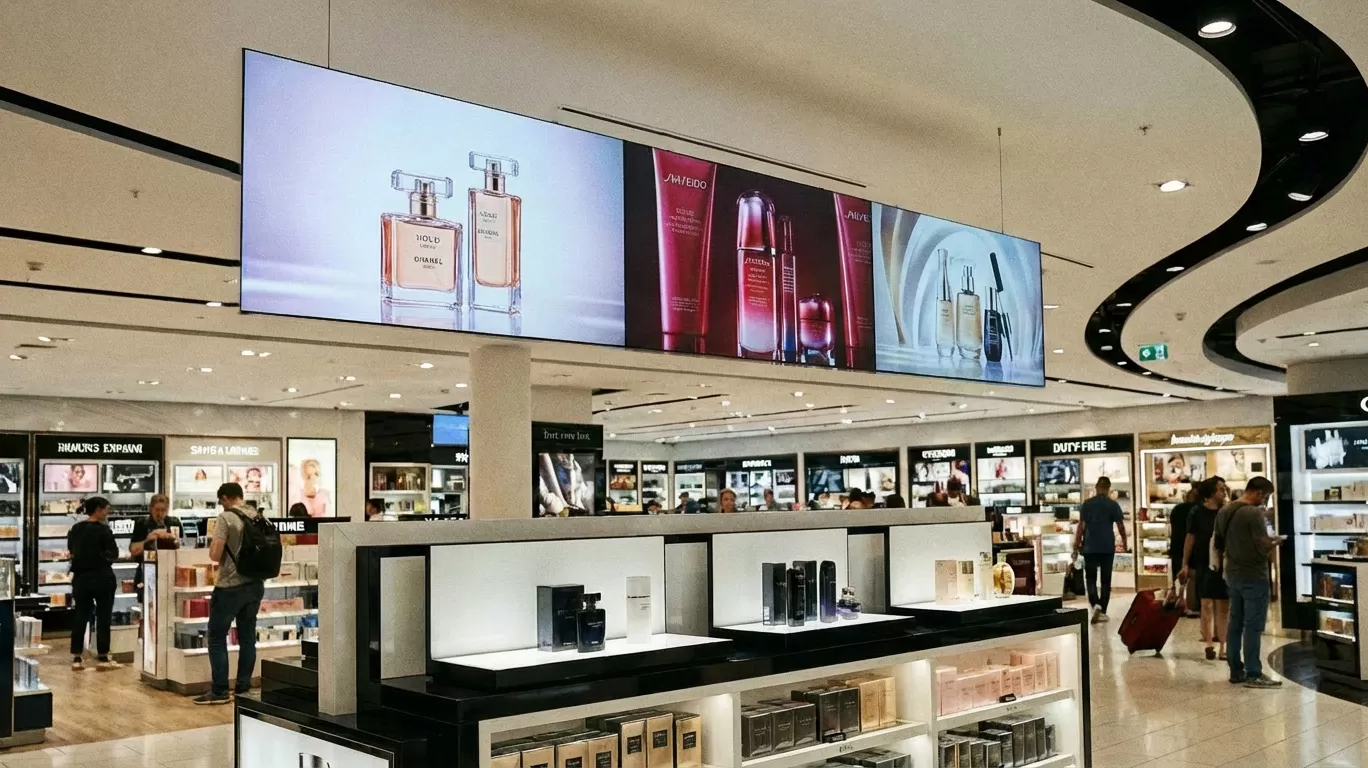

Application Scenario

Convenience Store
Brand store
Retails shop

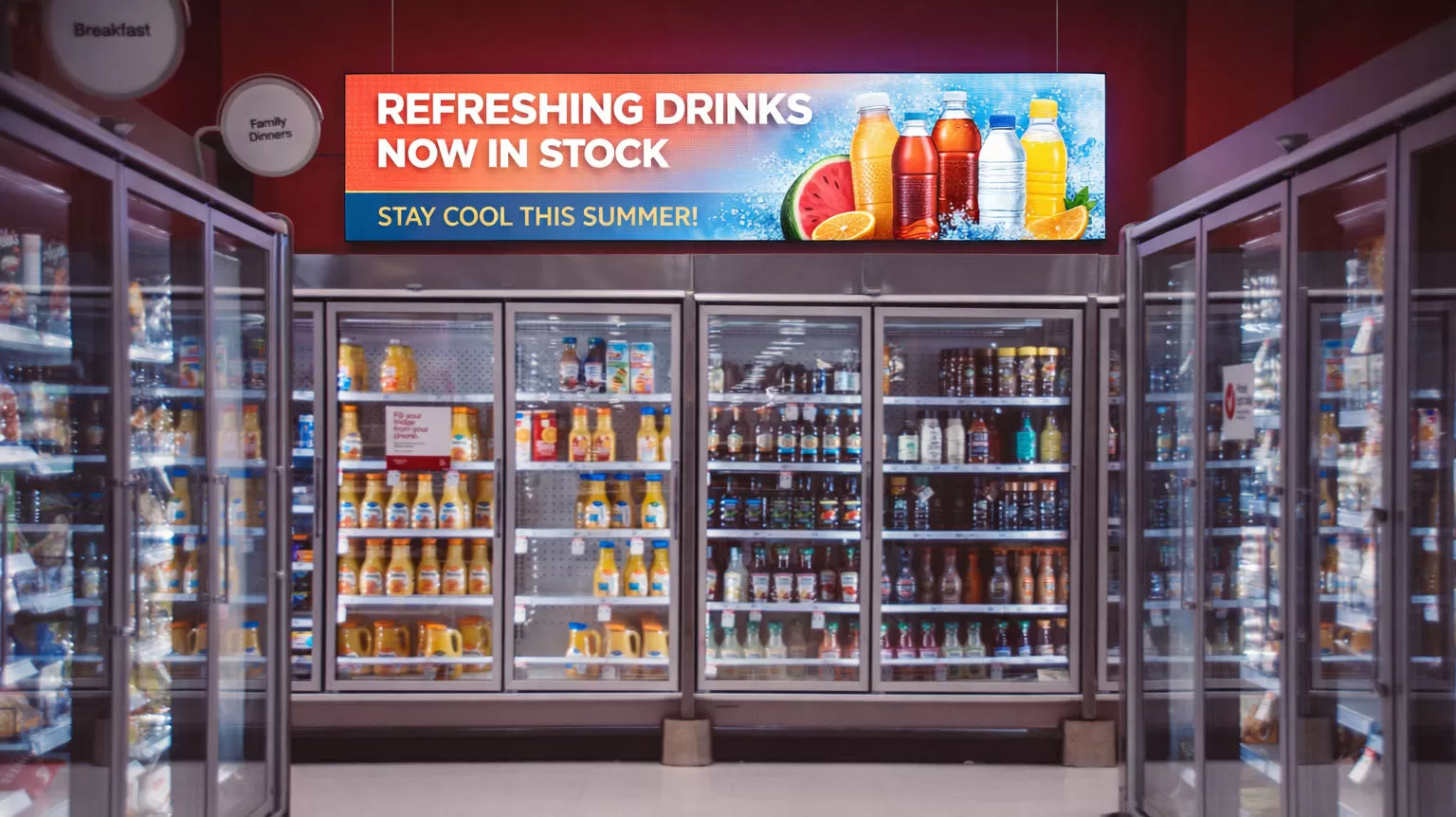

Supermarket

Product Parameter

Slim series	P1.2		P1.5		P1.9		P2.6		P3.9
LED Type	MIP	SMD/GOB	MIP	SMD/GOB	MIP	SMD/GOB	MIP	SMD/GOB	MIP	SMD/GOB
Pixel Pitch (㎜)	1.25		1.56		1.953		2.604		3.906
Pixel Density (dots/㎡）	640000		409600		262144		147456		65536
Module Size (㎜)	250 × 400		250 × 400		250 × 500		250 × 500		250 × 500
Module Resolution (dot)	200 × 320		160 × 256		128 × 256		96 × 192		64 × 128
Panel Size (㎜)	250 × 400 250 × 800		250 × 400 250 × 800		250 × 500 250 × 1000 250 × 1500		250 × 500 250 × 1000 250 × 1500		250 × 1000 250 × 1500
Panel Resolution (dot)	200 × 320 200 × 640		160 × 256 160 × 512		128 × 256 128 × 512 128 × 768		96 × 192 96 × 384 96 × 576		64 × 256 64 × 384
Material	FR4 / Aluminum
Panel Thickness (㎜)	6（Single-sided）/ 10（Double-sided）
Power Box Thickness (㎜)	40 × 150（Single-sided）/ 60 × 150（Double-sided）
Weight (kg/Panel)	1.5 3		1.5 3		1.5 3 4		1.5 3 4		3 4
Brightness (cd/㎡)	2000	500	2000	500	2000	500	2000	500	2000	500
Viewing Angle (H&V)	160°
Max Power (W/㎡)	650	750	650	750	650	750	650	750	650	750
Avg Power (W/㎡)	217	250	217	250	217	250	217	250	217	250
Refresh Rate (Hz)	3840
IP Rate	Module: IP54 (Front) / IP43 (Rear) \| Power Box: IP30
Contrast Ratio	4000:1
Operating T&H	-10～40℃ & 10 %~80 % RH（No Condensation）
Storage T&H	-20～60℃ & 10 %~85 % RH（No Condensation）
Installation Method	Handing \| Floor standing
Maintenance Method	Front
