Breeze

Breeze

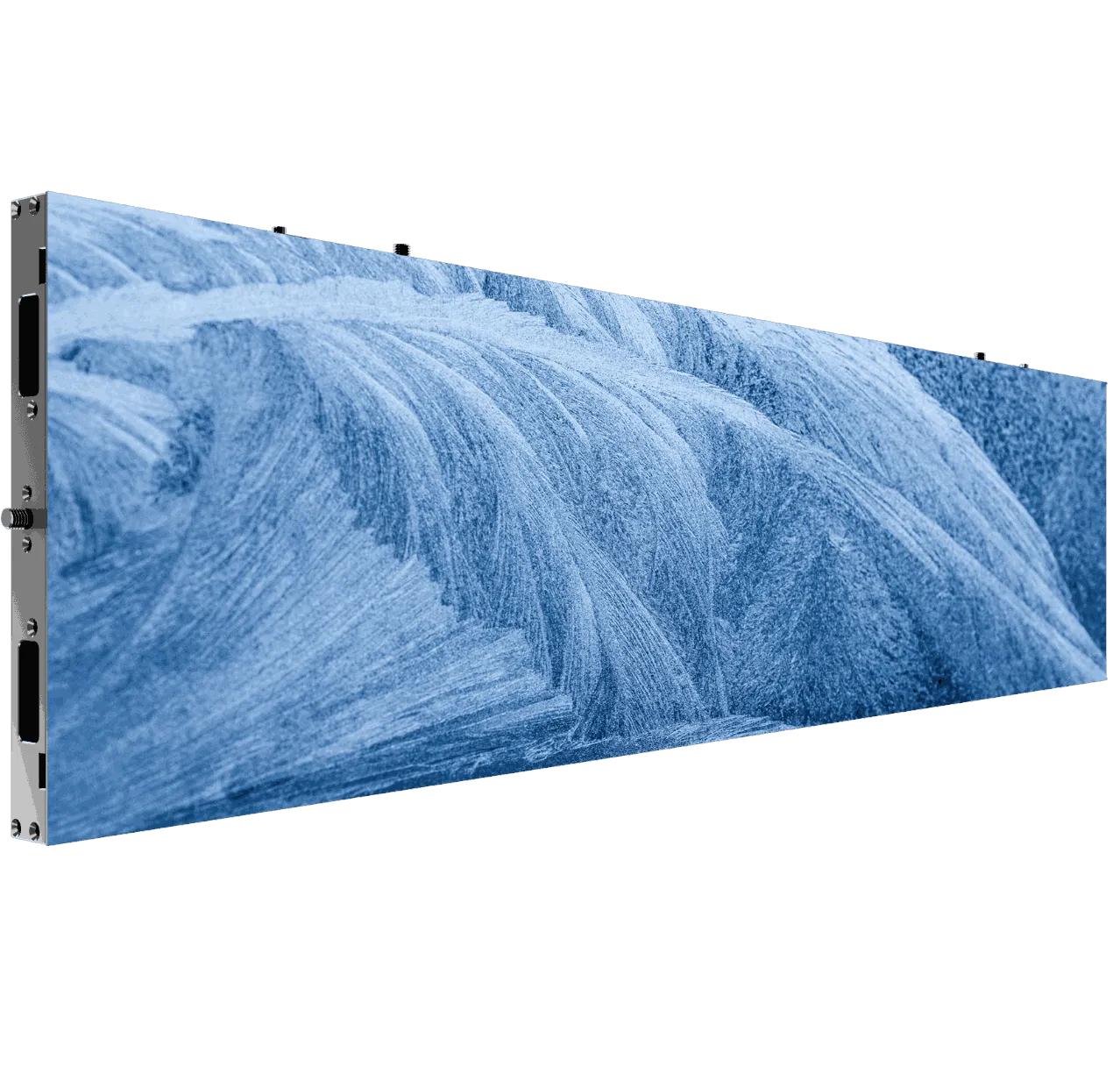

Breeze series LEDs are universal solutions for indoor fixed installations. In addition to convenient front service, slim & light panel, it can also be wall-mounted when space is limited. Moreover, it is easy to reach a 90°degree column.

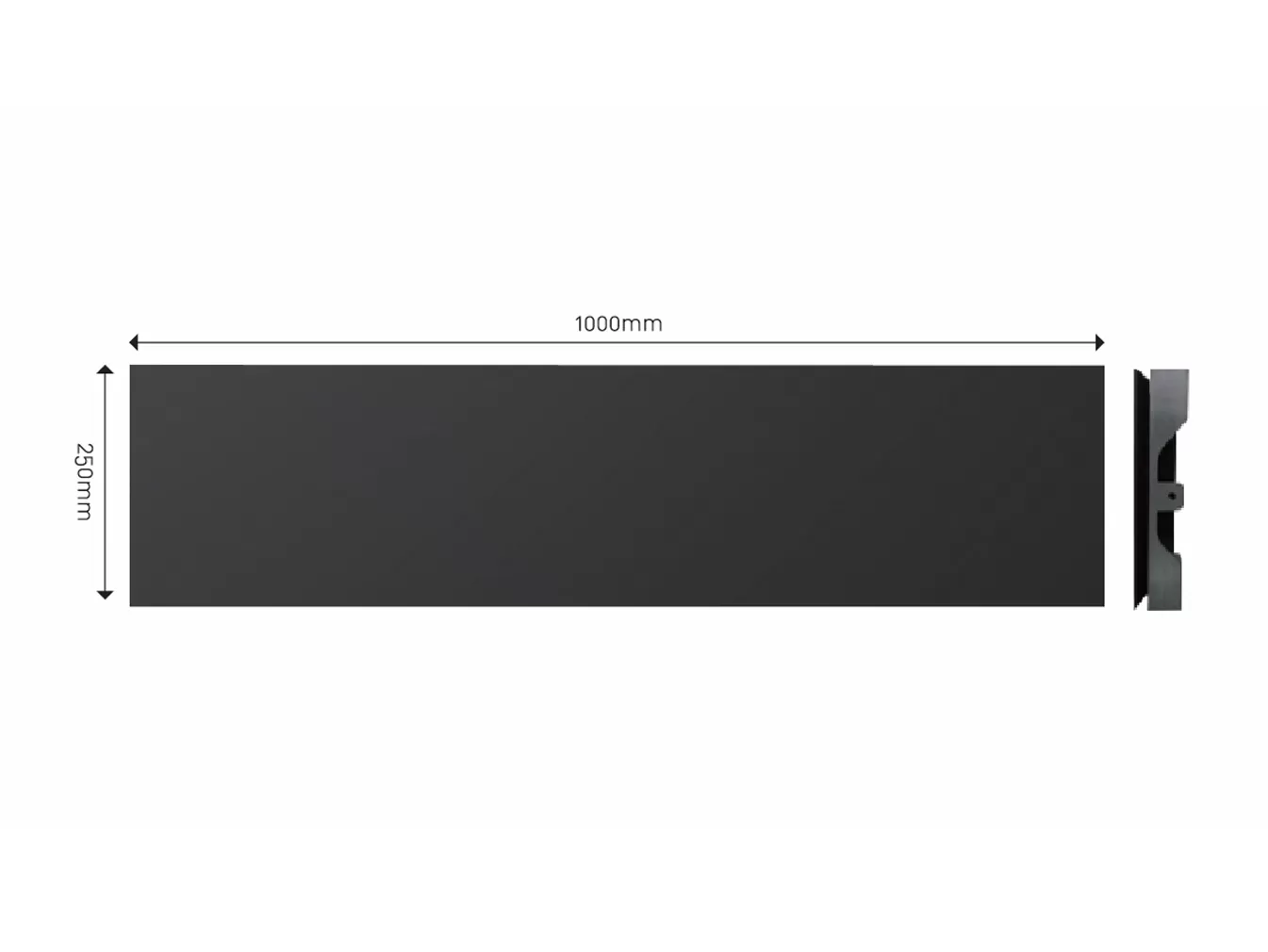

Breeze series has three sizes 1000*250mm, 750*250mm, which could be built together for any irregular screen.

Breeze banner
  • Pitch(mm) :1.9/2.6/2.9/3.9
  • Applications :

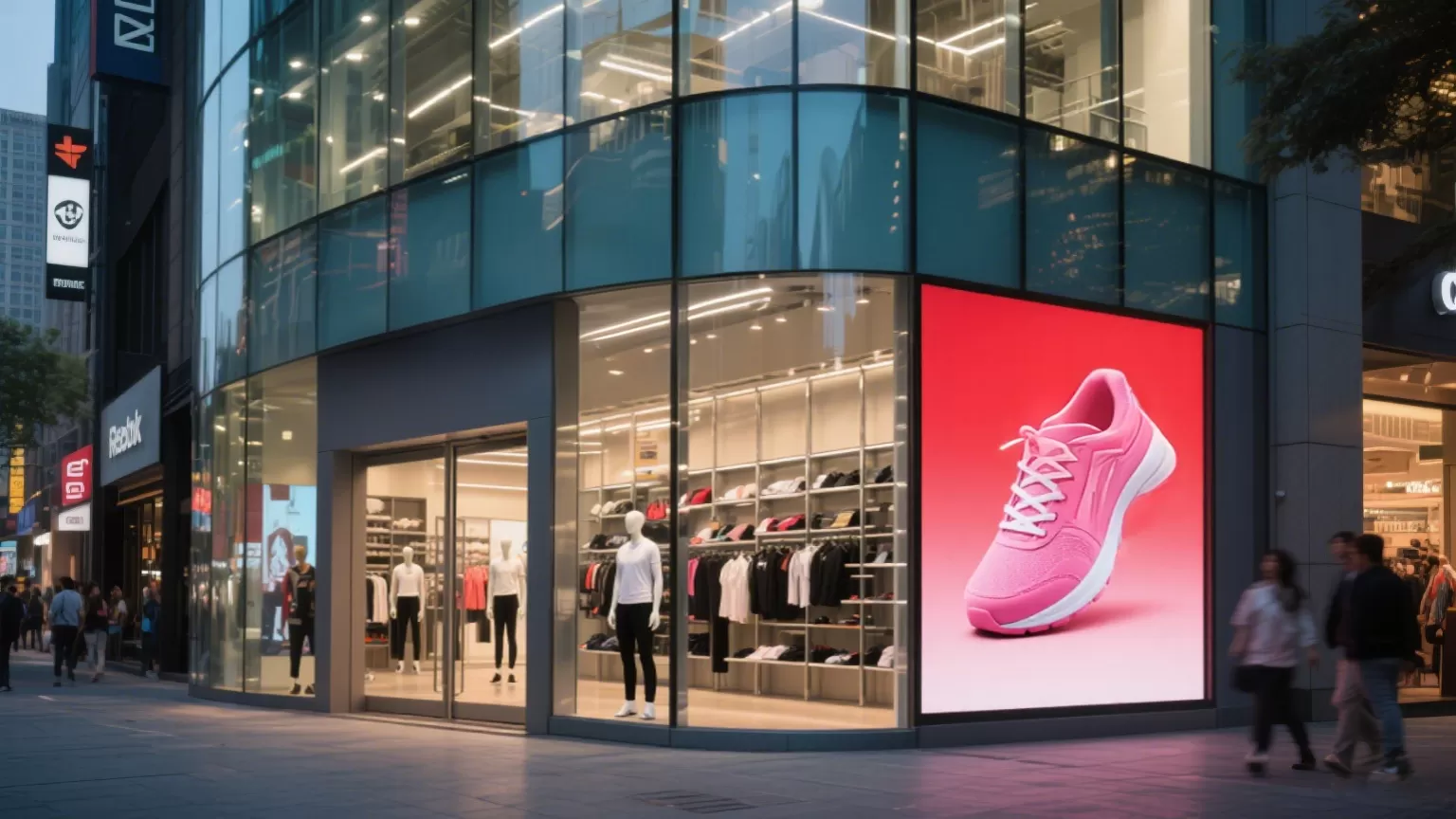

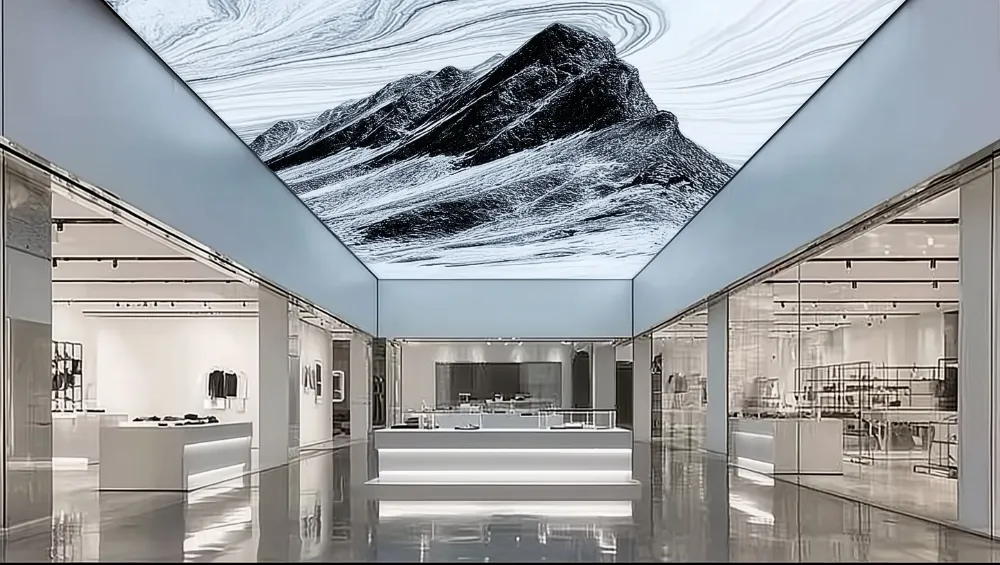

    Retails ＆ Street Stores

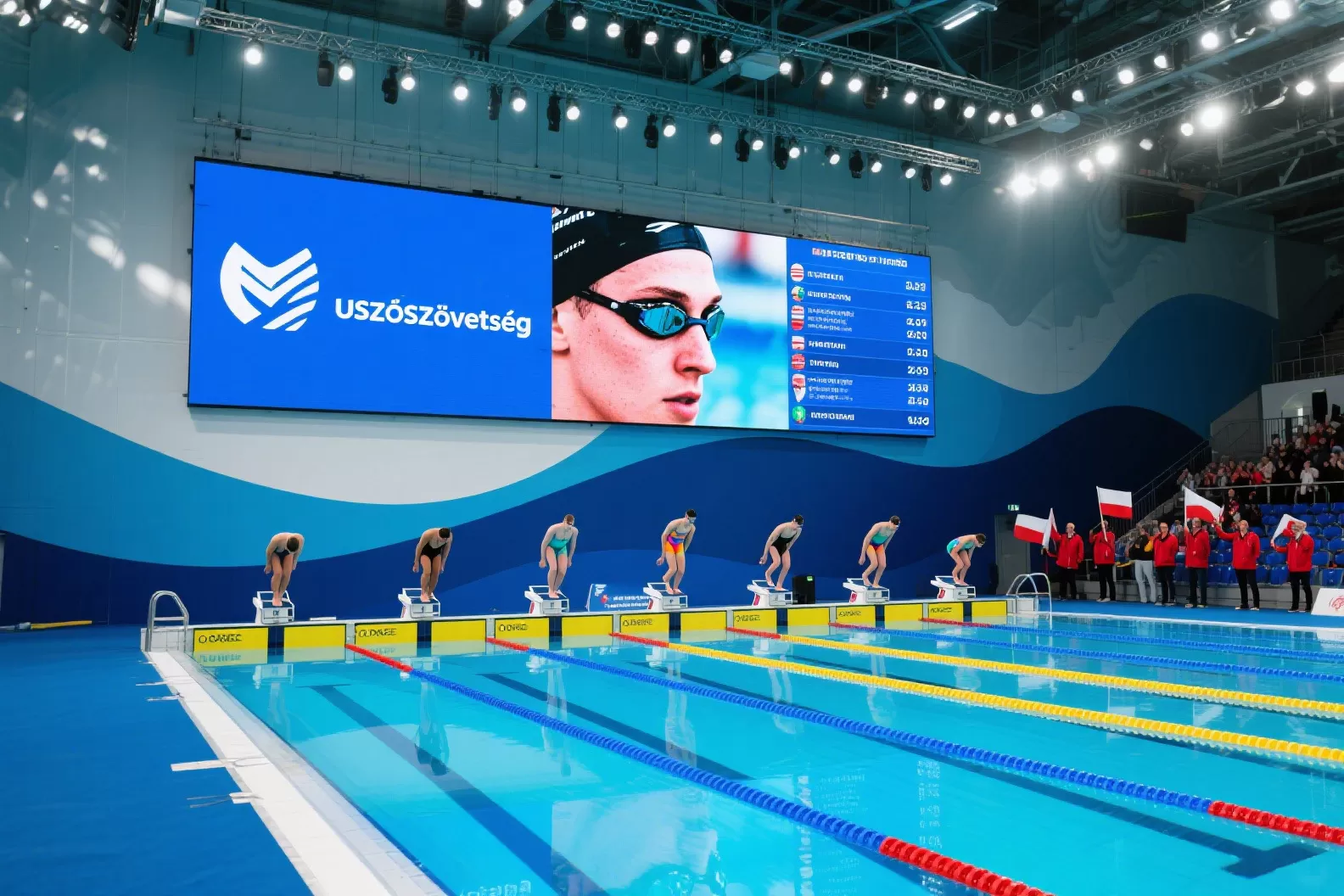

    Gym ＆ Stadium
    Indoor cases with rear space limited

Product Features

  • Breeze (3)
    SLIM & LIGHT-WEIGHT

    As a space and mounting cost saver, the Breeze series uses ultra-thin bezels, and the LED signage indoor is only 6.5kg/panel and 53mm thickness.

  • Breeze (4)

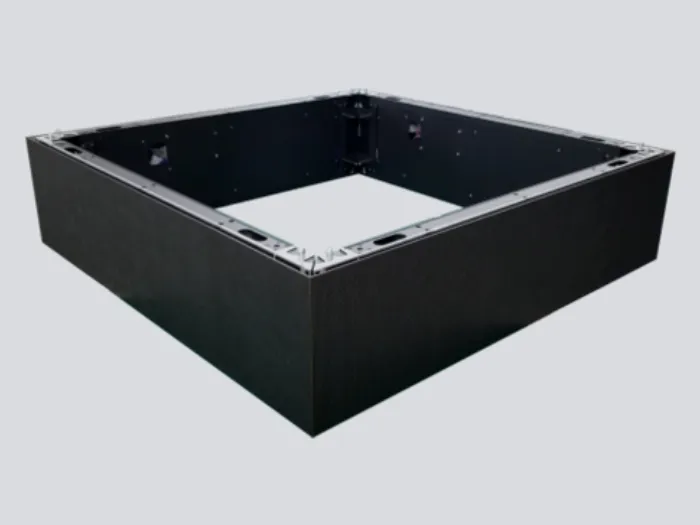

    90° CORNER SHAPE AVAILABLE

    The pre-processed module bevel makes 90° angle joint very easy.

  • Breeze1

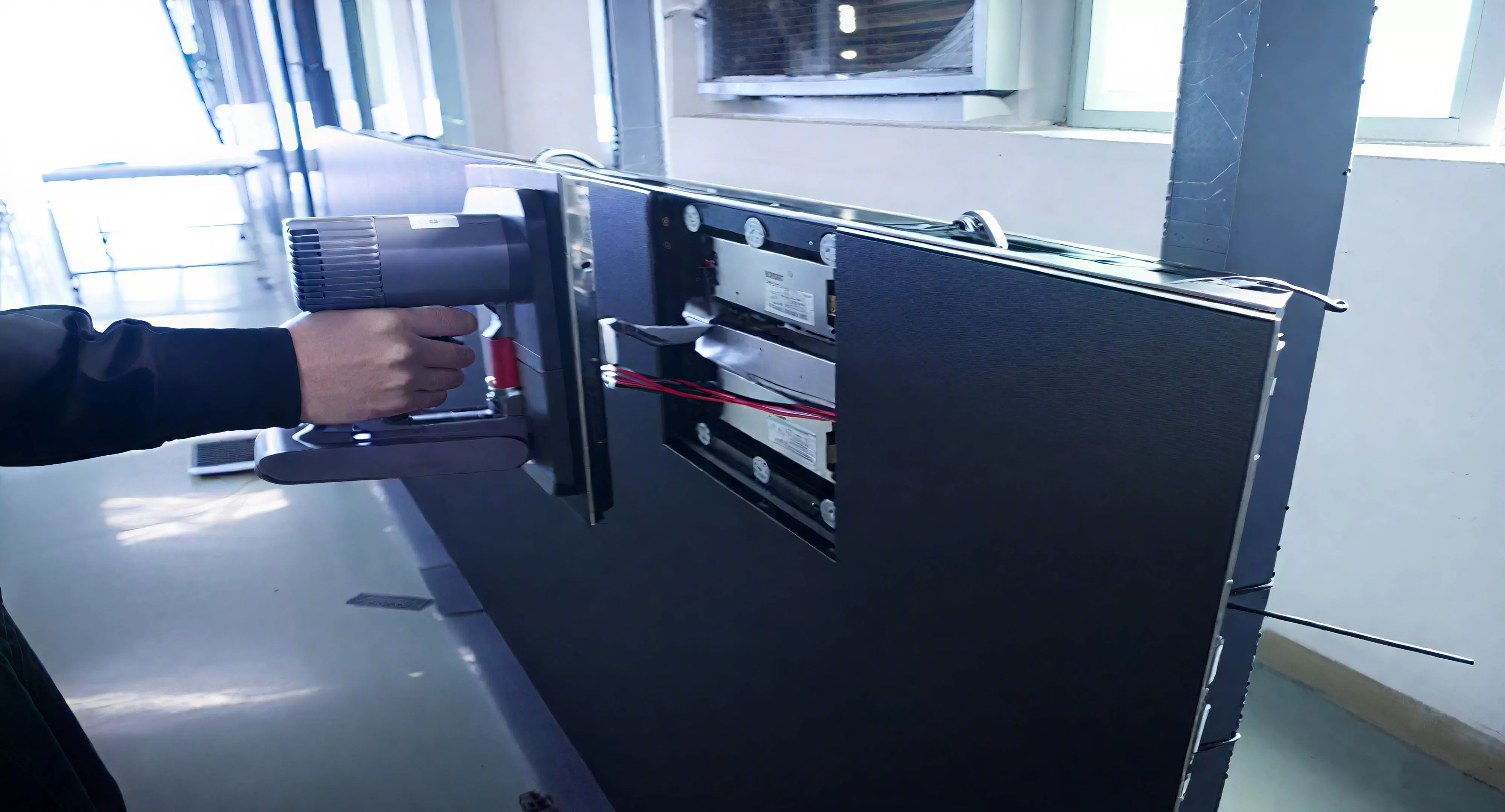

    FULL-FRONT MAINTENANCE

    Breeze series indoor LED walls have a magnetic attaching module. Which can easily achieve full front access and installation, as well as easy disassembly for maintenance. And that is convenient for maintenance in any situation.

  • Breeze2

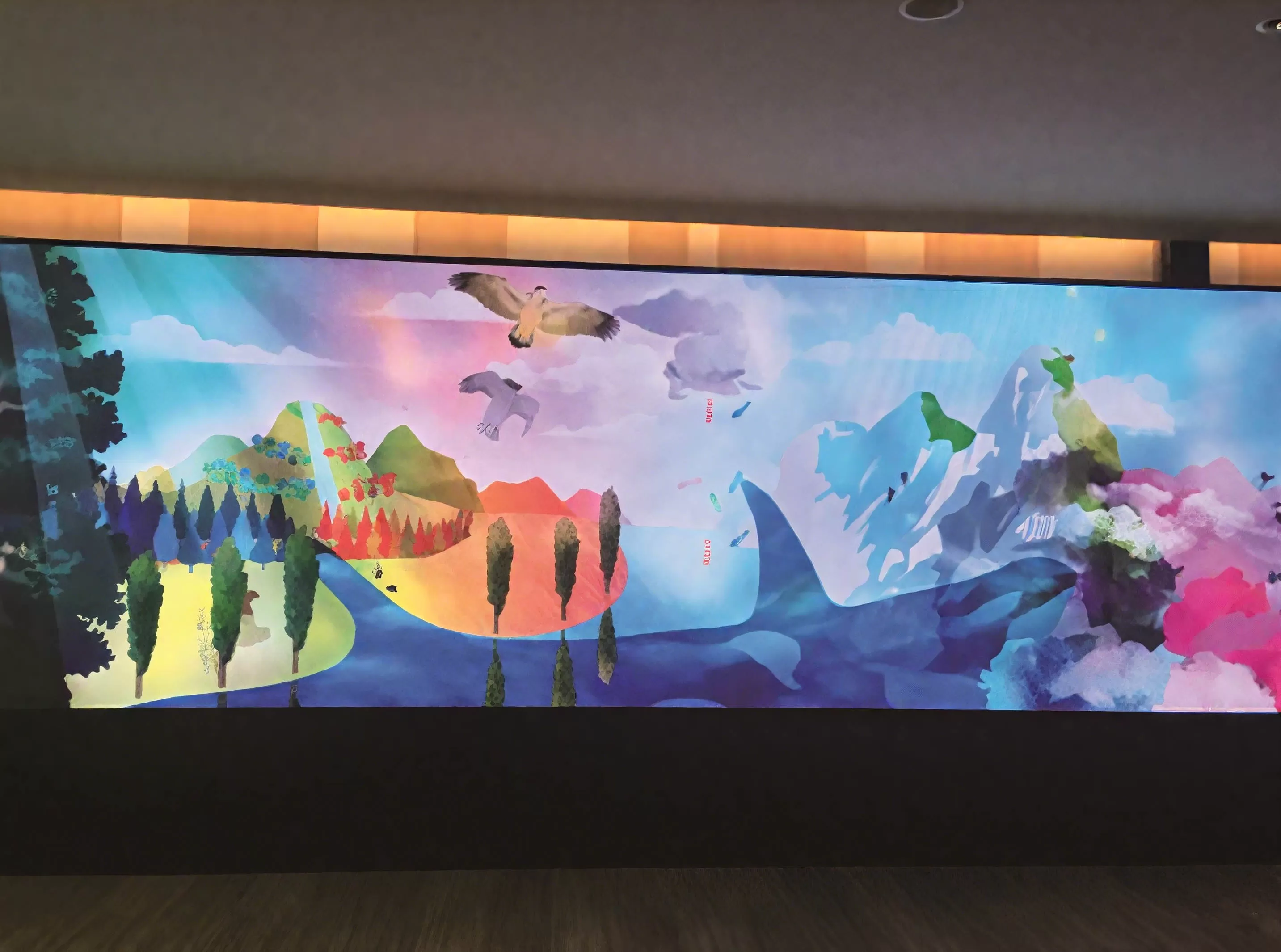

    WALL MOUNTED

    Breeze series of wall-mounted led panels can be directly mounted on the wall, saving rear space and providing customers with more effective space utilization. Easy to install.

  • 液晶和led尺寸转换
    Inch and LED Screen Size

    A quick-reference guide for correlating standard inch measurements with LED display dimensions.

Product Parameter

Breeze P1.9 P2.6 P2.9 P3.9
Pixel Pitch(mm) 1.953 2.604 2.976 3.906
Pixel Density (dot/㎡) 262,144 147,456 112,896 14400
Module Size(mm) 250 × 250
Panel Size(mm) 1000 × 250 × 53.17 / 750 × 250 × 53.17 1000 × 250 × 53.4 / 750 × 250 × 53.4 1000 × 250 × 53.3 / 750 × 250 × 53.3 1000 × 250 × 53.42 / 750 × 250 × 53.42
Panel Resolution(dot) 512 × 128/384 × 128 384 × 96/288 × 96 336 × 84/252 × 84 252 × 64/192 × 64
Panel Material Die-casting Aluminum
Panel Weight(kg/pcs) 6.4/5
Brightness(cd/㎡) 800 1000 1000 1200
Viewing Angle (H) 160°
Viewing Angle (V) 140°
Contrast Ratio 4000:1
Max.& Avg. Power Consumption (W/㎡) 680/225 640/210 640/210 640/210
Refresh Rate (Hz) 3840 1920
Maintenance Way Front or Rear
Installation Way Front or Rear
IP Rate IP20
Operating T&H -10-40℃&10-80%RH（No Condensation）
Storage T&H -20-60℃&10-85%RH （No Condensation）
Certification CE, RoHS, EMC, CCC
7a465a17 60
10001
2.6mmadidas hbanner
507eb94e 3b8f 45a0 80a5 1da15153b322
1 / 4
Cases

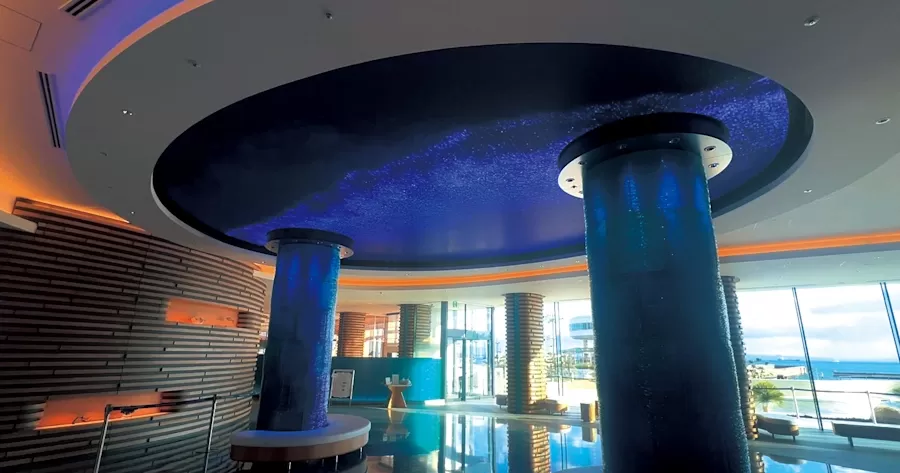

Ceiling Screen in A Resort Hotel of Japan

Breeze-3.9

Space size:W8500×H6750mm,43.75㎡

View More
Cases

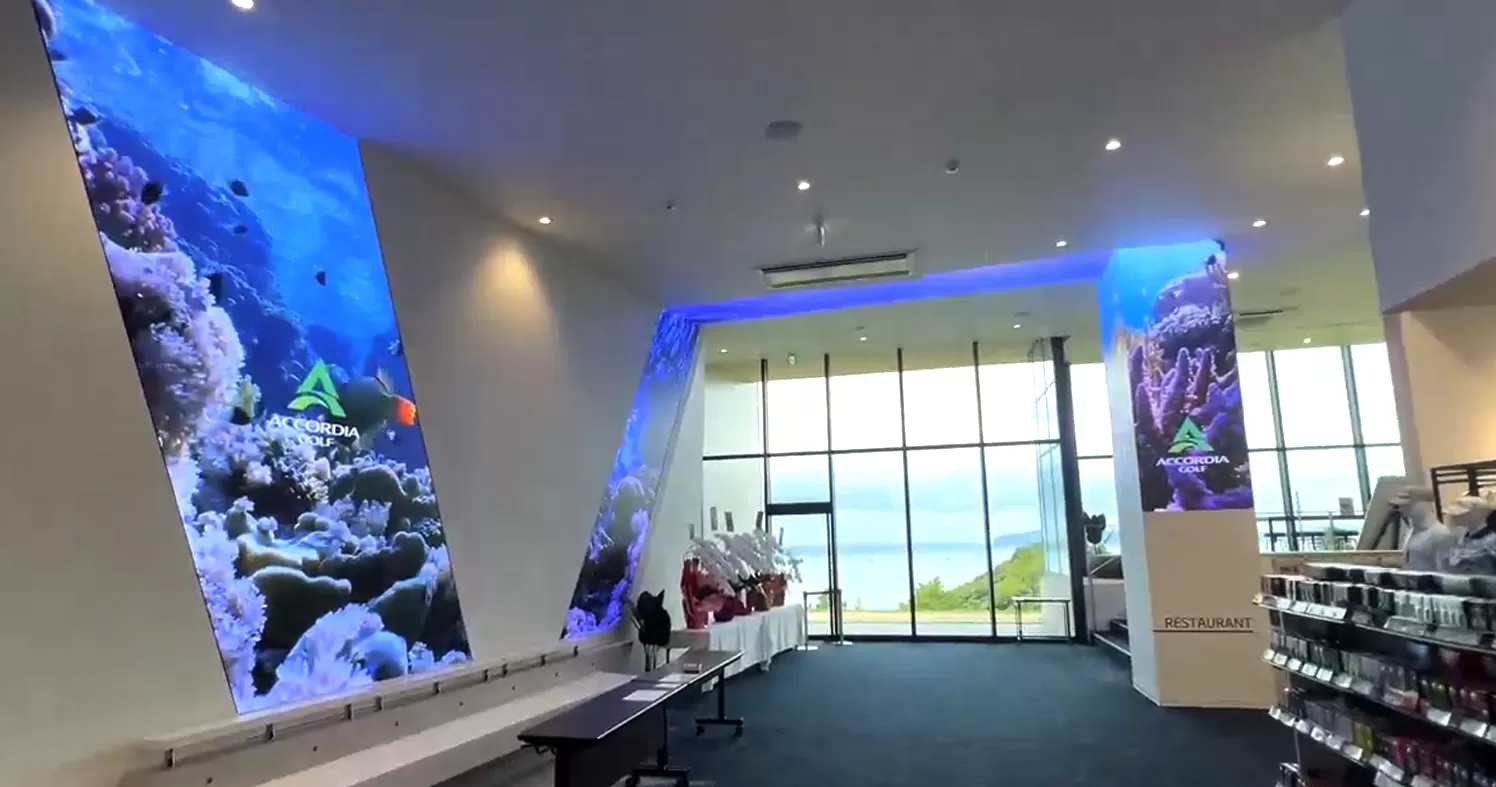

Japanese Golf Club

Breeze-2.9 GOB

Space size:W5250 × H1000 mm, 5.25㎡

View More
Cases

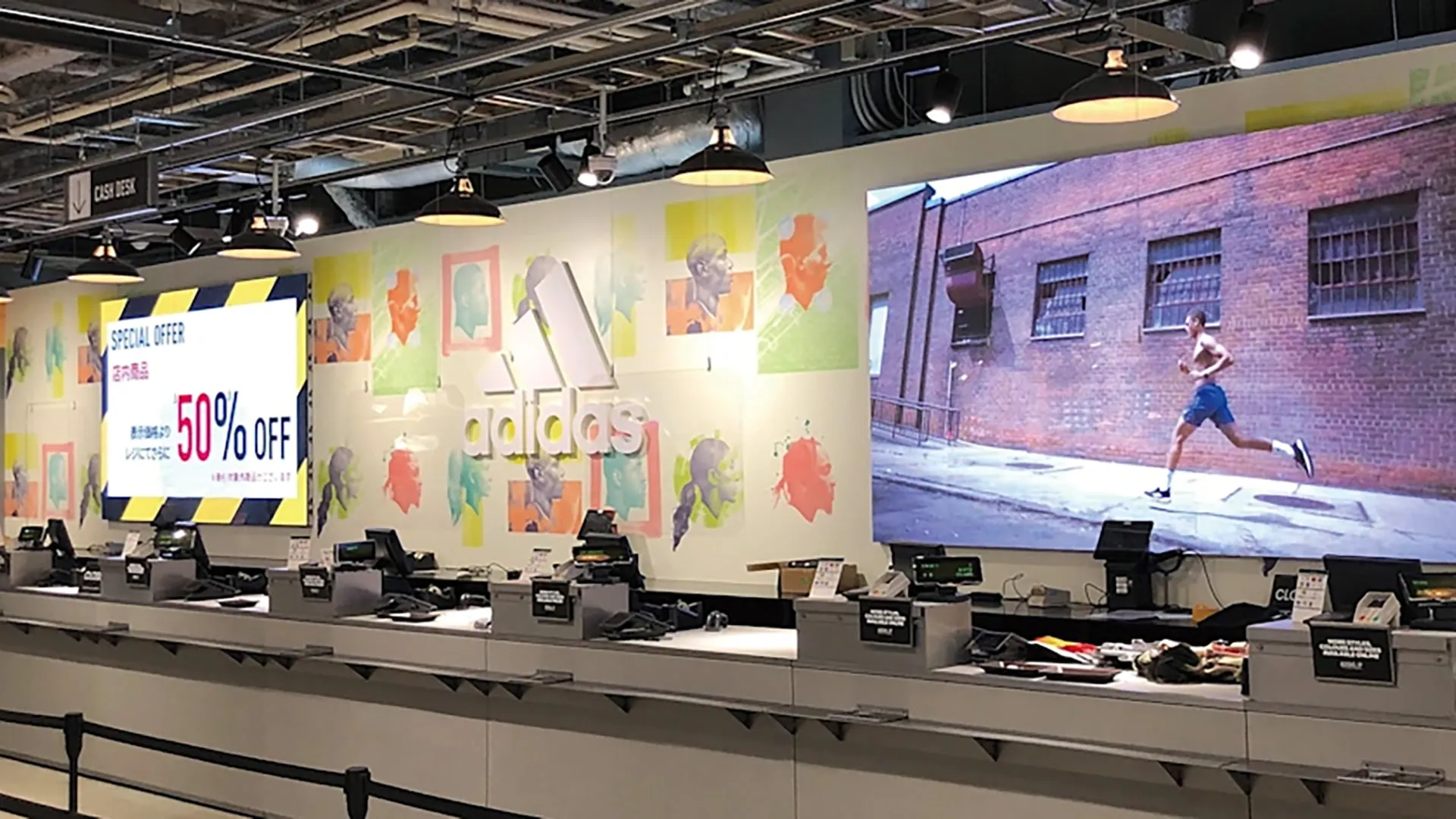

A Well-Known Brand Factory Outlet Rinku

Breeze-2.6

Space size:W3000xH1750mm, 10.5㎡

View More
Cases

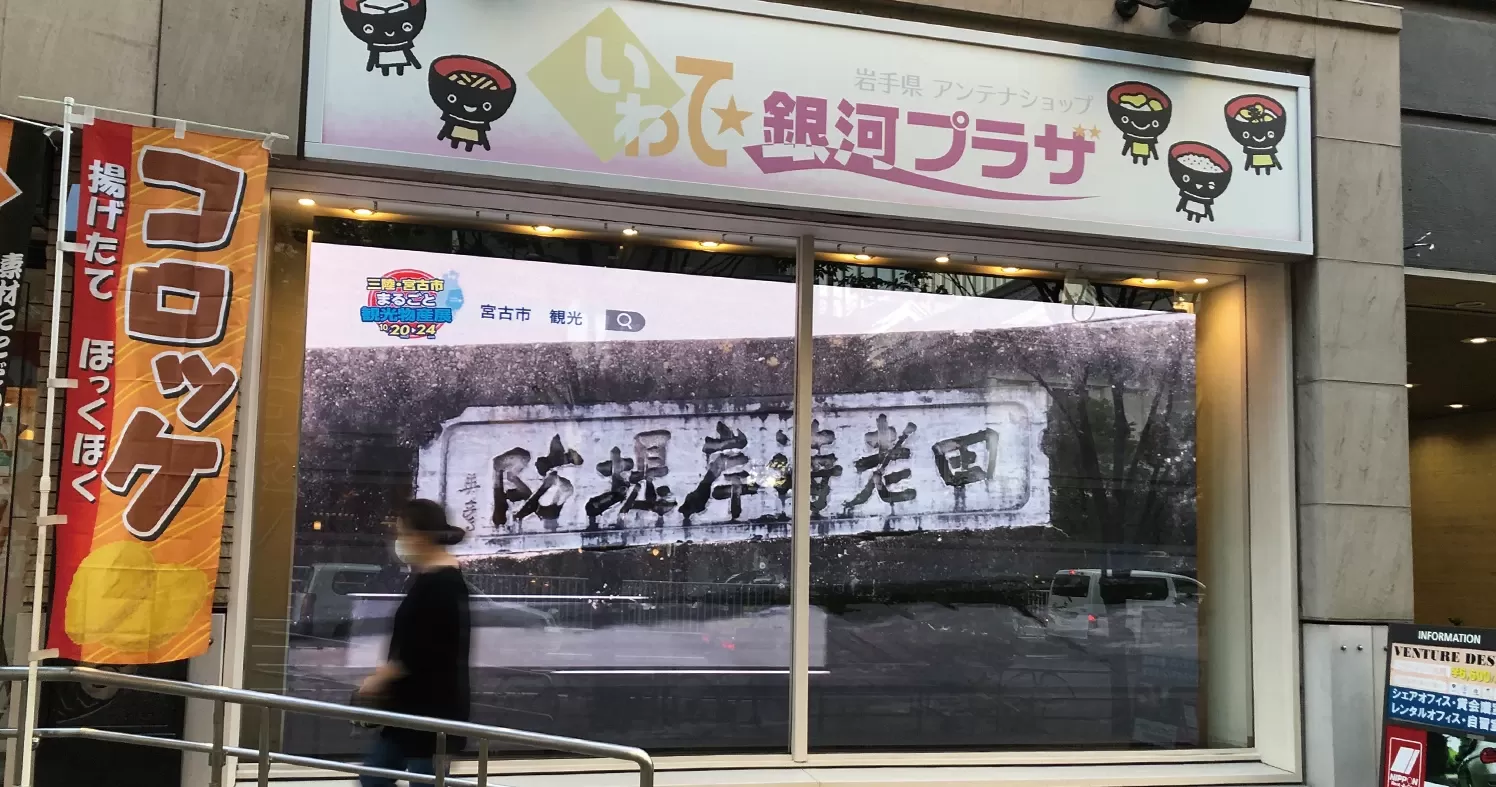

Iwate Galaxy Plaza

Breeze-1.9

Space size:W5000×H2500mm, 12.5㎡

View More
