COMET SERIES is the classic common cabinet which was widely used as outdoor product for many years due to the durability and economical of it. Inspite f the cumbersome, there are still lots of client prefer to it. Especially we have magnesium alloy version for options.

Comet banner
  • Pitch(mm) :  4/5/6/8/10/16/16D
  • Applications :
    Banner
    Billboard
    Digital signage

Product Features

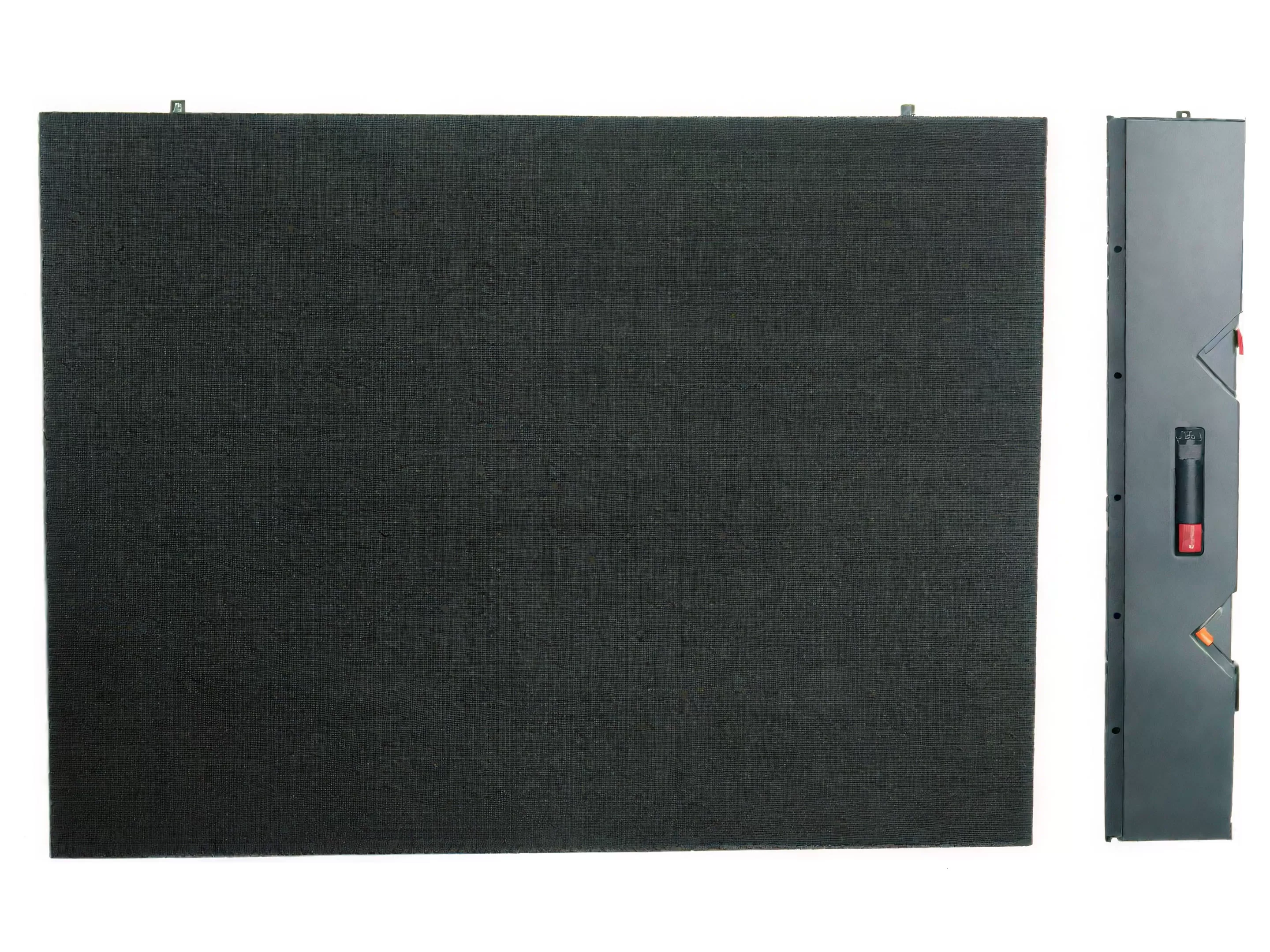

  • Comet 01
    Cost-Effective Outdoor Advertising Display

    Durable and Cost-Effective Display

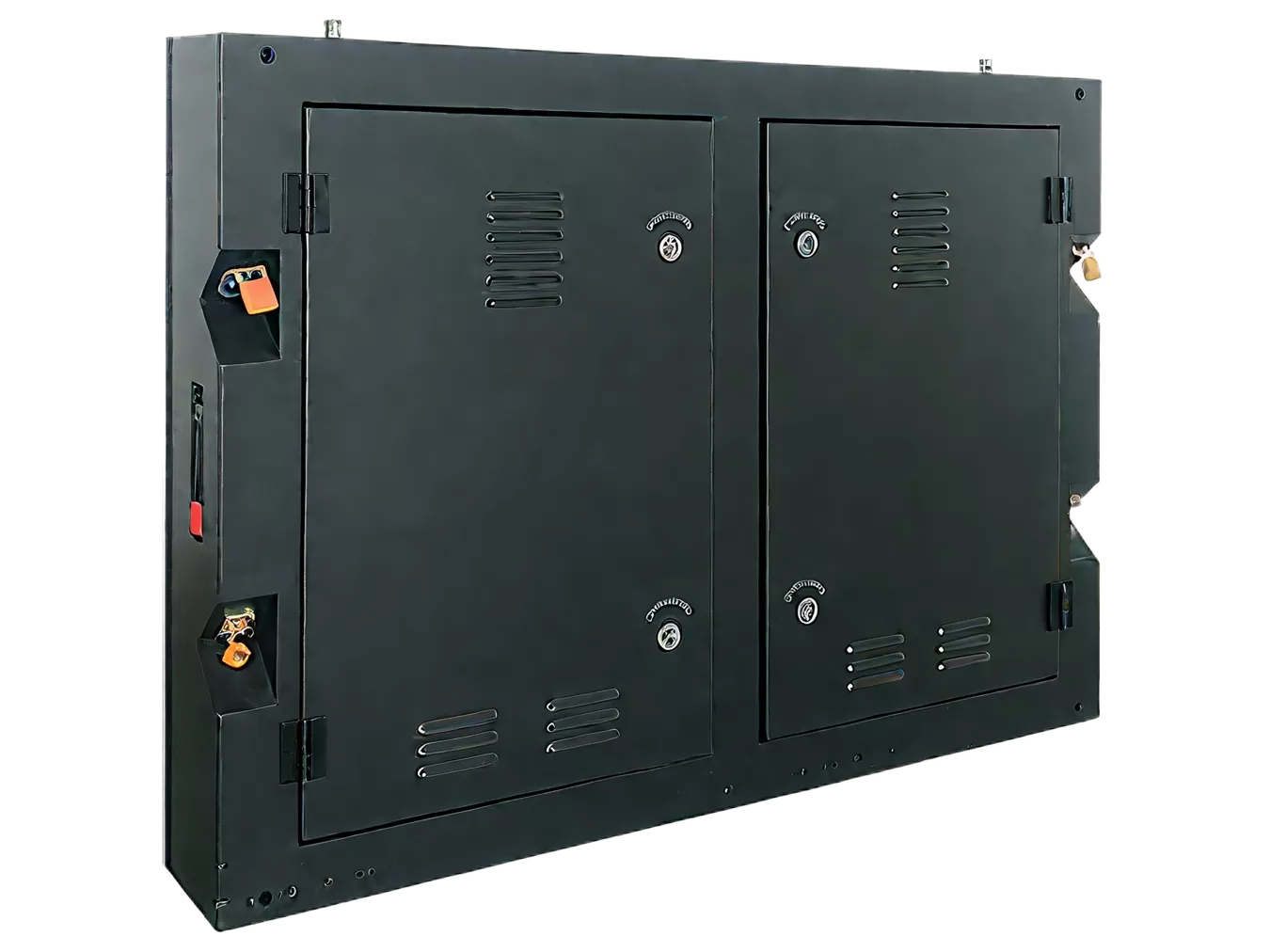

  • Comet1
    Cabinet structure

    Durable cabinet structure has been widely used for many years.

  • Comet2
    Steel/Aluminum Construction

    Cabinets are configurable with either steel or aluminum alloy panels for robust LED display enclosures.

Product Parameter

Comet P4 P5 P6 P8 P10 P16 P16D
Pixel Pitch  (㎜) 4 5 6 8 10 16 16
LED Type SMD SMD SMD SMD SMD SMD DIP
Pixel Density (dot/㎡) 62500 40000 27777 15625 10000 3906 3906
Module Size (mm) 256×128 320×160 192×192 256×128 320×160 256×256 256×256
Panel Size (mm) 768×768×145 960×960×145 960×960×145 1024×1024×145 960×960×145 1024×1024×145 1024×1024×160
Panel Resolution(dot) 192×192 192×192 160×160 128×128 96×96 64×64 64×64
Panel Weight Aluminum/lron
Panel Weight(kg/pcs) 30/40 38/45 38/45 40/45 38/45 40/50 57
Brightness(cd/㎡) 5000 5000 5000 5000 6000 6000 7000
Hori.& Vert. Viewing Angle (Deg) 140/110 140/110 140/110 140/110 140/110 140/110 110/90
Contrast Ratio 4000:1
Max.& Avg. Power Consumption (W/㎡) 800/280 800/280 760/253 695/233 695/233 630/215 600/200
Refresh Rate (Hz) 1920
Maintenance Way Rear
Installation Way Rear
IP Rate Front IP 65 / Rear IP 54
Certifications CCC
A408e4eb 593c 4b8c 8dfc b4785ee65741
微信图片 22
1 / 2
Cases

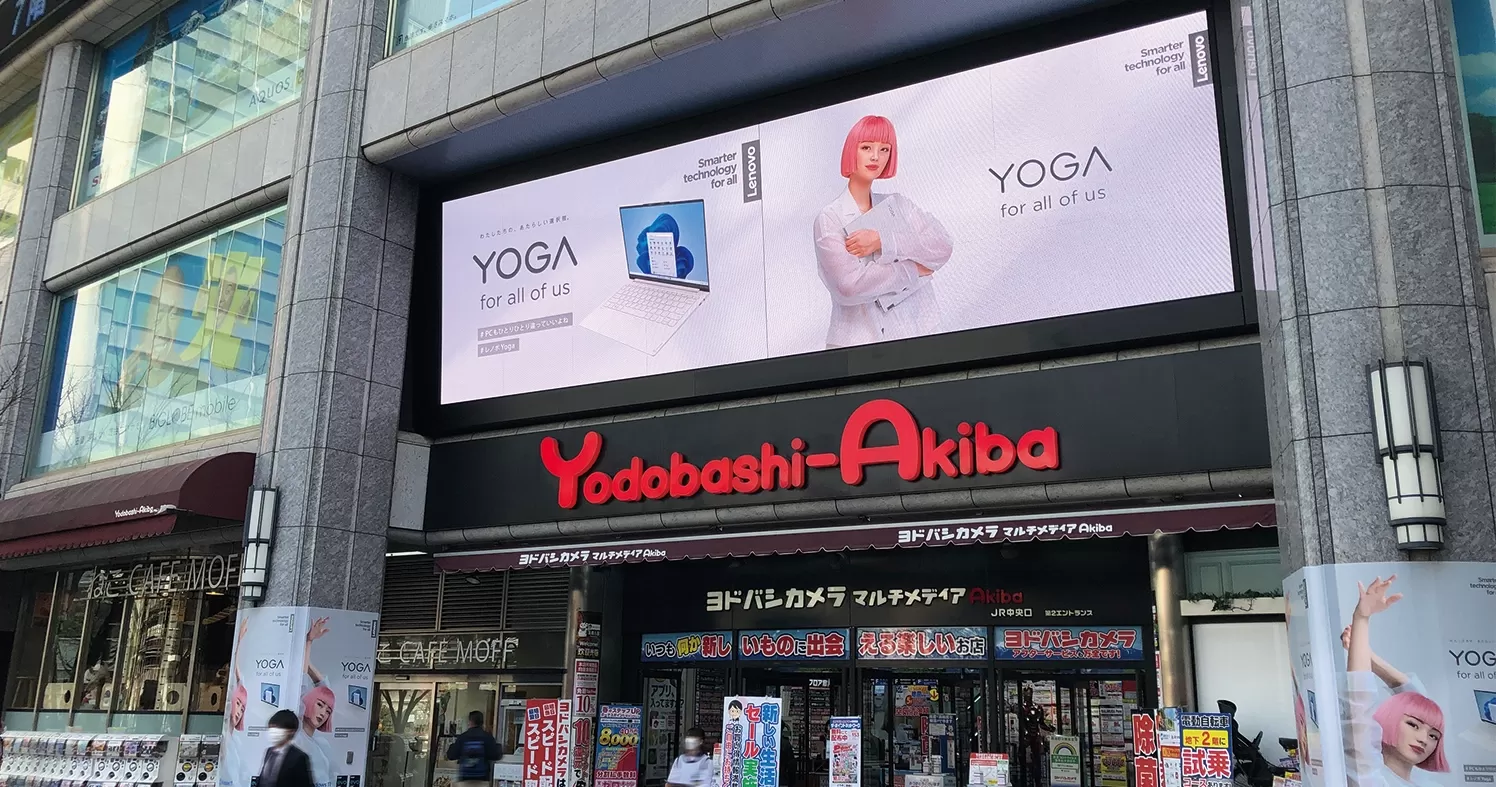

Yodobashi Camera Multimedia Akiba

Comet-6

Space size:W10368 × H2880mm, 29.85984㎡

View More
Cases
Outdoor Advertising Signage

Comet-8

Space size:W7680xH3840mm, 29.5㎡

View More
