Comet C

Comet C

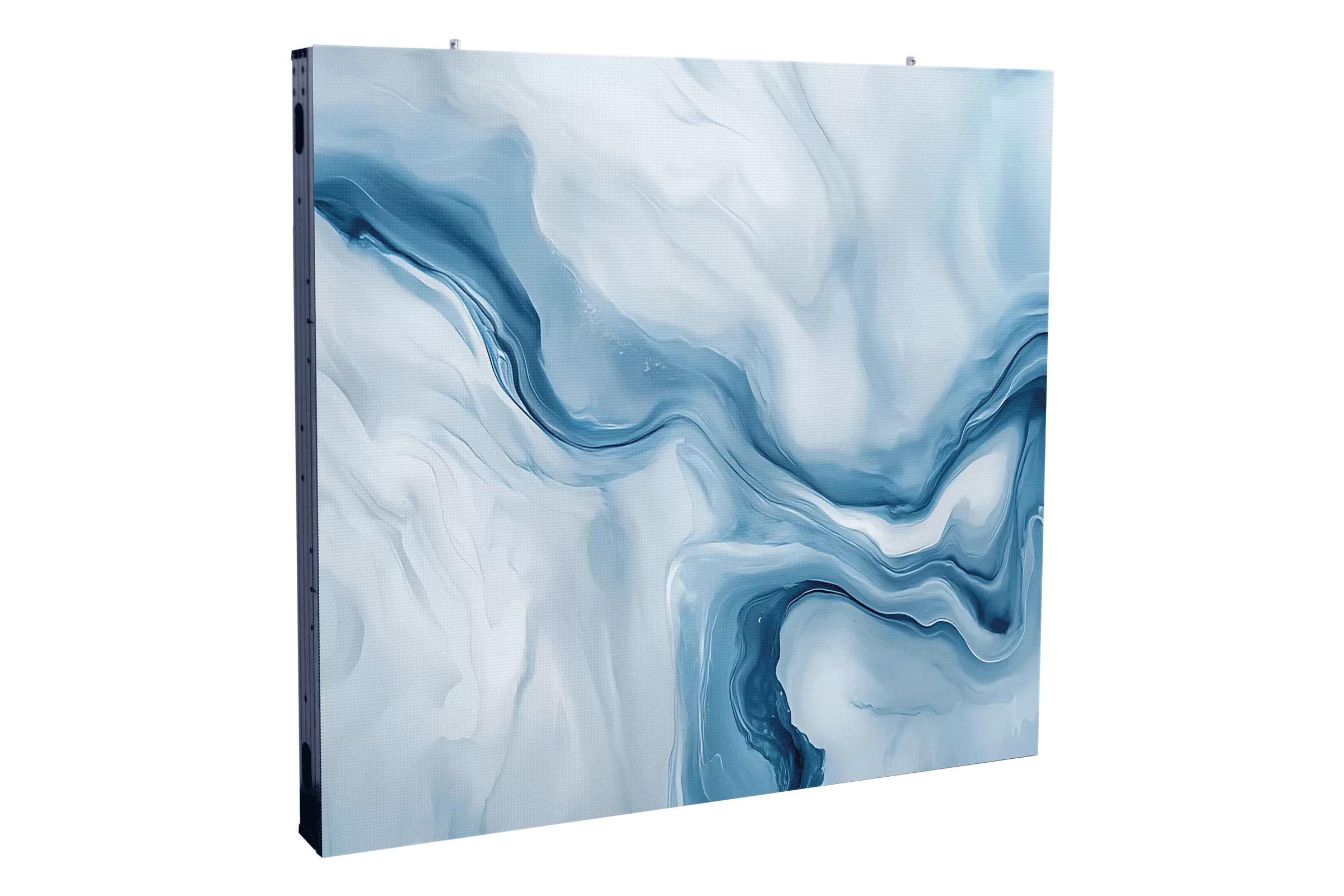

COMET C, as the upgraded version of the COMET series, adopts a lightweight cabinet design, making installation and maintenance easier and more efficient. It is an ideal choice for outdoor advertising sign applications.

Comet c 产品页
  • Pitch(mm) :4/5/6.6/8/10
  • Applications:
    Banner
    Billboard
    Digital signage

Product Features

  • Comet c (2)

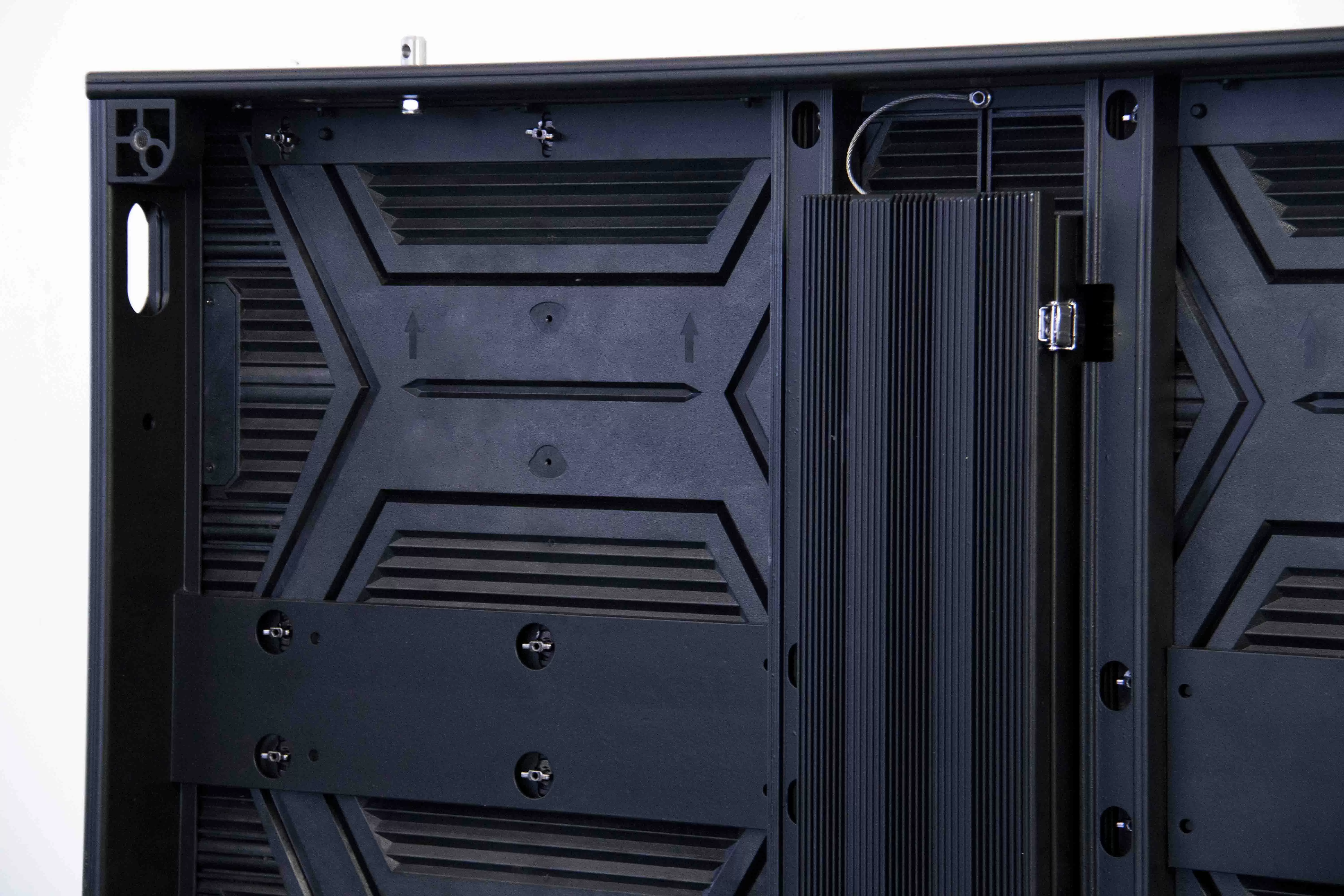

    Quick Installation

    Adopting a modular knob quick-lock design, enabling fast assembly and disassembly, which is safe and convenient.

  • Comet c (1)

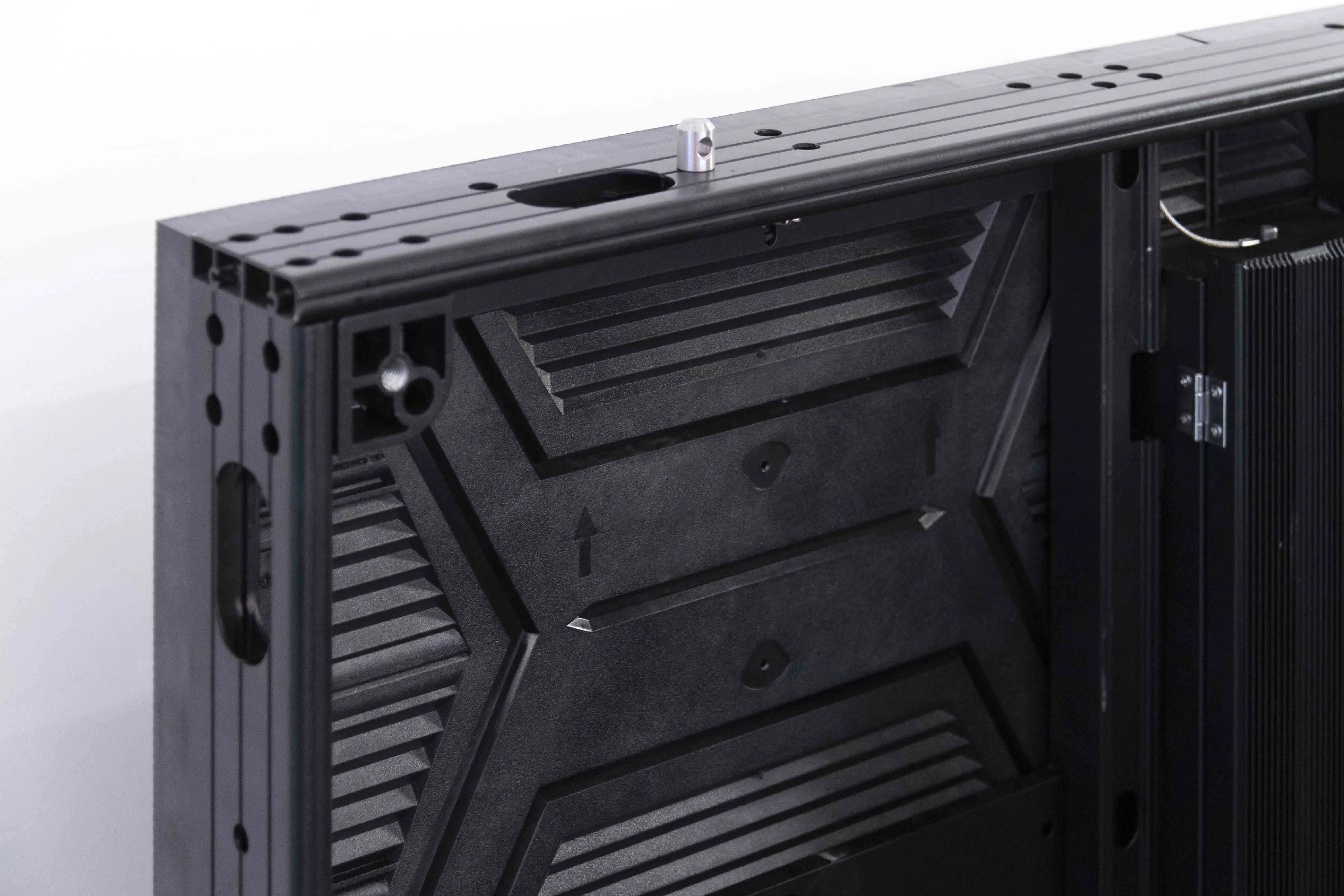

    Full Maintenance Solution

    The cabinet supports full front or full rear maintenance, enabling application in multiple scenarios.

  • Comet c (3)

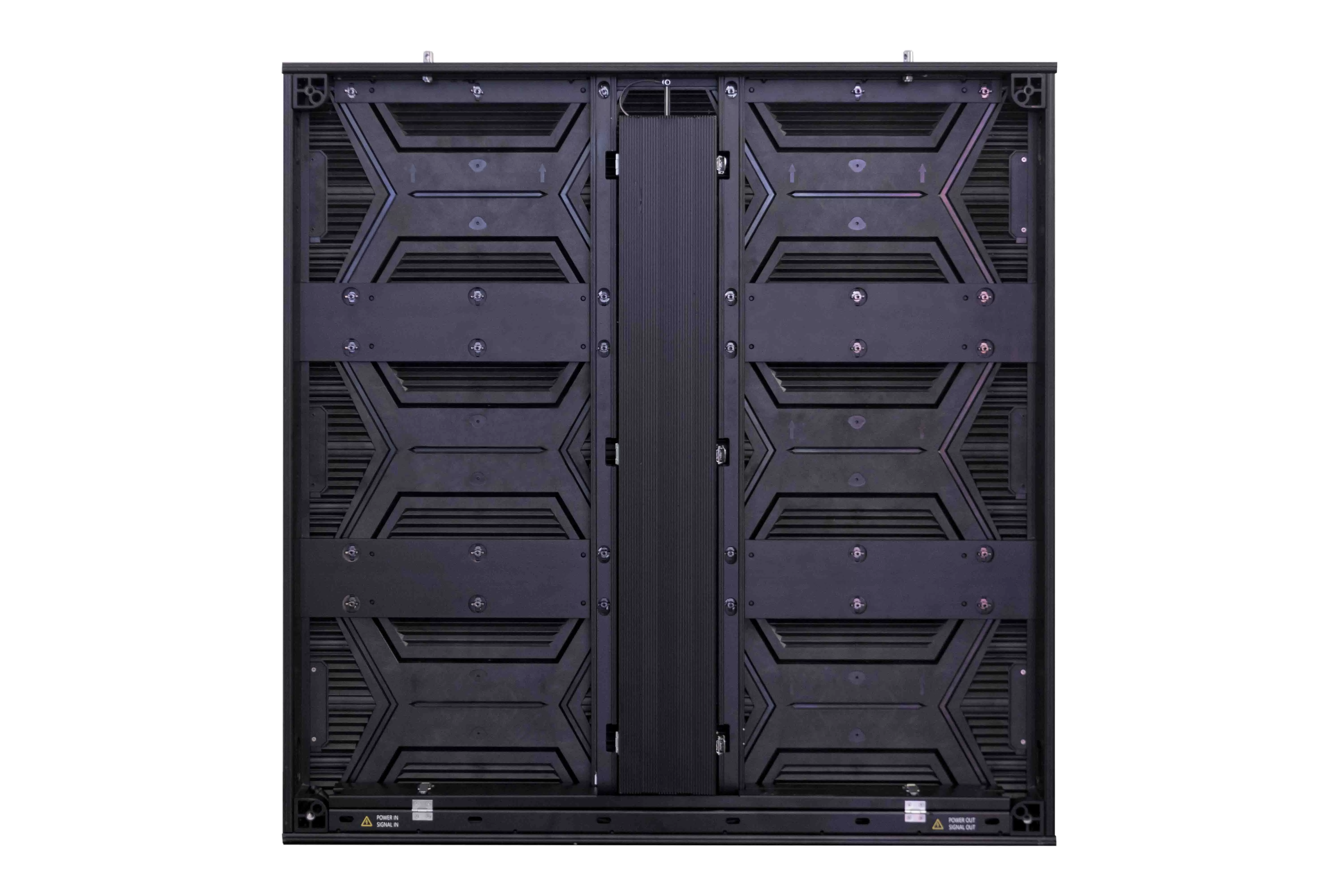

    Lightweight Large Screen

    Large-size lightweight cabinets facilitate quick installation, making them suitable for large-area screen installation and application.

Product Parameter

Comet C Comet C-4 Comet C-5 Comet C-6.6 Comet C-8 Comet C-10
Pixel Pitch (mm) 4 5 6.6 8 10
Pixel Density (dots/m²) 62500 40000 22500 15625 10000
Module Size (mm) 480 × 320 480 × 320 480 × 320 480 × 320 480 × 320
Module Resolution (dots) 120 × 80 96 × 64 72 × 48 60 × 40 48 × 32
Panel Size (mm) 960 × 960 × 97
Panel Resolution(dot) 240 × 240 192 × 192 144 × 144 120 × 120 96 × 96
Material Aluminum Profile
Weight (kg/pcs) 23
Brightness (cd/m²) 5000 5000 5500 5500 5500
Viewing Angle (H) 140°
Viewing Angle (V) 110°
Max Power (W/pcs) 720 720 850 850 850
Avg Power (W/pcs) 240 240 283 283 283
Refresh Rate (Hz) 3840
IP Rate IP65 / IP54
Contrast Ratio 4000:1
Operating T&H -10～40℃ & 10%~80% RH(No Condensation）
Storage T&H -30～60℃ & 10%~85% RH(No Condensation）
Maintenance Fully front & rear
