Ebony Micro

Ebony Micro

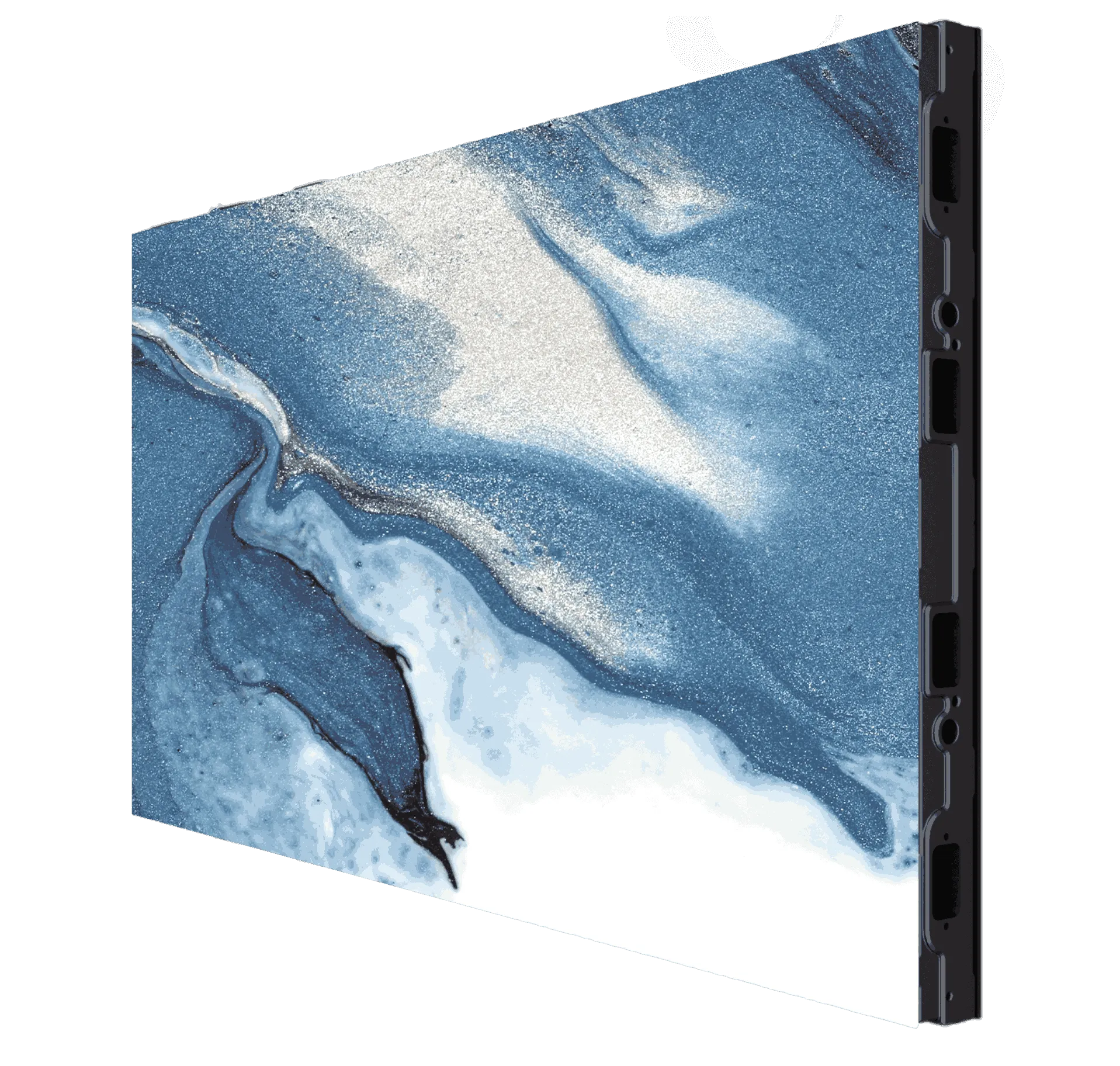

The Micro LED type Ebony Micro0.9 features ultra-fine 0.9mm pitch and shock resistance, delivering a visually stunning experience.

Micro llbanner
  • Pitch(mm) :0.9

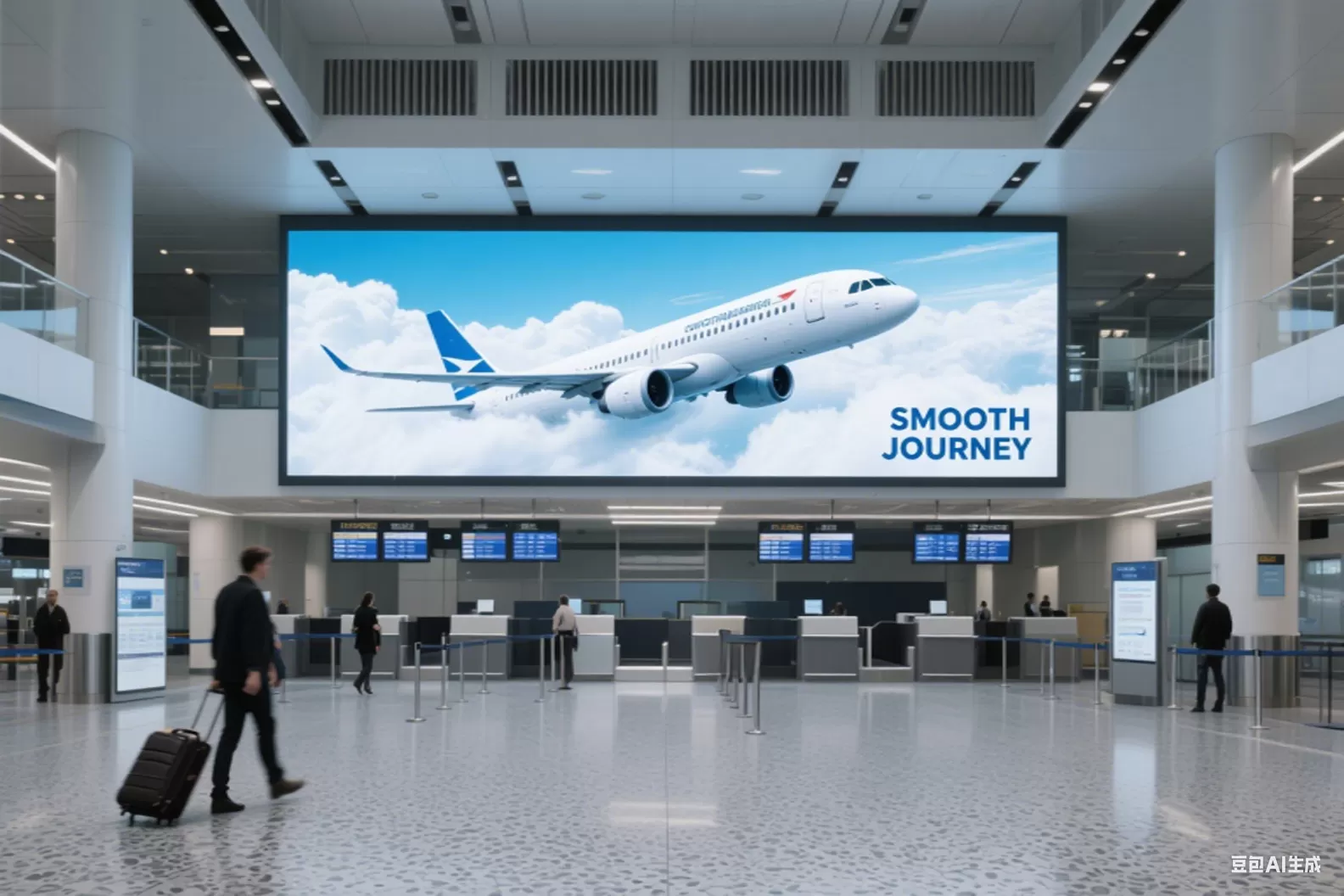

  • Applications :Shopping-mall / Boutique & Brand store / Exhibitions & Museum /Broadcasting & TV Studio /Airport & Traffic station

Product Features

  • Ebony mip (5)

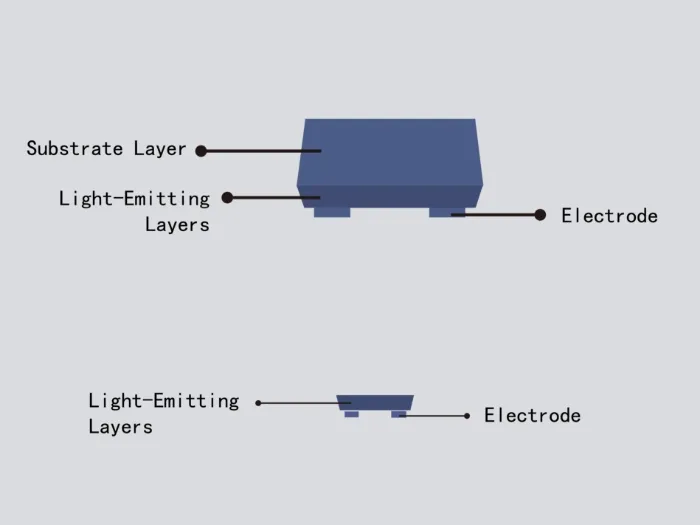

    Definition of Micro LED

    Current multiple Definitions By LED chip size:
    By LED chip size: <100/50 μm2
    By LED chip area : <2500 μm2
    By luminous area : <2000 μm2
    By basement : No basement
    By pixel pitch : <0.1㎜

  • Ebony mip (1)

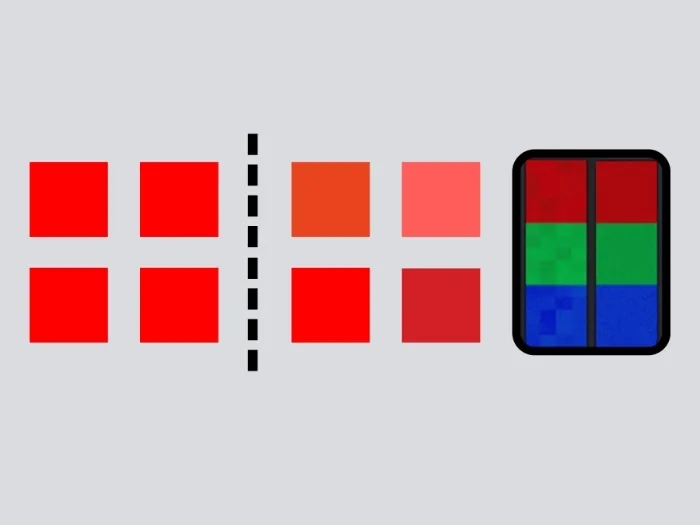

    Better Color Uniformity

    MiP has the progress of wave-length sorting that can guarantee the color uniformity.

  • Ebony mip (4)

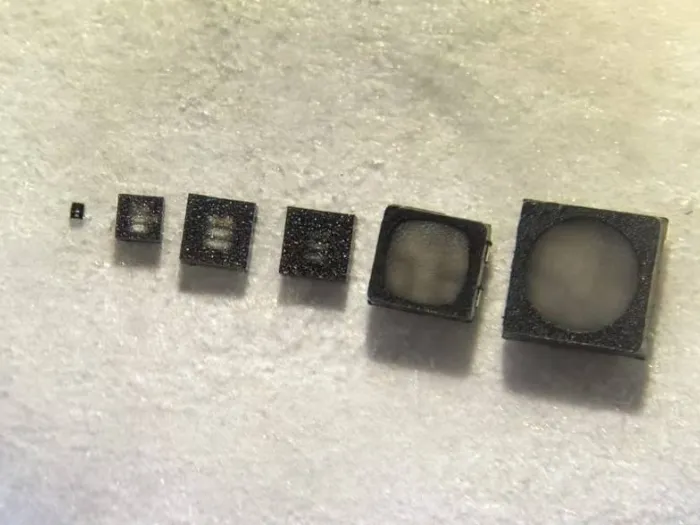

    Higher Resolution Possibility

    MlP technology can reach the pitch under 0.4mm, but COB is not able to.

  • 11png

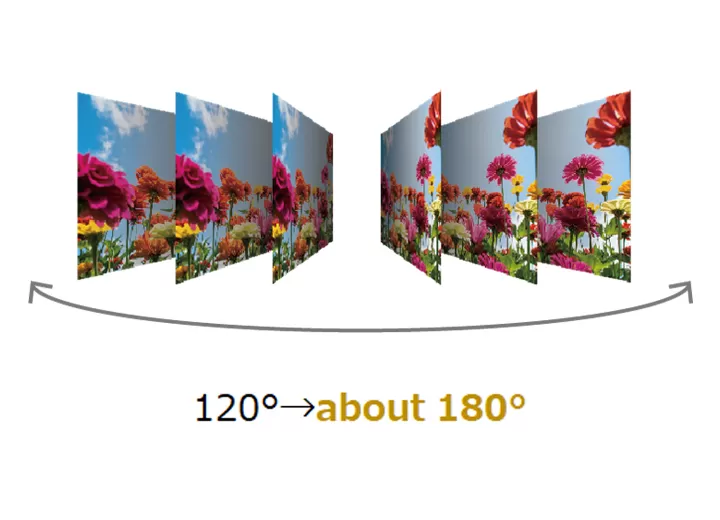

    Wider Viewing Angle

    Ultra wider emitting-light angle , say goodbye to color deviation of wide viewing angle.

  • 对比度

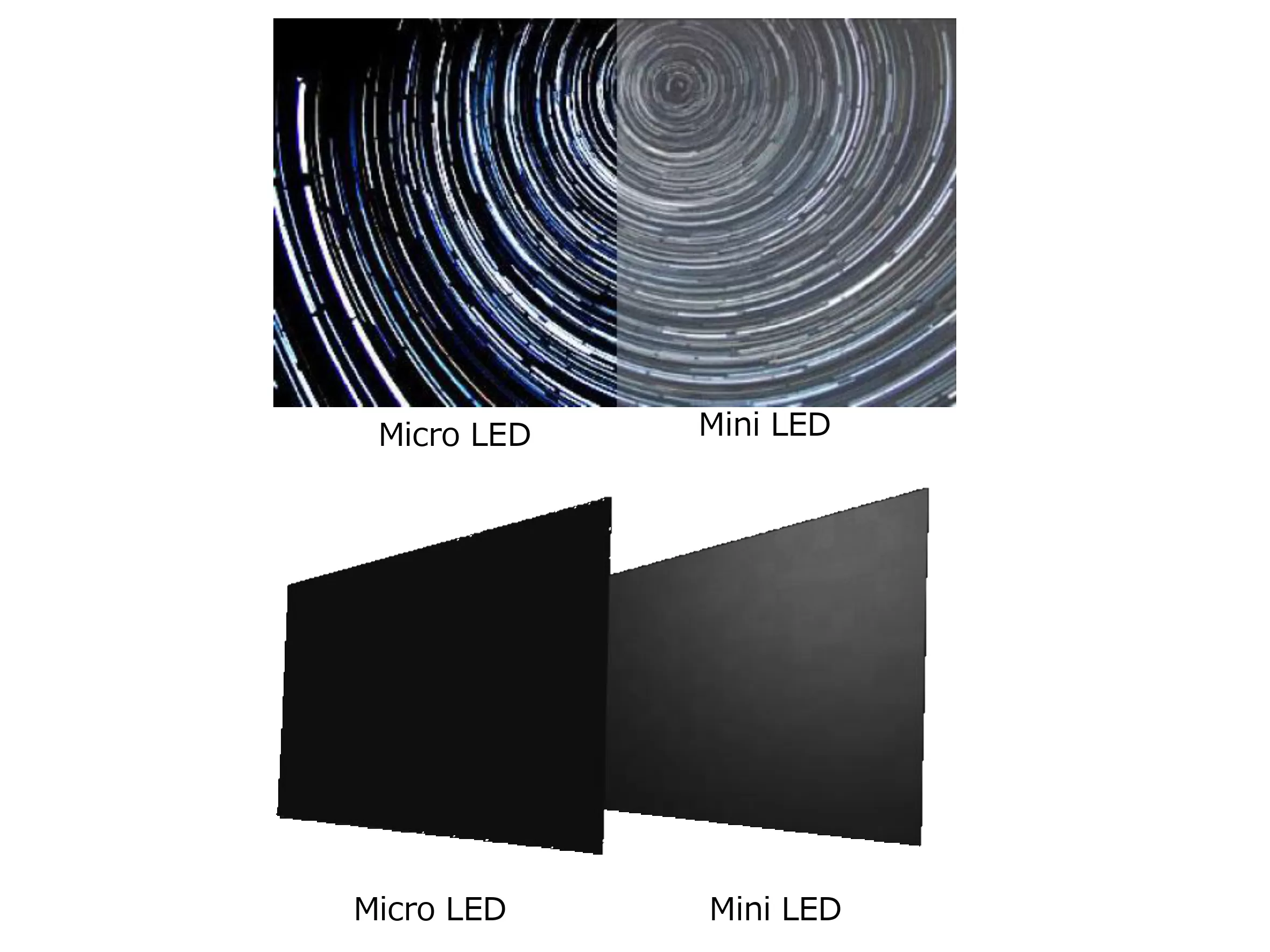

    Higher Contrast

    Smaller luminous area, high proportion of black, higher contrast achieved.

  • 11png

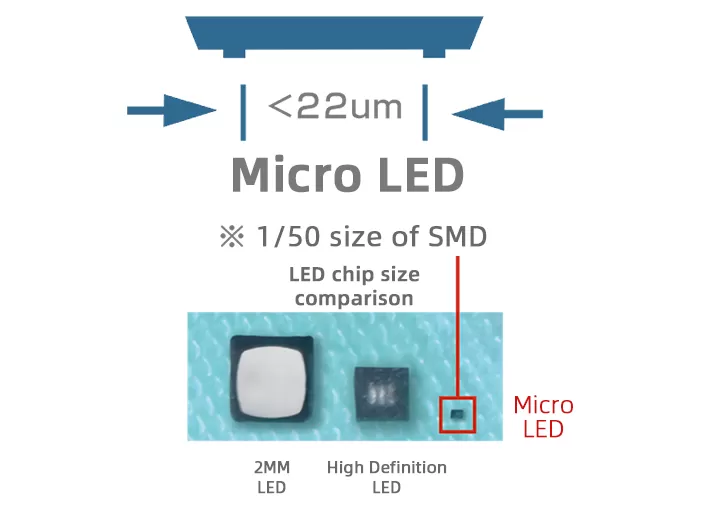

    Adapt To Various Spacing Sizes

    Larger pin pitch and stronger point pitch adaptability make it suitable for various pitch sizes.

    For example: MiP 0404 can adapt to the lower limit of P0.6 and the upper limit of P1.2 and above. MiP 0202 can adapt to low P0.3 and high P0.9.

Product Video

Product Parameter

  • Table1
MIP 0.9
Pixel Parameter
LED Type Pixel Pitch (㎜) Pixel Density (dots/㎡)
MIP 0.9375 1,137,778
Resolution
Module Size (㎜) Module Resolution Panel Size (㎜) Panel Resolution
150 × 168.75 160 × 180 600 × 337.5 × 29 640 × 360
Panel Parameter
Material Weight (kg/pcs) IP rate
Die-casting Aluminum 4.5 IP  50/20
Electical & Optical Parameter
Brightness (cd/㎡) Viewing Angle(H / V) Power(Max / Avg) Contrast Ratio Black Area Proportion
1000 175° / 175° 520 / 340 W/㎡ 40000 : 1 99%
Others
Operating  T&H Storage T&H Installation Method Maintenance Method
-10~40℃ & 10 %~80% RH(No Condensation) -20~60℃ & 10 %~85% RH(No Condensation) Front & Rear Front
E269dd7c 6f61 4df3 ba70 22aa6e683ebd
微信图片 20250811144720 173
1 / 2
Cases

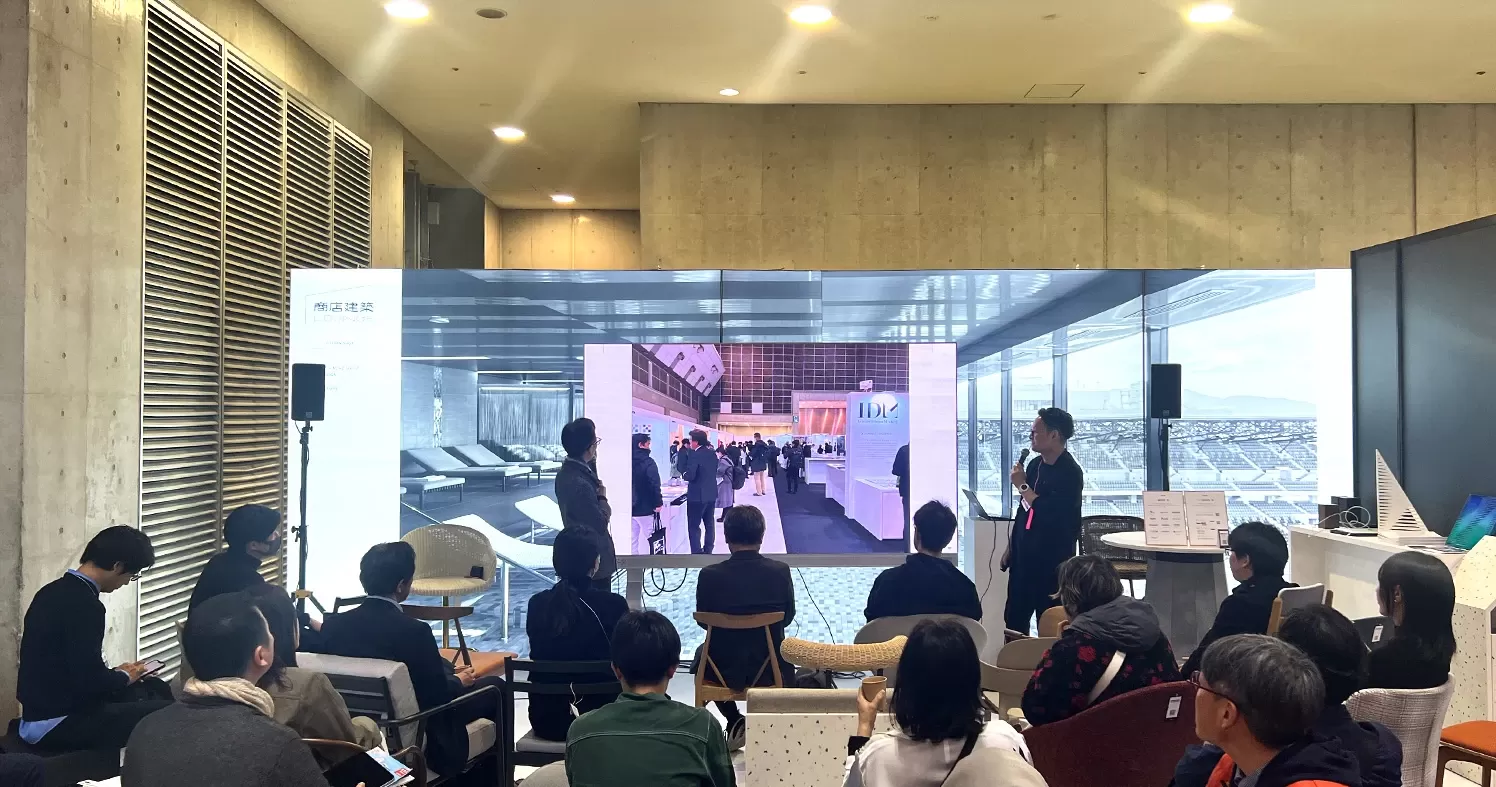

JAPANSHOP Exhibition Booth, Shoten Kenchiku Co., Ltd.

Parete012

Space size:W2400×H1350mm,3.24㎡

Cases

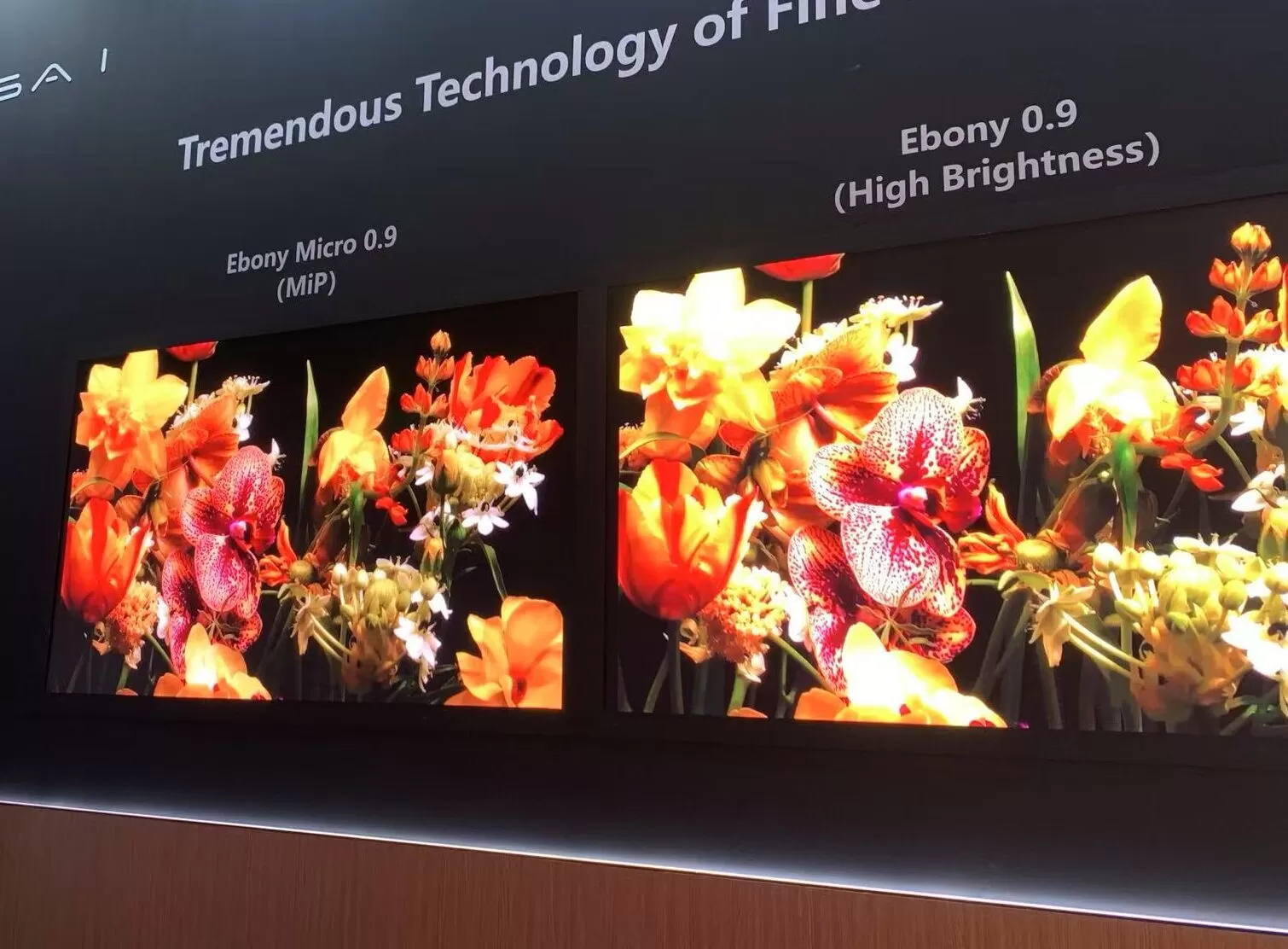

ISE 2025 Exhibition Booth-Ebony Micro

Ebony MIP-0.9

Space size:W1800×H1012.5mm, 1.8225㎡
