The COB soft module offers excellent shock resistance. It is available in pitch sizes of 1.2mm and 1.5mm, and the cabinet can be customized to achieve various shapes.

Ebony s banner
  • Pitch(mm) :1.2/1.5
  • Applications :
    HD curved display screen setups
    Immersive display solutions
    Curved splicing

Product Features

  • Ebony s 弯
    Bendable and highly flexible

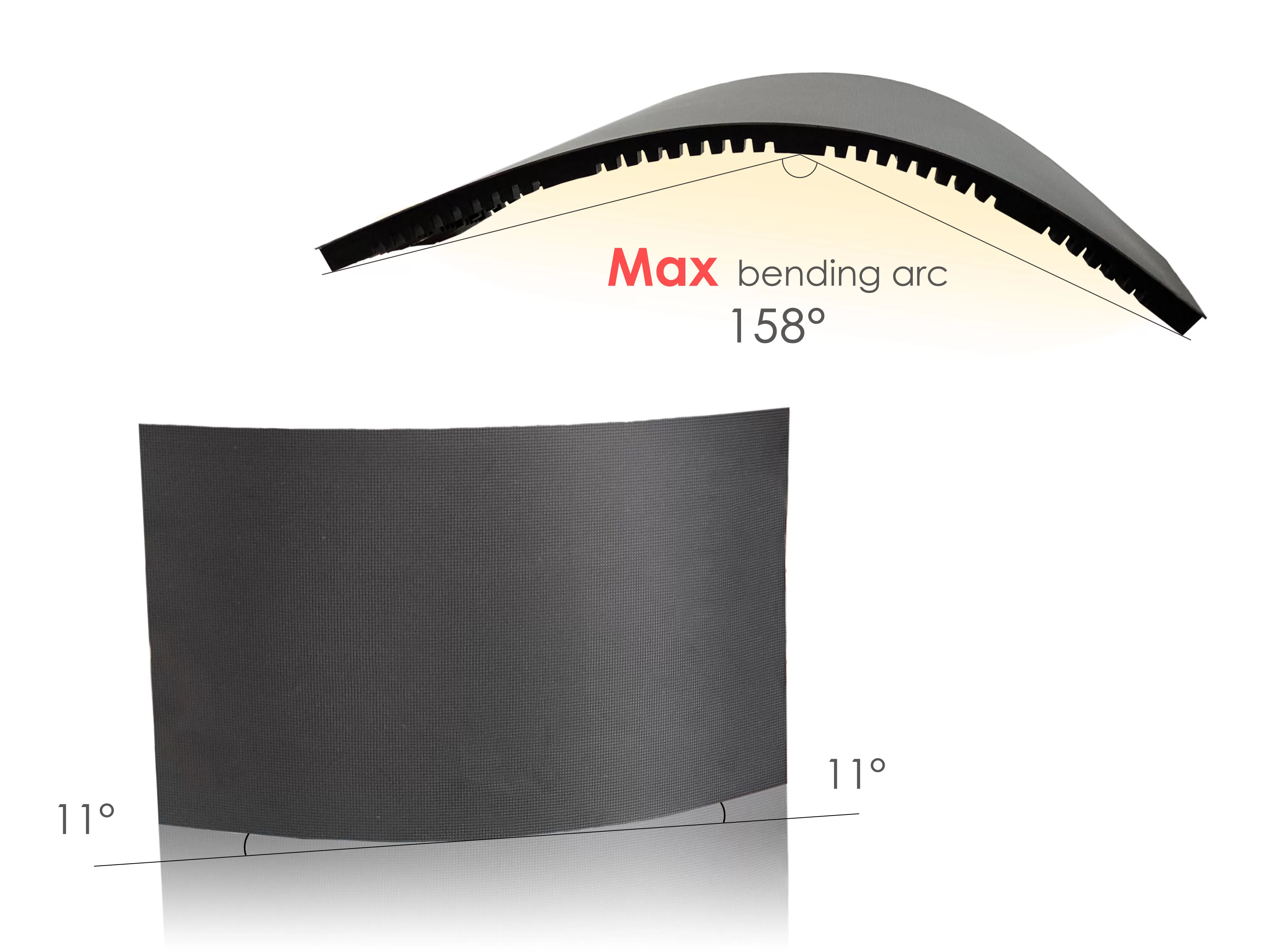

    The single module has a large bending radius, with a bending angle of 11° left and right (the maximum bending radius is 158°), which is suitable for curved and special-shaped scenes and meets the needs of various curved screens.

  • Ebony s
    Flip Chip COB

    Ebony series are supported by flip - chip COB, ensuring lower power dissipation and more stable qualities.

  • Ebony cob (5)
    Power & Data Redundancy

    Space is reserved for redundancy system in case of  any high standard situations.

  • Ebony s (5)
    Multi Cutting for multi Splicing

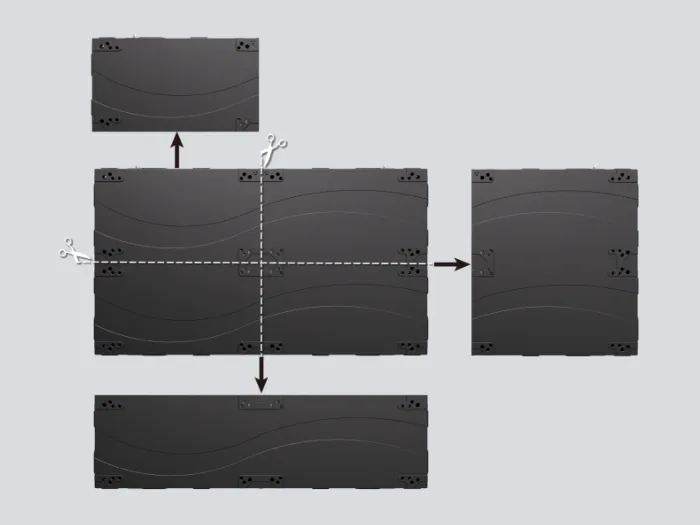

    Various dimensions have been meticulously tailored to accommodate more aspect ratios for multifarious scenarios.

  • Ebony s (1)
    Extraordinary Versatility

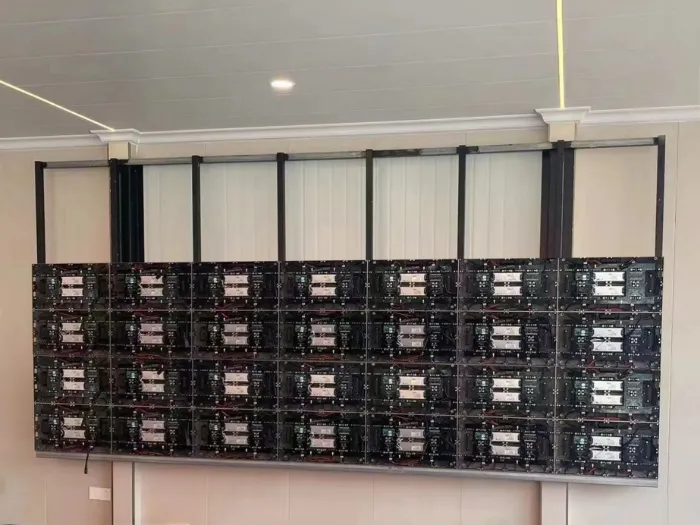

    1. Magnetic module allows fully front maintenance．
    2. Front installation is available due to the reserved screw hole.
    3. Ultra thin and light-weight cabinet match up with more application scenarios.
    4. Aiming to protect the operator from cut and improve the appearance, the Ebony panel is processed with edge-rounding and electrophoresis.

  • Ebony s (4)
    Soft COB for Options

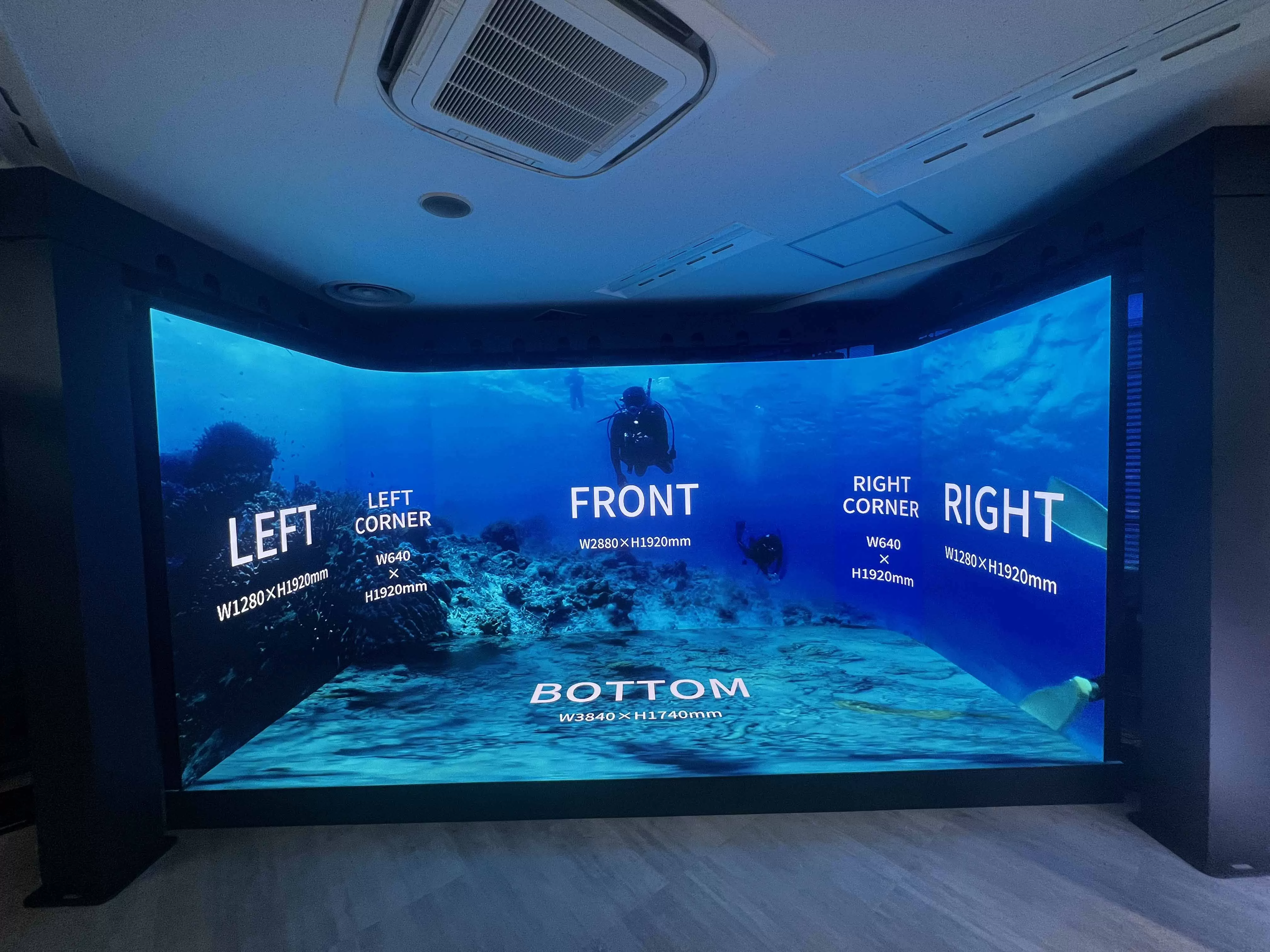

    We have multitudinous solution of COB family. Soft COB module helps us to achieve more shapes of the display like concave, convex, multi-shape connection, etc. And the key point is we could use them all with the same COB stuff to avoid the discrepancy of visual sense.

  • Ebony s01
    High Brightness for Options

    1.The larger chip was utilized in Ebony.
    2.There is a layer of film on the surface of COB, which is removed with new process. But it still can be assured the fidelity to original color.

LED Chip Types comparison: COB (flip chip), GOB, SMD

COB(Frip Chip) GOB SMD
Basic structure



Cob png



The LED chip is mounted upside down on the PCB without copper wires, resulting in a simple structure with improved convection.





Gob png



The surface of an SMD panel product is covered with resin.

 Smd png

LED components soldered to the circuit board
Contrast ratio*1 Highest Normal Low
Image quality*2 Excellent Normal Normal
Viewing angle*3 Widest Normal Normal
Brightness*4 Highest Normal Normal
Energy efficiency*5 Highest Normal Normal
Durability*6 ◎ ◎ △
Heat dissipation*7 Best Normal Good
Failure rate*8 <5ppm <25ppm <50ppm
Applicable pixel pitch ≤ 0.4mm ≤ 1.2mm ≤ 1.2mm
Impact resistance ◎ ◎ ×
Moisture resistance ◎ ◎ ×
Cost High Normal Low

*1: Compared to other flip-chip displays, COB flip-chips have a smaller pad bonding area, creating more space between chips and improving contrast.
*2: Due to the smaller chip size of COB flip-chips, pixel pitches can reach 0.4 to 1.2 mm, enabling finer image quality.
*3: Due to their different basic structure, COB (flip-chip) displays have a relatively wide viewing angle.
*4: Due to their smaller bonding area, COB displays can use larger chips than SMD displays, achieving higher brightness.
*5: COB displays have the voltage required for RGB, while the flip-chip structure reduces current consumption, making them more energy-efficient.
*6: Due to their simple structure, there are fewer process steps leading to defects, resulting in a longer lifespan.
*7: The flip-chip structure has excellent thermal conductivity and low heat generation, dissipating heat directly to the front and back of the PCB, providing excellent heat dissipation.
*8: Due to their different basic structure, COB (flip-chip) displays have fewer production steps and a lower failure rate.

Product Parameter

Ebony S P1.2 P1.5
COB type Flip Chip COB
Pixel Pitch (㎜) 1.25 1.5
Pixel Density (dots/m2） 640000 409600
Module Size (㎜) 300 × 168.75
Module Resolution (dot) 240 × 135 192 × 108
Panel Size (㎜) Customized
Panel Resolution TBD
Material Steel
Weight (kg/pcs) TBD
Brightness (cd/m2) 1000 / 2000 1000 / 1500
Viewing Angle (H) 160°
Viewing Angle (V) 160°
Max Power (W/pcs) 300 / 650 300 / 550
Avg Power (W/pcs) 100 / 217 100 / 183
Refresh Rate (Hz) 3840
IP rate Indoor use only
Contrast Ratio 20000:1
Operating  T&H -10～40℃ & 10 %~80 % RH
Storage T&H -20～60℃ & 10 %~85 % RH
Installation Method Front & Rear
Maintenance method Front
