Ember Elite
Product Features
-

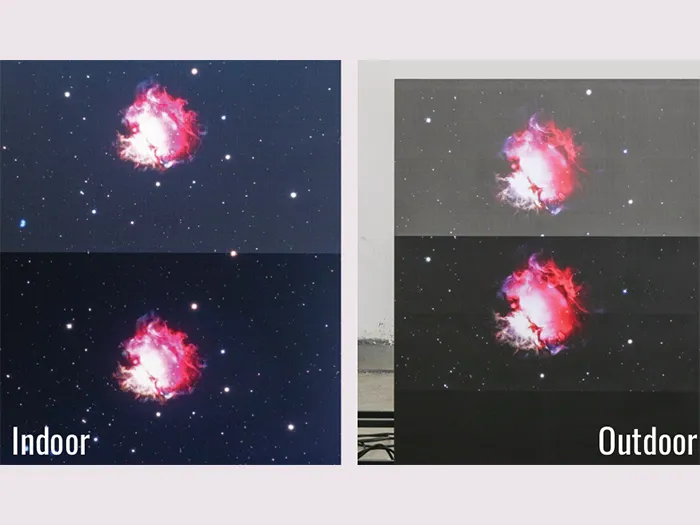

Extremely High Contrast①MIP LED lamp, has more spaces for black color which increases the contrast ratio.
②The surface and bottom of LED package with blackening improve the contrast in multiple ways.
③ PCB blackening process brings further black background.
④ Colorless GOB layer won't be affected by UV fading and yellowing; furthermore it almost keeps the original brightness.
-

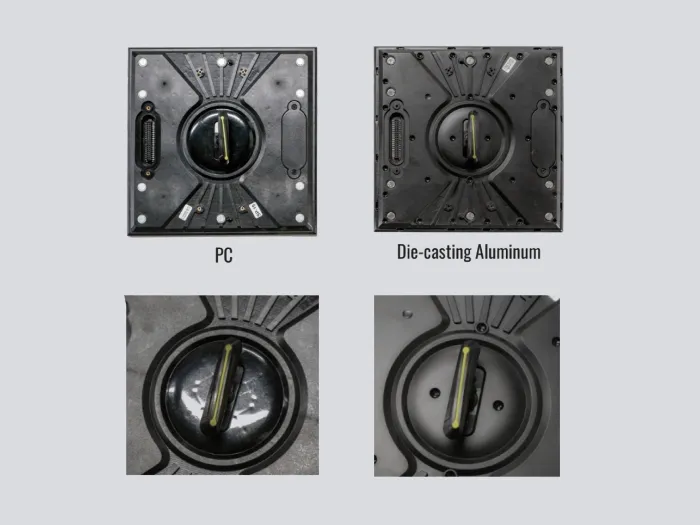

Lower Heat & Higher Precision
Better thermal management and smoother display surface can be achieved by the die-cast aluminum module shell.
-

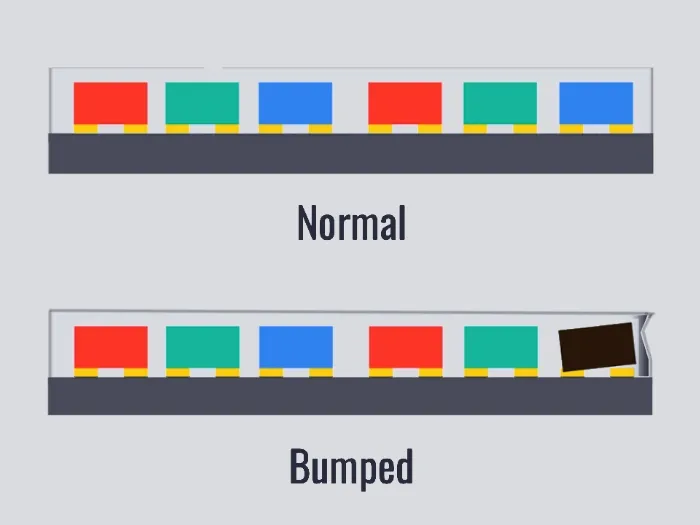

Pixel Reinforced Technology
All Ember series is able to be added pixel reinforced process if neccessary. And the pixels at the panel edge will be protected better from frequency bumping.
-

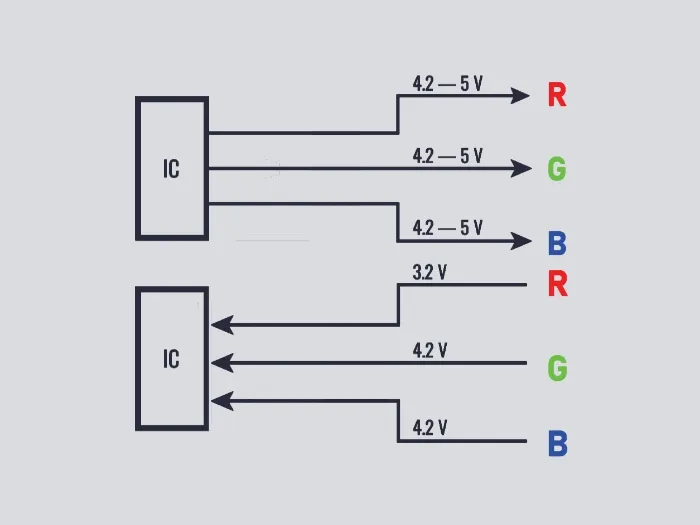

Common Cathode
Ember Elite series utilizes common cathode design. While the power con sumption of the screen greatly drops down, the heat generated will also be correspondingly reduced.
Black Area Coverage
| Pitch | Black Area Coverage
(Black LED) |
Black Area Coverage
(White LED) |
LED Area Proportion | Chip Area Proportion |
| 3.9mm | 99.64% | 73.79% | 26.21% | 0.36% |
| 2.9mm | 99.39% | 74.60% | 25.40% | 0.61% |
| 2.6mm | 99.20% | 66.82% | 33.18% | 0.80% |
| 1.9mm | 98.58% | 62.21% | 37.79% | 1.42% |
| 1.5mm | 97.78% | 59.04% | 40.96% | 2.22% |
| 1.25mm | 96.53% | 36.00% | 64.00% | 3.47% |
Product Video
Application Scenario
-

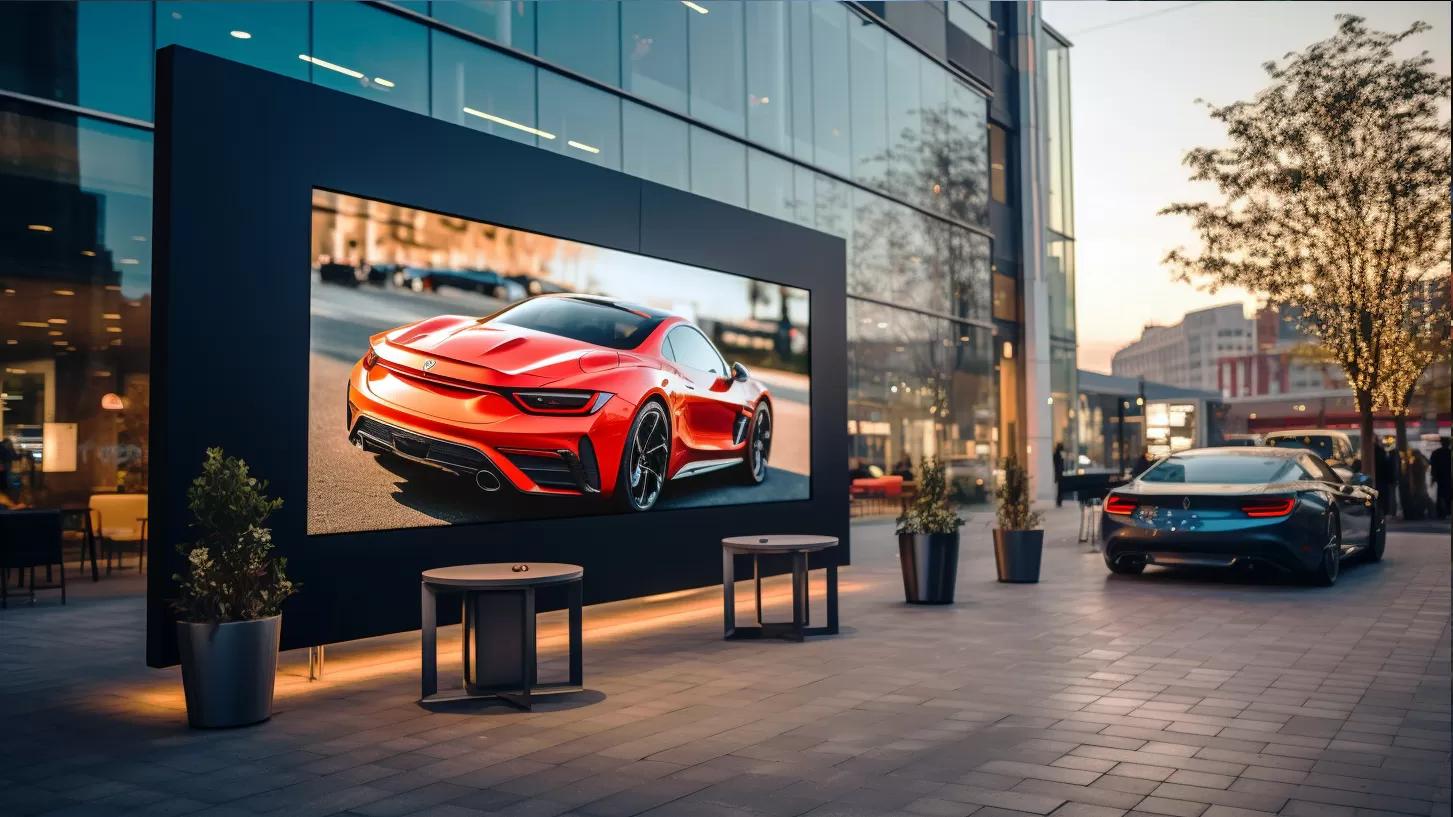

Advertising media
-

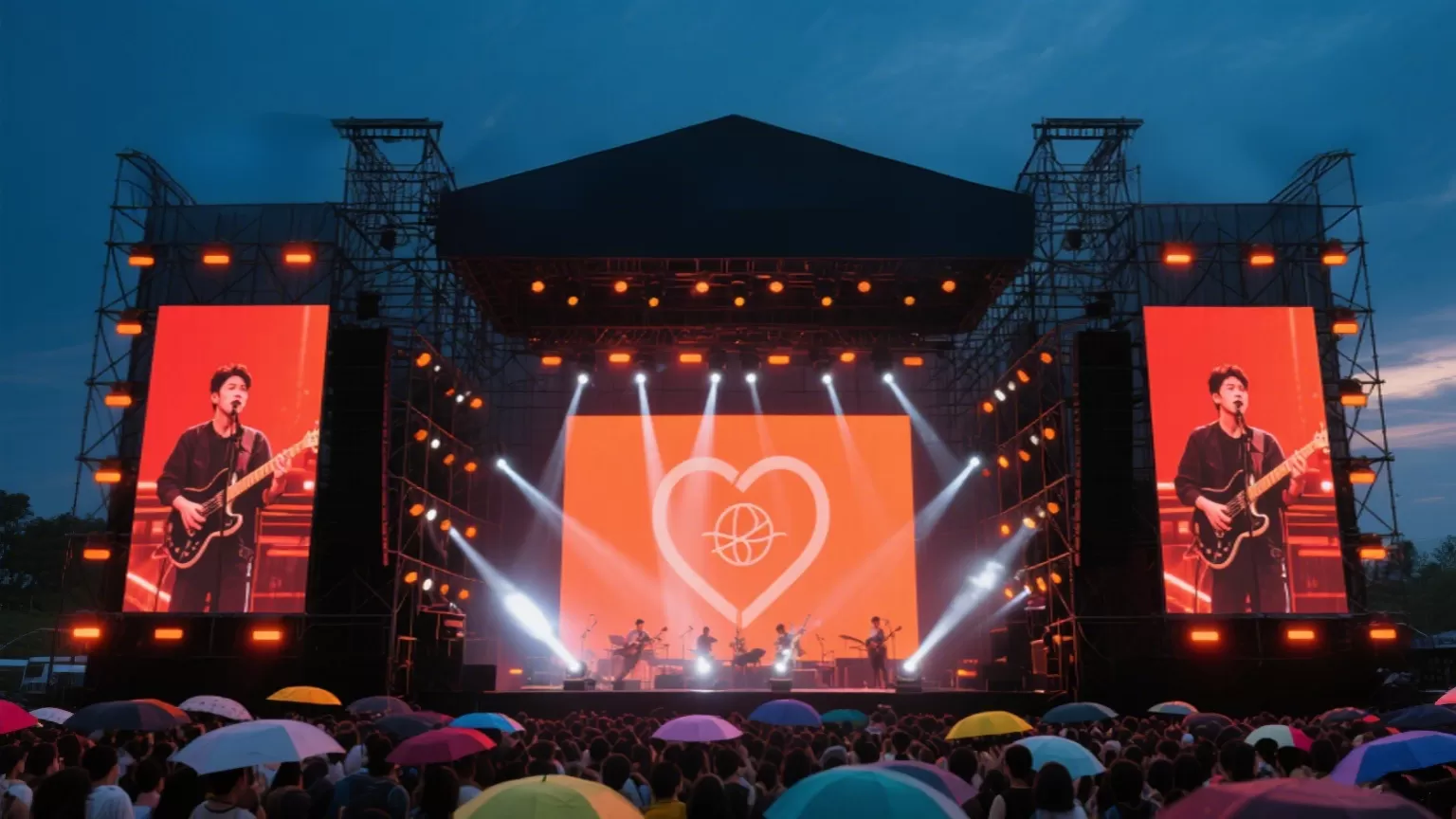

Outdoor events
-
Outdoor space display
Product Parameter
| Ember Elite | P1.2 | P1.5 | P1.9 |
| LED Type | MIP（Mini in Package） | ||
| Pixel Pitch (㎜) | 1.25 | 1.5625 | 1.953 |
| Pixel Density (dots/m²） | 640000 | 409600 | 262144 |
| Module Size (㎜) | 250 × 250 | ||
| Module Resolution (dot) | 200 × 200 | 160 × 160 | 128 × 128 |
| Panel Size (㎜) | 500 × 500 × 75.4 | ||
| Panel Resolution | 400 × 400 | 320 × 320 | 256 × 256 |
| Material | Die-casting Aluminum | ||
| Weight (kg/pcs) | 10.5 | ||
| Brightness (cd/m²) | 3000 / 4500 | ||
| Viewing Angle (H) | 160° | ||
| Viewing Angle (V) | 140° | ||
| Max Power (W/m²) | 680 / 800 | ||
| Avg Power (W/m²) | 227 / 267 | ||
| Refresh Rate (Hz) | ≥3840 | ||
| IP Rate | IP65 / IP54 | ||
| Contrast Ratio | 10000:1 | ||
| Black Area Proportion | 96.5 % | 97.8 % | 98.5 % |
| Operating T&H | -10～40℃ & 10 %~80 % RH | ||
| Storage T&H | -30～60℃ & 10 %~85 % RH | ||
| Installation Method | Front & Rear | ||
| Maintenance Method | Front & Rear | ||
