Ember V (Pro)

Ember V (Pro)

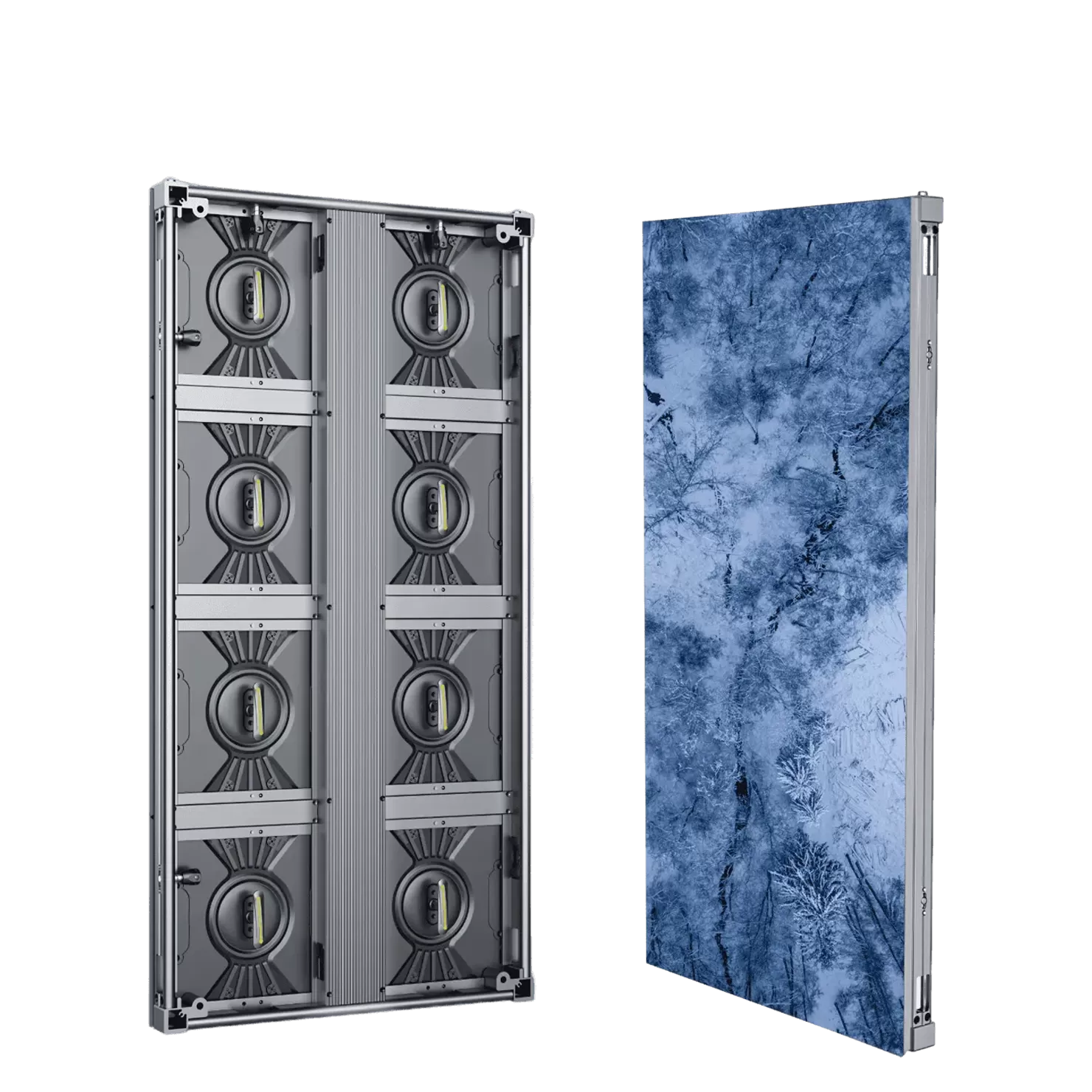

Ember series was designed for both of events and high-definition signage with upper standard of precision, strength, convenience and color performance.

标题 下调
  • Pitch(mm):2.6/2.9/3.9/4.8
  • Applications :
    Events & Shows/TV Studio & Broadcasting/Indoor & Outdoor High definition Signage

Product Features

  • Emberv img01

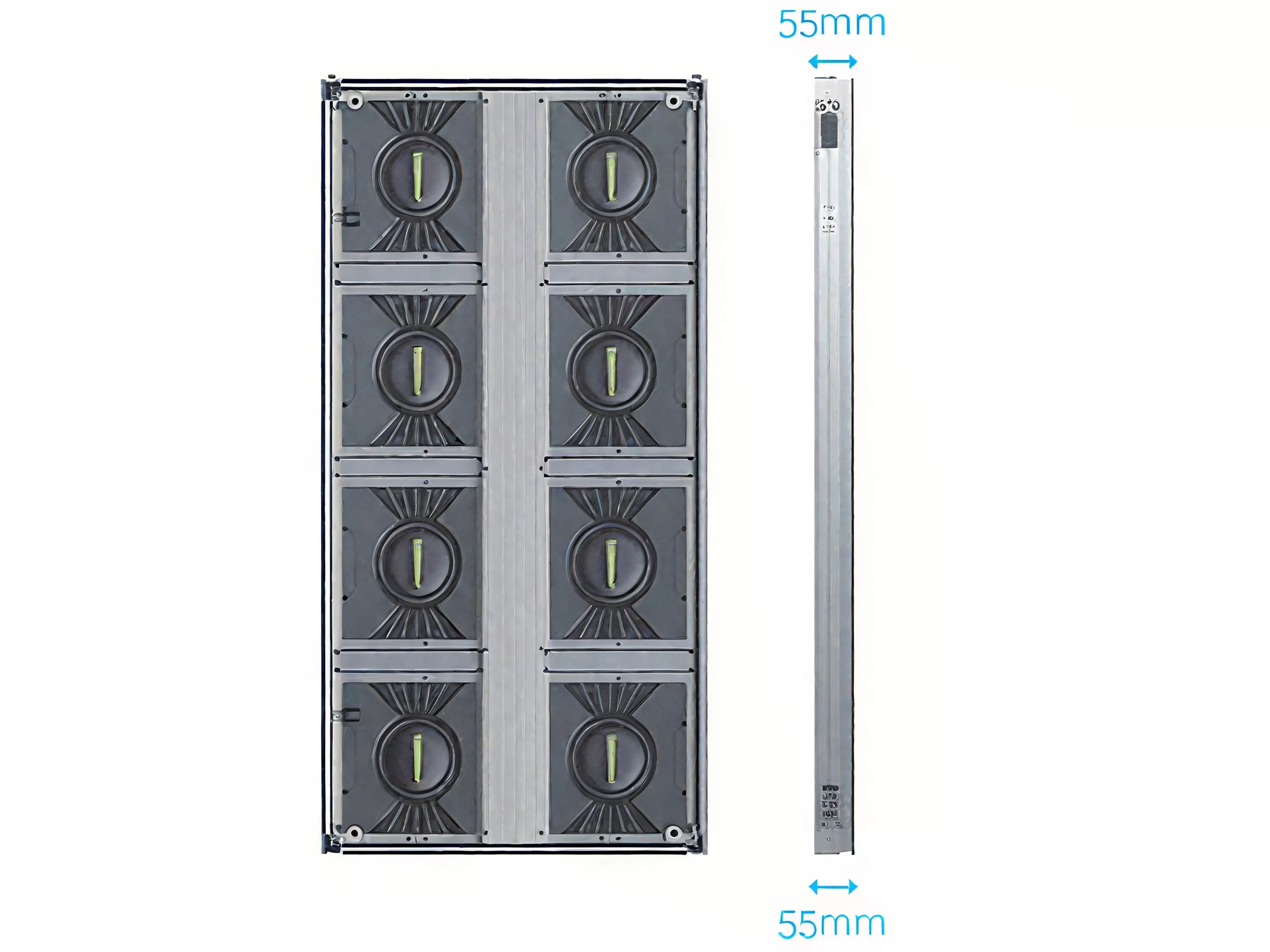

    Super light-weight and ultra slim

    The panel body thickness is just 55mm

  • Emberv img02

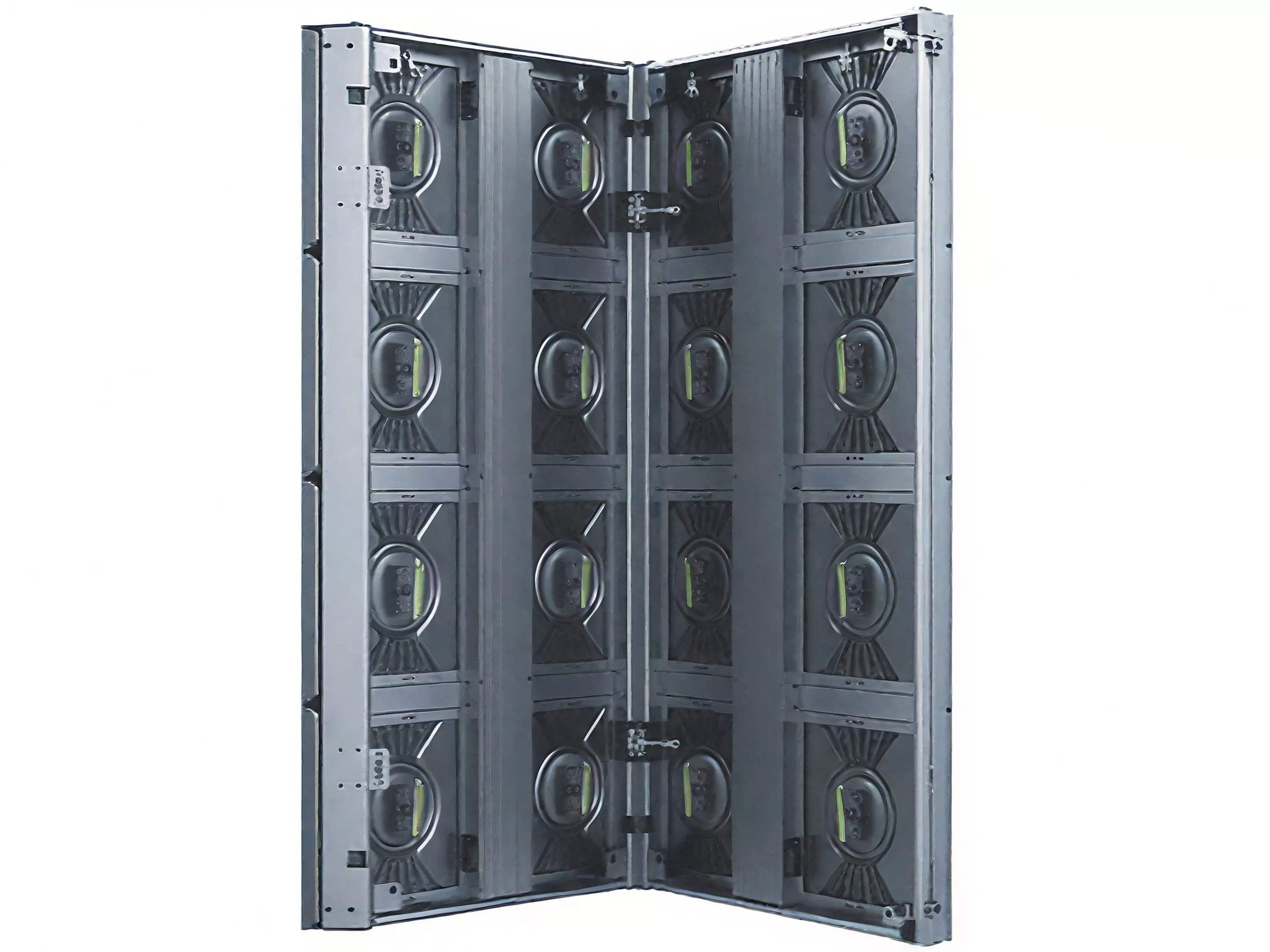

    Quick lockers for 9o°

    90°corner could be easily achieved without connection plate.

  • Emberv img03

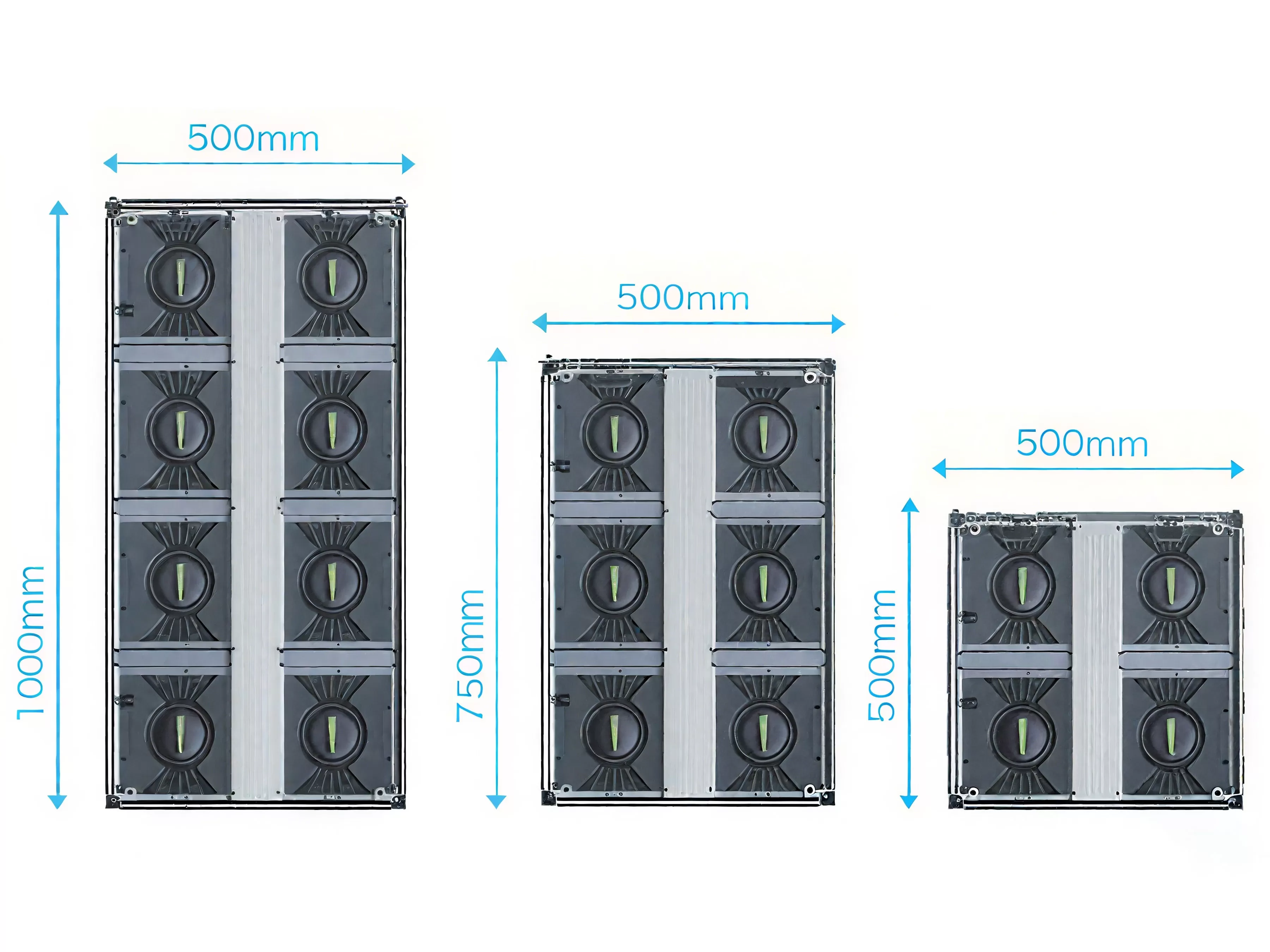

    Variety of panel size

    500x1000mm, 500x750mm, 500x500mmavailable

  • Emberv img04

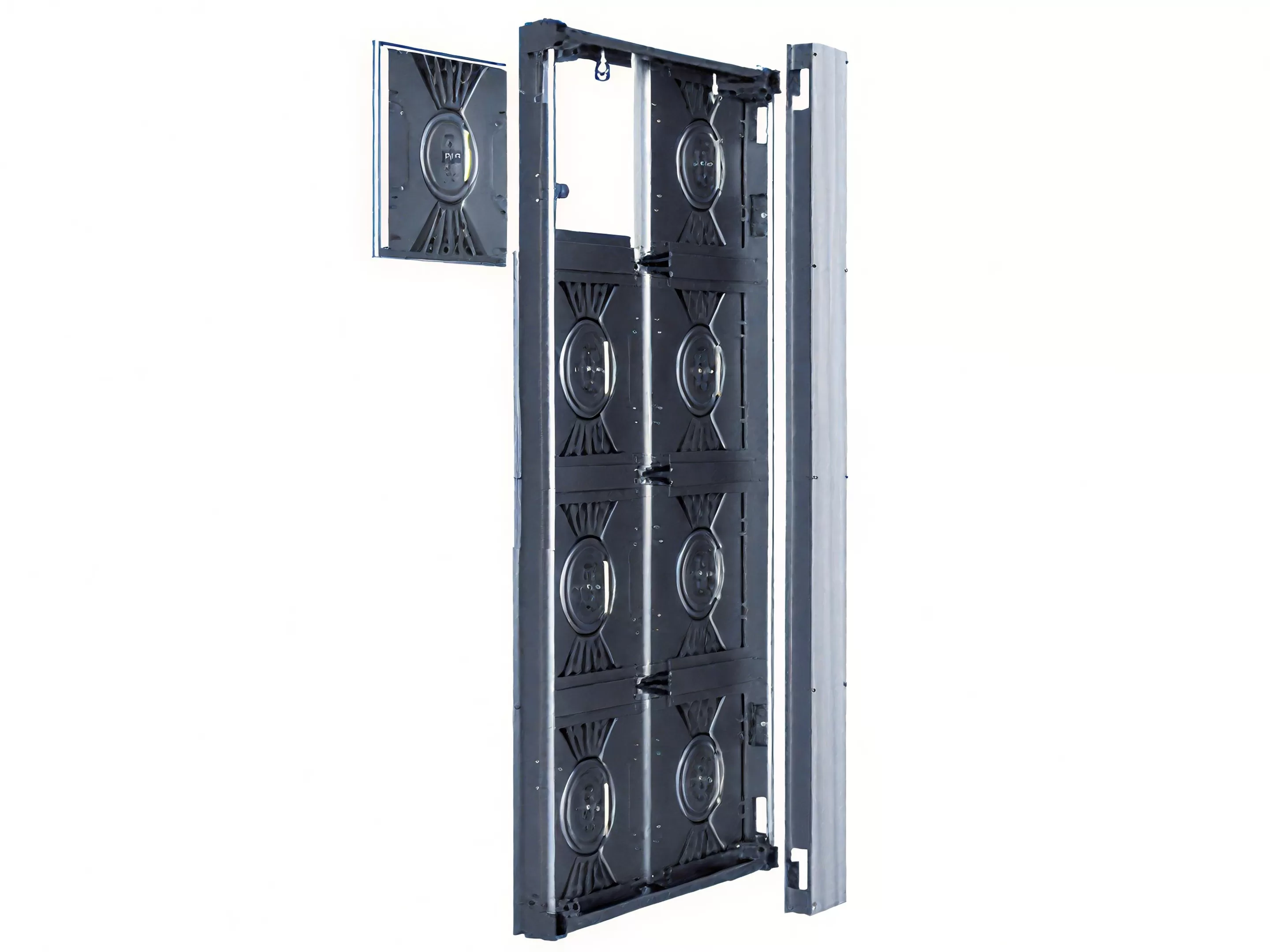

    Quick and convenient maintenance & installation

    Full front and back access for any kinds ofinstallation environment.

  • Emberv img05

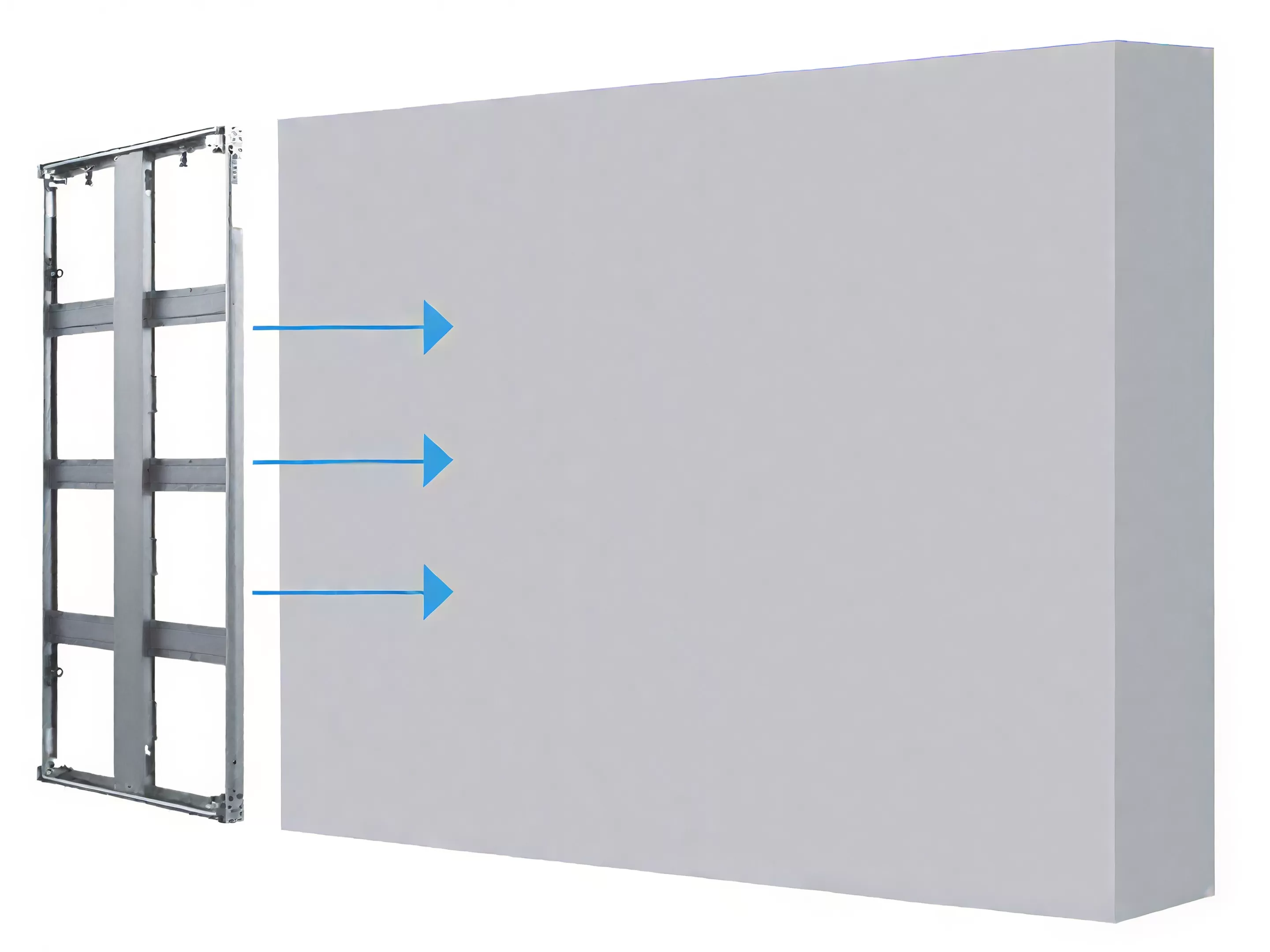

    Frameless installation

    The ember v panels could be installed without frame on the wall.

  • Emberv img06

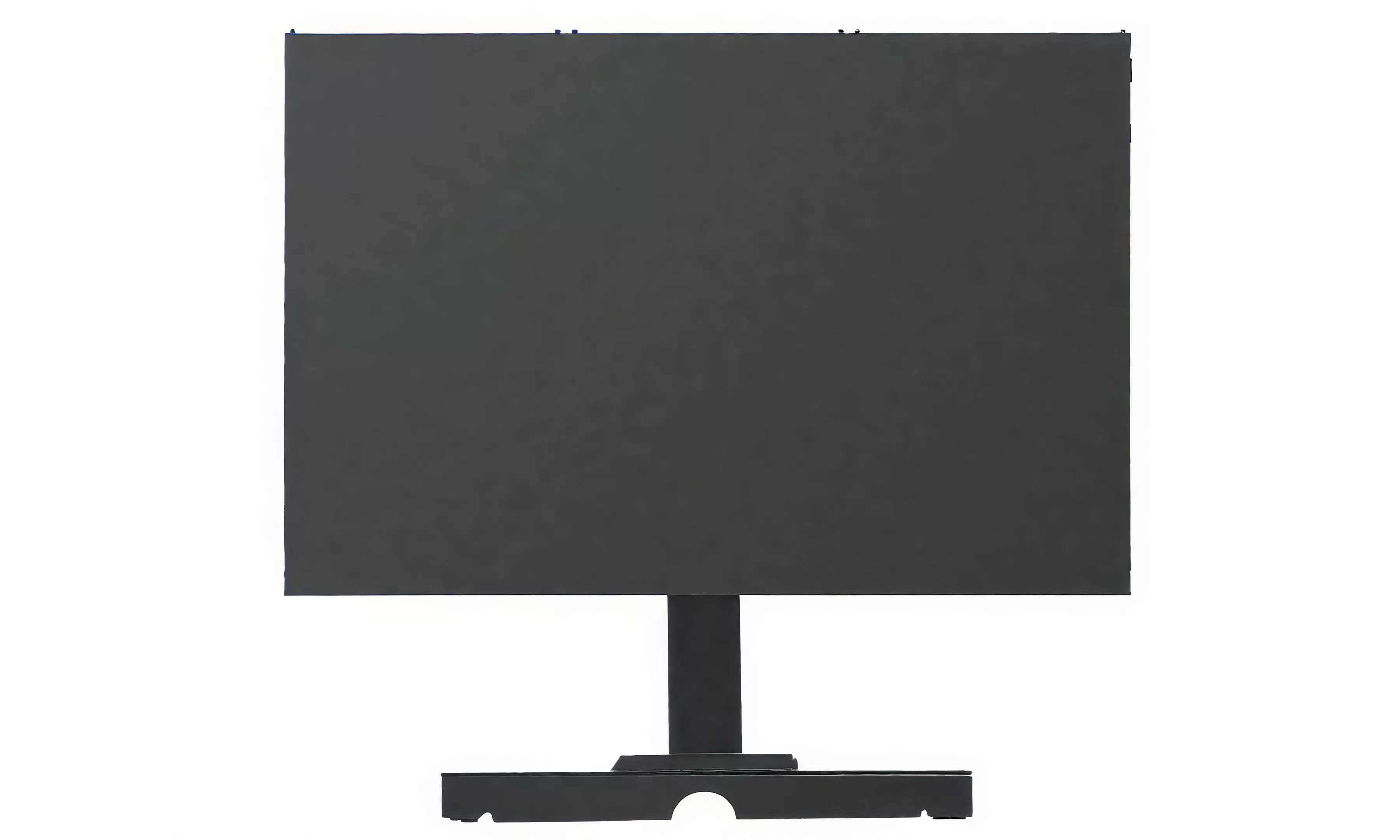

    Smart mini screen combo

    We offer the solution for mini size screen with all kits

Product Parameter

  • Table1
  • Table2
Ember V P1.5 P1.9 P2.6 P2.9 P3.9
Pixel Pitch (mm) 1.5625 1.953 2.604 2.976 3.906
LED Type SMD1010 SMD1010 SMD1515 SMD2020 SMD2020
Pixel Density (dot/㎡) 409600 262144 147456 112896 65536
Module Size(mm) 250 × 250
Panel Size(mm) 500 × 500/500 × 750/500 × 1000 × 53.5mm
Panel Resolution(dot) 320 × 320
320 × 480
320 × 640
256 × 256
256 × 384
256 × 512
192 × 192
192 × 288
192 × 384
168 × 168
168 × 252
168 × 336
128 × 128
128 × 192
128 × 256
Panel Material Aluminum Profile
Weight(kg/pcs) 5.5 /7.5 /9
Brightness(cd/㎡) 600 800 1000 1000 1200
Viewing Angle (H) 160°
Viewing Angle (V) 140°
Contrast Ratio 4000:1
Max.& Avg. Power Consumption (W/㎡) 680/227 680/227 640/220 640/220 640/220
Refresh Rate (Hz) 3840
Maintenance Way Front or Rear
Installation Way Front or Rear
IP Rate Indoor use only
Operating T&H -10-40℃&10-80%RH (No Condensation)
Storage T&H -20-60℃&10-85%RH (No Condensation)
Certification CE, EMC, CCC, ETL
Ember V Pro P2.6 P2.9 P3.9 P4.8 P5.9
Pixel Pitch (mm) 2.604 2.976 3.906 4.81 5.95
LED Type SMD1415 SMD1415 SMD1921 SMD2727 SMD2727
Pixel Density (dot/㎡) 147456 112896 65536 43264 28224
Module Size(mm) 250 × 250
Panel Size(mm) 500 × 500/500 × 750/500 × 1000 × 60mm
Panel Resolution(dot) 192 × 192
192 × 288
192 × 384
168 × 168
168 × 252
168 × 336
128 × 128
128 × 192
128 × 256
104 × 104
104 × 156
104 × 208
84 × 84
84 × 126
84 × 168
Panel Material Profile Aluminum
Weight(kg/pcs) 7 /10 /12.5
Brightness(cd/㎡) 4500 4500 5000 5000 5000
Viewing Angle (H) 140°
Viewing Angle (V) 110°
Contrast Ratio 4000:1
Max.& Avg. Power Consumption (W/㎡) 760/253 760/253 650/220 650/220 650/220
Refresh Rate (Hz) 3840
Maintenance Way Front or Rear
Installation Way Front or Rear
IP Rate IP65&54
Operating T&H -10~40&10%~80%RH (No Condensation)
Storage T&H -30~60&10%~85%RH (No Condensation)
Certification CE, EMC, CCC, ETL
9a1e53a6 4506 4a4e 837a ece5d525f920
0462b12a 5049 4c0c 9f37 3786ba444c72
451ac3b6 ee94 44fe 866b 03a69e32db18
03 10
66758d7c 160d 4d22 b338 bd9aa2a21f8e
1 / 5
Cases

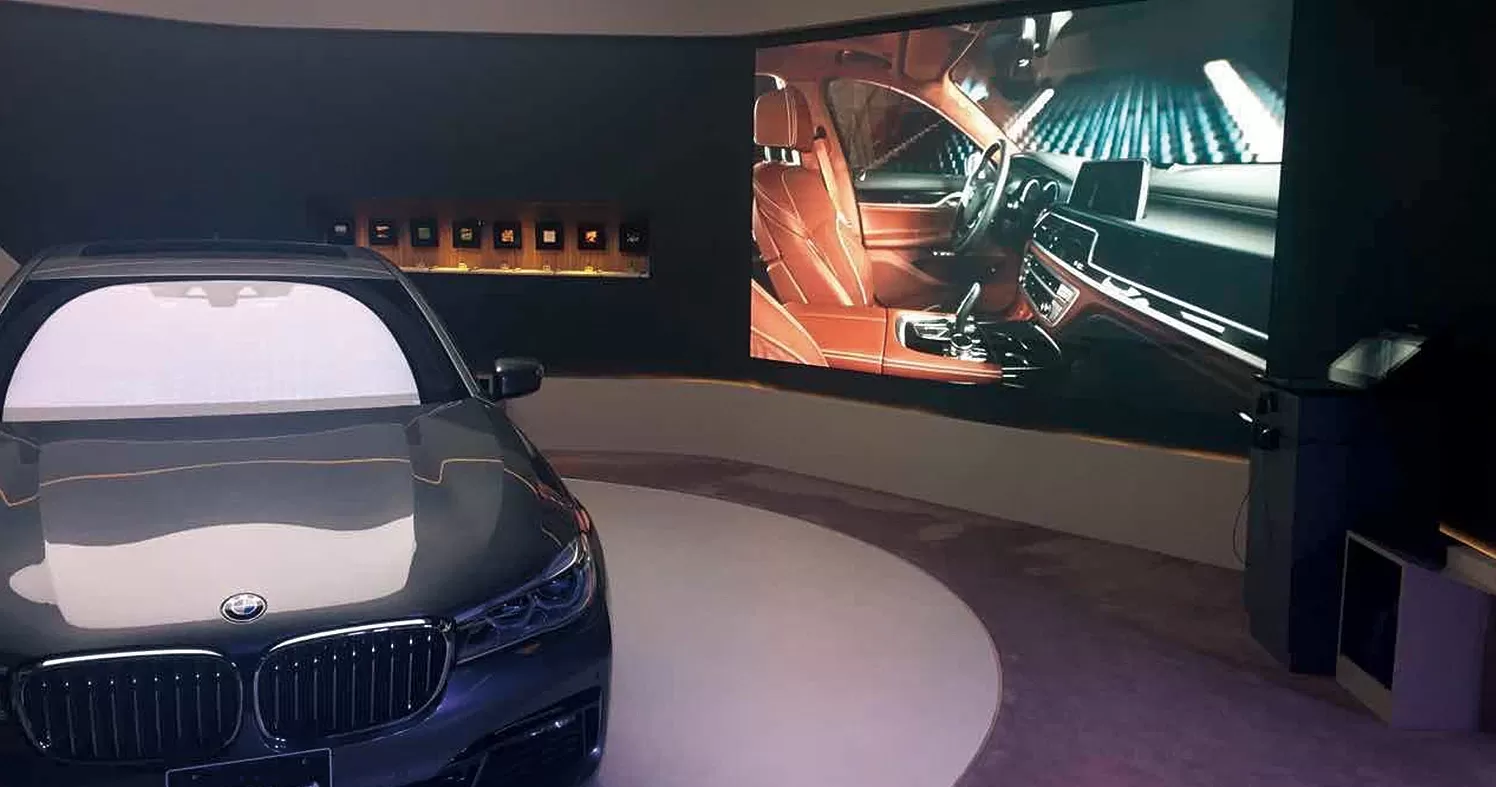

BMW Group Studio

Ember V-2.6

Space size:W3500xH2000mm, 7㎡

Cases

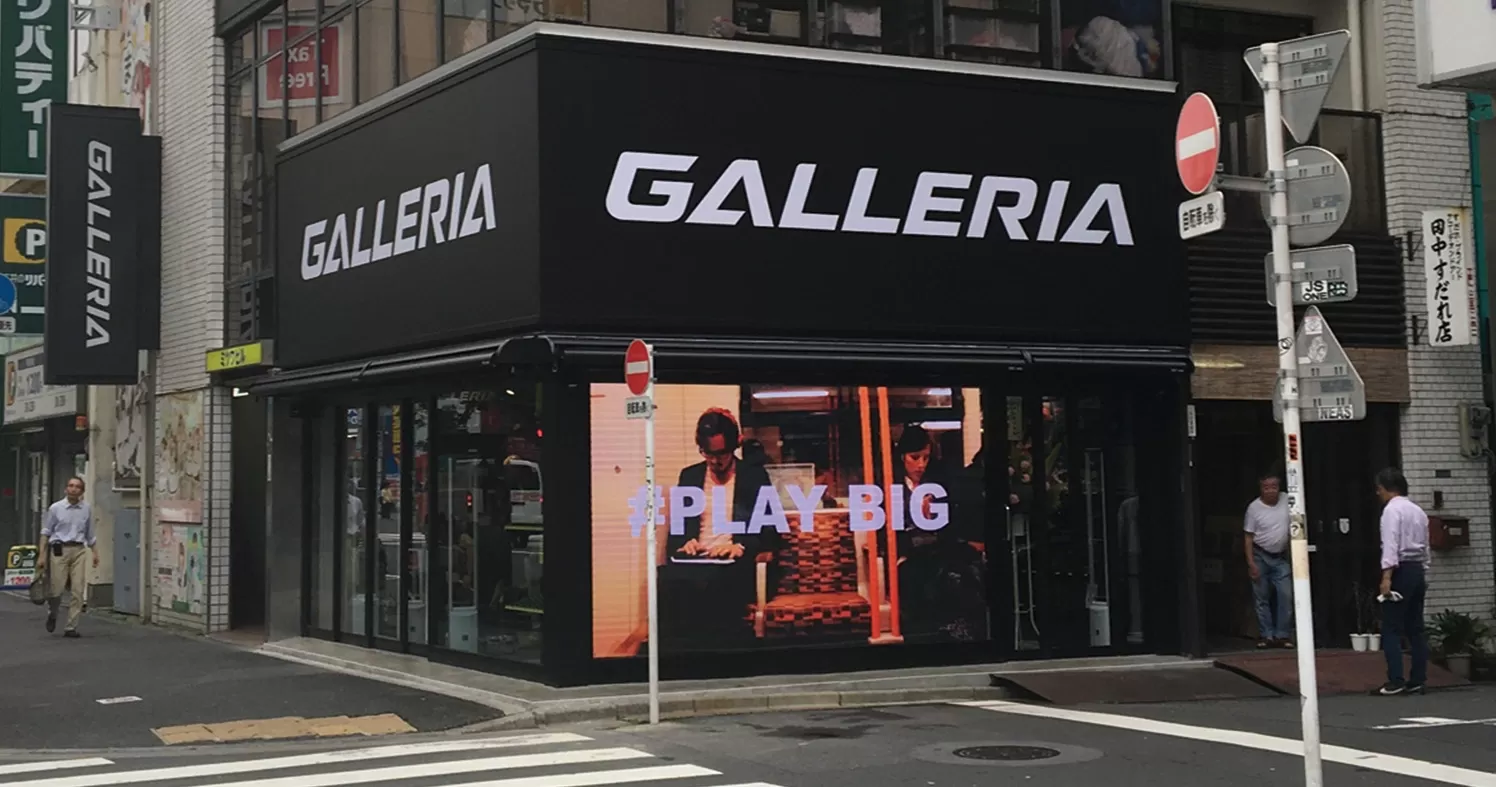

GALLERIA Lounge Akihabara

Ember V Pro-3.9

Space size:W3500xH2000mm, 7㎡

Cases

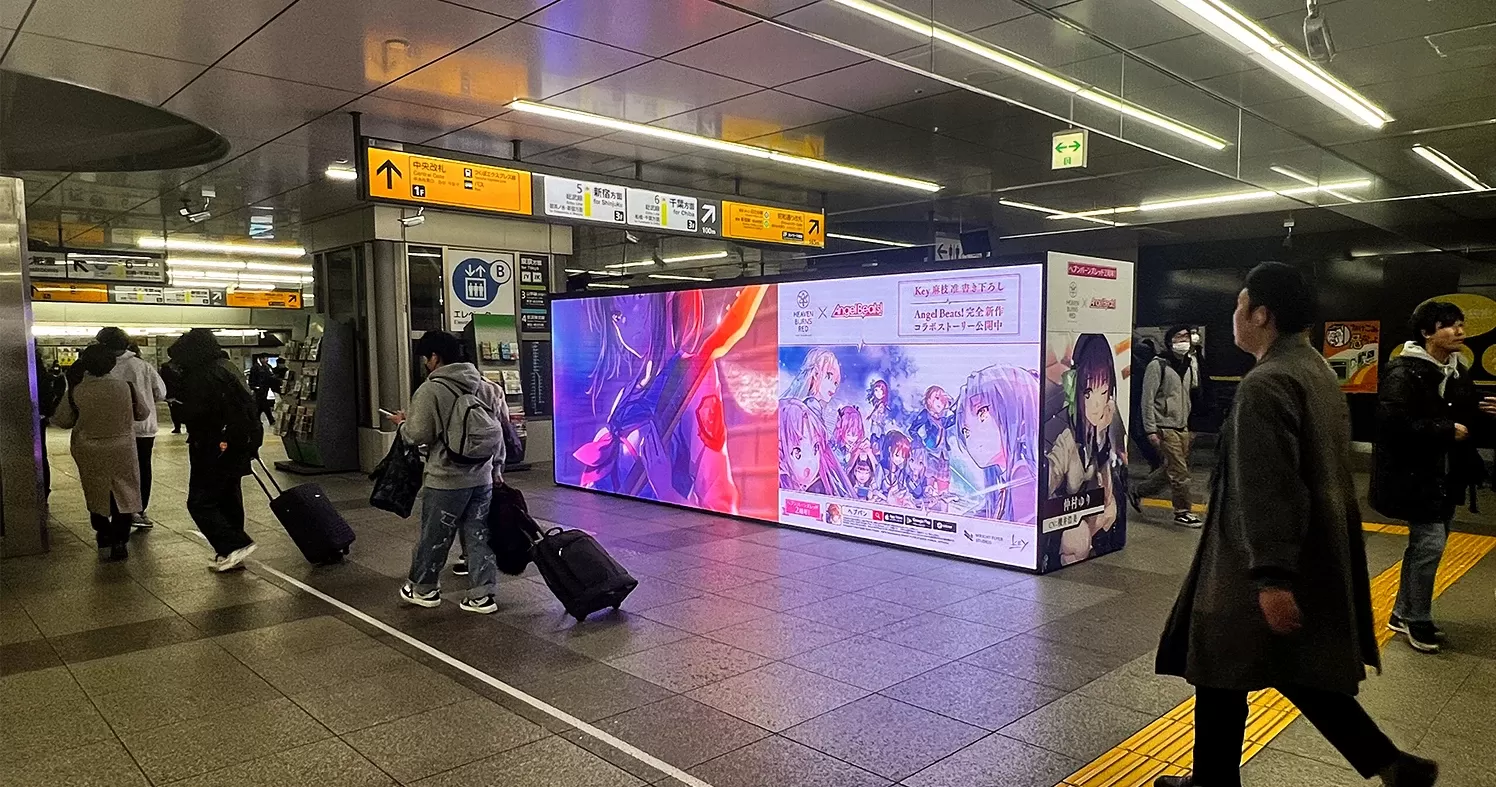

JR Akihabara Electric Town Exit Event Space

Ember V-2.6

Space size:W6000×H2000mm, 12㎡

Cases

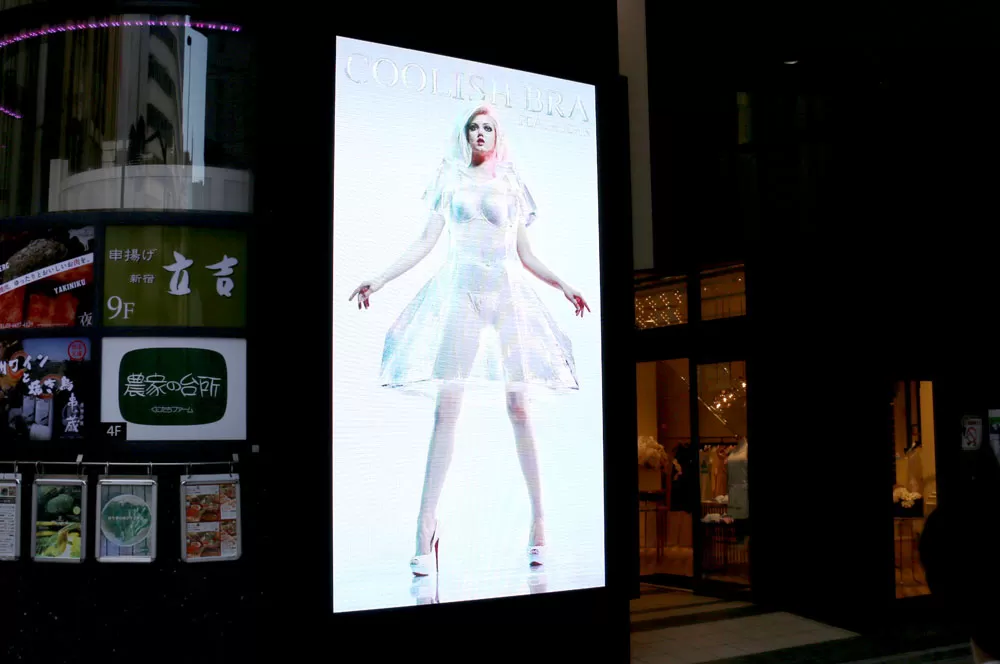

PEACH JOHN Shinjuku-sanchome store

Ember V Pro-3.9

Space size:W2000 × H3500mm, 7㎡

Cases

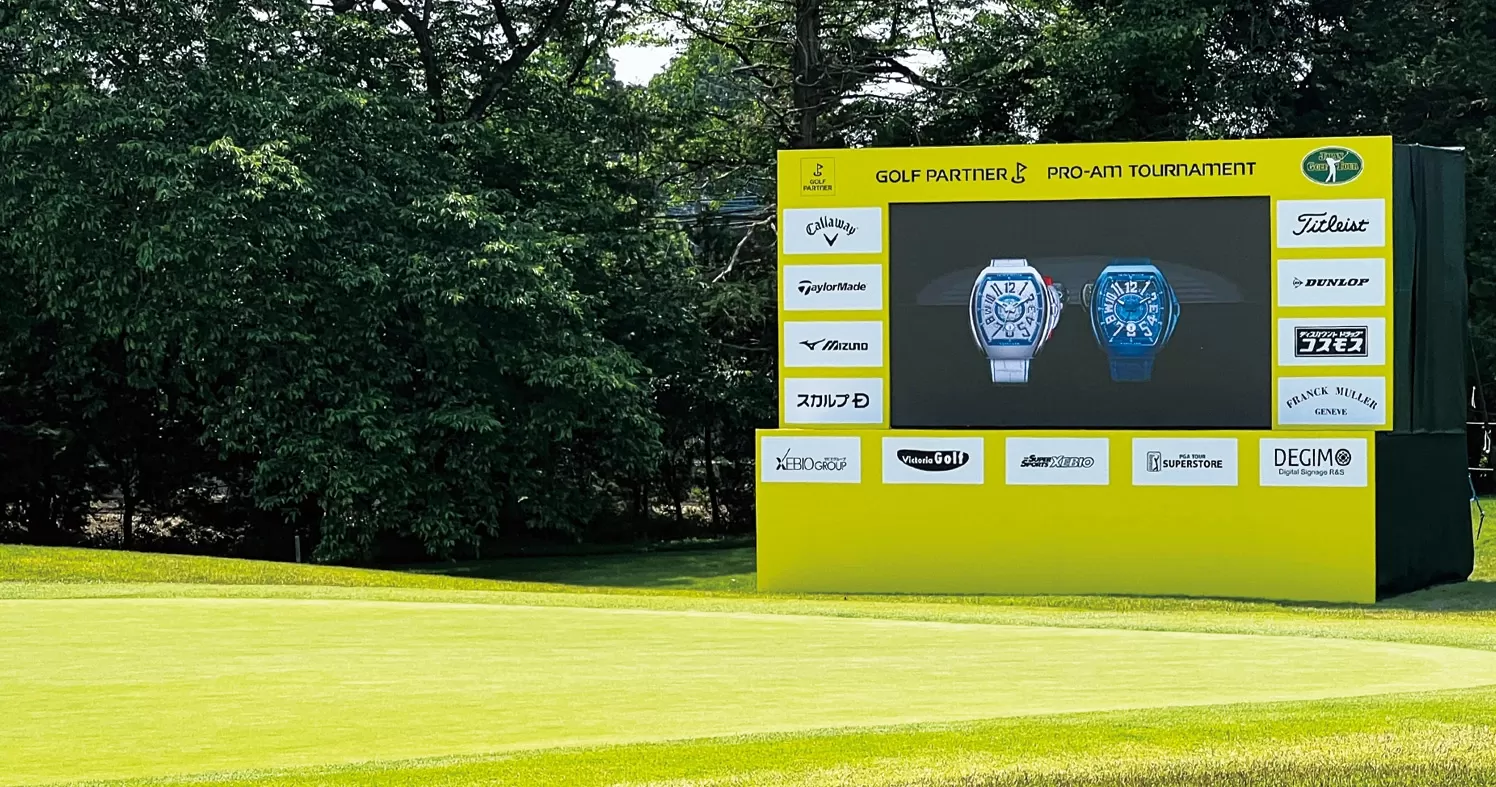

Golf Partner Pro-Am Tournament 2

Ember V Pro-3.9

Space size:W4500×H2500mm, 11.25㎡
