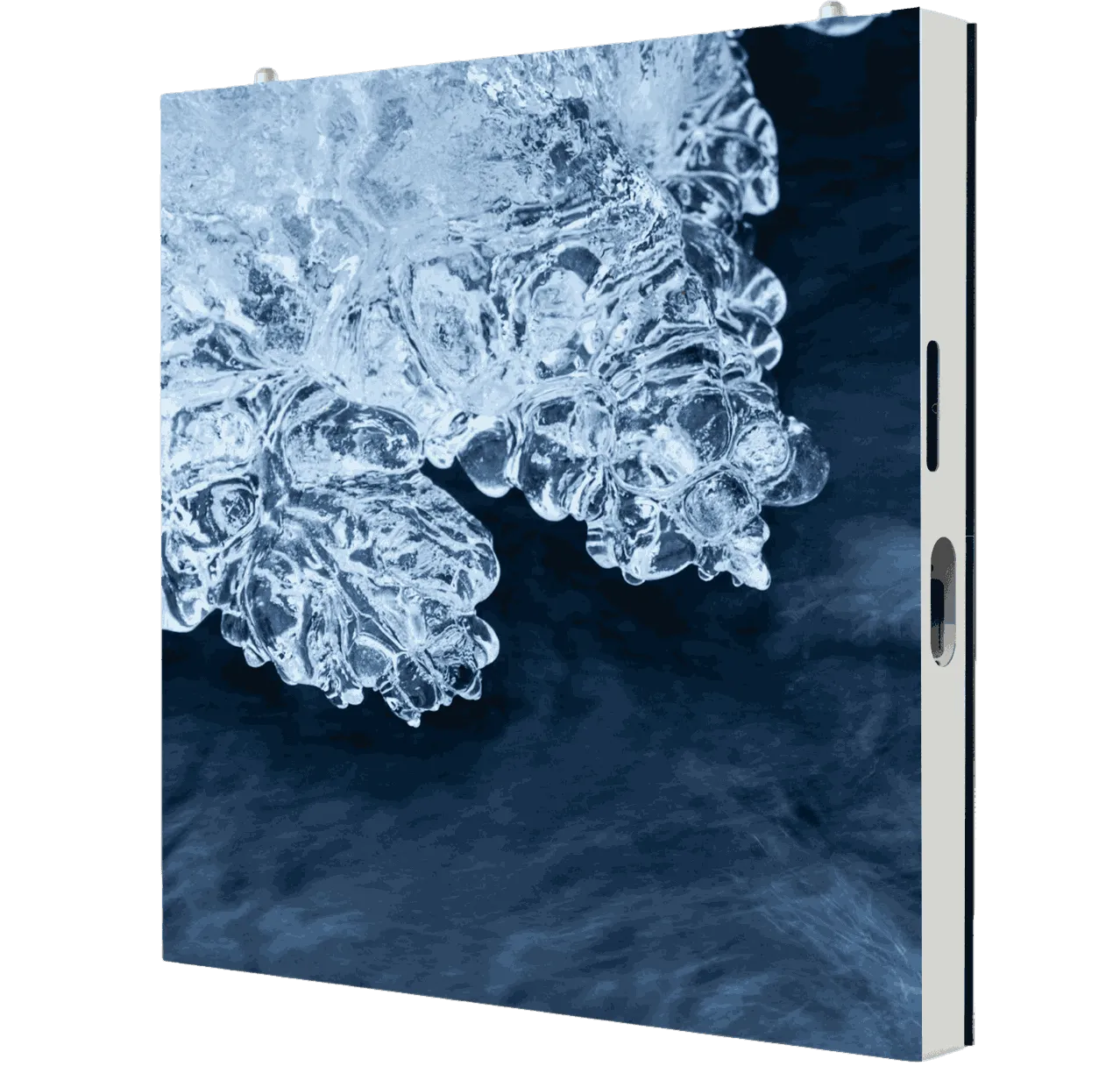

The IVORY SERIES outdoor LED video wall is specially designed for outdoor signs, billboards, hoardings, or any DOOH that requires excellent waterproof capacity, light-weight, front-access, and convenient maintenance. As a high-end outdoor LED billboard solution, the Ivory series provides the best viewing effects under the premise of durability.
Moreover, the module size and various cabinet configurations can achieve a larger LED screen and easily realize a 90° angle screen.

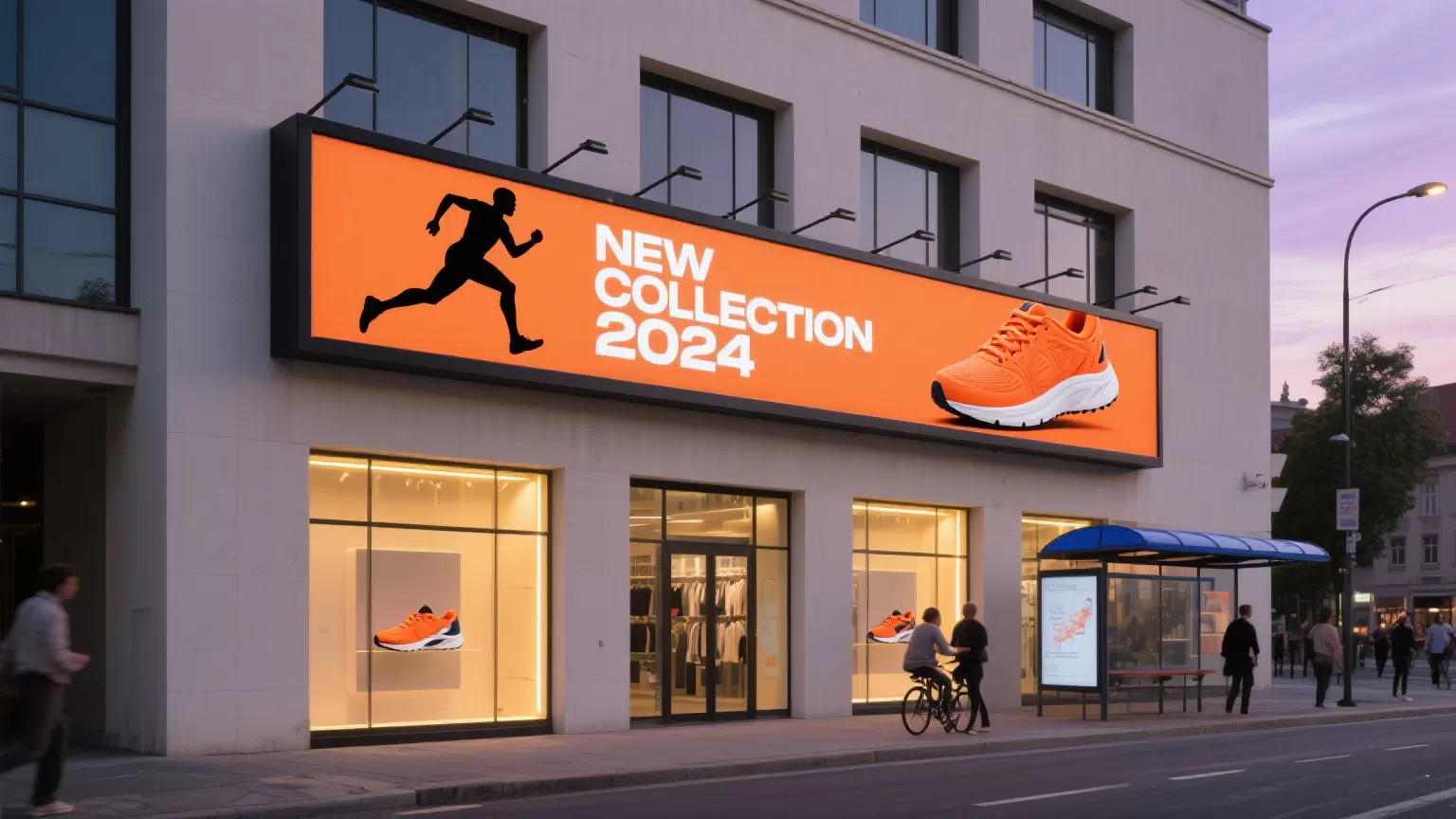

Ivory banner
  • Pitch(mm) :4/5/6/8/10/16
  • Applications :
    Billboard & Banner/Outdoor signage DOOH

Product Features

  • Ivory (2)

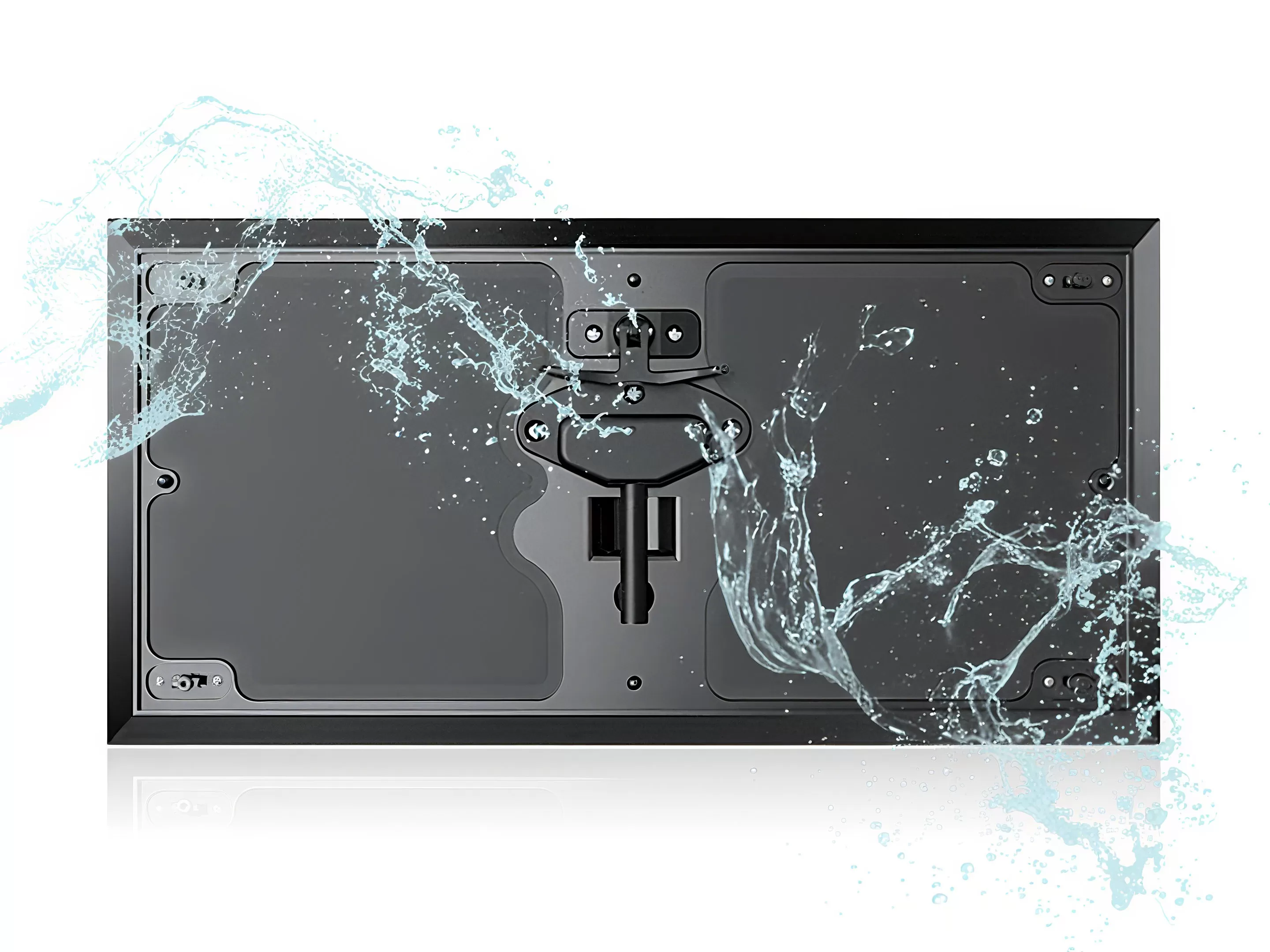

    Super water-proof

    Enclosed-designed module which could reach lP67

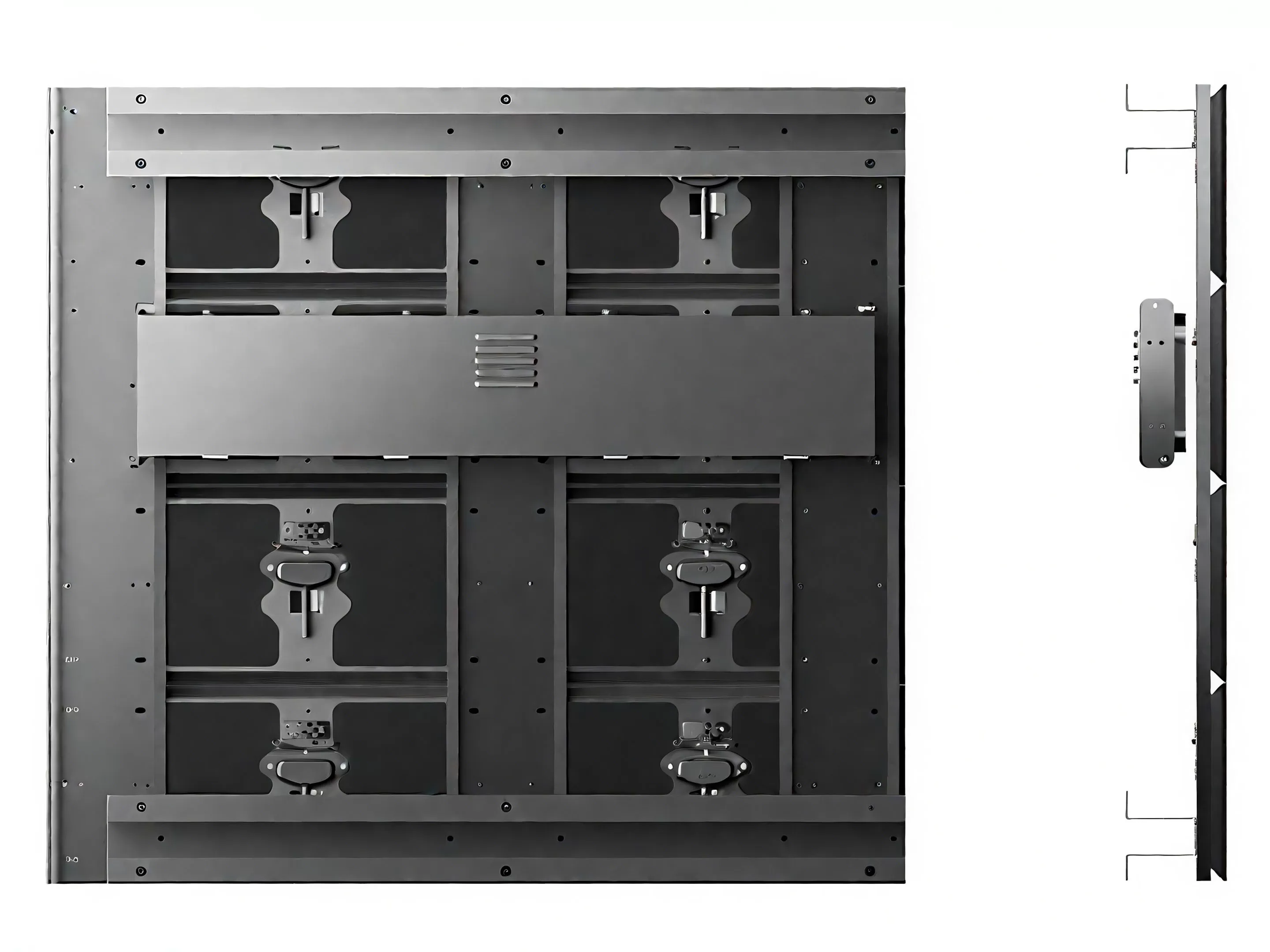

  • Ivory (3)
    Non-cabinet version

    Direct module mounting so that less installation structure& cost is achievable

  • Ivory (4)

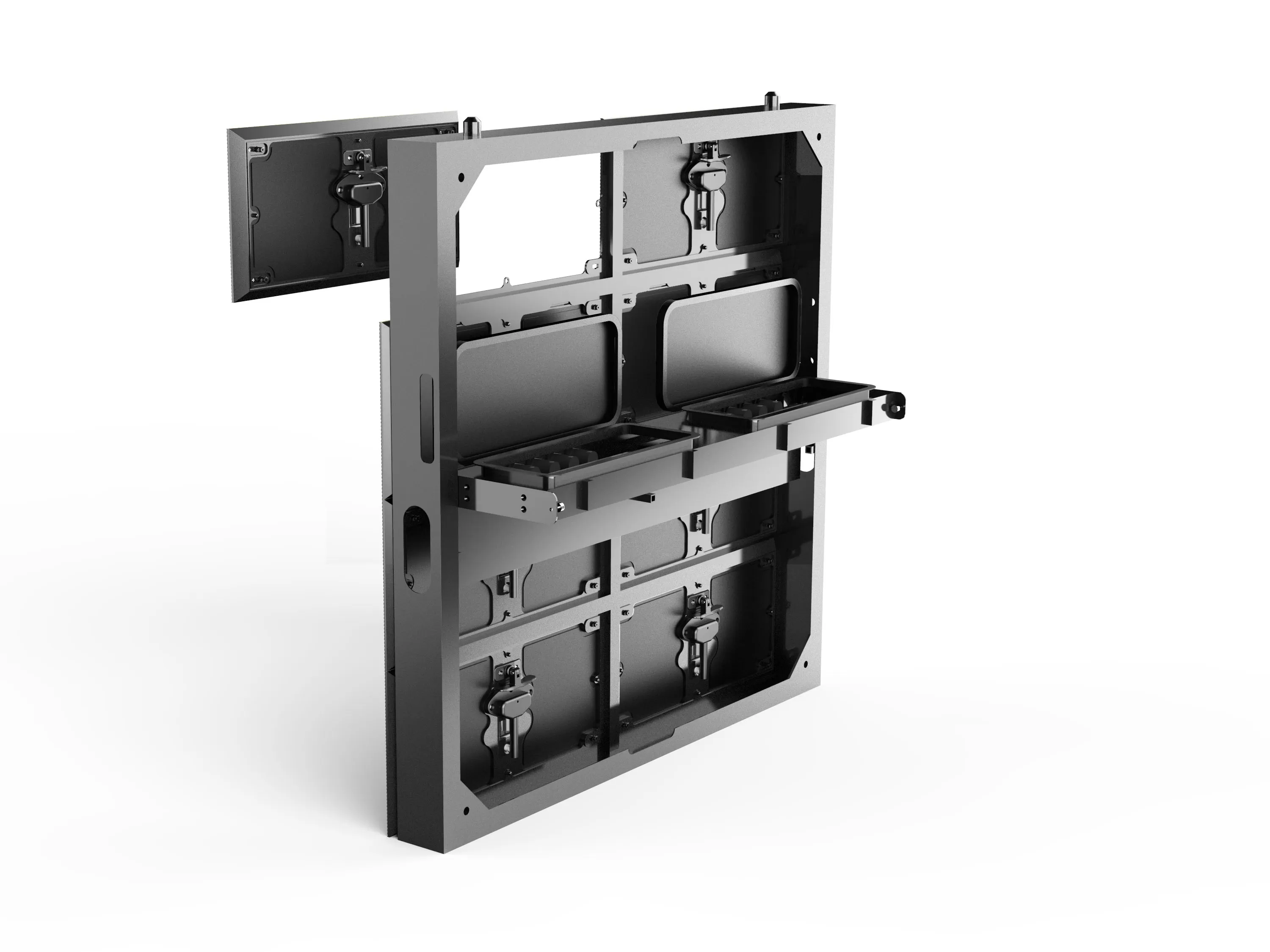

    Fully front or back maintenance

    Quick module lock & tip power box readily achieve convenient maintenance & perfectly suit for all kinds of environment

  • Ivory (5)

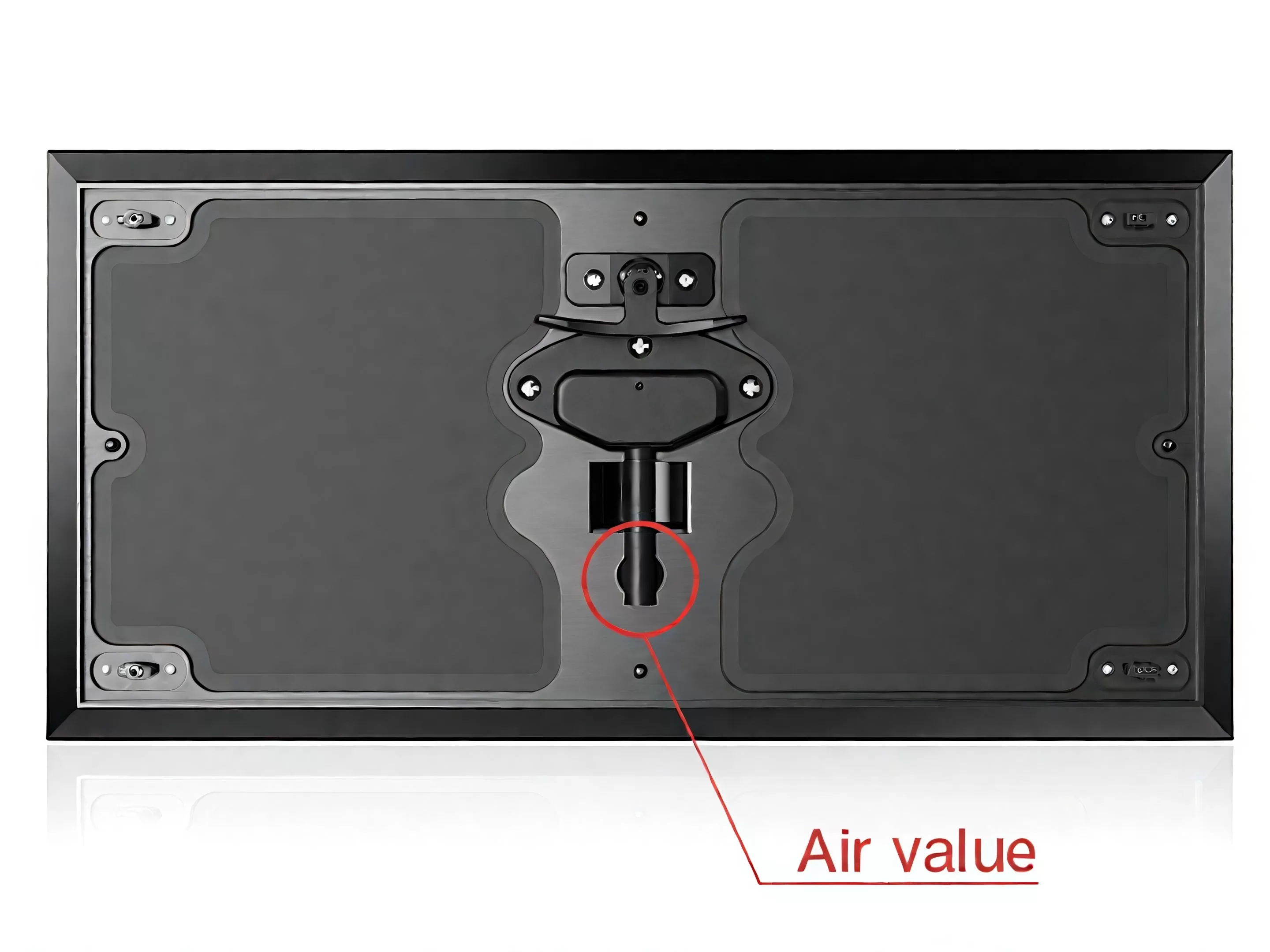

    Air valve

    Avoid the distortion of module caused by air pressure

  • Ivory (6)

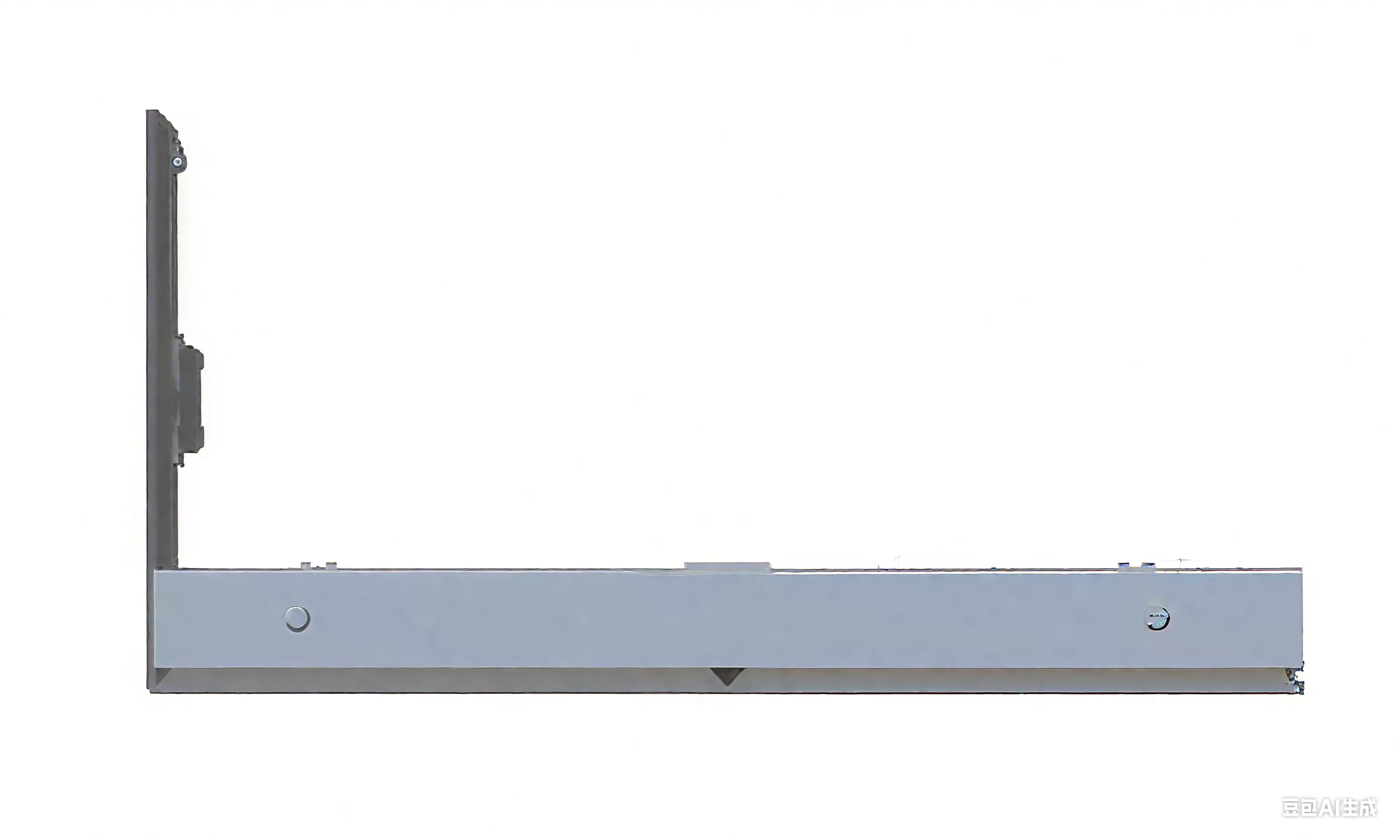

    Isosceles trapezoid module design

    90° Corner & curved display are available

  • Ivory (1)

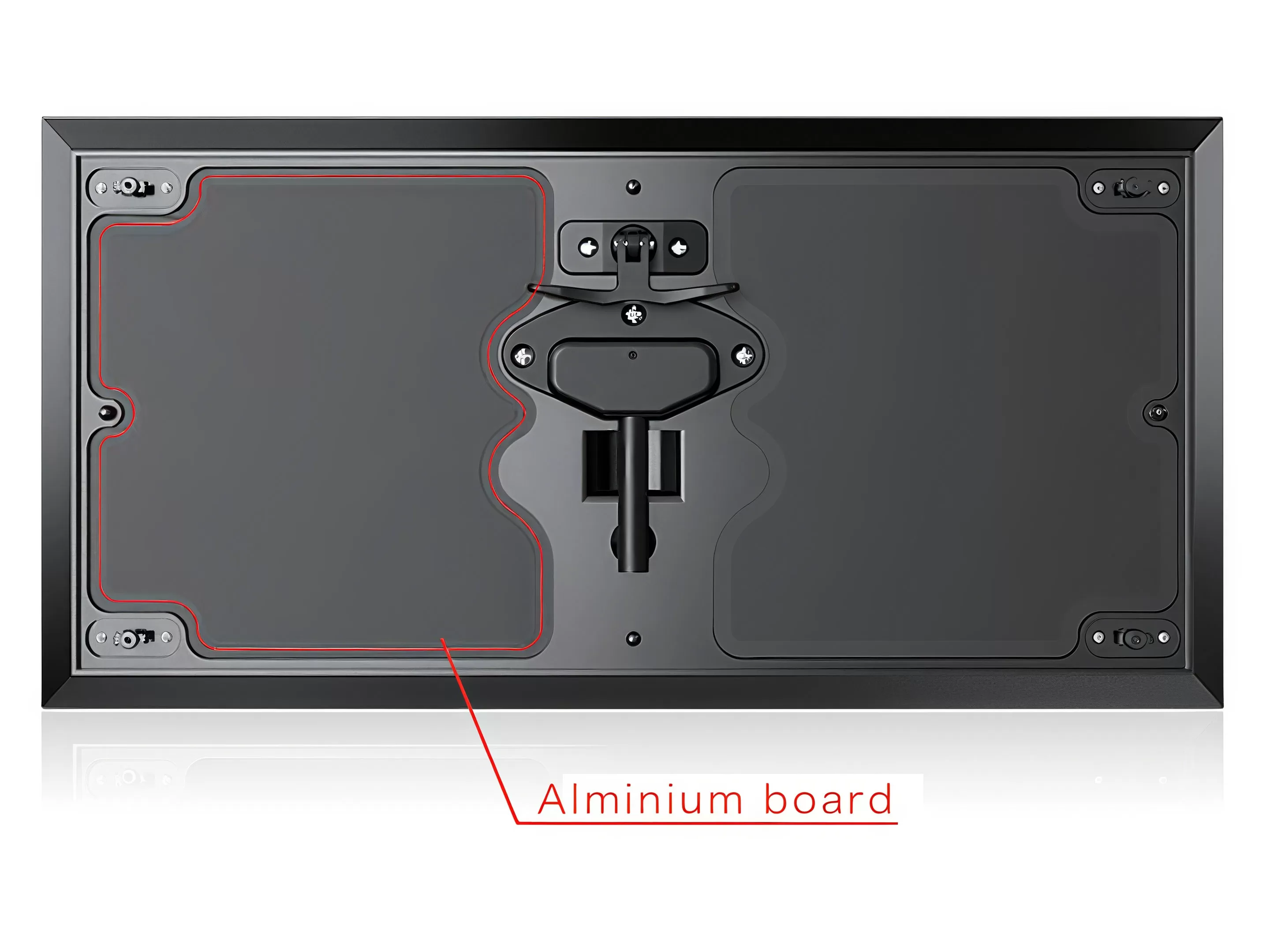

    Added thermal management

    Additional aluminum board for the heat dissipation of dense pixels (P4.1)

Product Parameter

  • Table1
Ivory P4 P5 P6 P8 P10 P16
Pixel Pitch (mm) 4.166 5 6.25 8.33 10 16.67
LED Type SMD
Pixel Density (dot/㎡) 57600 40000 25600 14400 10000 3600
Module Size(mm) 400*200
Panel Size(mm) 800*800*91.55
Panel Resolution(dot) 192*192 160*160 128*128 96*96 80*80 48*48
Panel Material Aluminum/Iron
Panel Weight(kg/pcs) 25/35 22/30 22/30 22/30 22/30 22/30
Brightness(cd/㎡) 5500 5500 6500 6500 6500 6500
Viewing Angle (H) 140°
Viewing Angle (V) 110°
Contrast Ratio 4000:01:00
Max.& Avg. Power Consumption (W/㎡) 810/280 960/336
Refresh Rate (Hz) 1920
Maintenance Way Front or Rear
Installation Way Front or Rear
IP Rate IP67/IP65
Operating  T&H -10～40℃ & 10 %~80 % RH
Storage T&H -30～60℃ & 10 %~85 % RH
Olympus digital camera
1 220302142634157
1 / 2
Cases

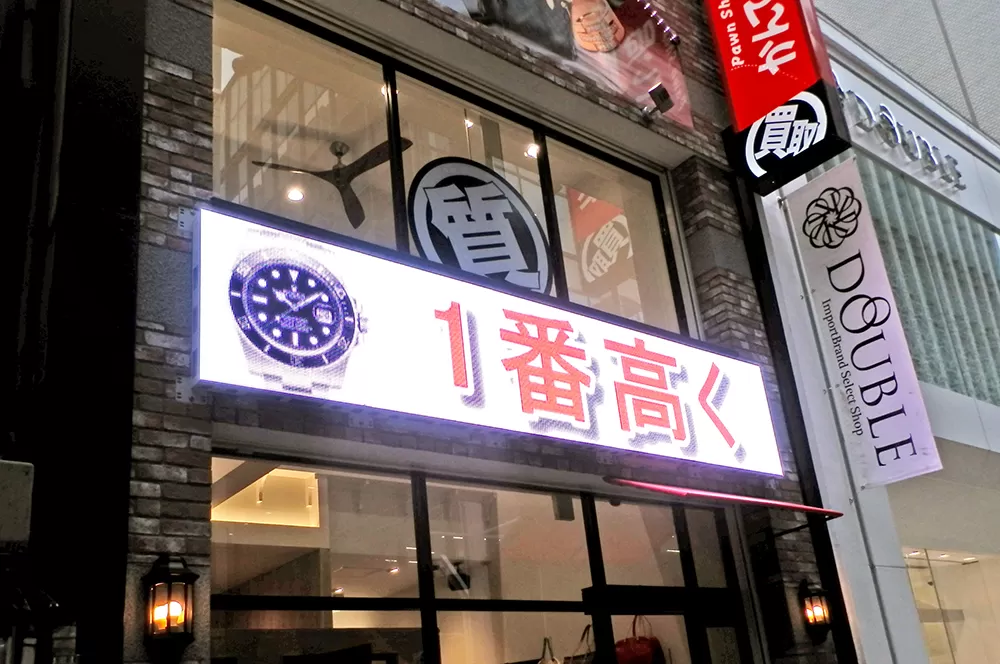

Kantei-kyoku Nagoya Sakae Branch

lvory-6

Space size:W4000 × H800mm, 3.2㎡

View More
Cases

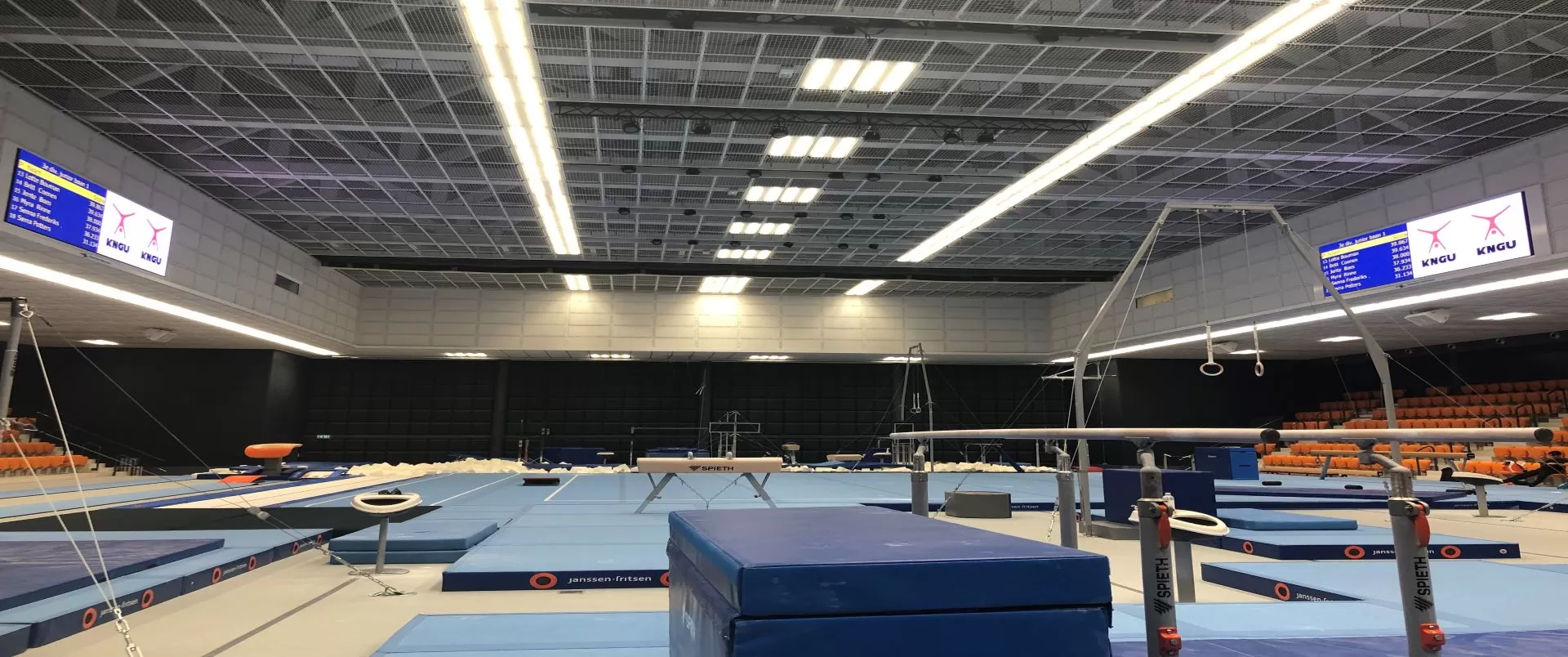

Sports Center of Rotterdam

Ivory-5

Space size:W5200×1600mm, 8.32㎡
