Led Shelf

Led Shelf

As mini LED wall shelves with lights, the LS series helps to create the AD spaces at the best places where people will not hate the AD but be open to it. The LED wall shelf display has the characteristics of slim, lightweight, GOB protection, unlimited contacts, intelligent management, and higher brightness, which will bring you the following values:
1. Take advantage of the advertising space to make advertising a reference for people, rather than annoying obstacles.
2. Utilizing the perfect advertising timing. In the shopping time of selection and payment, people may not resist advertisements, and they may like to try those that are attracted and touched.
3. Display the expected information in a clear and easily acceptable form. Just a few more glances at the LED shelf display are enough to achieve the advertising effect.

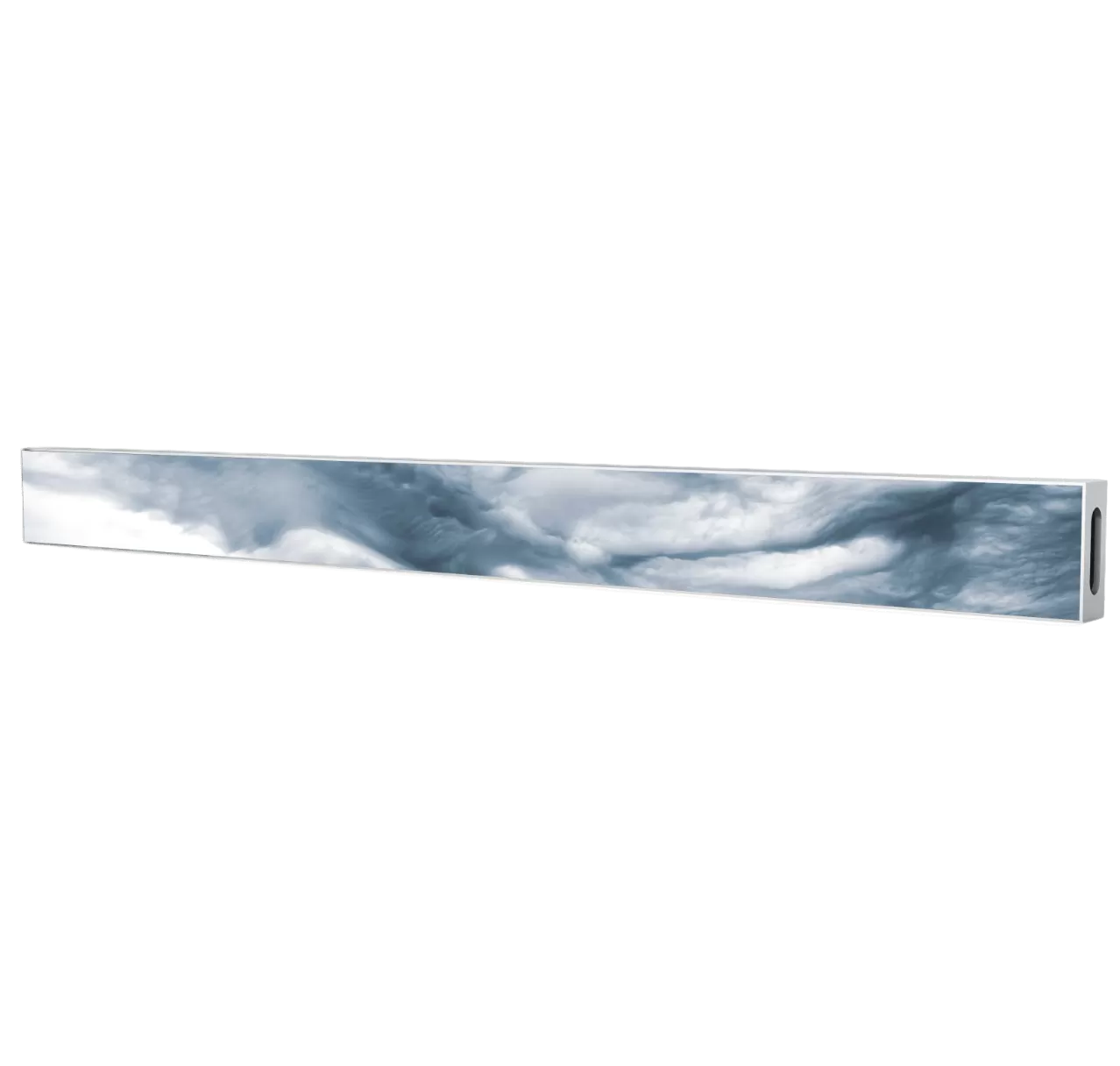

Led shelf banner
  • Pitch(mm) :1.2/1.5/1.8
  • Applications:

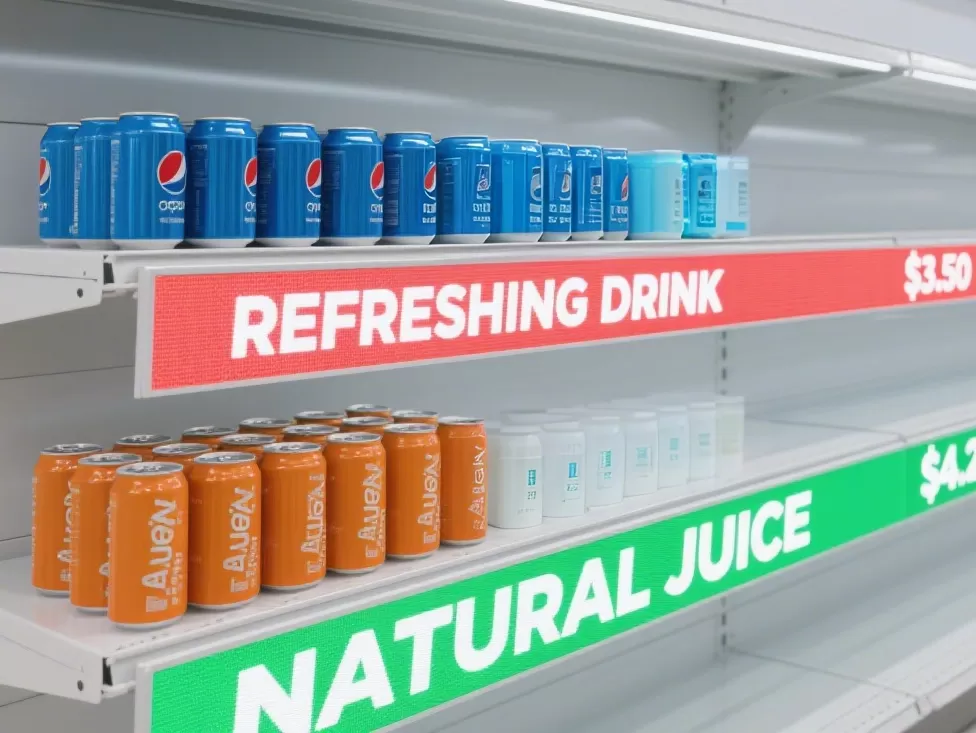

    Shopping mall & Supermarket
    Retail & Stores
    VEM & Refrigerated cabine

Product Features

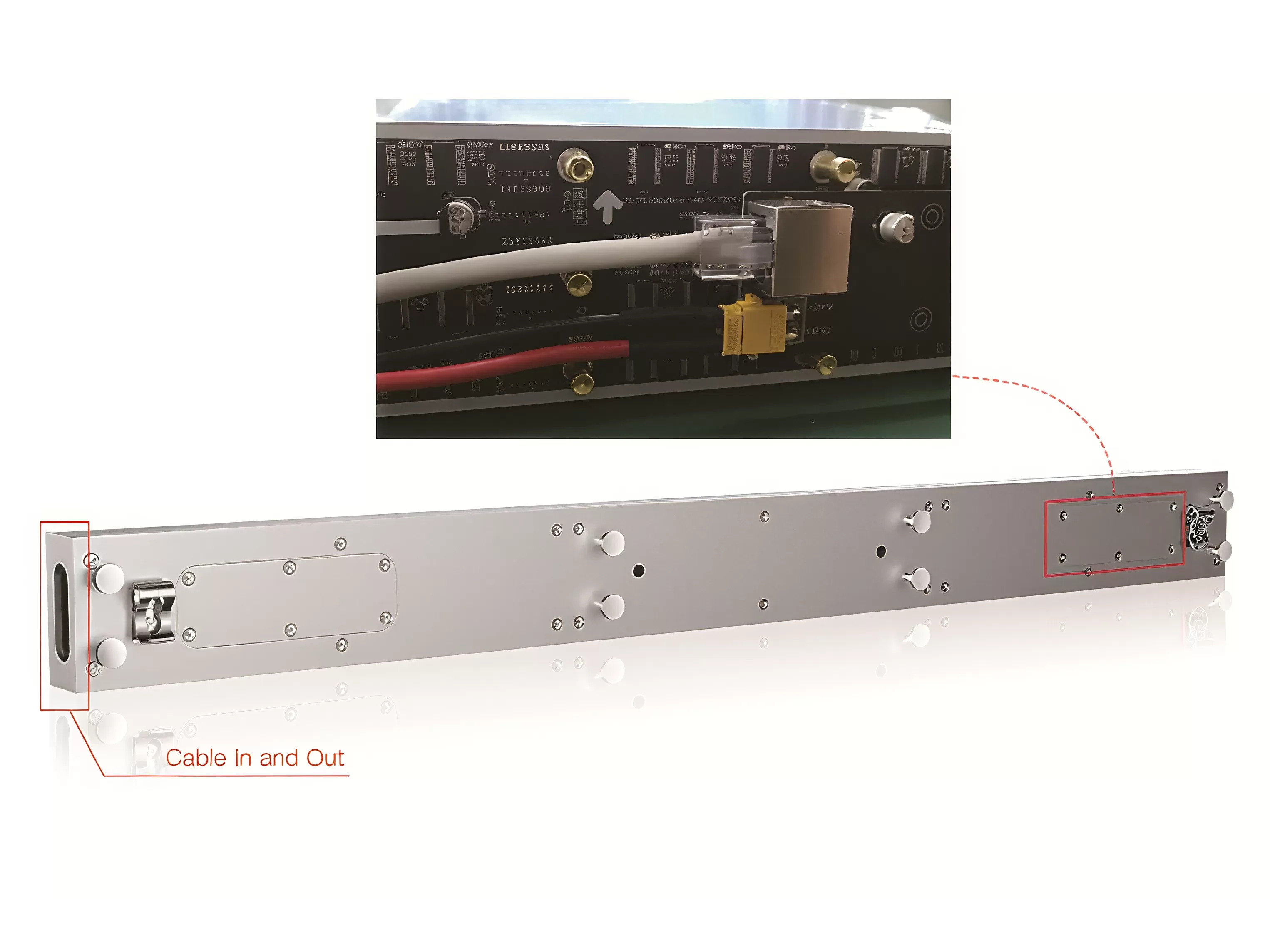

  • Ls02
    Internal Cabling Design

    The LED shelf display uses inner connected data and power cables aimed to save more space and bring neat wiring for easy maintenance.

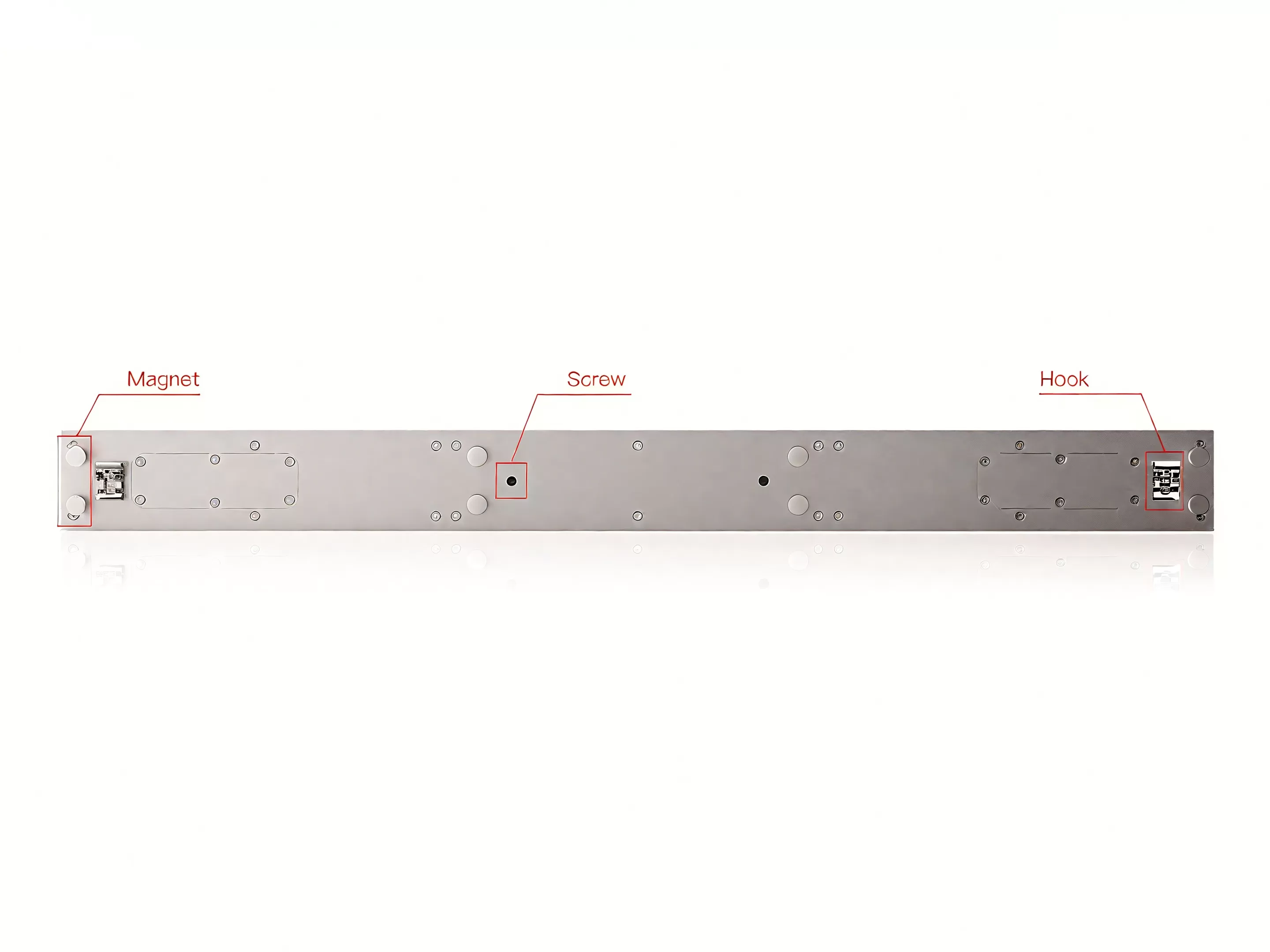

  • Ls03
    Multi Installation Methods

    LED shelf displays to have hooks, screws, and magnets available to match many kinds of shelves or racks. It supports wall-mounted and mobile stand installation, which can be easily installed and maintained in a short time.

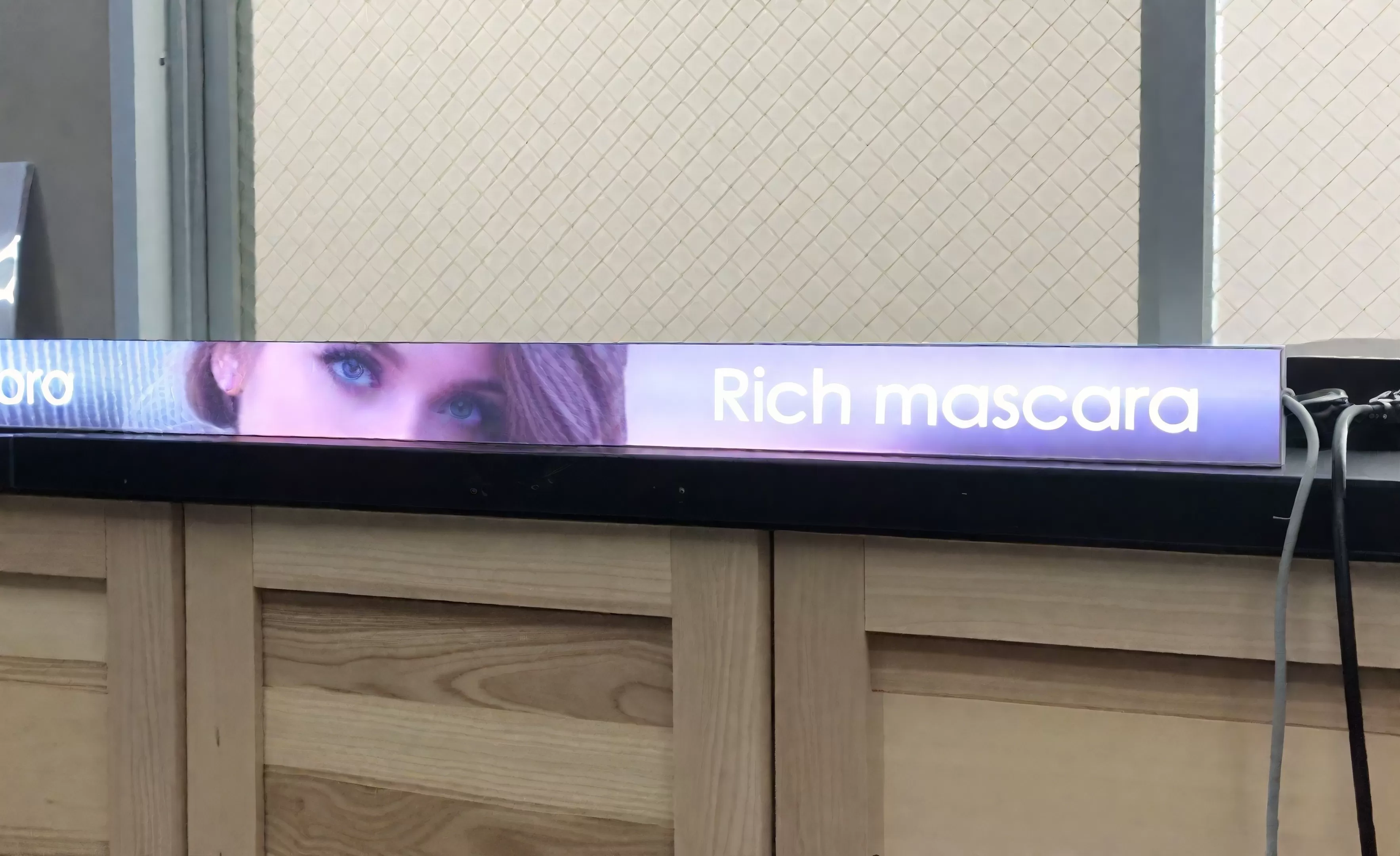

  • Ls01
    Seamless Splicing

    Each LED shelf strip of the wall shelves with lights of the LED Shelf series can be seamlessly connected for the longer shelf applications and display more content.

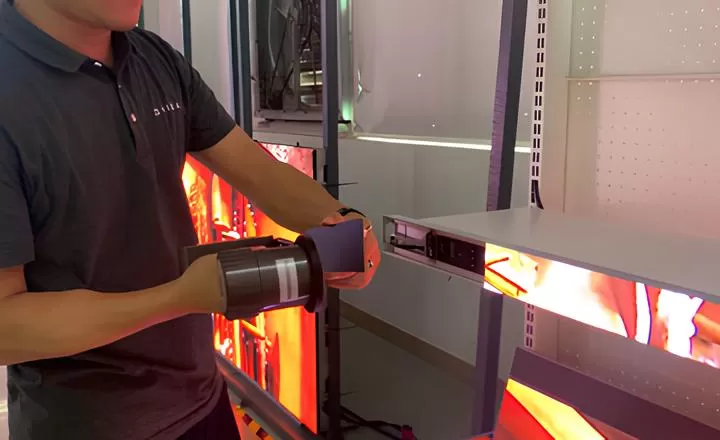

  • 202109301041383907111
    Front Access

    The magnetic module of the wall shelves with lights can be dismounted from the front side with a vacuum pad and installed back by a manual snap-on. The operation is simple, and it is easy to enter the front cabinet or the rear cabinet for maintenance.

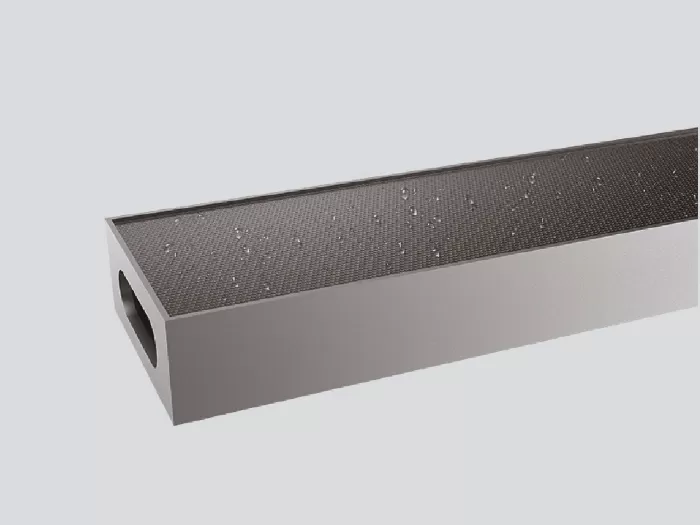

  • Led shelf 5x
    GOB protection

    There is no doubt that the LED shelf display will be touched by outside in daily use. The wall shelves with lights have undergone professional GOB coating technology to protect the equipment from impacts, dust, and moisture.

Product Parameter

LED shelf P1.2 P1.5 P1.8
Pixel Pitch  (㎜) 1.25 1.5 1.875
Pixel Density (dot/㎡) 640,000 444,444 284,444
Module Size(mm) 240 × 60
Panel Size(mm) 720 × 60 × 30
Panel Resolution(dot) 576 × 48 576 × 48 576 × 48
Panel Material Aluminum
Panel Weight(kg/pcs) 1.1
Brightness(cd/㎡) 600
Viewing Angle (H) 140°
Viewing Angle (V) 110°
Contrast Ratio 5000:1
Max.& Avg. Power Consumption (W/㎡) 680/225 680/225 540/180
Refresh Rate (Hz) 3840
Maintenance Way Front or Rear
Installation Way Rear
IP Rate IP20
Certification CE, RoHS, EMC, CCC
Ls
微信图片 20250811102541 157
1 / 2
Cases

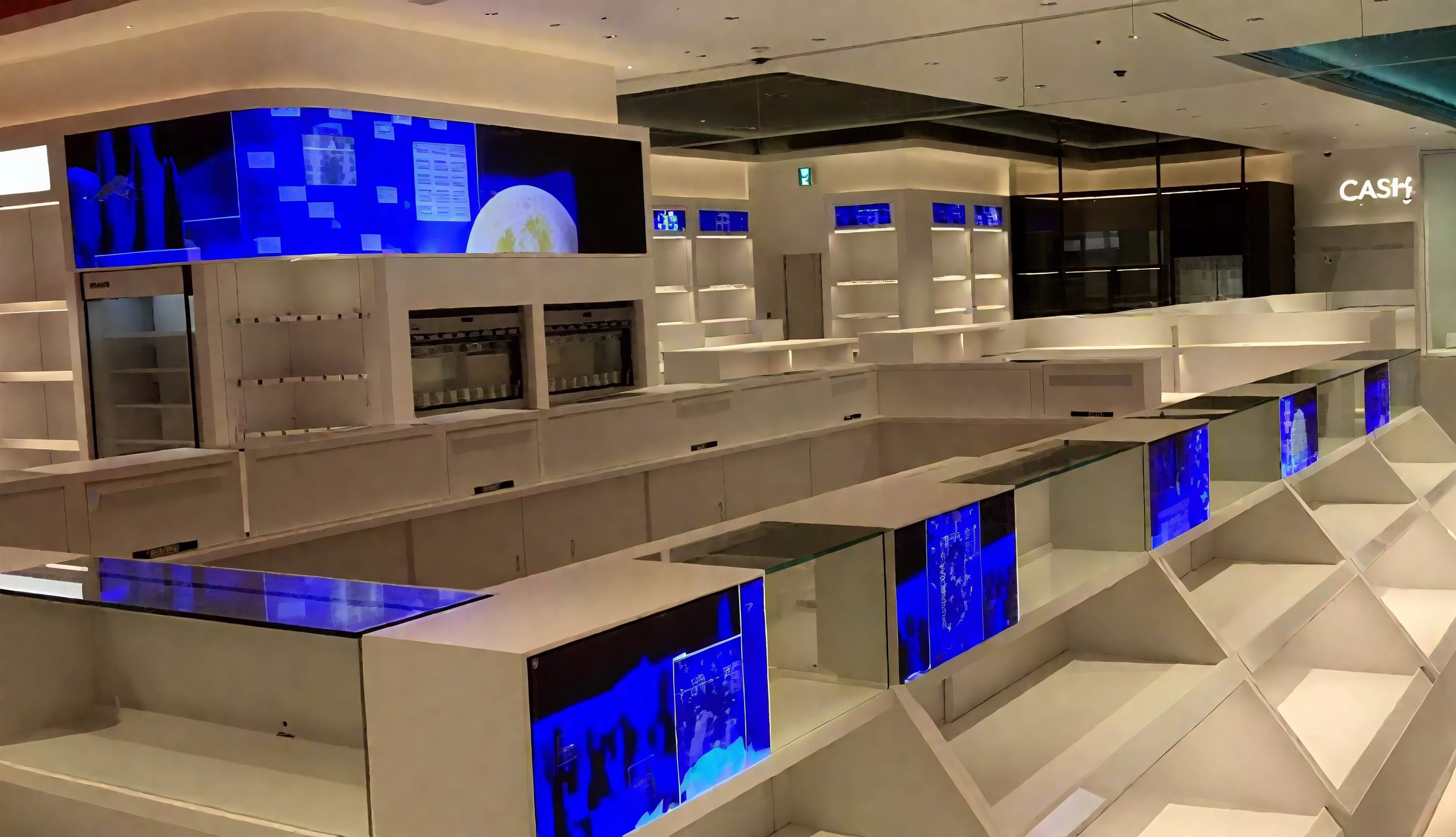

Haneda Airport TIAT Duty Free Shop—Led Shelf

LS-1.2 & LS-1.8

View More
Cases

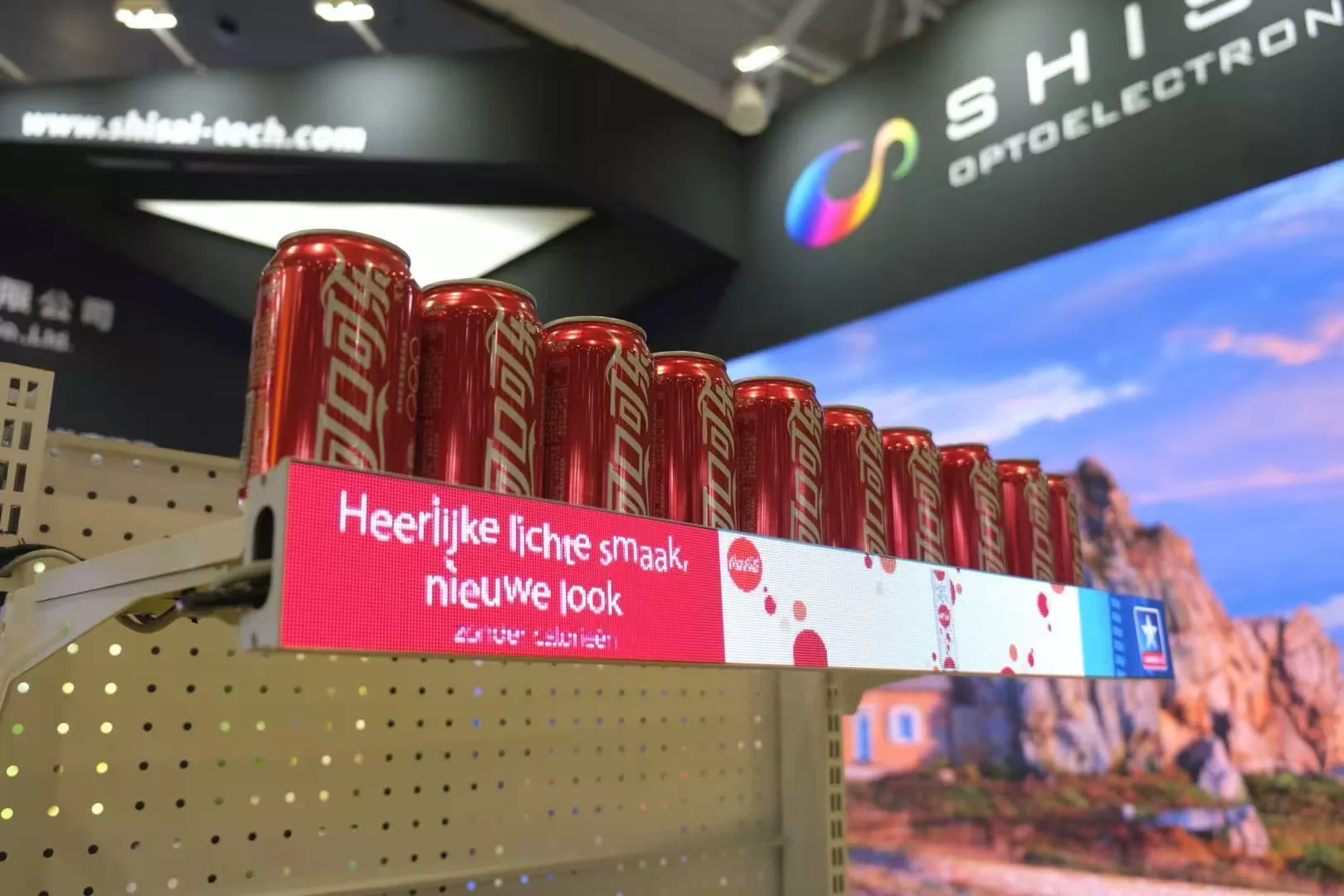

LED Shelf in ISLE 2020 Exhibition

LS-1.2

Space size:W720 x H60mm x 4pcs

View More
