Riddle D

Riddle D

The Riddle D series, an extension of the Riddle line, is engineered with a lightweight design and versatile mounting options. Available in multiple lengths, it can be effortlessly hung or set up as a freestanding display, making it suitable for diverse advertising environments, from commercial spaces to transportation hubs.

It is an ideal solution for LED banner advertisements, atrium hangings in shopping malls, as well as deployment in high-traffic areas such as airports, transit hubs, brand flagship stores, and retail outlets. The screen supports effortless and real-time content updates, enabling dynamic and visually compelling brand communication.

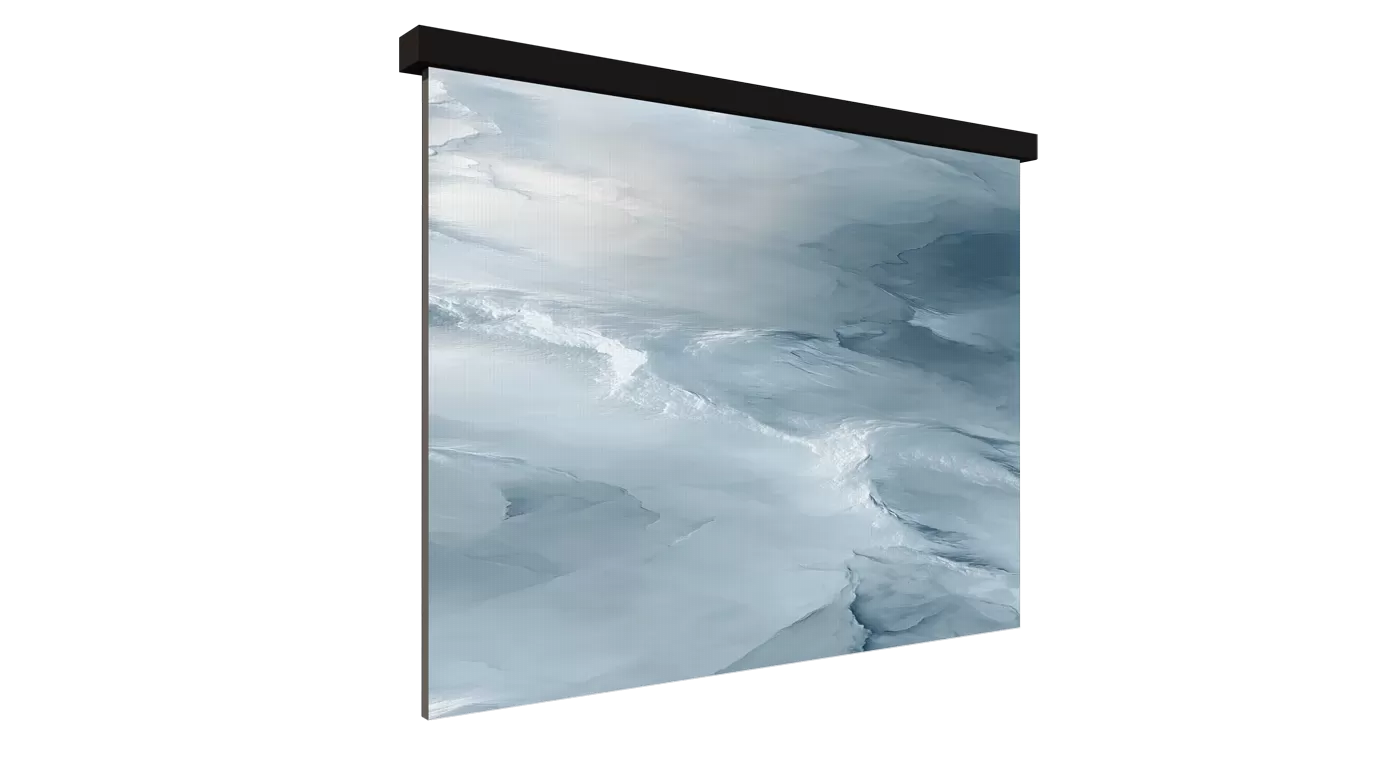

双面riddle渲染 1
  • Pitch(mm) : 2.6V/3.9/3.9V/6.25/10
  • Applications :
    LED Banner

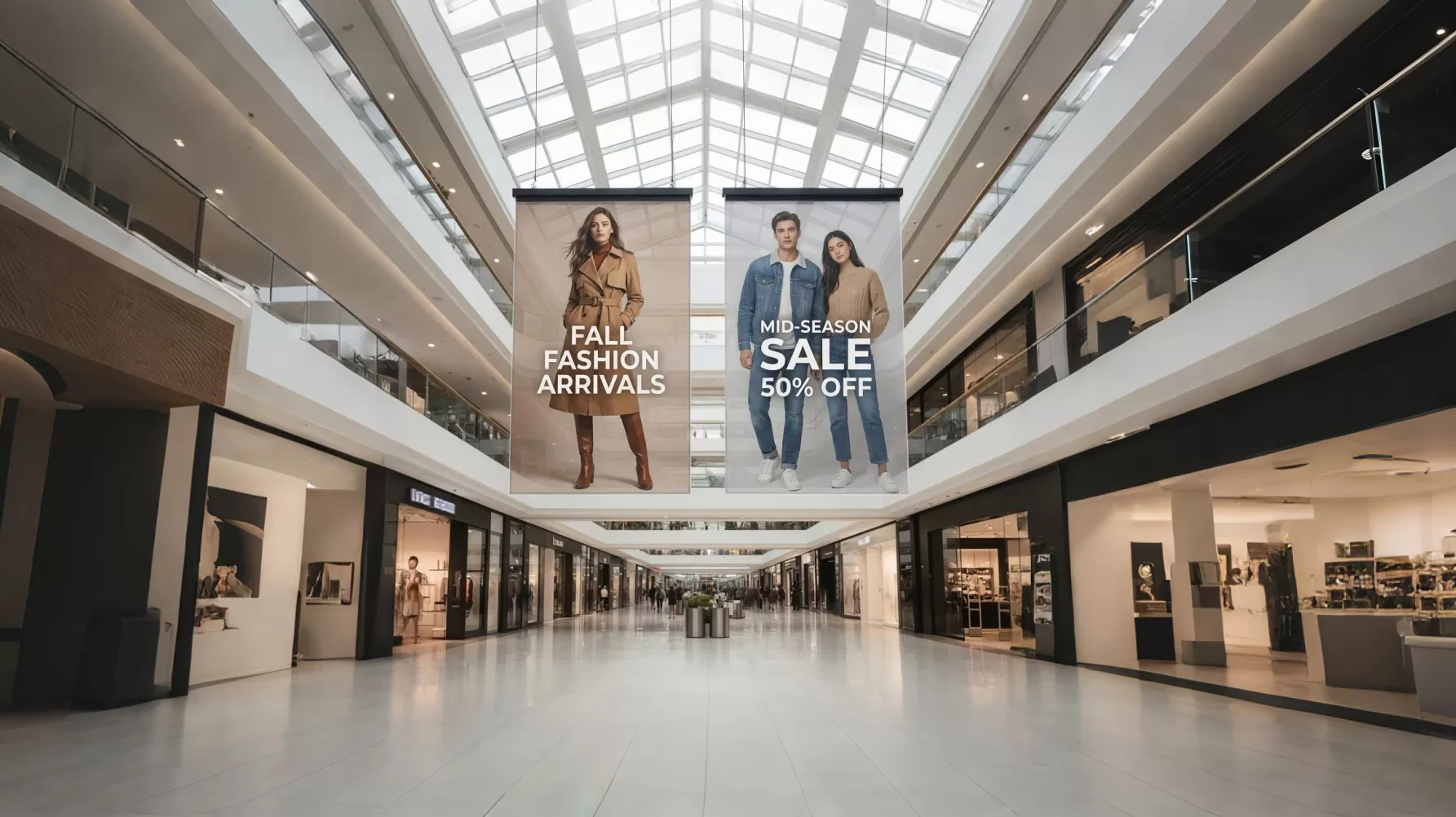

    Vertical & Atrium Banner
    Shopping mall

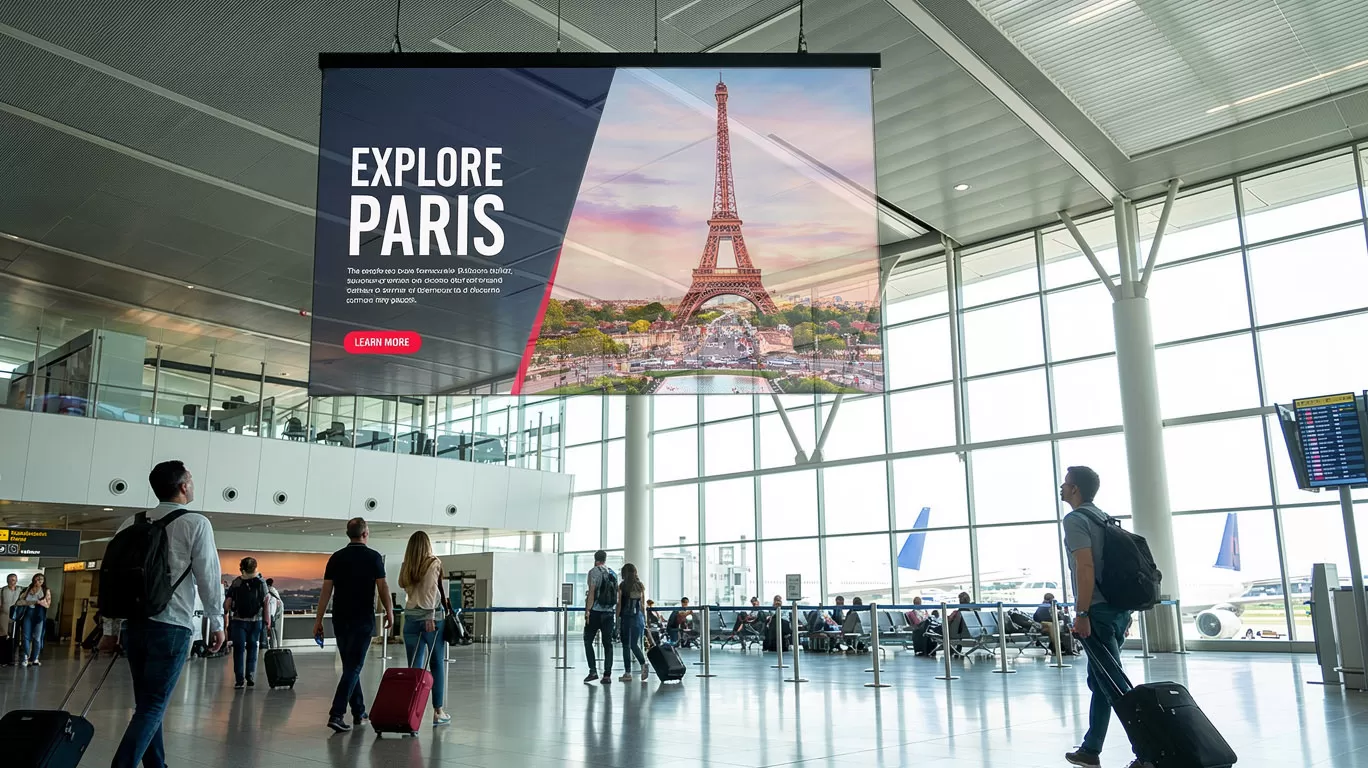

    Airport & Traffic Station

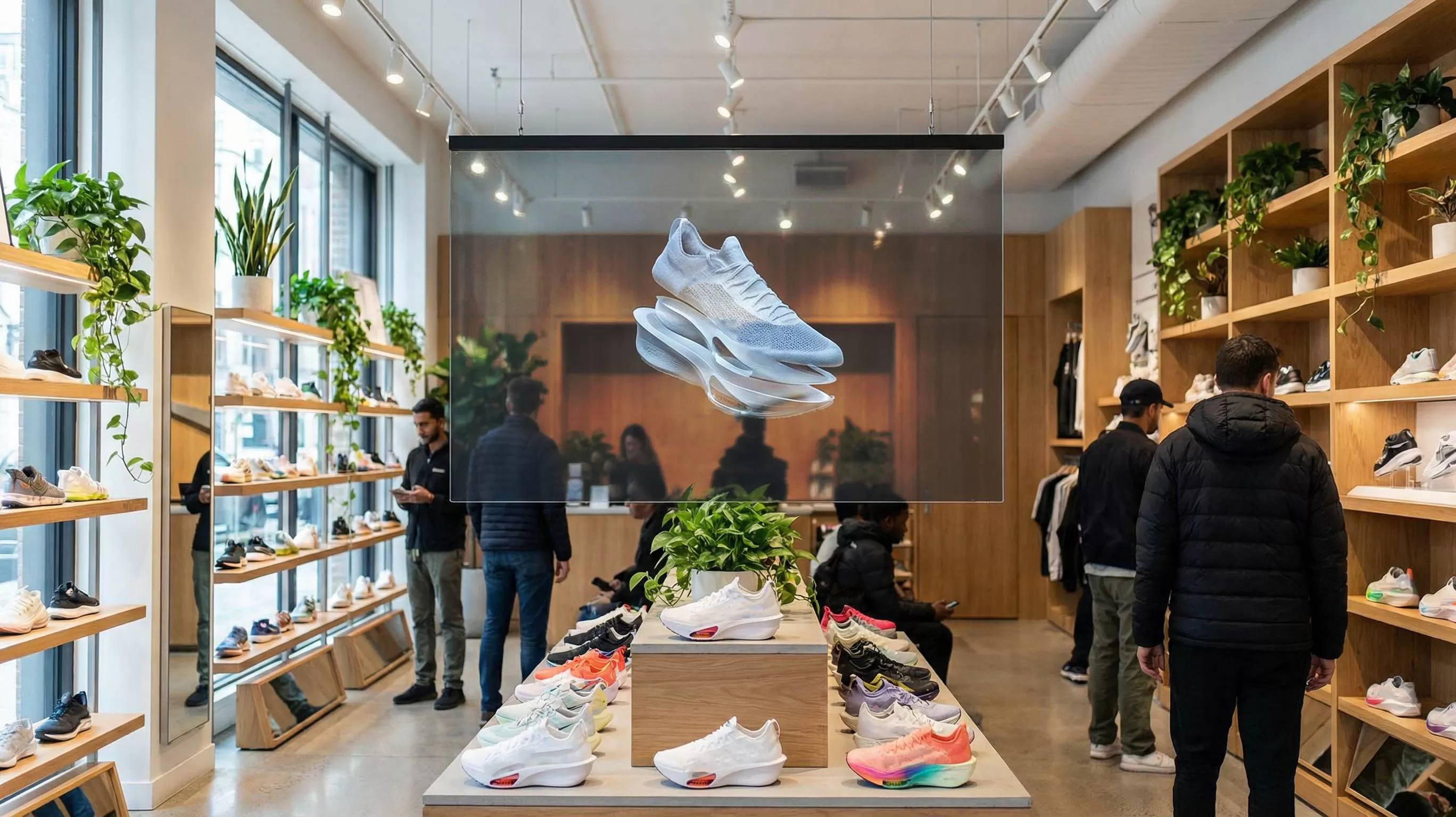

    Brand store & Retails shop

Product Features

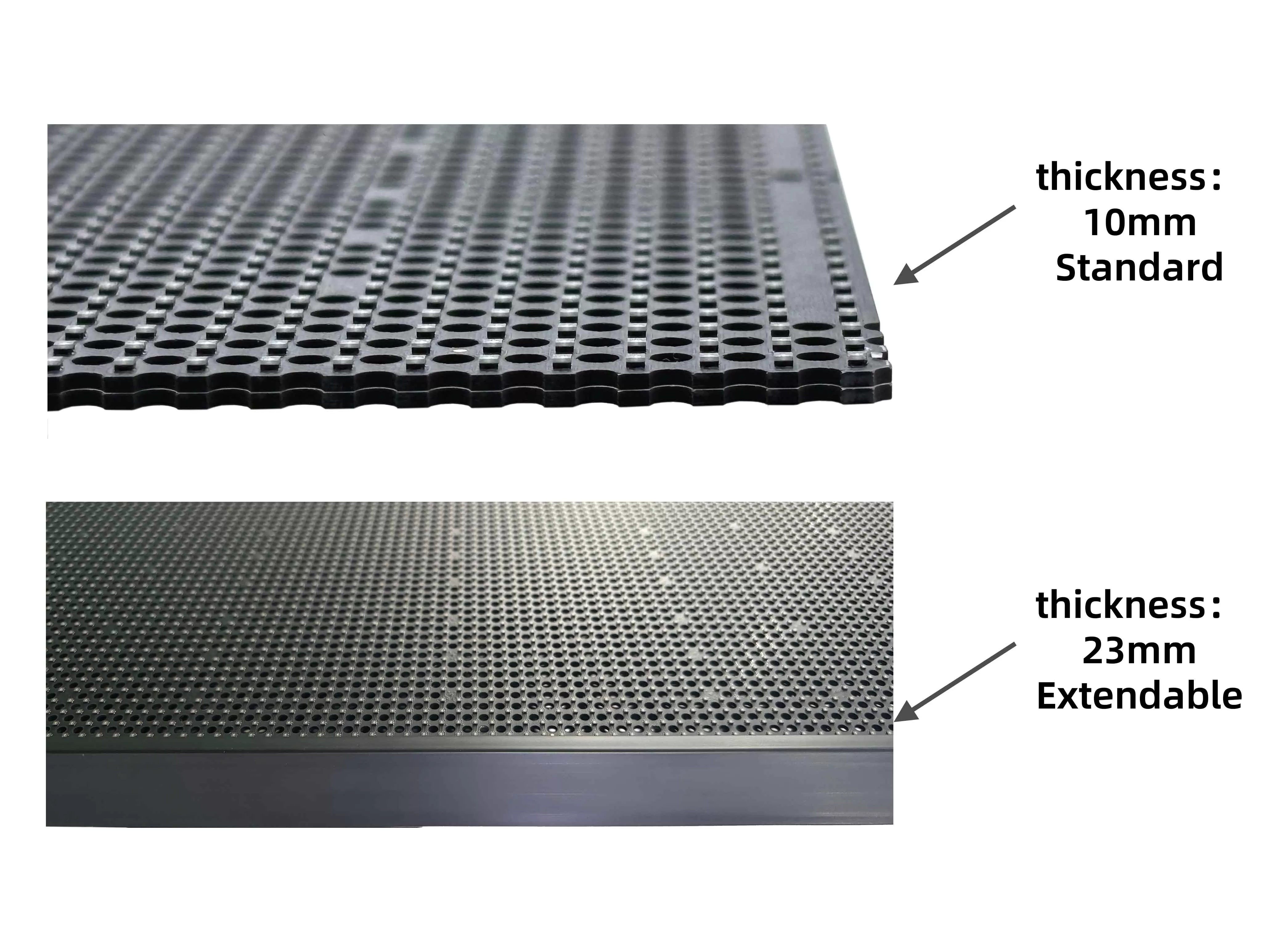

  • Riddle d 2

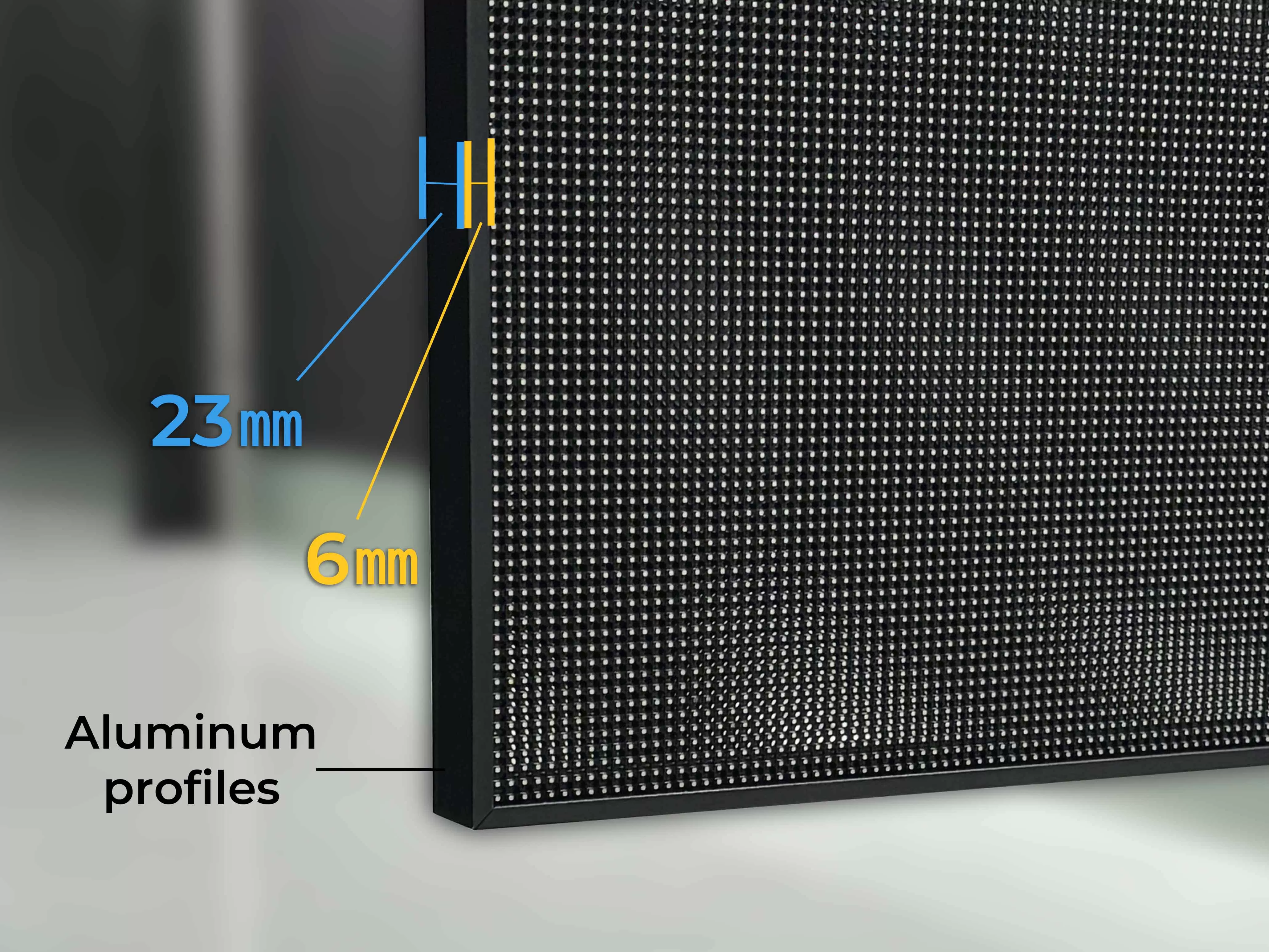

    Ultra Lightweight & Thin

    Thanks to their slim and lightweight profile, the Riddle D is perfect for suspended applications like LED banners and vertical curtains. Standard and extendable version are available for options.

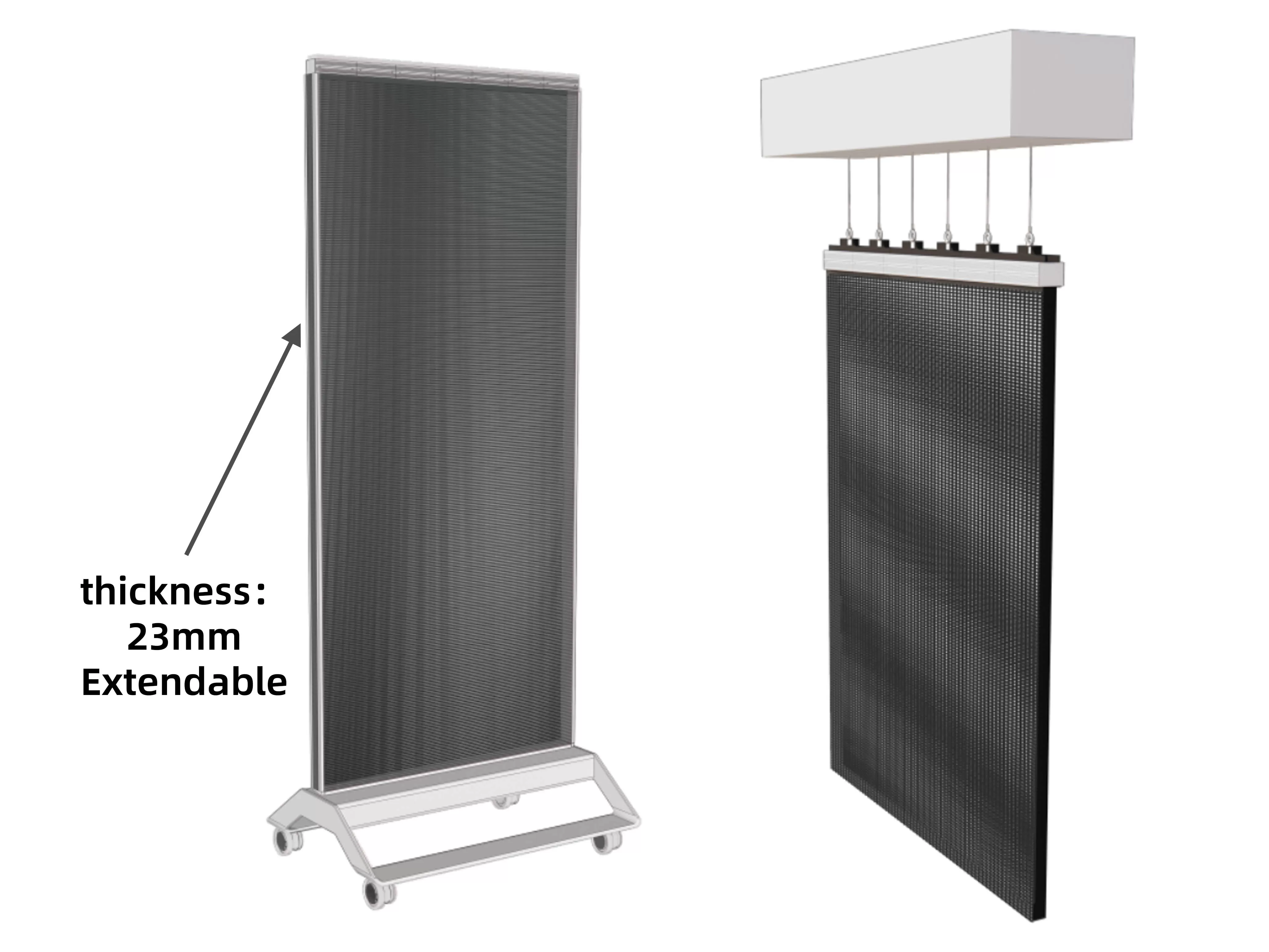

  • Riddle d 3

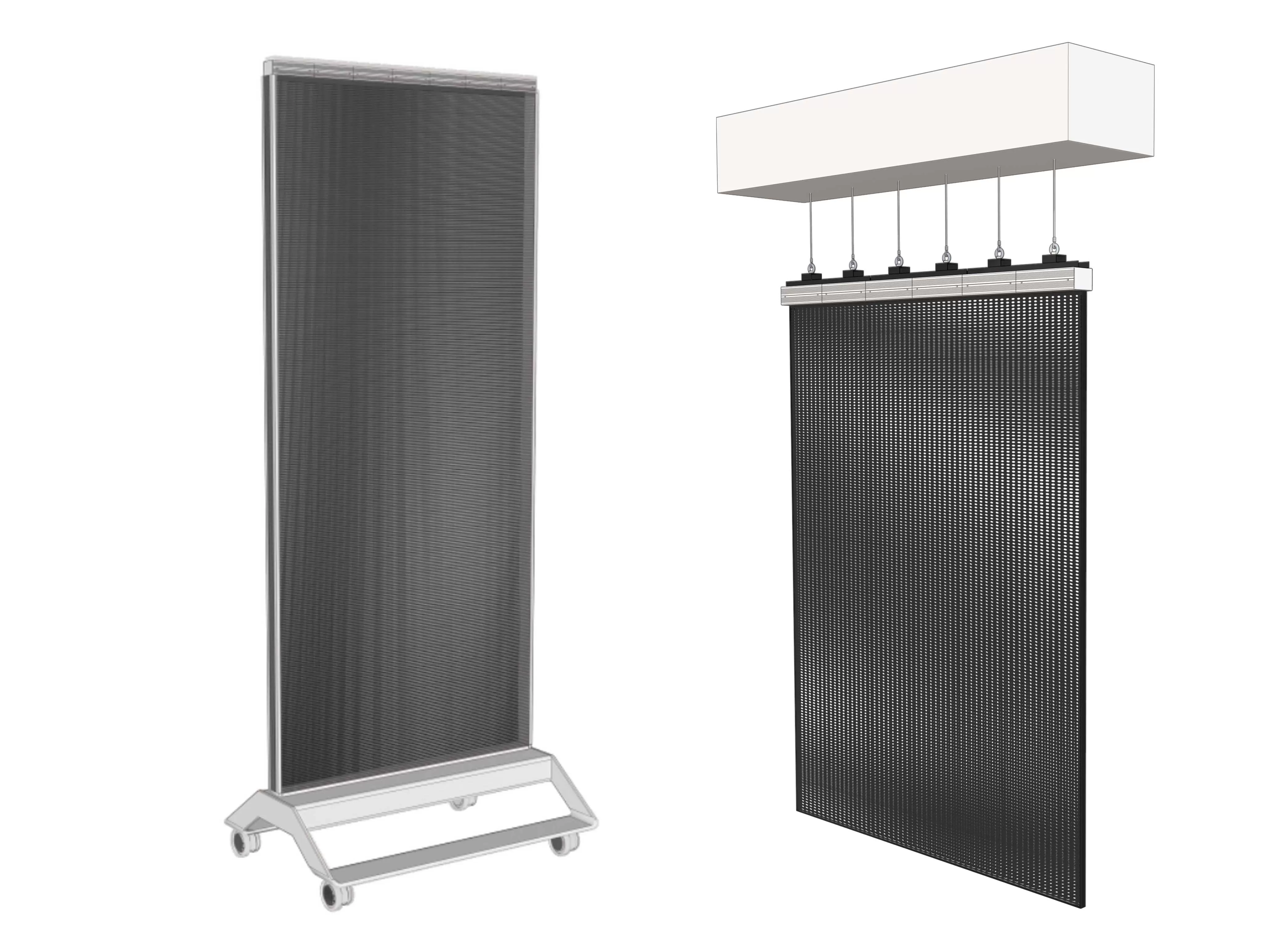

    Multi-Optional Installation Methods

    The riddle series supports a variety of installation methods, including holding and floor standing, making it suitable for various installation scenarios such as shopping malls, brand stores, and retail shops, providing flexible LED display solutions for different spatial layouts.

  • Riddle d 6

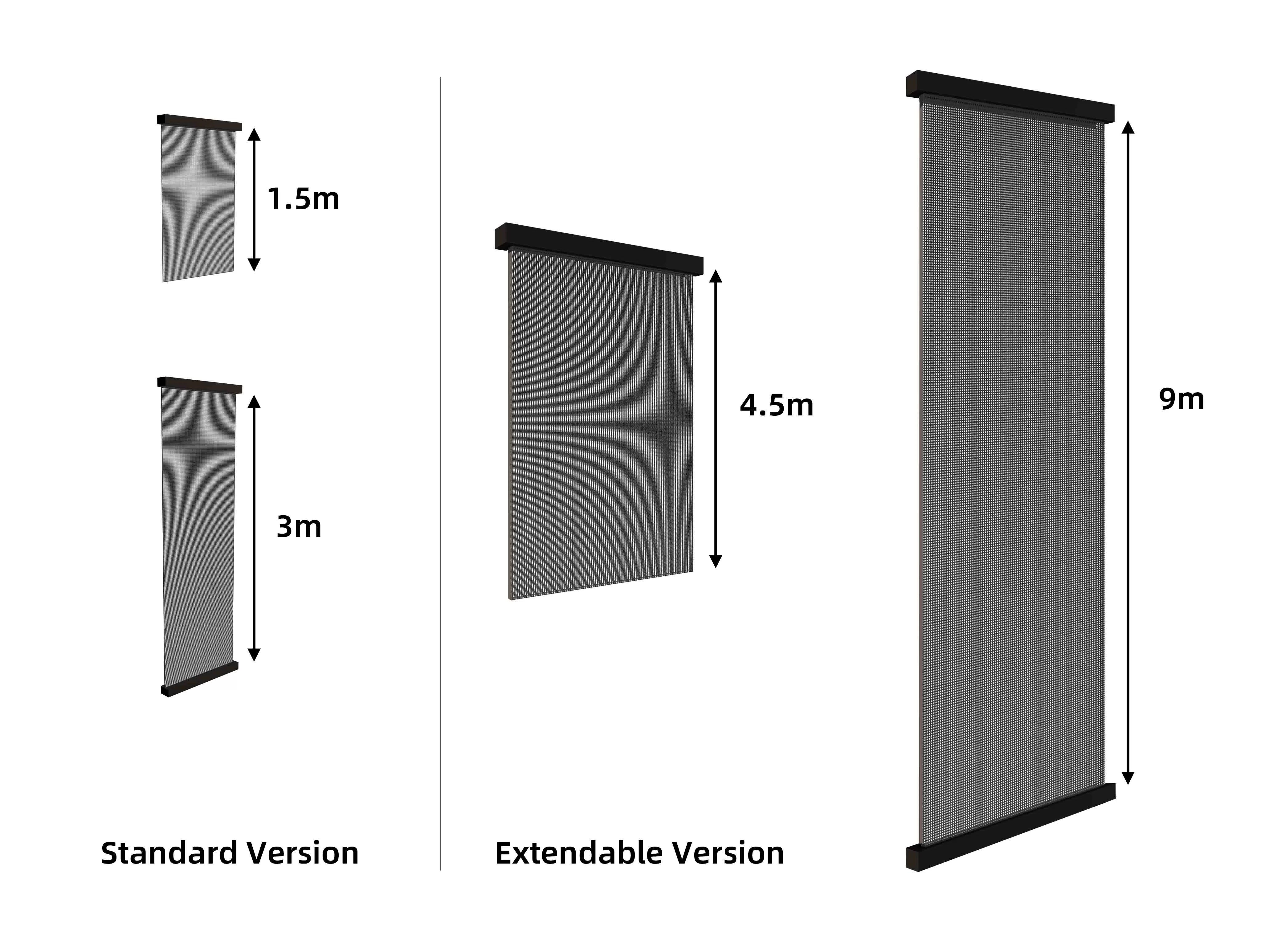

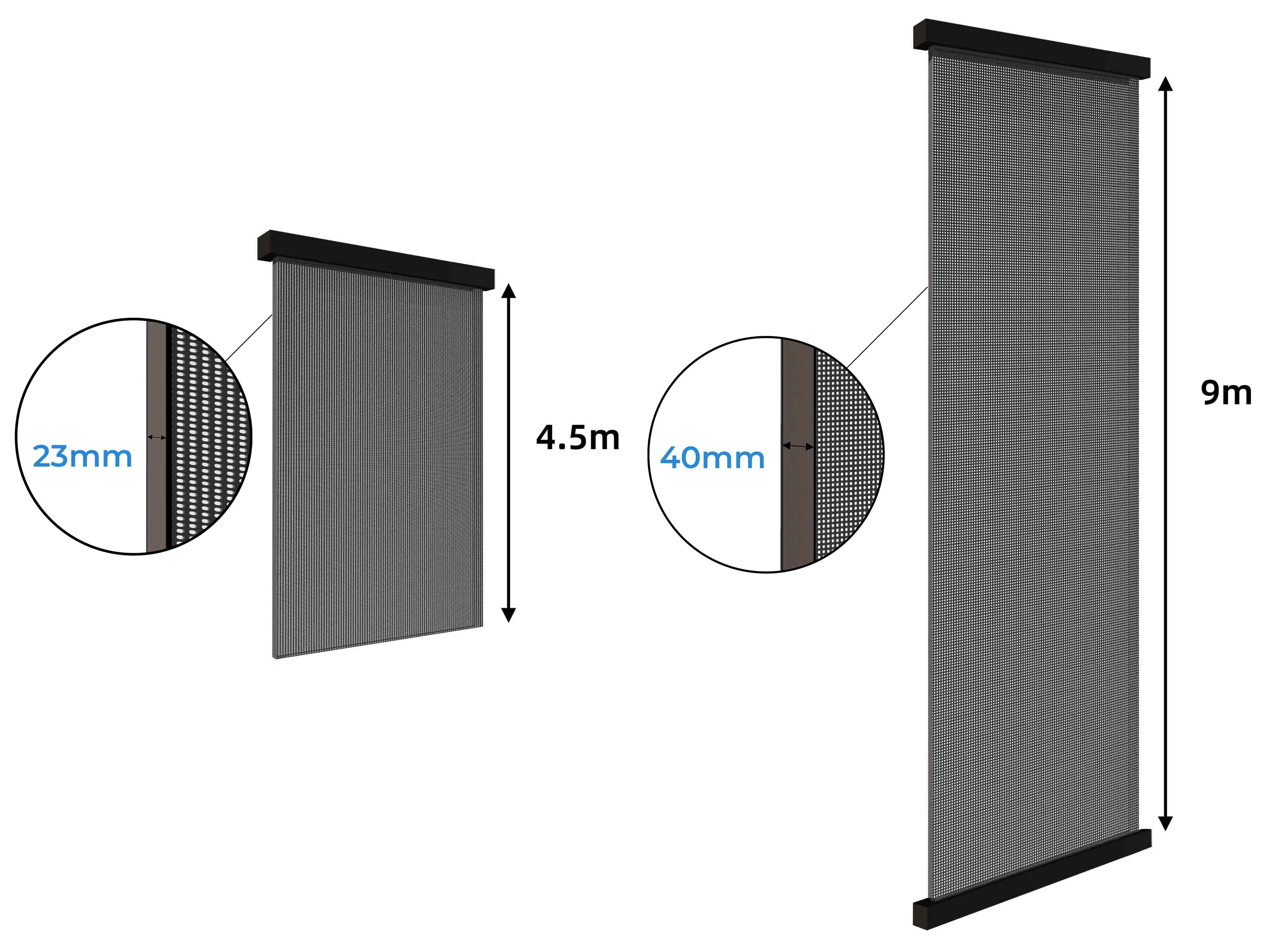

    Unobstructed Height of Up to 9 Meters

    With the extendable board, a single power box can support an unobstructed display height of up to 4.5 meters, and two power boxes can support up to 9 meters. With the standard board, two power boxes can support up to 3 meters.

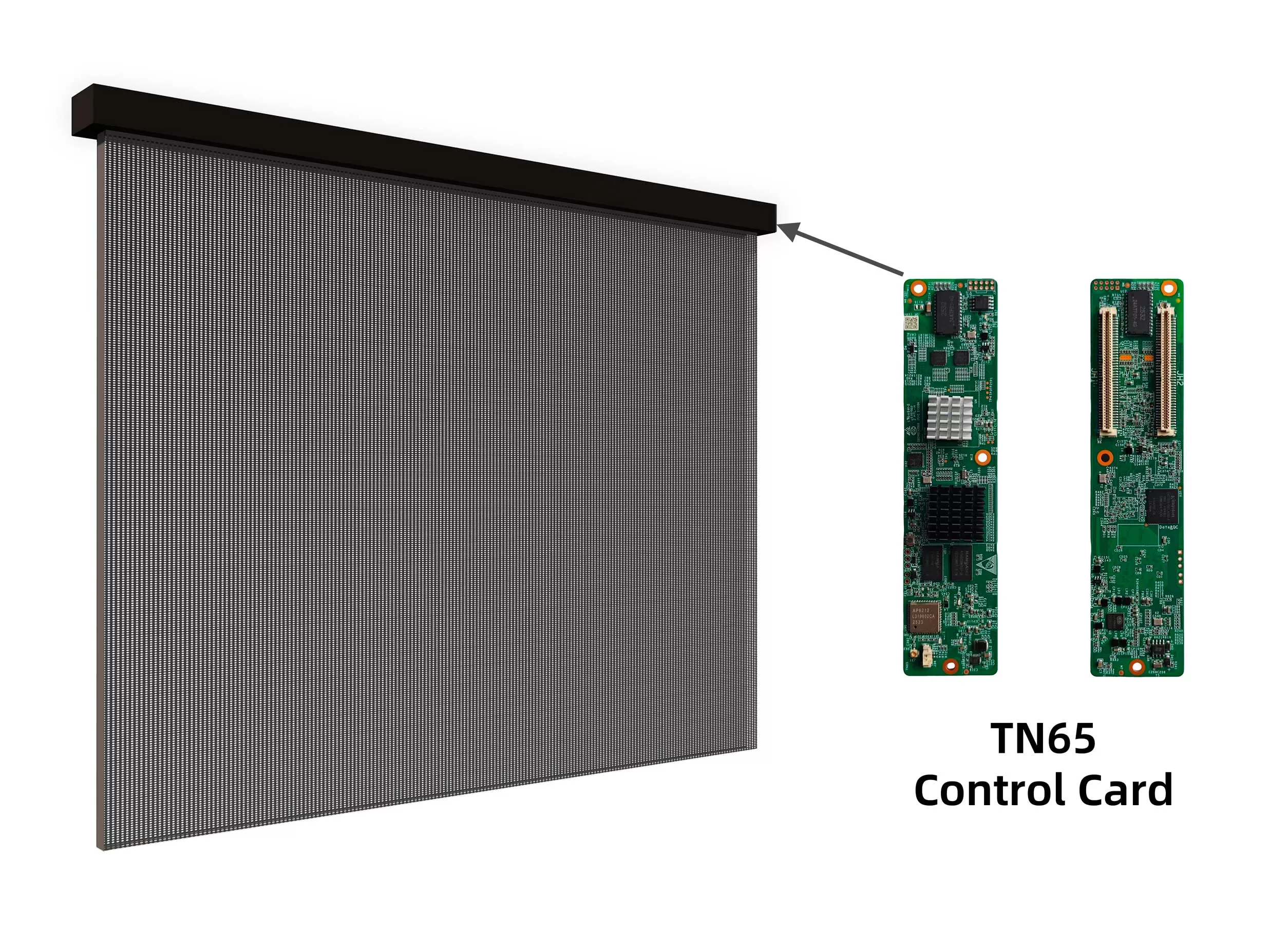

  • Riddle d 5

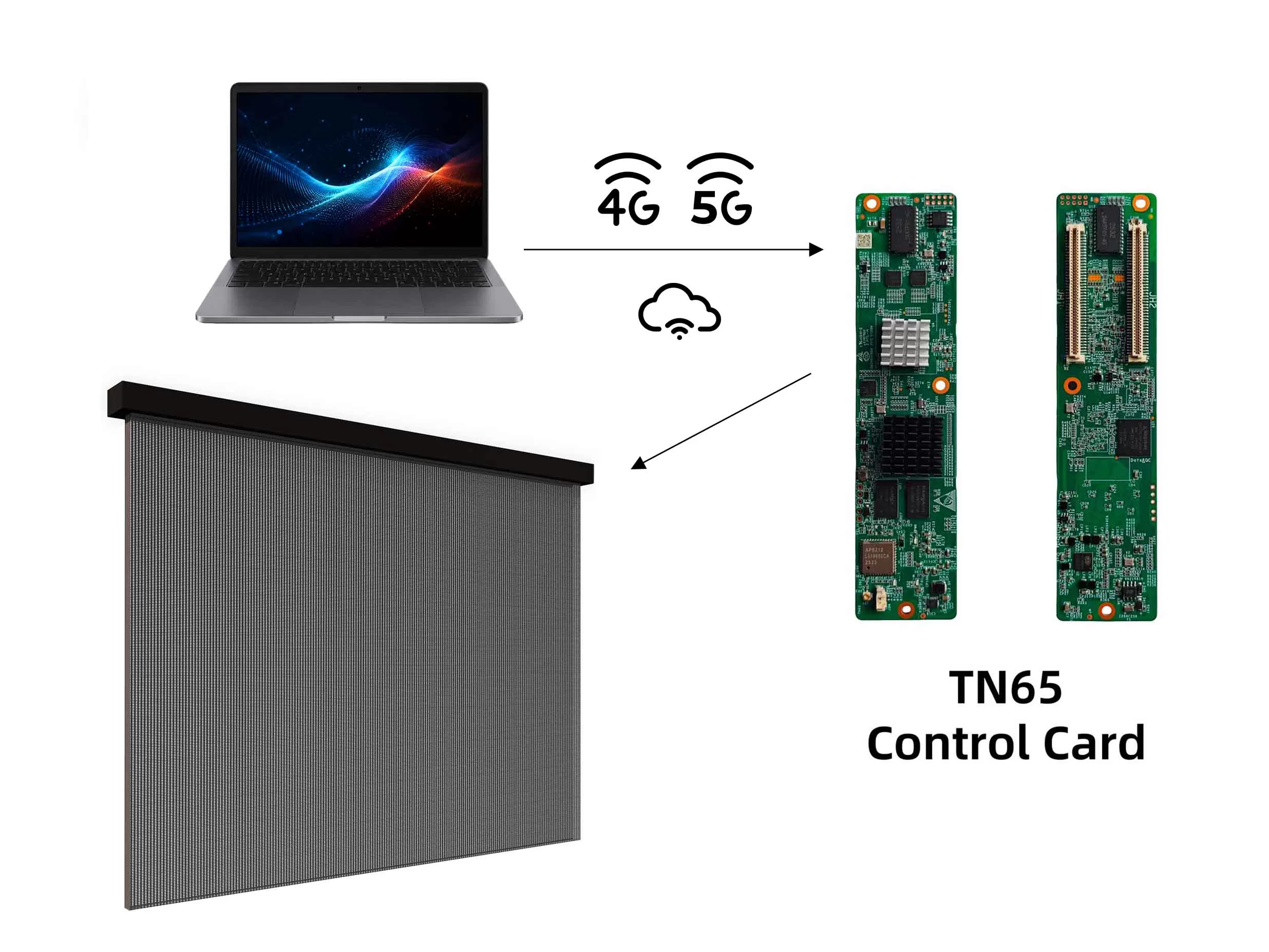

    Effortless Setup Instant Display

    With a built-in control system, it's truly plug-and-play—no setup required. Remotely edit and update your content seamlessly via Wi-Fi or 4G / 5G connectivity.

Product Parameter

Riddle D P2.6V P3.9 P3.9V P6.2 P10.4
SMD Type 1415 1415 1415 1921 2727
Separated
Pixel Pitch (㎜) 2.6 Virtual 3.9 3.9 Virtual 6.25 10.4
Pixel Density (dots/㎡） 73728 65536 32768 25600 9216
Storage Unit Size (㎜) 250×1000 250×1500 250×1000 250×1500 250×1000 250×1500 250×1000 250×1500 250×1000 250×1500
Unit Definition (dot) 96×384(V) 96×576(V) 64×256 64×384 64×256(V) 64×384(V) 40×160 40×240 24×120 24×144
Weight (kg/unit) 1.35 1.6 1.35 1.6 1.35 1.6 1.35 1.6 1.35 1.6
Power Box Weight

(kg/set)

 1.5
Brightness (cd/㎡) Black LED: 3000~4500

White LED: 4500~6000


Viewing Angle (H) 160°
Viewing Angle (V) 140°
Visual Transparency 83% 90% 92% 93% 95%
Max Power (W/㎡) 800
Avg Power (W/㎡) 266
Refresh Rate (Hz)  3840
IP Rate         IP20    |    IP43（Nano Coating）
Operating  T&H -10～40℃ & 10 %~80 % RH（No Condensation）
Storage T&H -20～60℃ & 10 %~85 % RH（No Condensation）
Installation Method Handing    |     Floor standing
