Riddle Pro

Riddle Pro

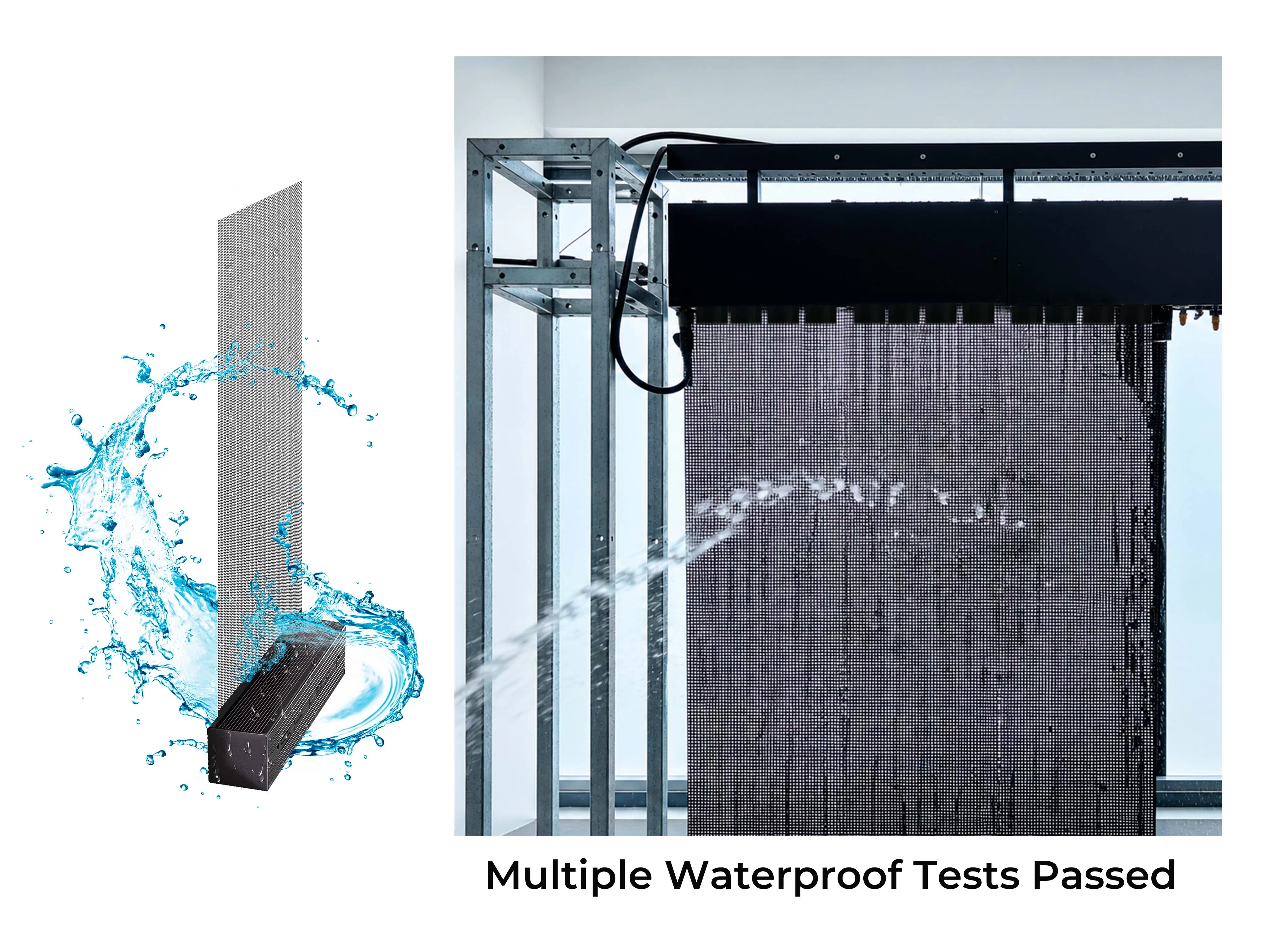

The Riddle Pro series is a professional, upgraded version of the Riddle series for outdoor use. It retains the lightweight heritage while boasting superior waterproof and windproof capabilities, designed for secure and direct installation on outdoor walls to withstand the elements.

This series is the ideal solution for lightweight LED signage and outdoor transparent LED displays, offering a portable, reliable, and easy-to-deploy innovative answer for outdoor advertising and information display needs.

Riddle prol
  • Pitch(mm) : 2.6V/3.9/6.25/10
  • Applications :

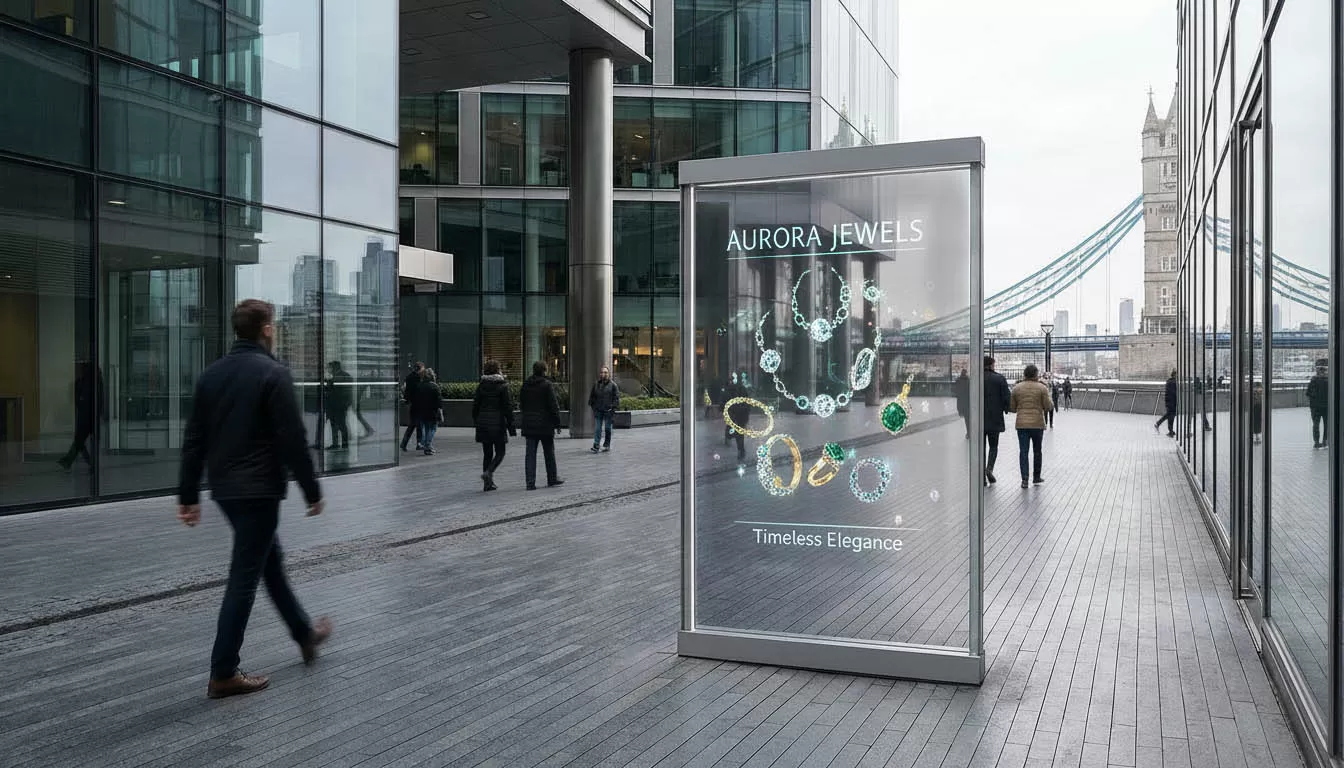

    Lightweight required LED signage
    Outdoor transparent LED facade

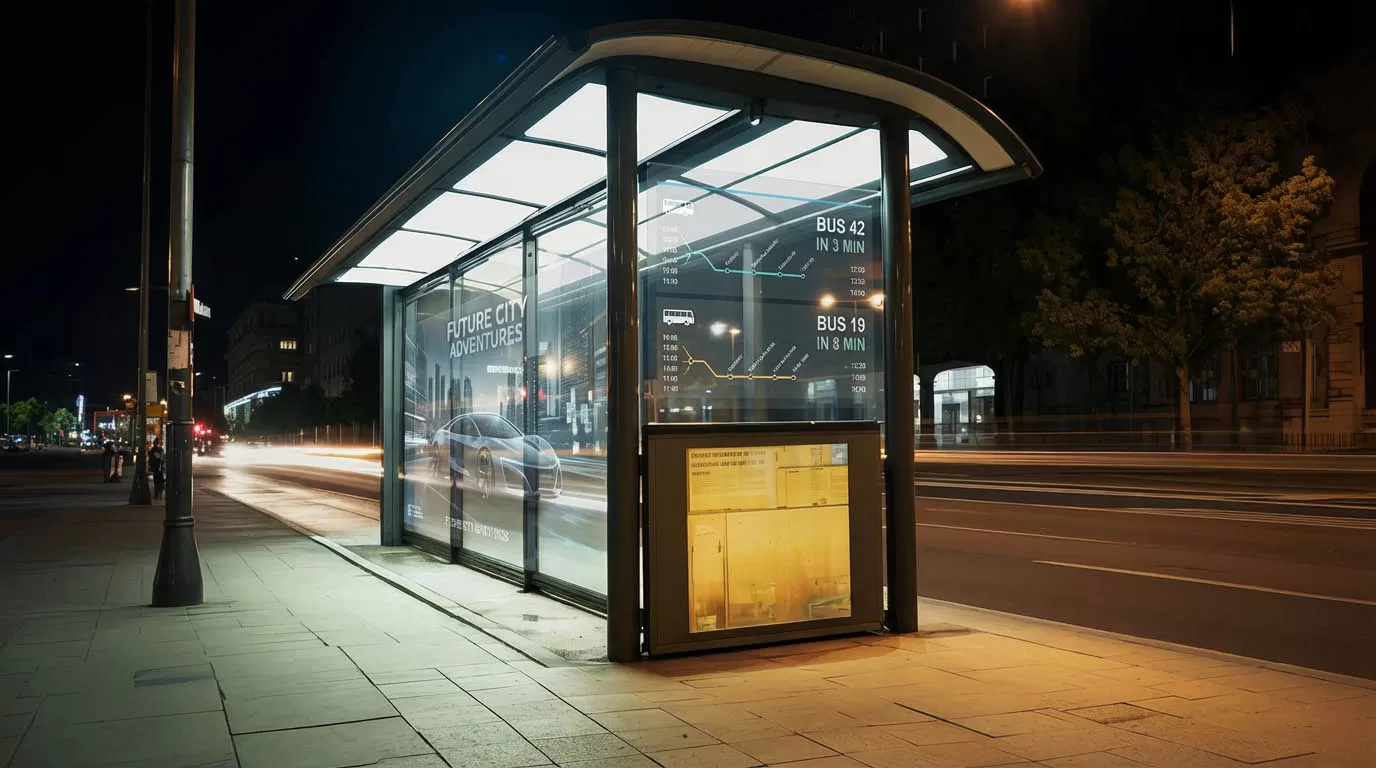

    Bus stop

Product Features

  • Riddle gob

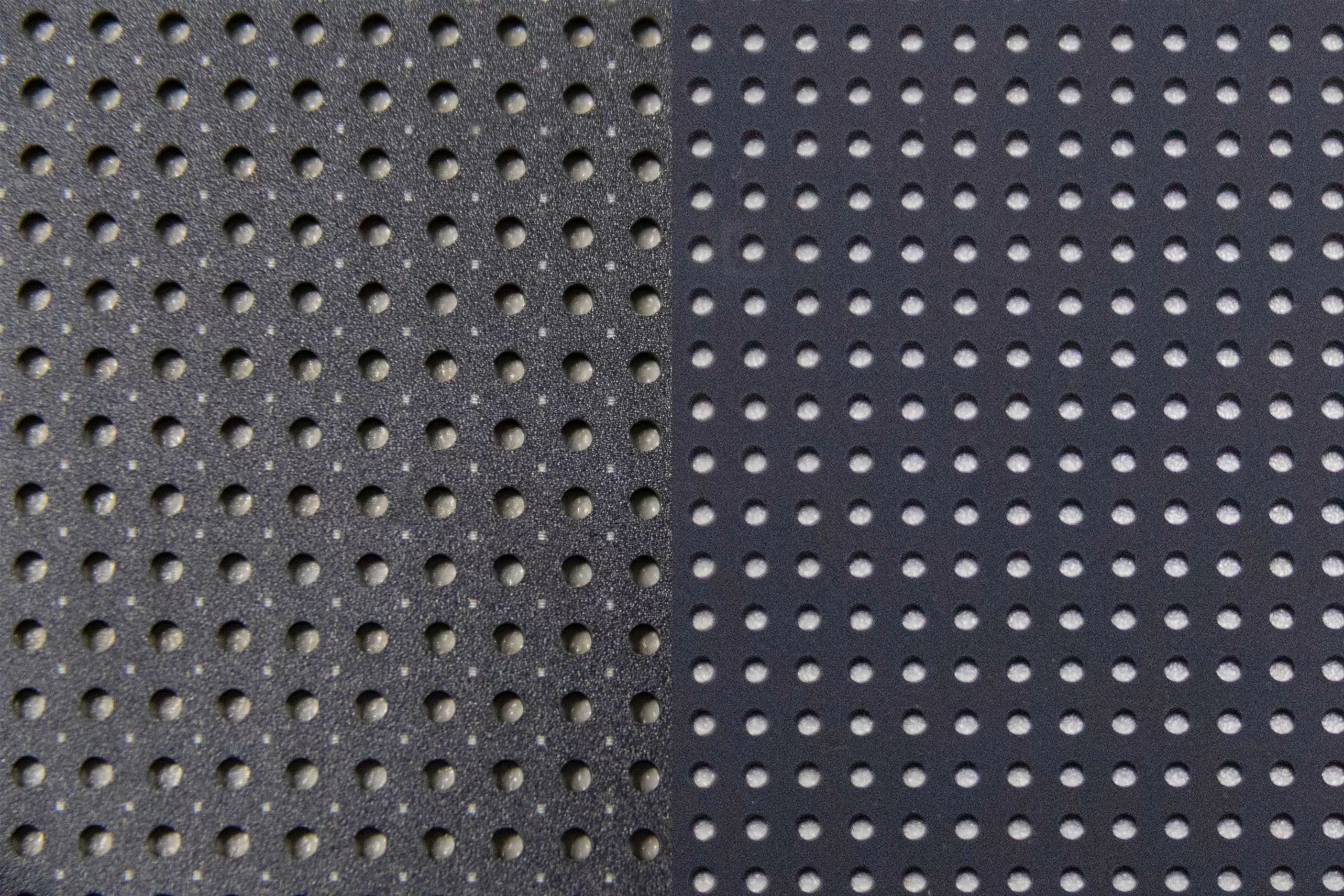

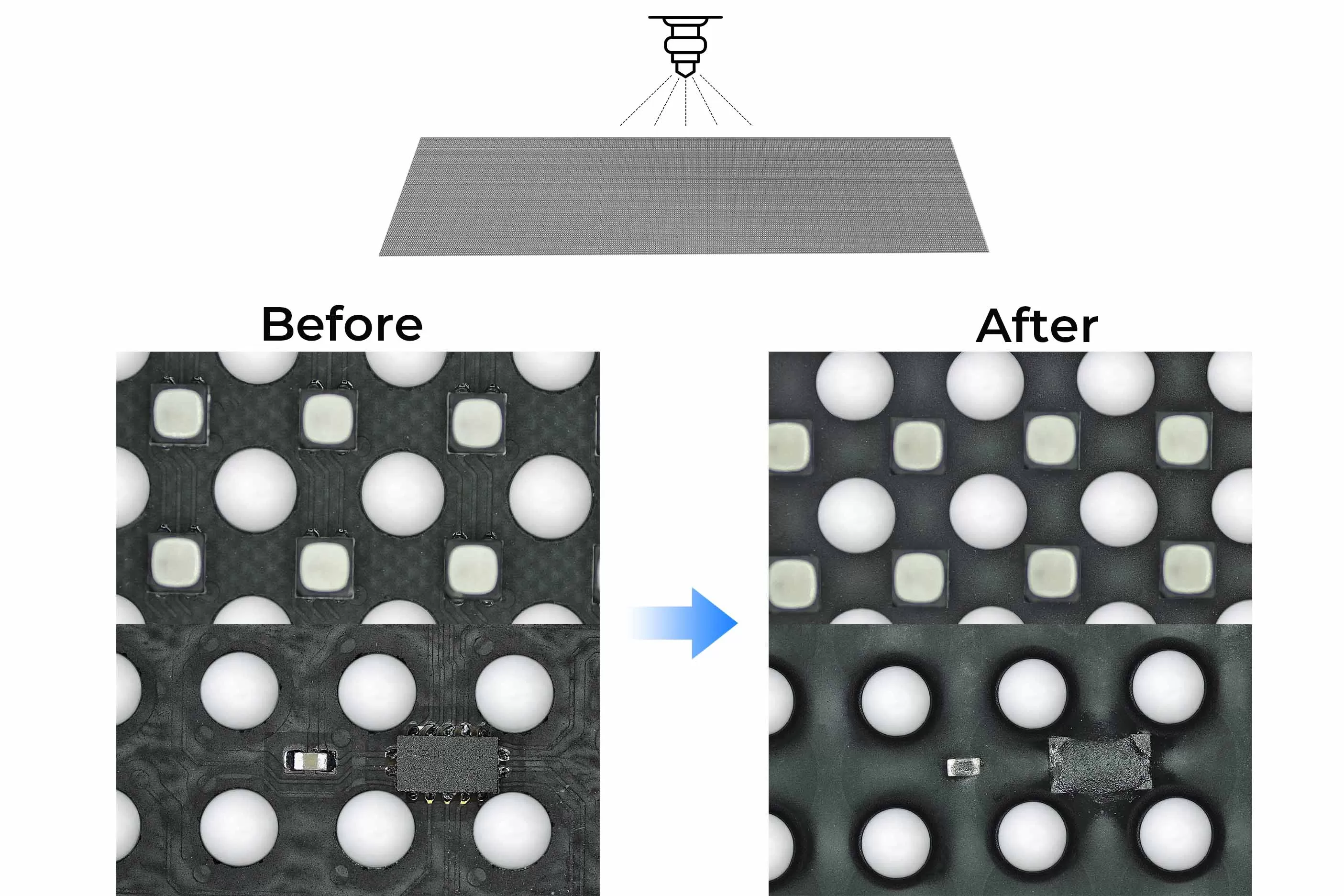

    GOB Protection

    The GOB coating process can be optionally used to protect the LED lamps. This technology provides protection against impacts, effectively preventing damage to the LED lamps during disassembly, transportation, and installation. It also offers water and moisture resistance, preventing damage to the LED lamps caused by external factors.

  • Riddle pro 亮灯

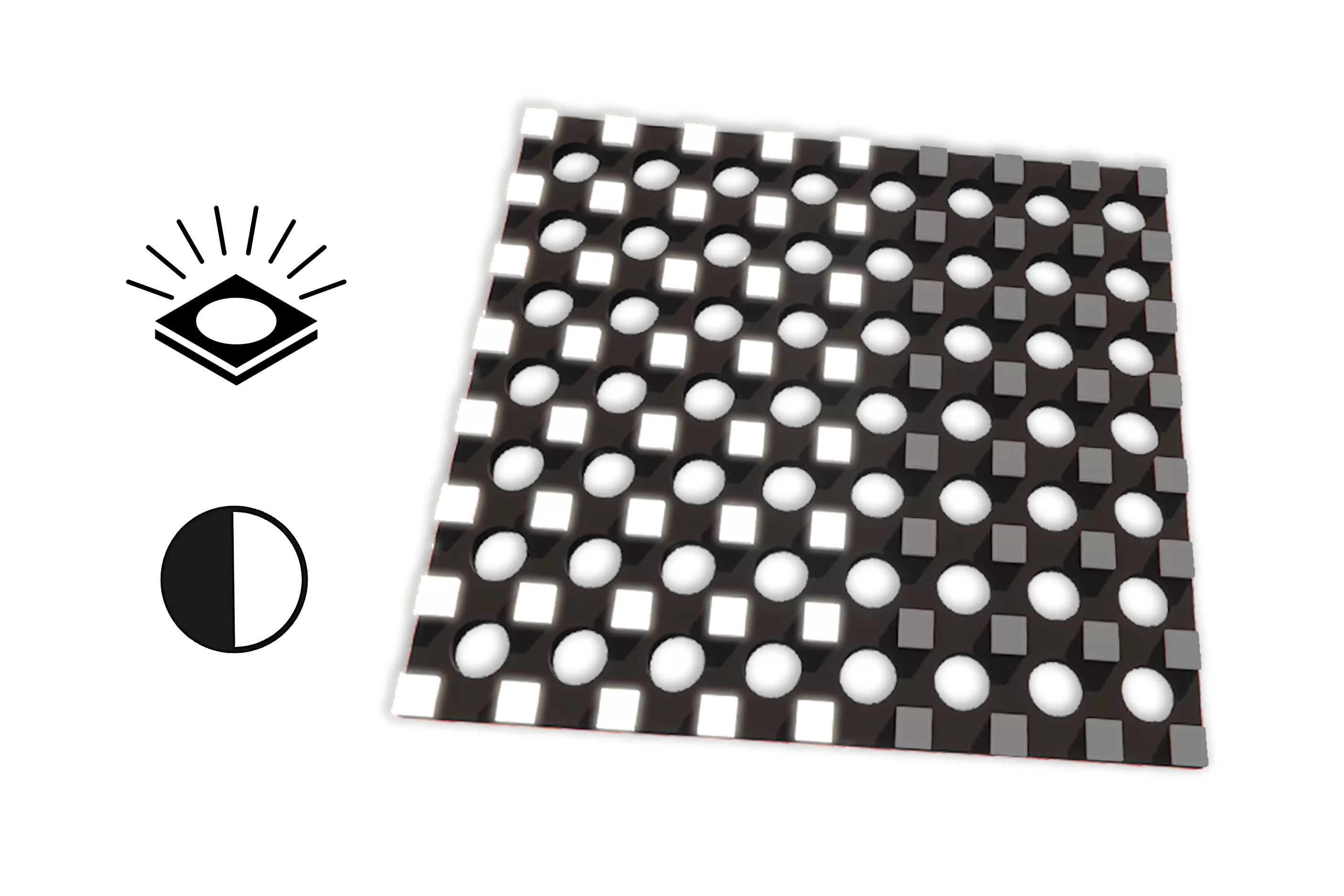

    Ultra-high Brightness & High Contrast Option

    The product boasts a brightness of up to 6000 cd/m². Even in bright light environments, the screen content remains clearly visible, and image details and colors are unaffected. Moreover, high contrast is also available with black LED while wonderful color performance is required.

  • Riddle pro 安装
    Effortless Front Installation & Quick-release Maintenance

    For front installation, simply secure the product’s bridge-lock connector directly to the wall-mounted square tube. Front maintenance is equally straightforward, requiring only the release of the corresponding screws.

  • Riddle pro防水防风

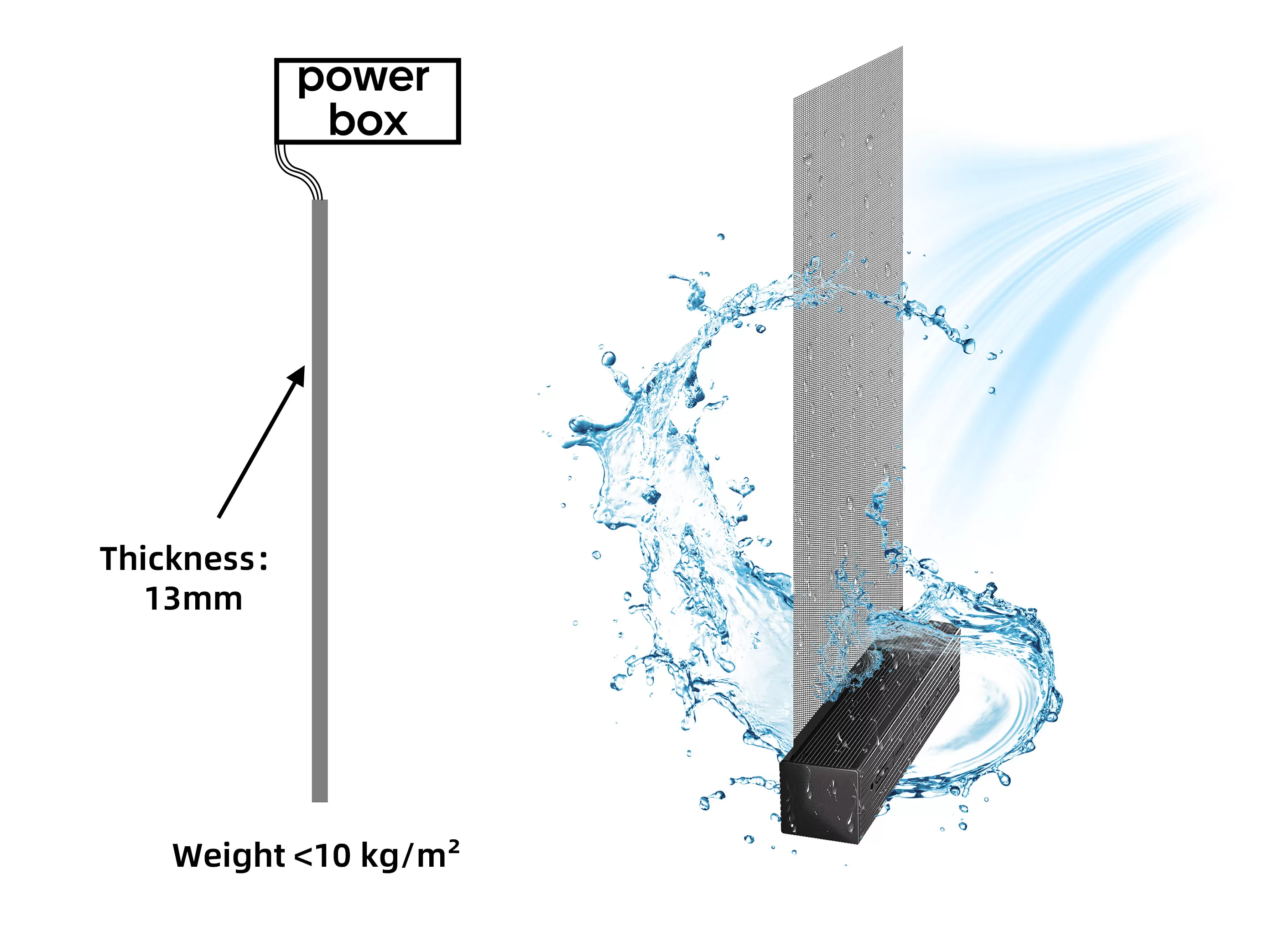

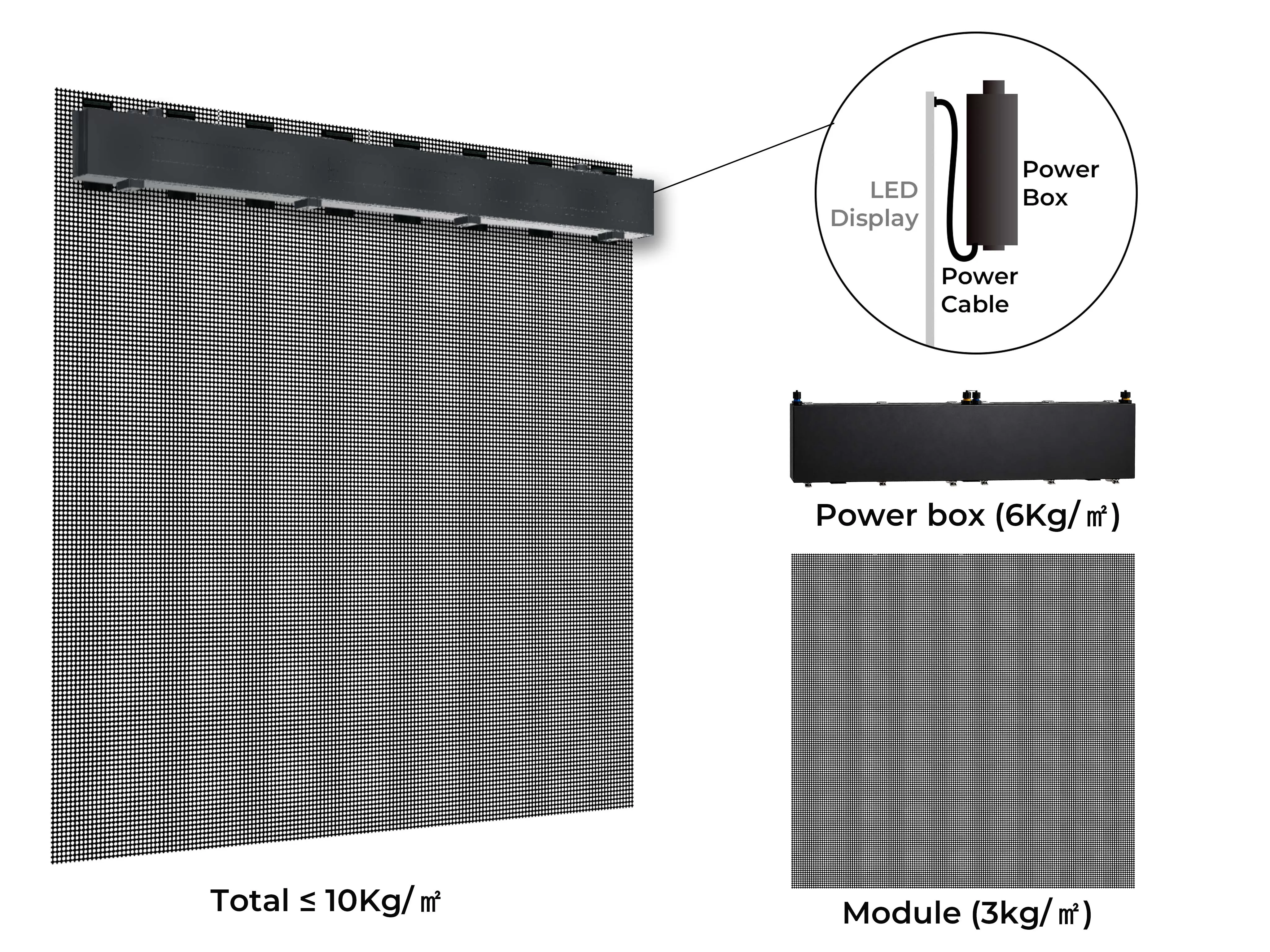

    Light-weight & Slim Wind-Resistant

    Due to the features of light-weight and slim module depth, it is able to match up with more kinds of installation environment and limits. Therefore the strength of weight-bearing and support can be further simplified as the low wind-resistance of perforated substrate.

Product Parameter

Riddle Pro P2.6V P3.9 P6.2 P10.4
SMD Type 1415 1415 1921 2727
Separated
Pixel Pitch (㎜) 2.6 Virtual 3.9 6.25 10.4
Pixel Density (dots/㎡） 73728 65536 25600 9216
Storage Unit Size (㎜) 250×1000 250×1500 250×1000 250×1500 250×1000 250×1500 250×1000 250×1500
Unit Definition (dot) 96×384(V) 96×576(V) 64×256 64×384 40×160 40×240 24×120 24×144
Weight (kg/unit) 0.75 0.9 0.75 0.9 0.75 0.9 0.75 0.9
Power Box Weight

(kg/set)

 1.5
Brightness (cd/㎡) Black LED: 3000~4500

White LED: 4500~6000


Viewing Angle (H) 160°
Viewing Angle (V) 140°
Visual Transparency 83% 90% 93% 95%
Max Power (W/㎡) 800
Avg Power (W/㎡) 266
Refresh Rate (Hz)  3840
IP Rate         IP65    |    IP54（Power Box）
Operating  T&H -10～40℃ & 10 %~80 % RH（No Condensation）
Storage T&H -20～60℃ & 10 %~85 % RH（No Condensation）
Installation Method  Wall-mounting   |    Hanging
