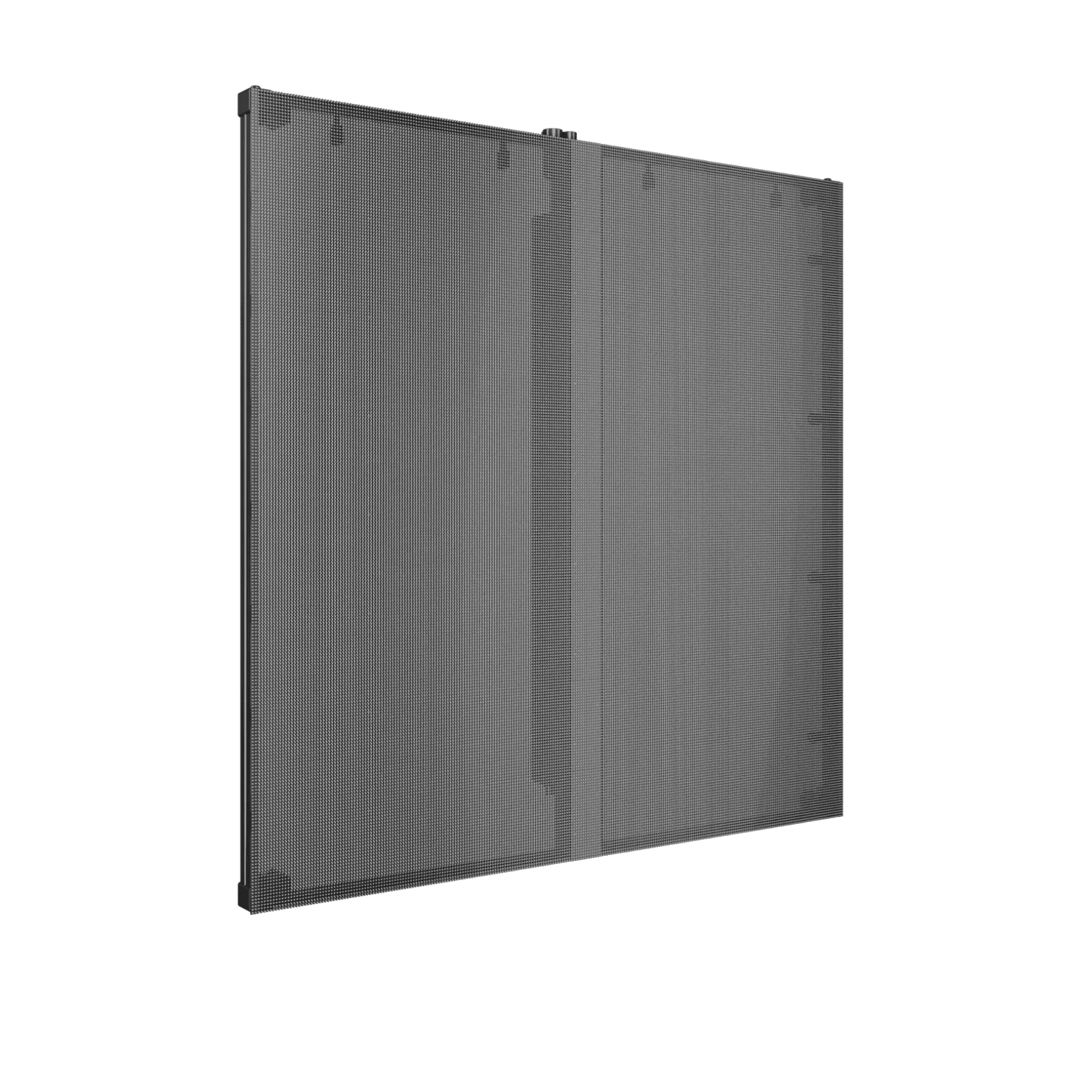

Riddle
Product Features
-
Cost-Saving IC Separation DesignSeparated IC layout reduces upfront investment and accelerates ROI.
-

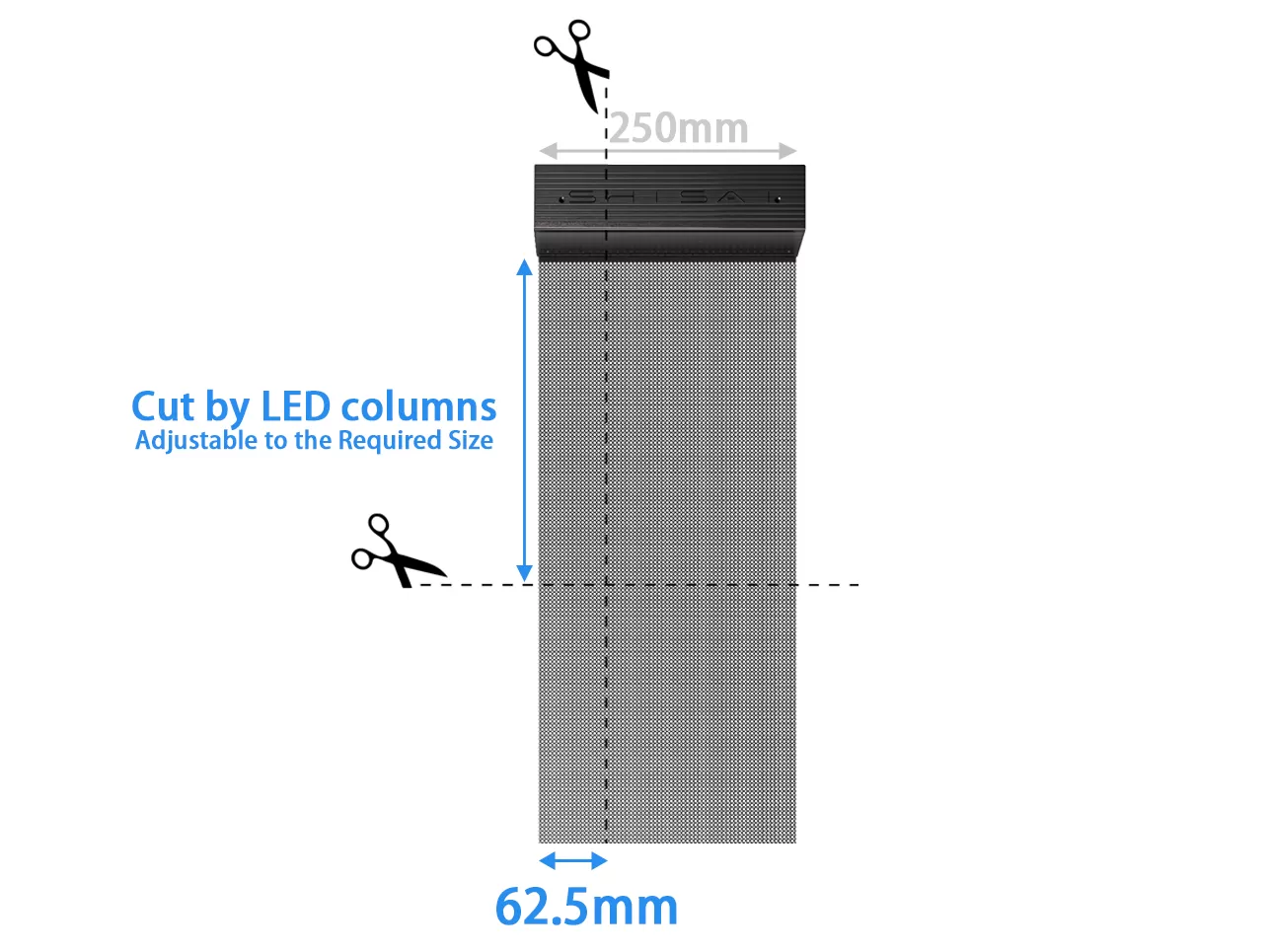

Customizable in Both Vertical & Horizontal Dimensions
Designed for versatility, the Riddle series offers custom dimensions. Vertically, it can be trimmed in increments as small as a quarter-section (62.5mm). Horizontally, cutting is based on pixel columns for precise adaptation.
-

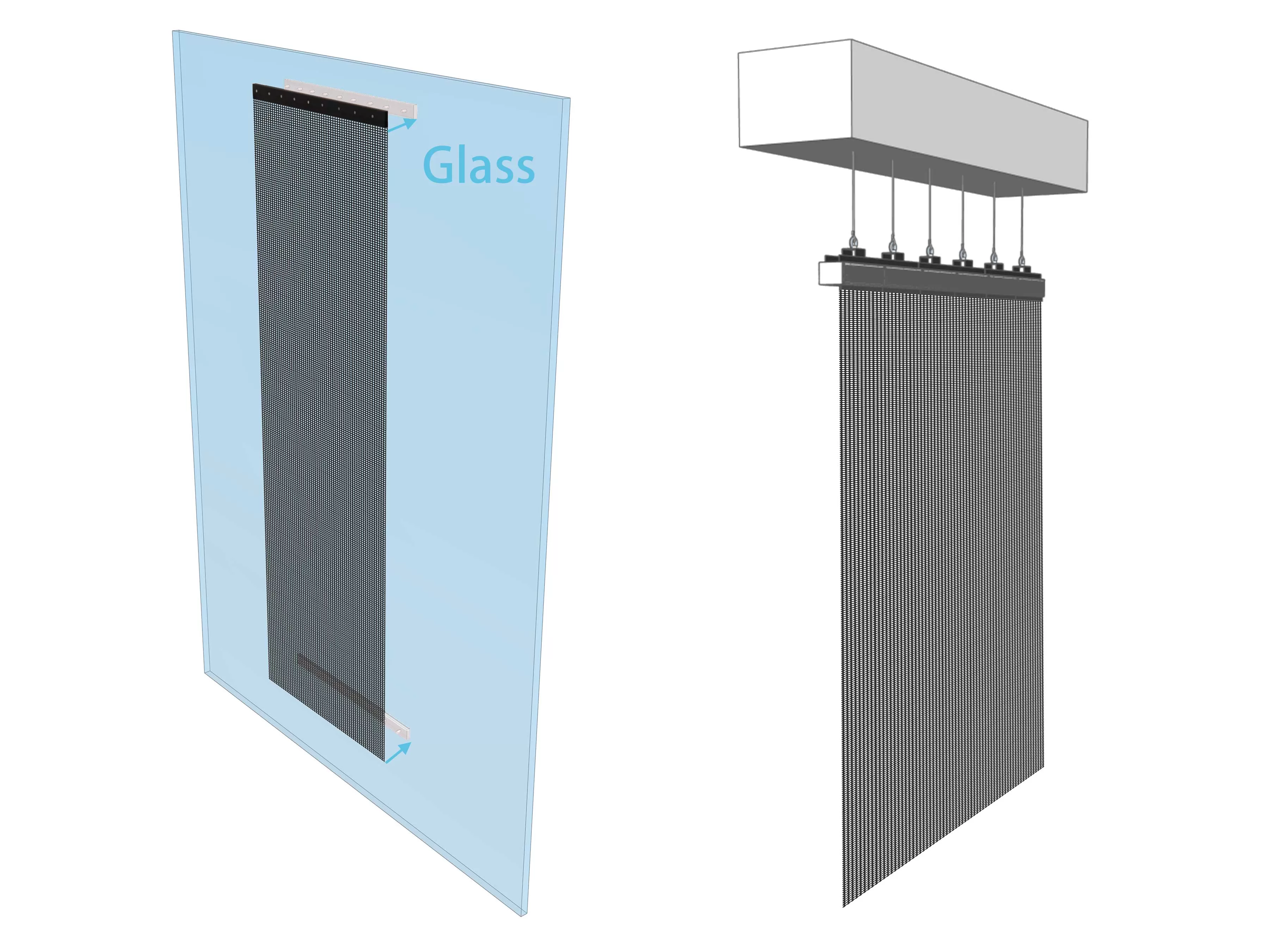

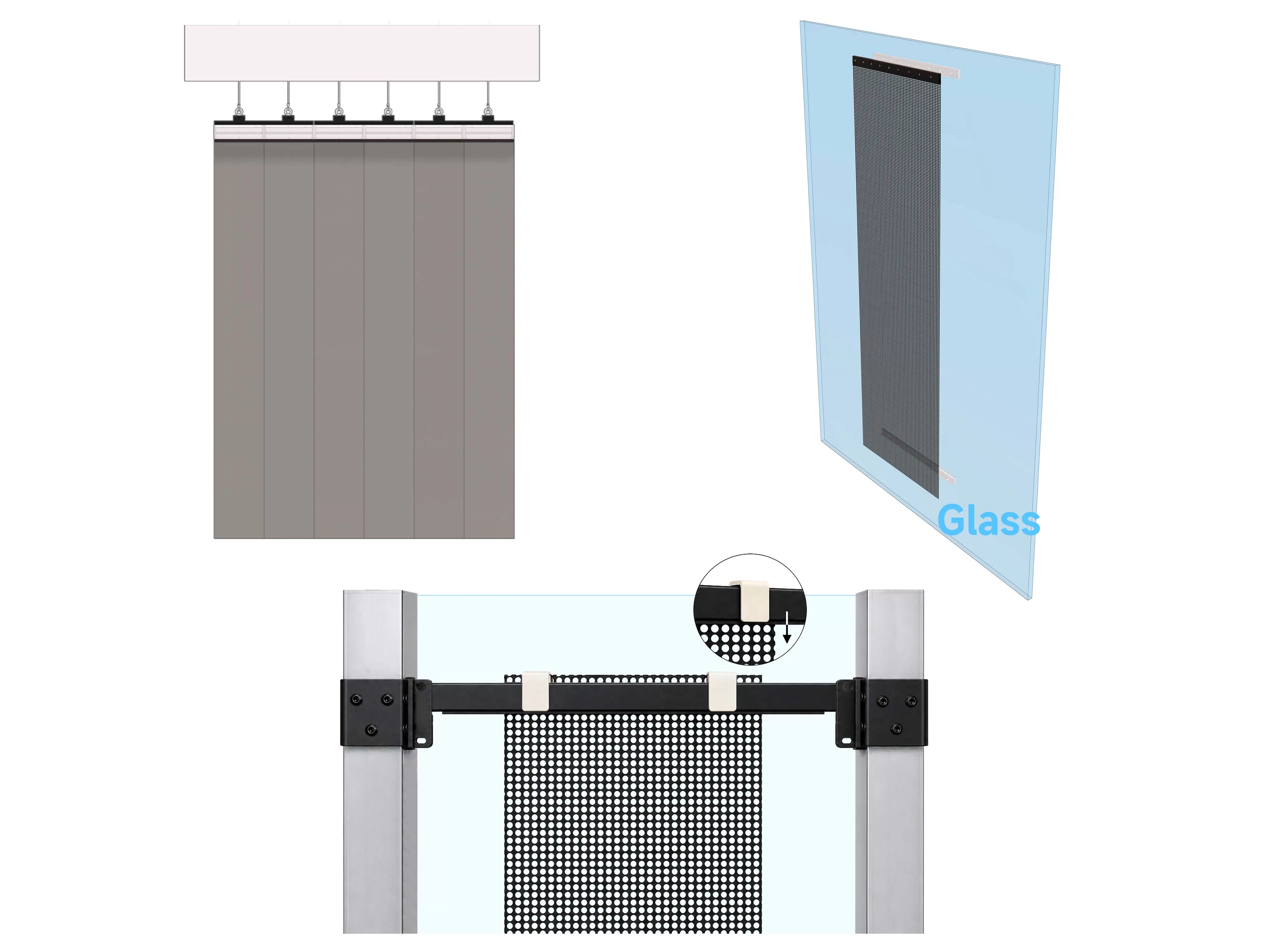

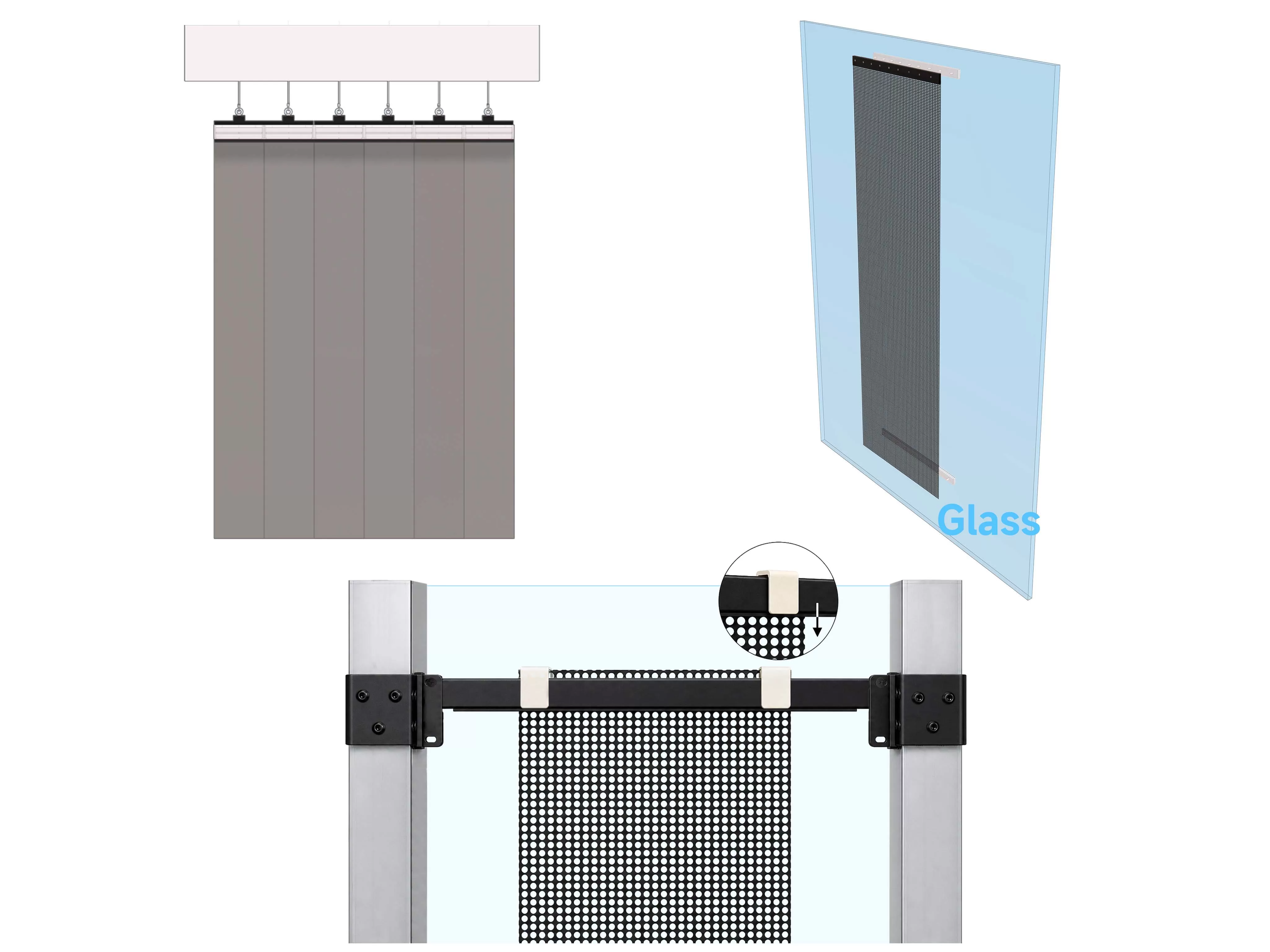

Multi-Optional Installation Methods
The Riddle series supports a variety of installation methods, including hanging, semi-attaching, and slide rail options, making it suitable for various installation scenarios such as shopping malls, brand stores, and storefront, providing flexible LED display solutions for different spatial layouts.
-

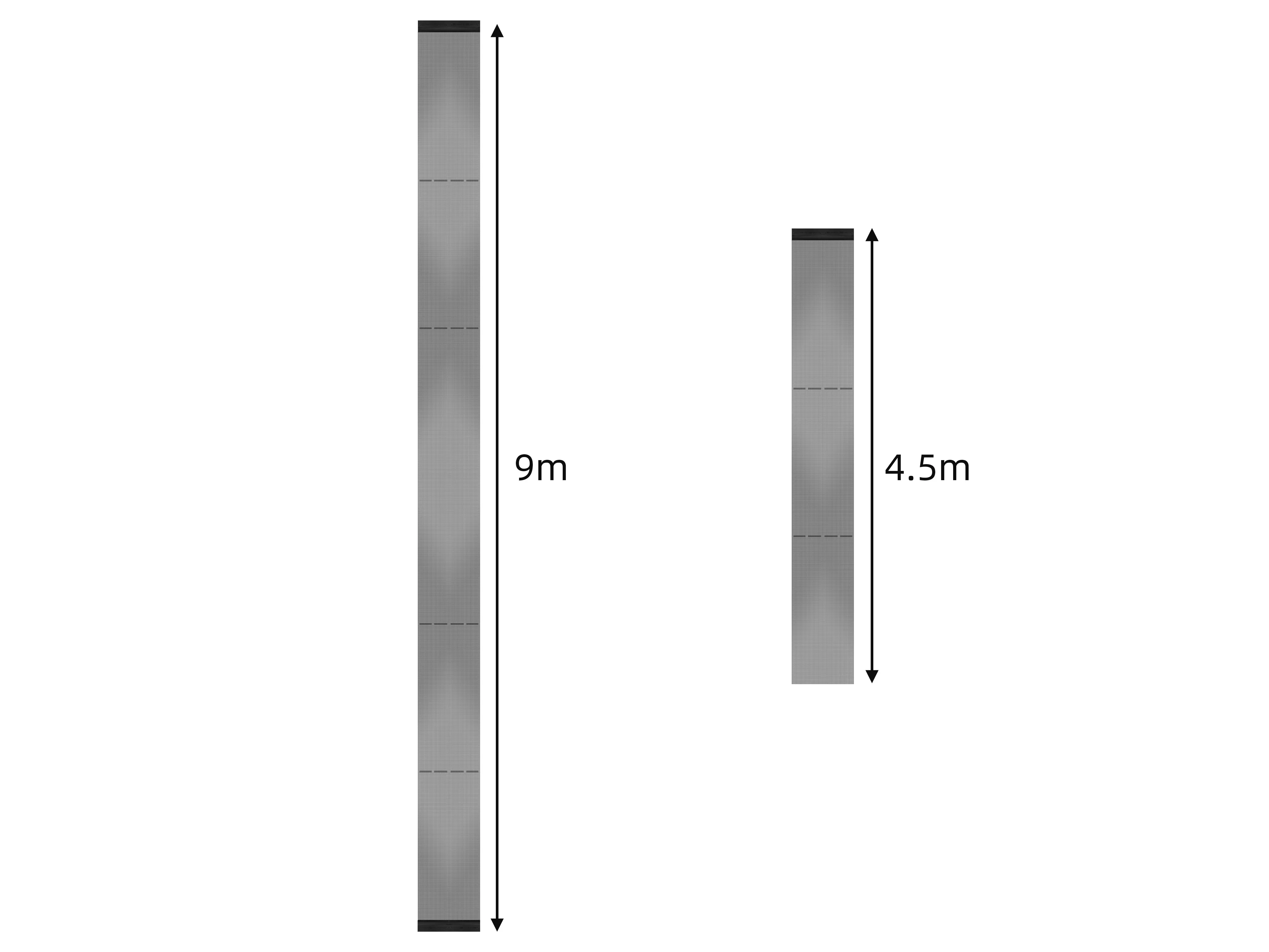

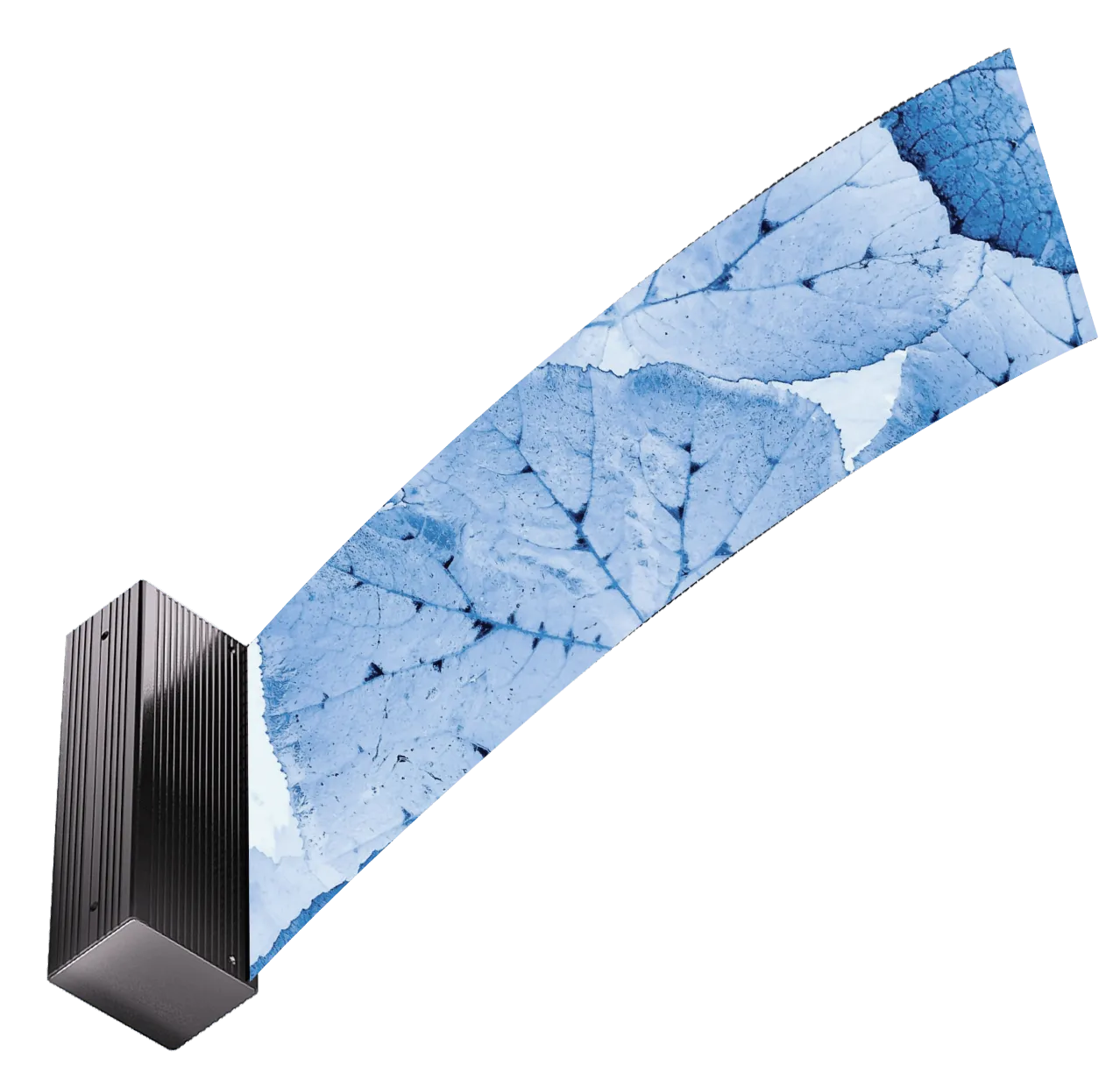

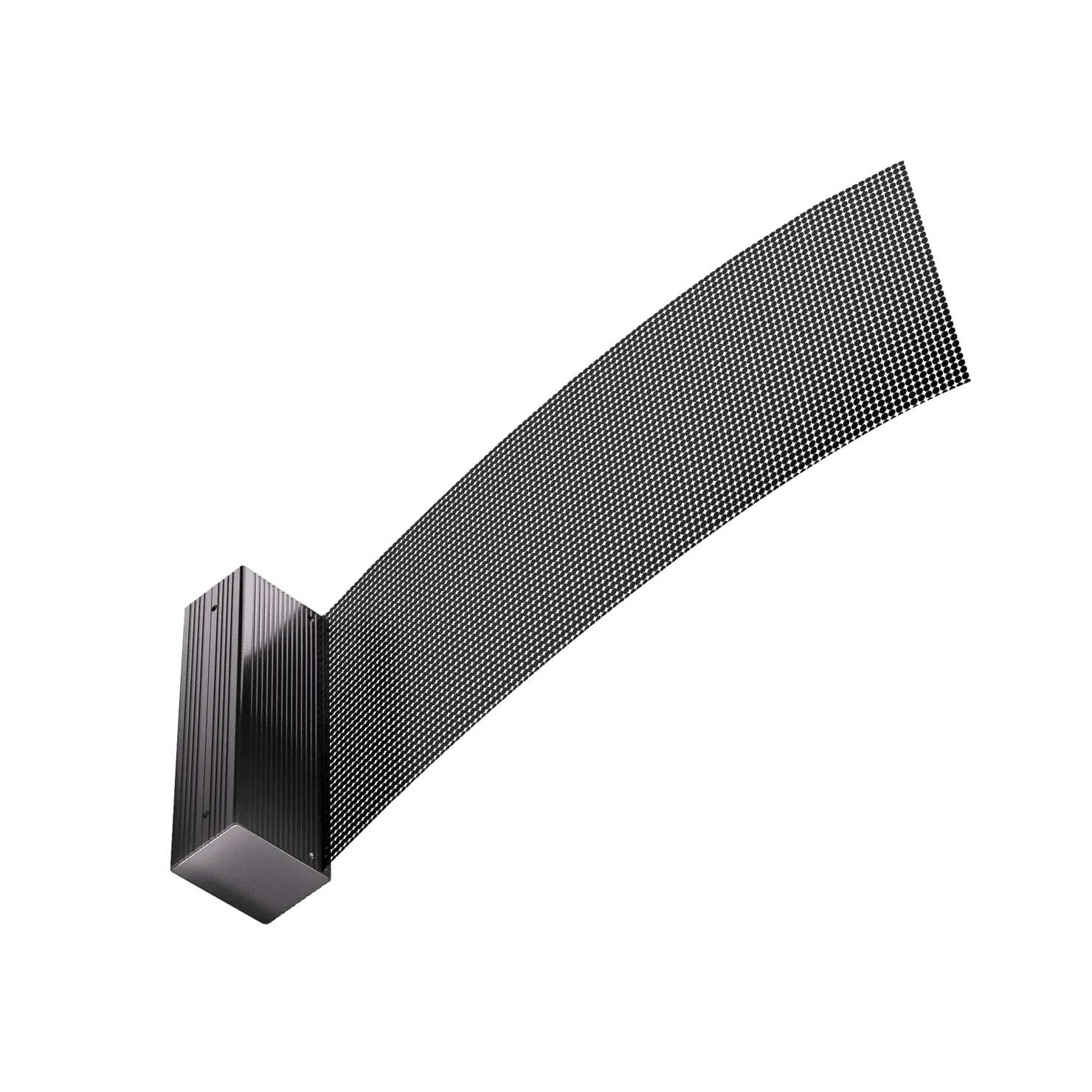

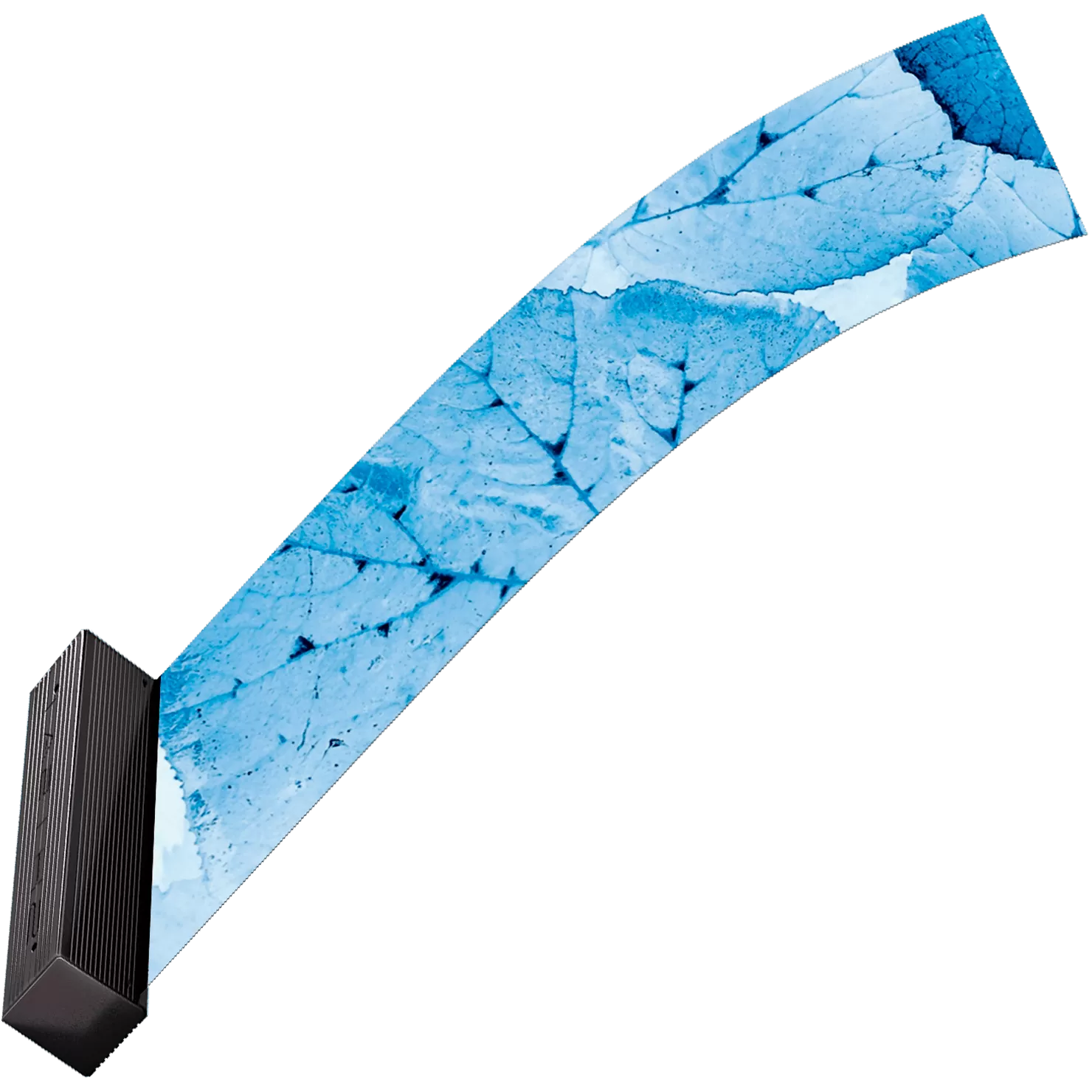

Seamless Display Heights Up to 9 Meters
The Riddle series (IC-separated version) can achieve a seamless single-module length of 4.5 meters using only one power box via bridging. Connecting two ends together creates a continuous, unobstructed display up to 9 meters high.
-

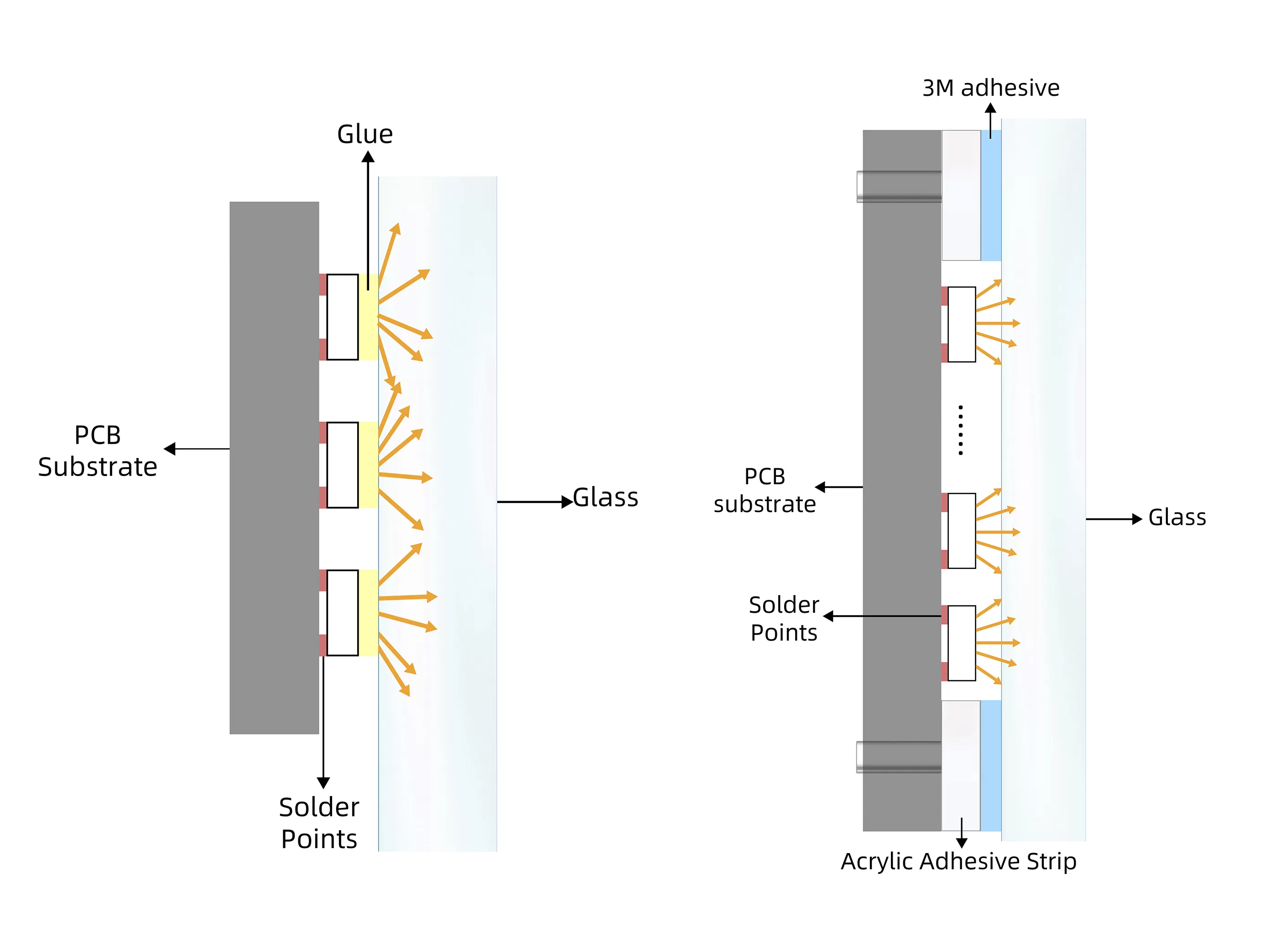

Innovative Semi-attaching Installation Method
- Eliminates light refraction caused by adhesive spots, ensuring even brightness and a natural visual experience.
- Replaces traditional dot gluing on LED surfaces, preventing thermal stress and physical adhesion risks to LEDs. Simplifies maintenance and reapplication with no residue left on the lights.
- Eliminate stray light dots visible from side angles, maintaining flawless visuals from all directions.
-

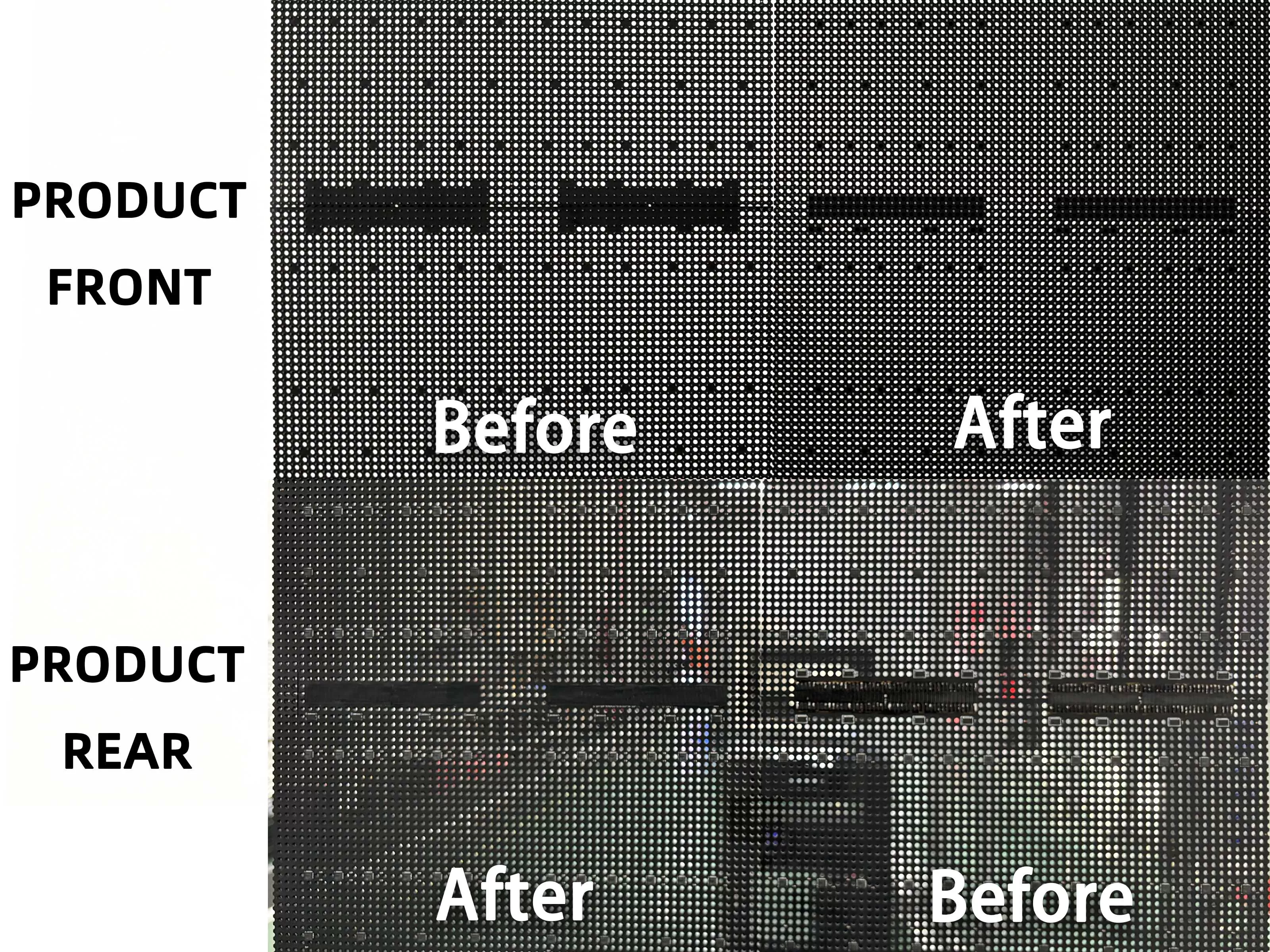

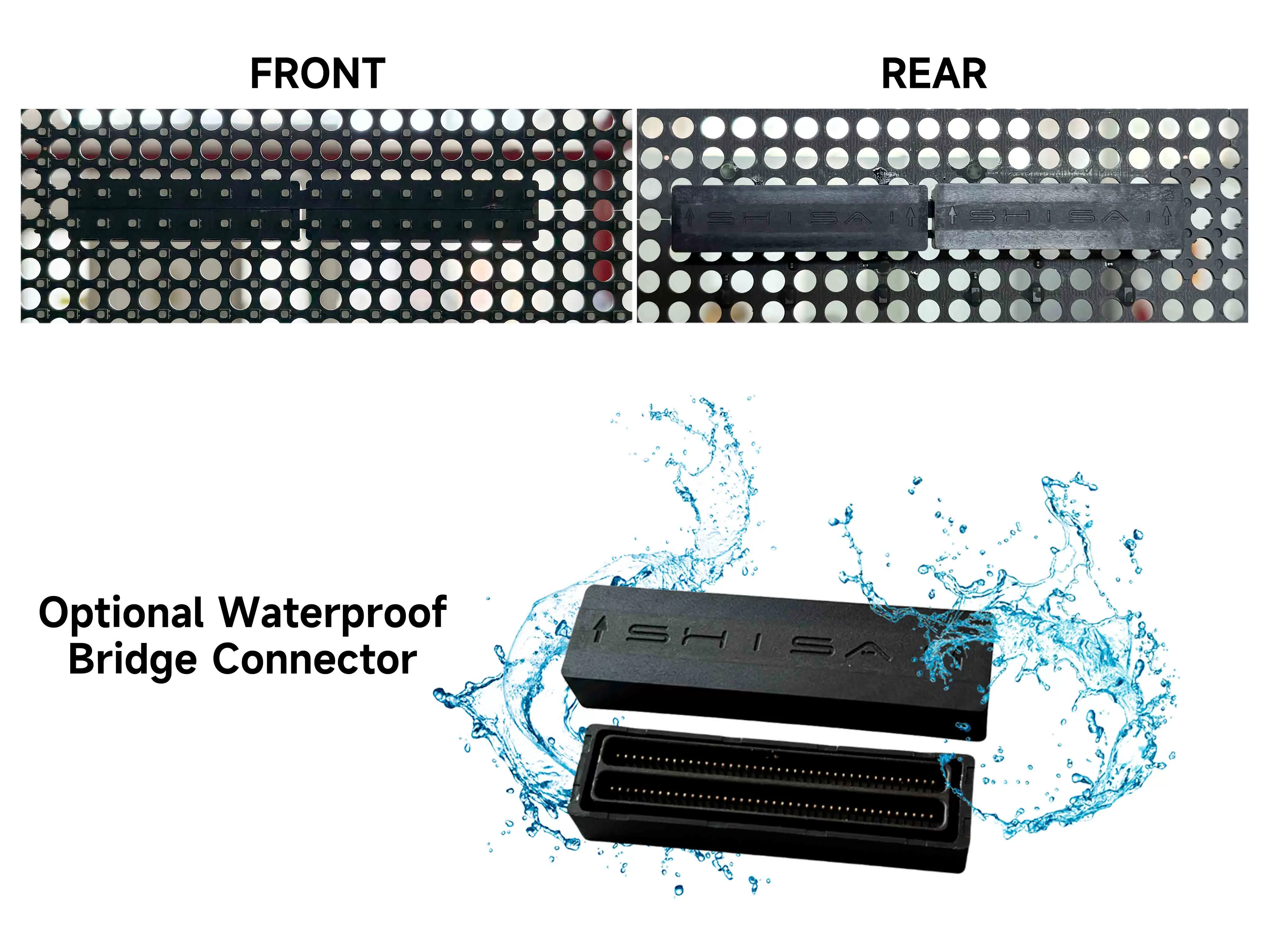

Optimizing Connections
Eliminates light refraction caused by adhesive spots, ensuring even brightness and a natural visual experience. Replaces traditional dot gluing on LED surfaces, preventing thermal stress and physical adhesion risks to LEDs. Simplifies maintenance and reapplication with no residue left on the lights. Eliminate stray light dots visible from side angles, maintaining flawless visuals from all directions.

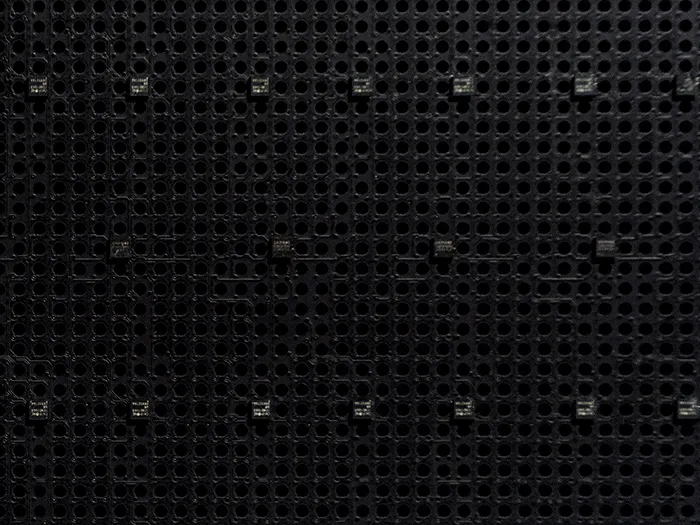

IC Integration VS IC Separation
| Holographic LED
(IC Integration) |
Holographic LED
(IC Separation) |
|
| Transparency | 90-95％ | 88-93％ |
| Black LED
Brightness(MAX) |
2,000cd | 3,500cd |
| White LED
Brightness(MAX) |
3,500cd | 5,500cd |
| Component Stability | Below 100ppm | Below20ppm |
| Color Level and Hue | 8 Bit | 16 Bit |
| IP rate | IP25 | IP43 |

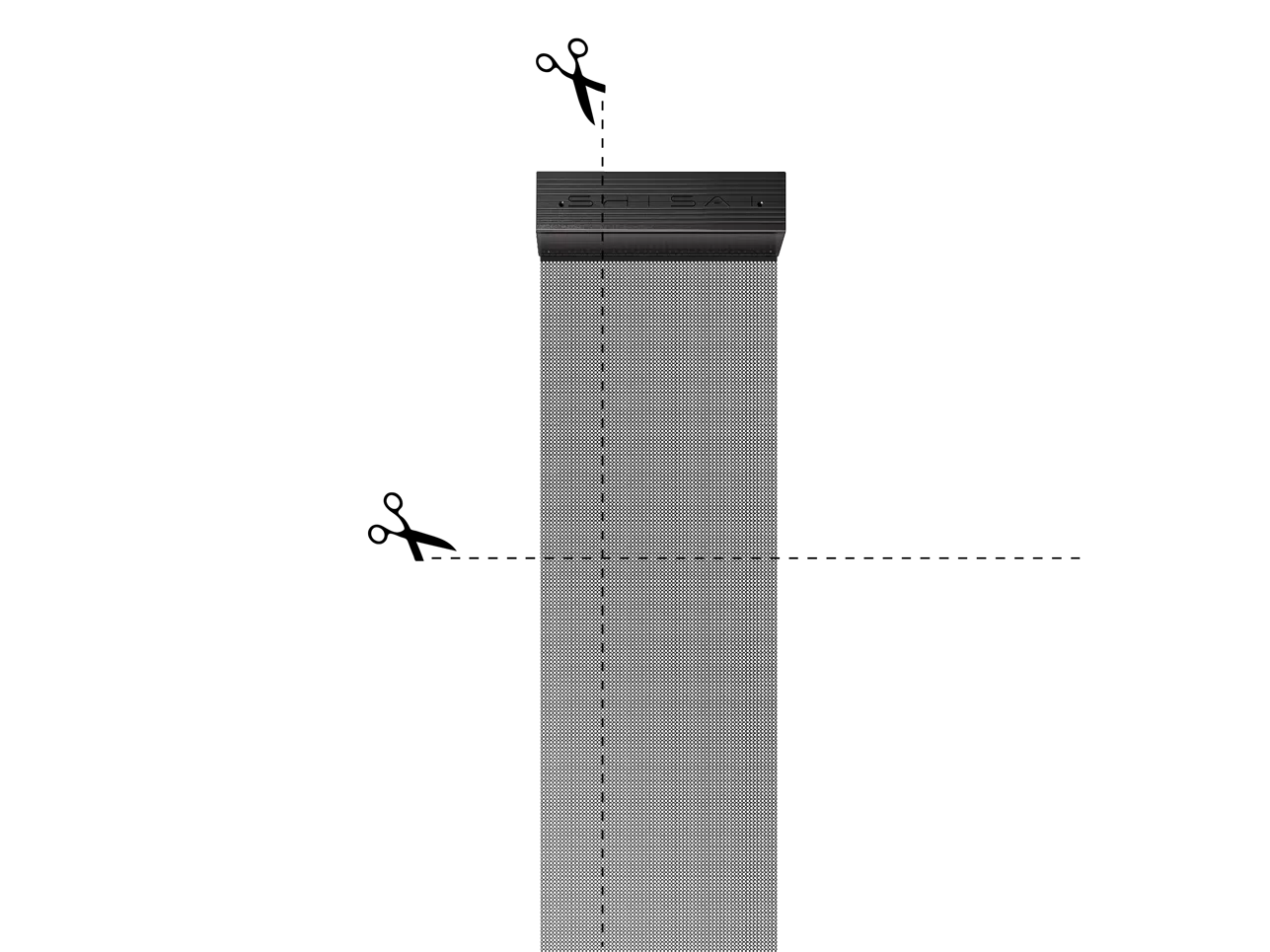

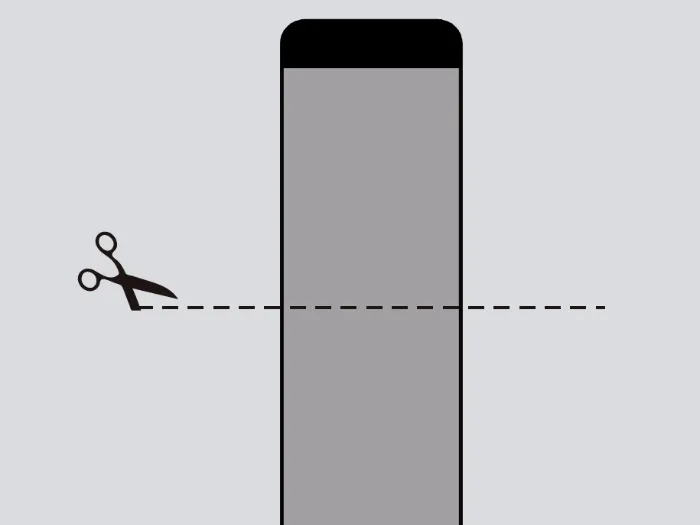

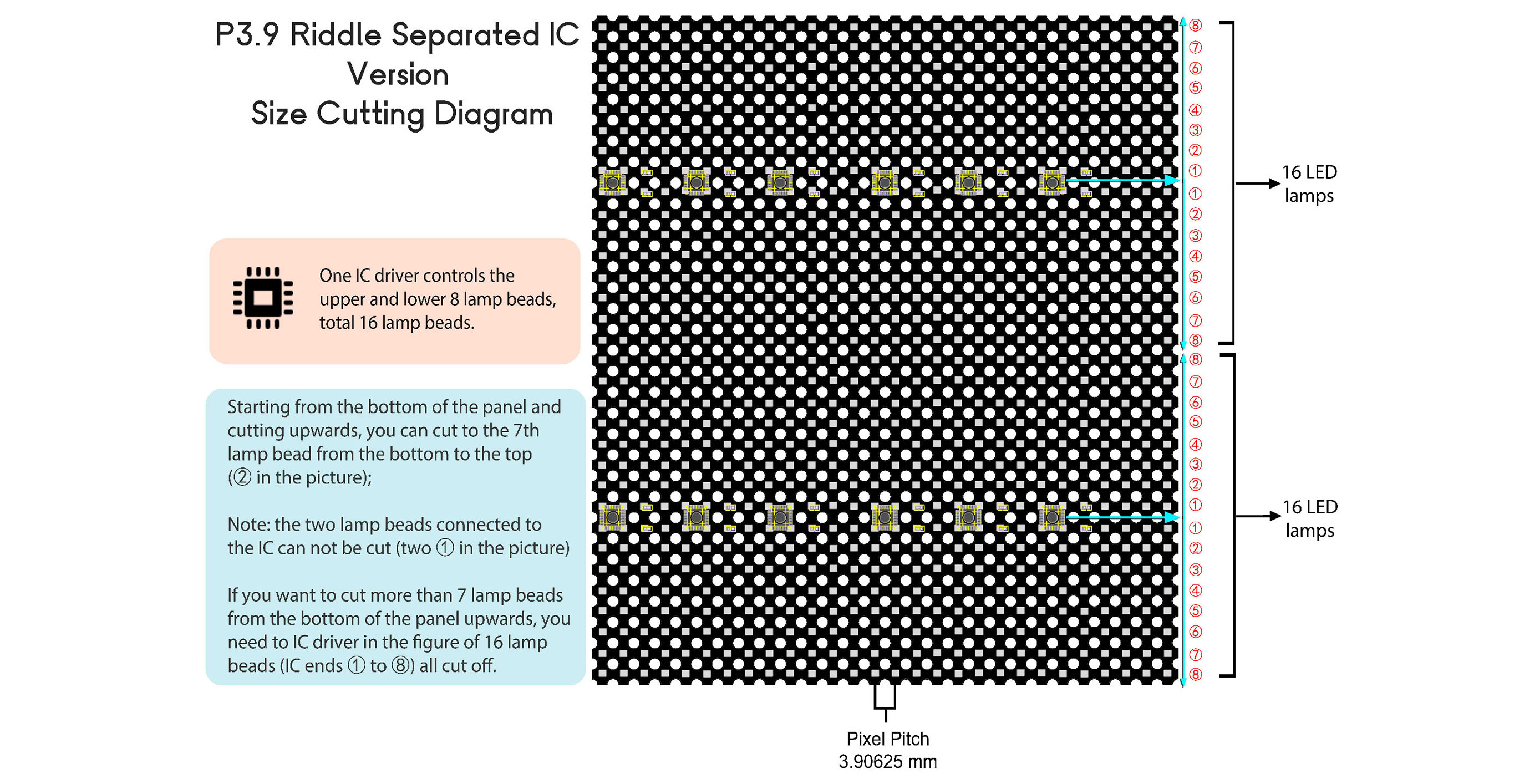

Point-To-Point Cutting

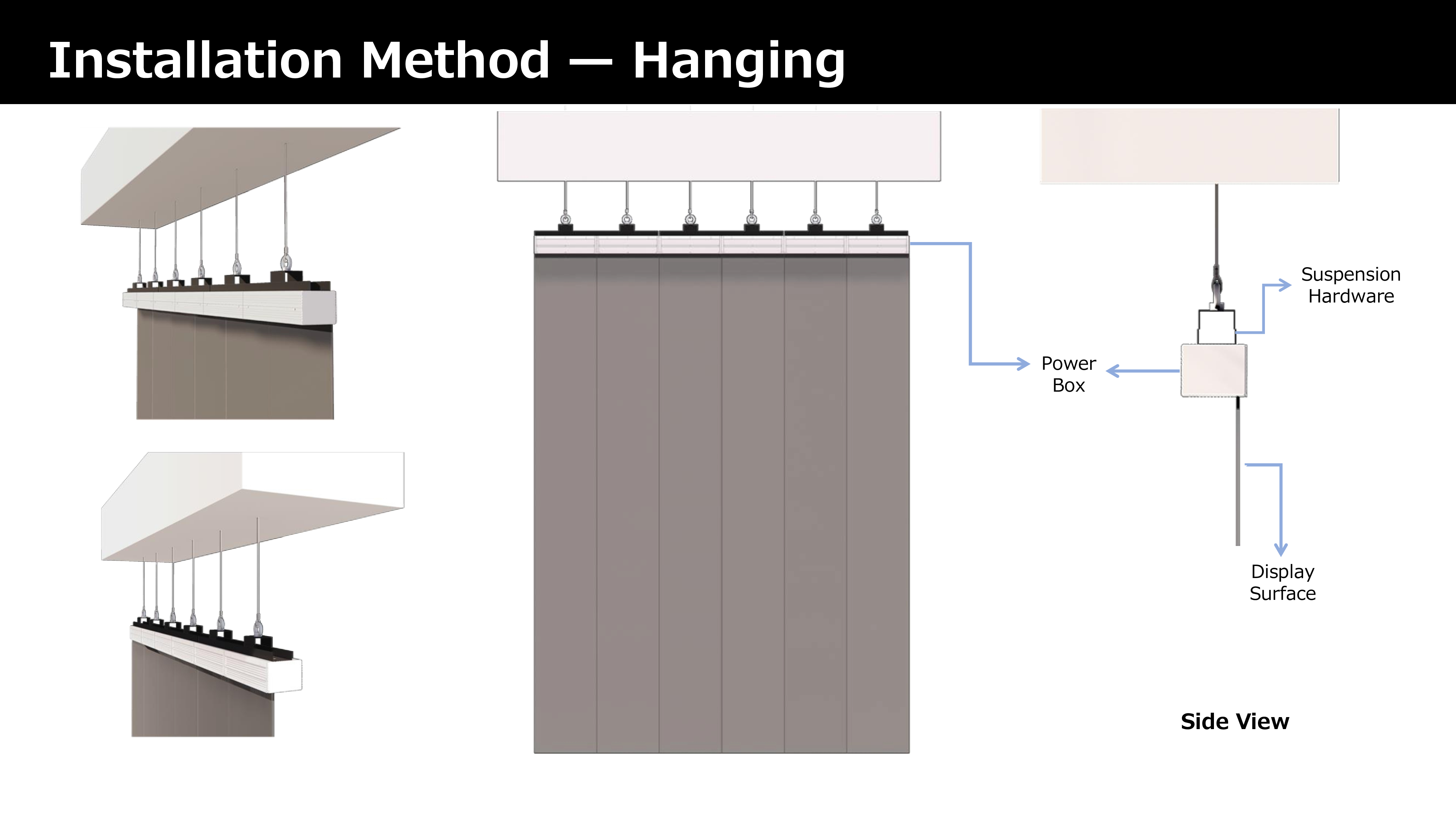

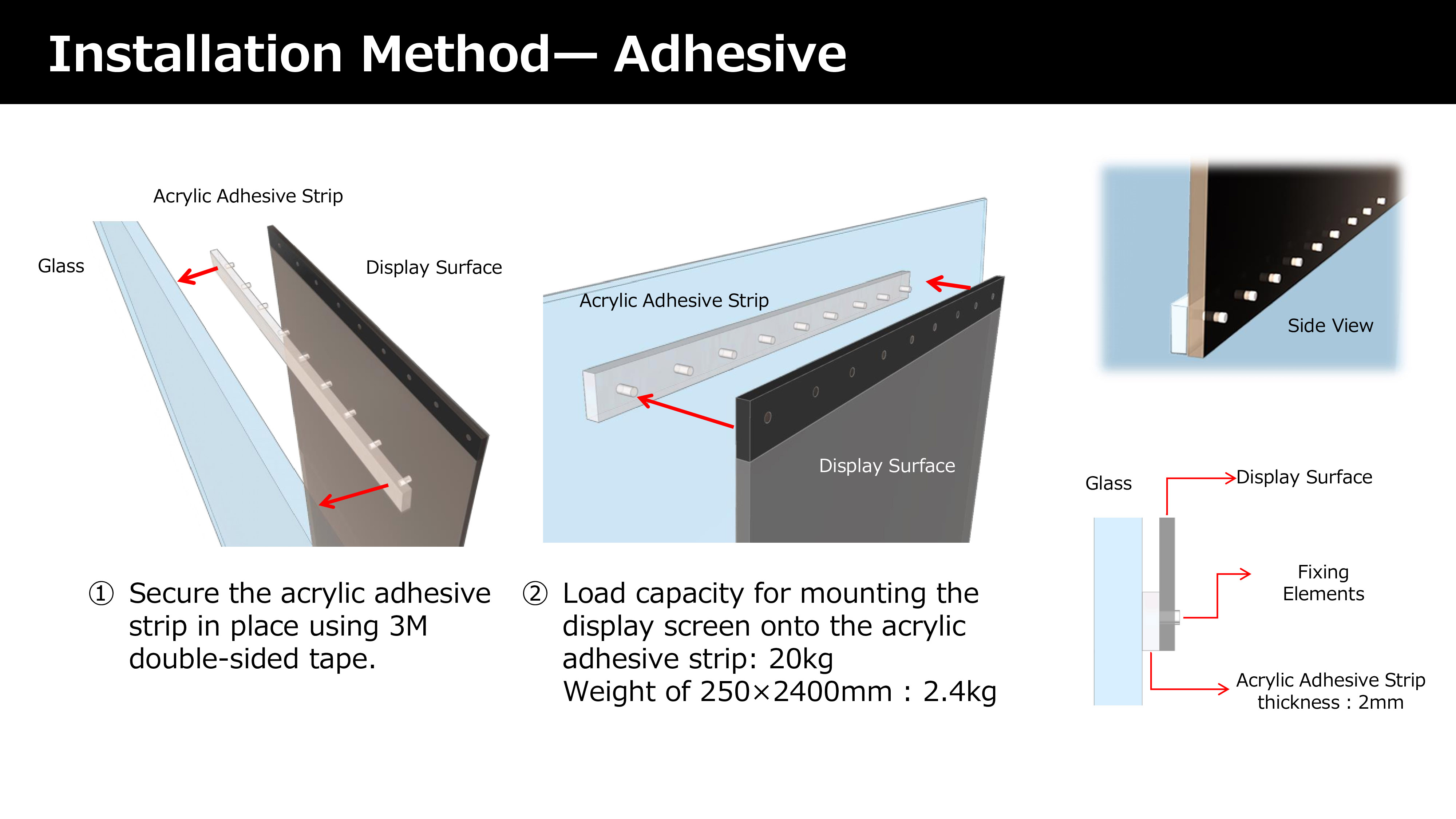

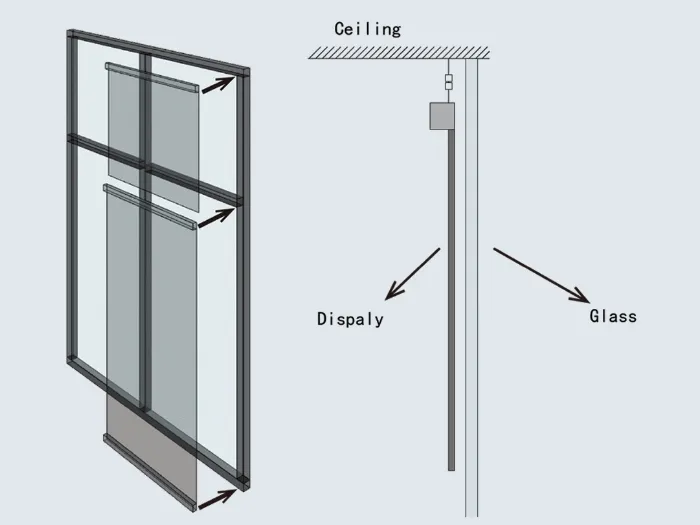

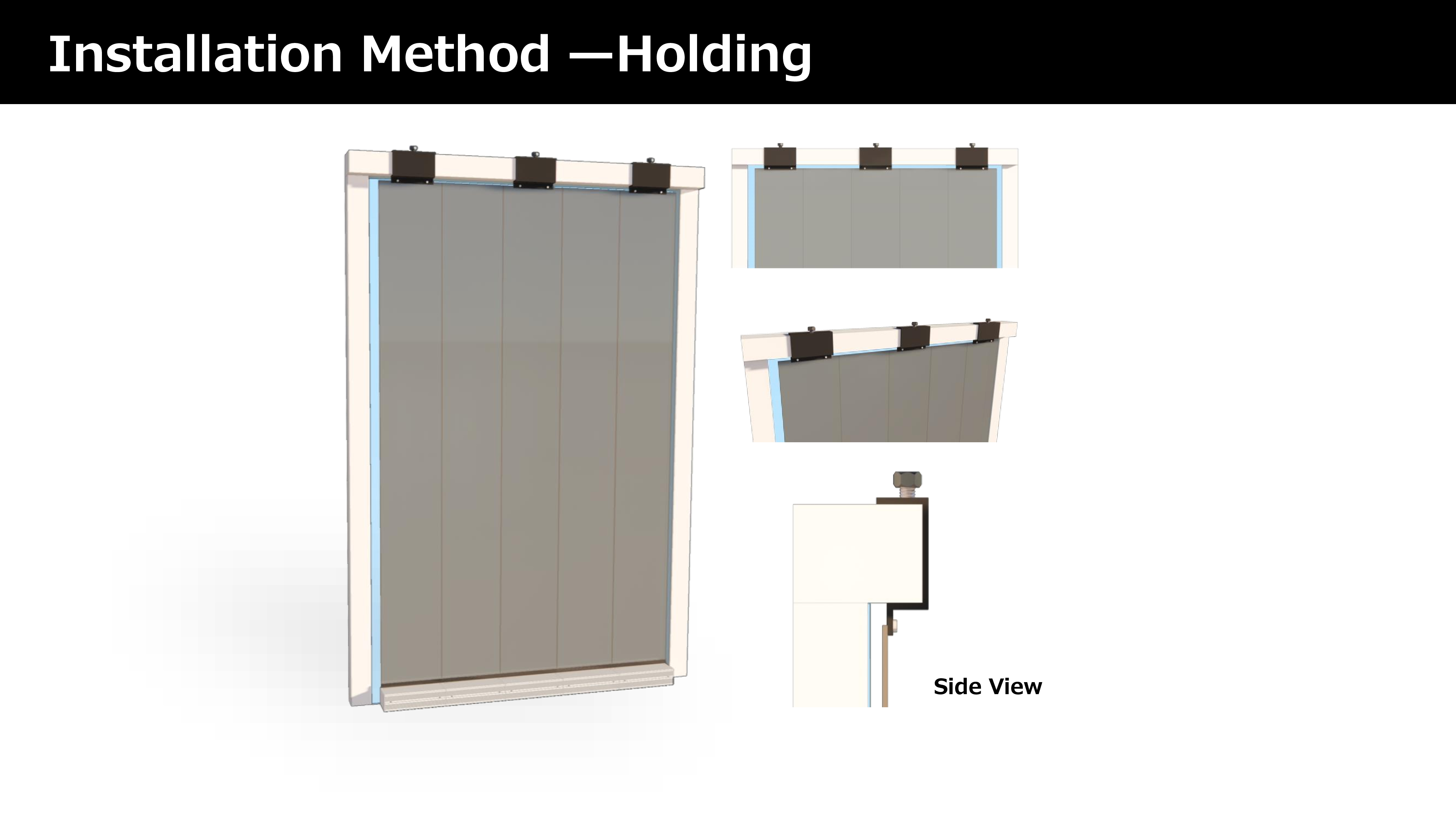

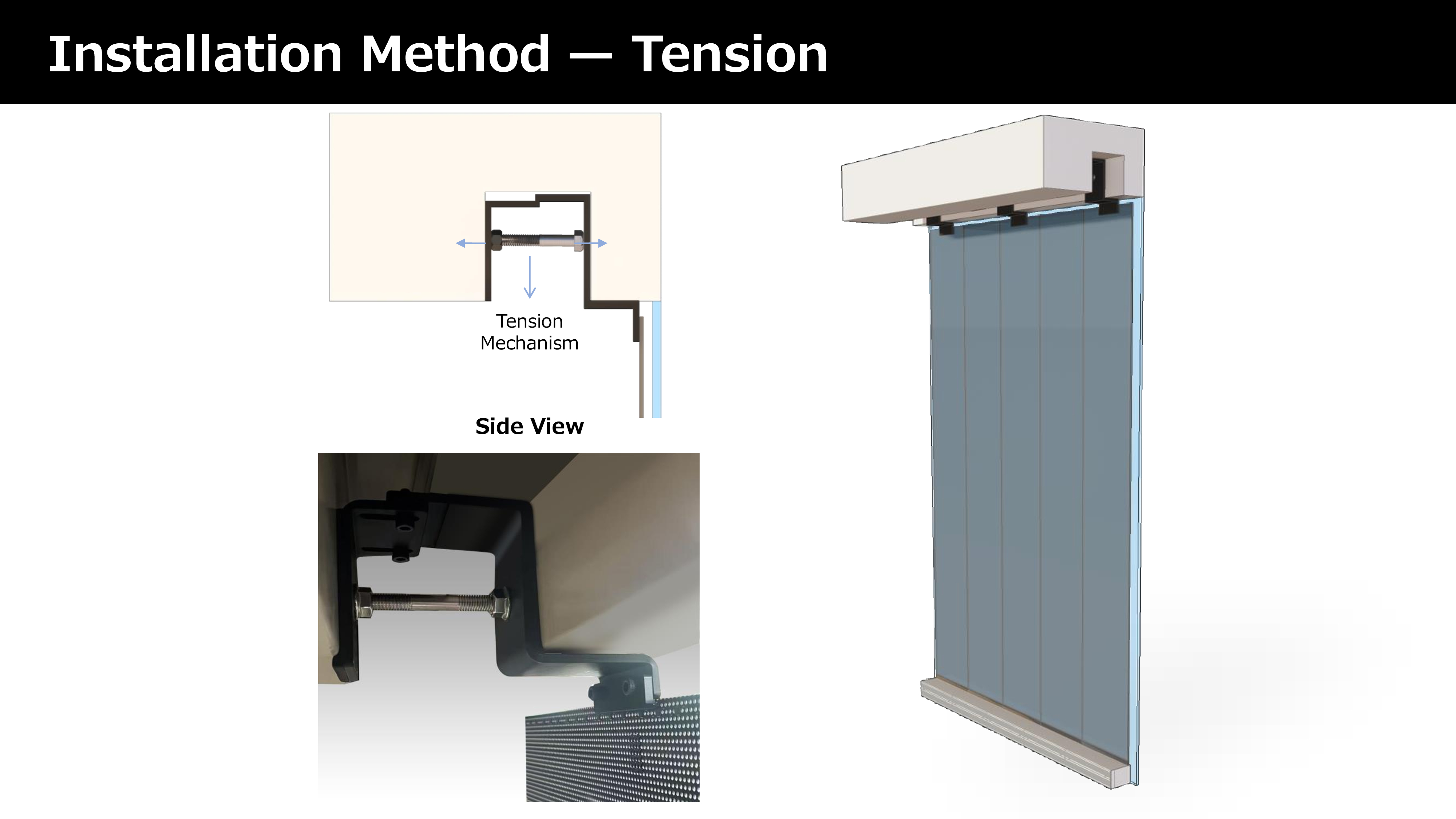

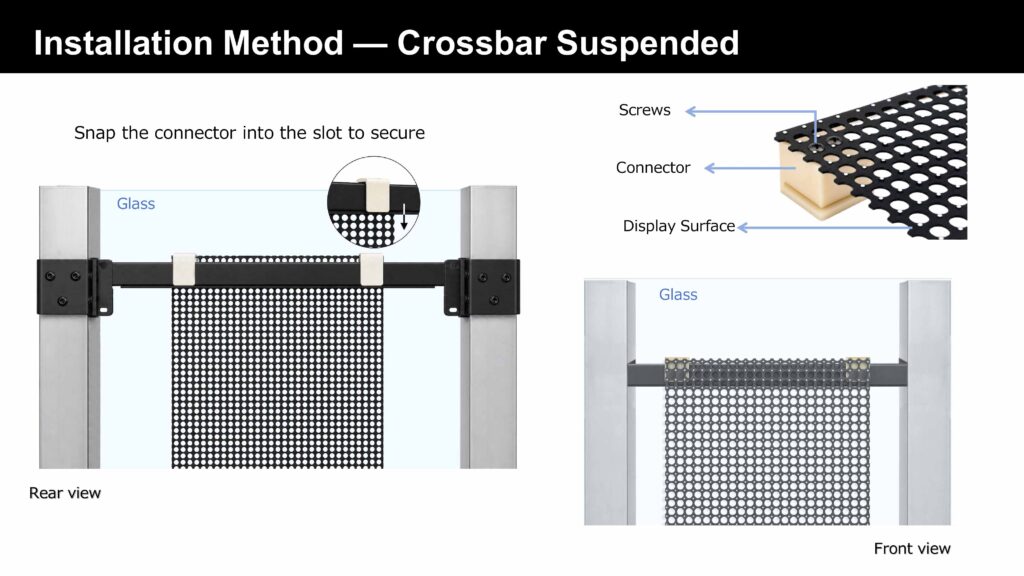

Installation Instructions
Product Video
Application Scenario
-

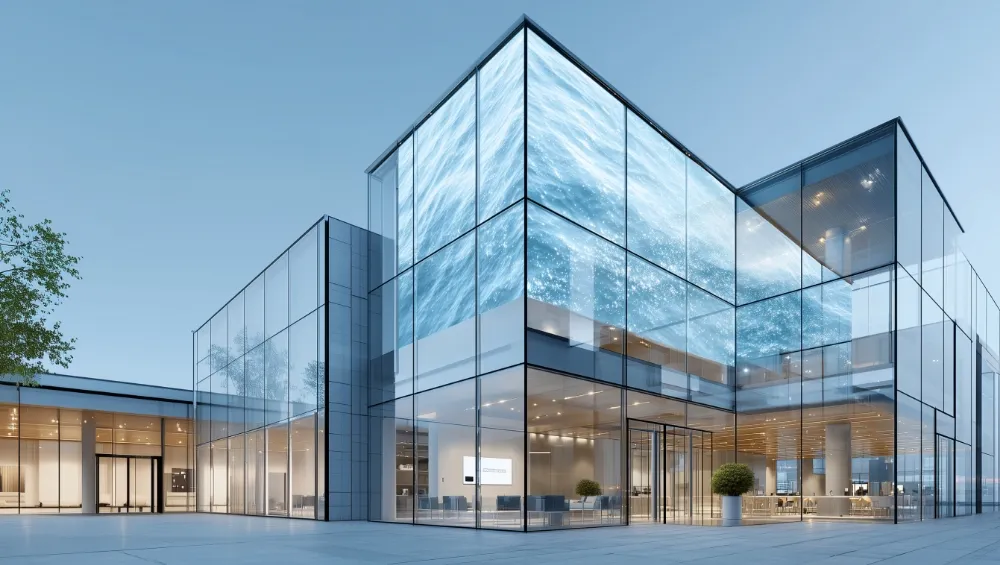

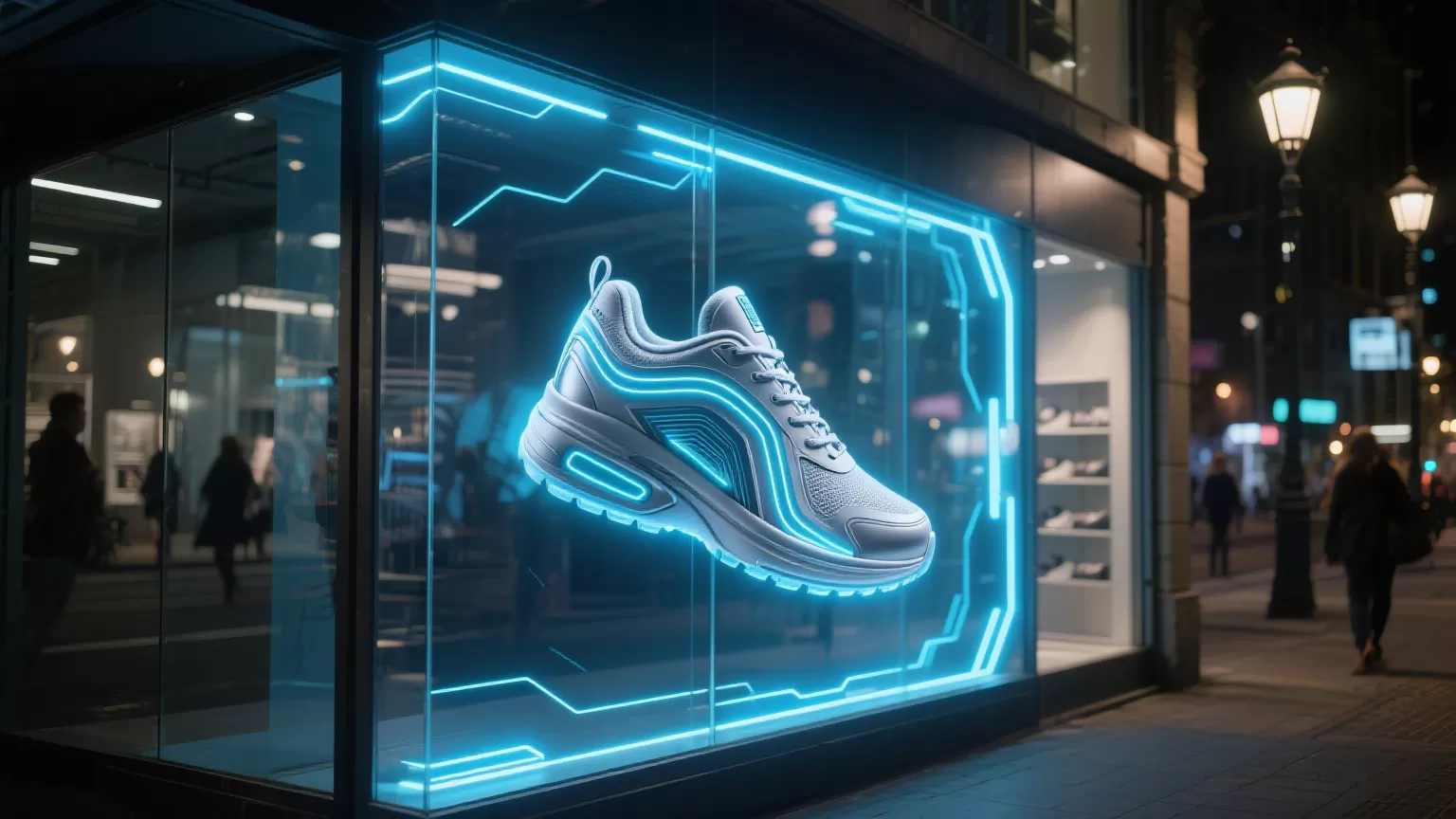

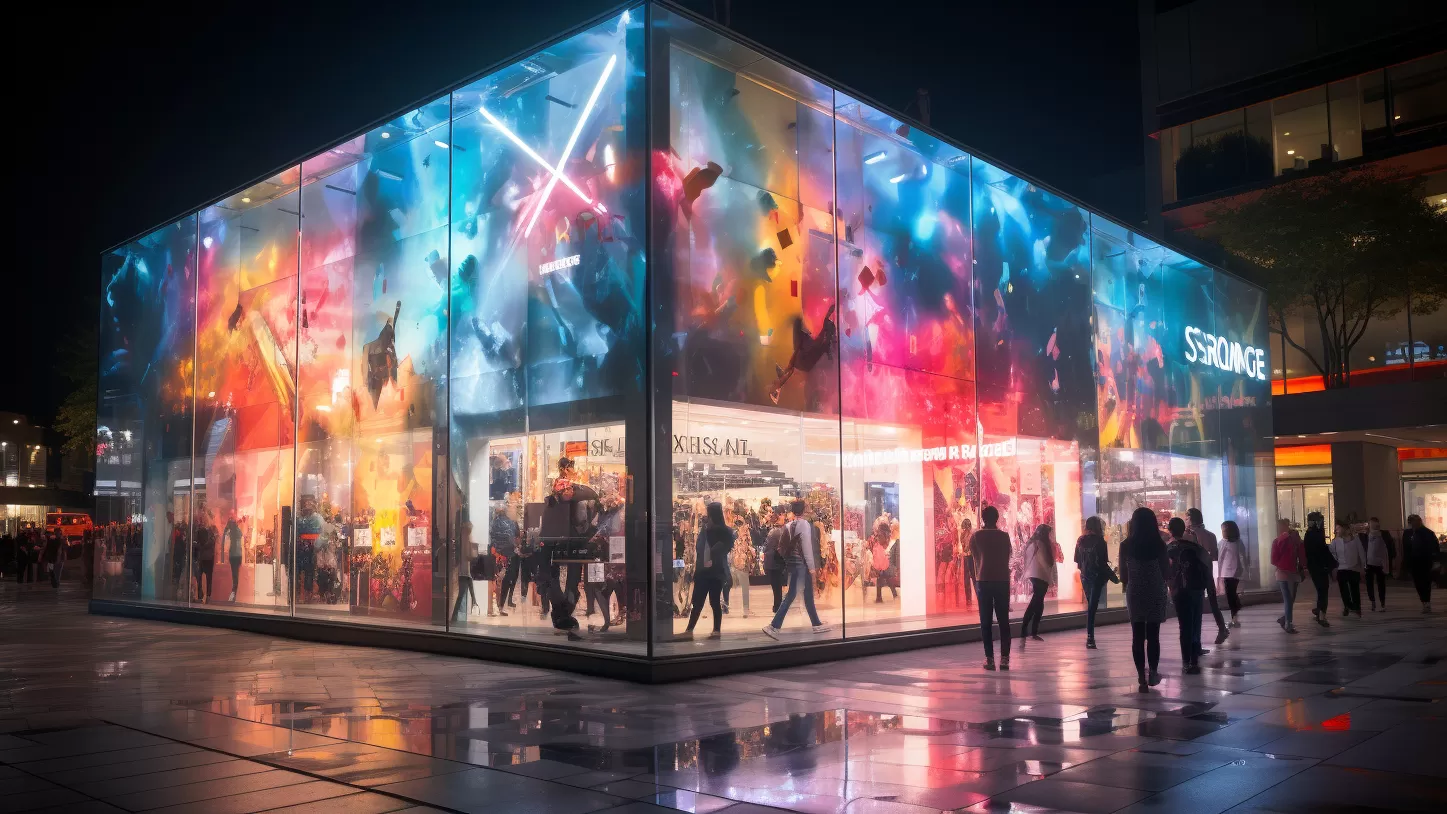

Glass curtain wall
-

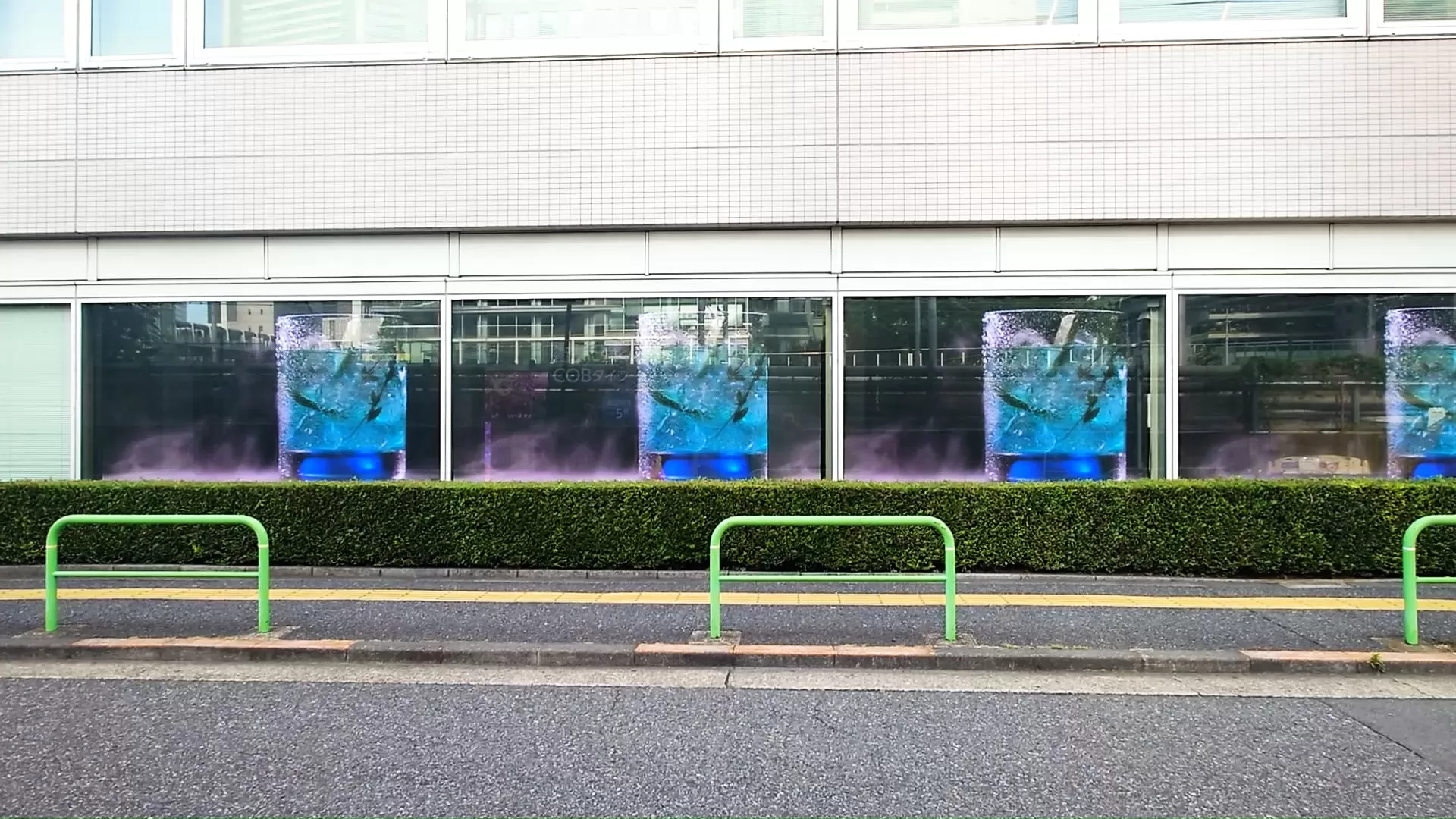

Street-side stores
-
Visual decoration & design

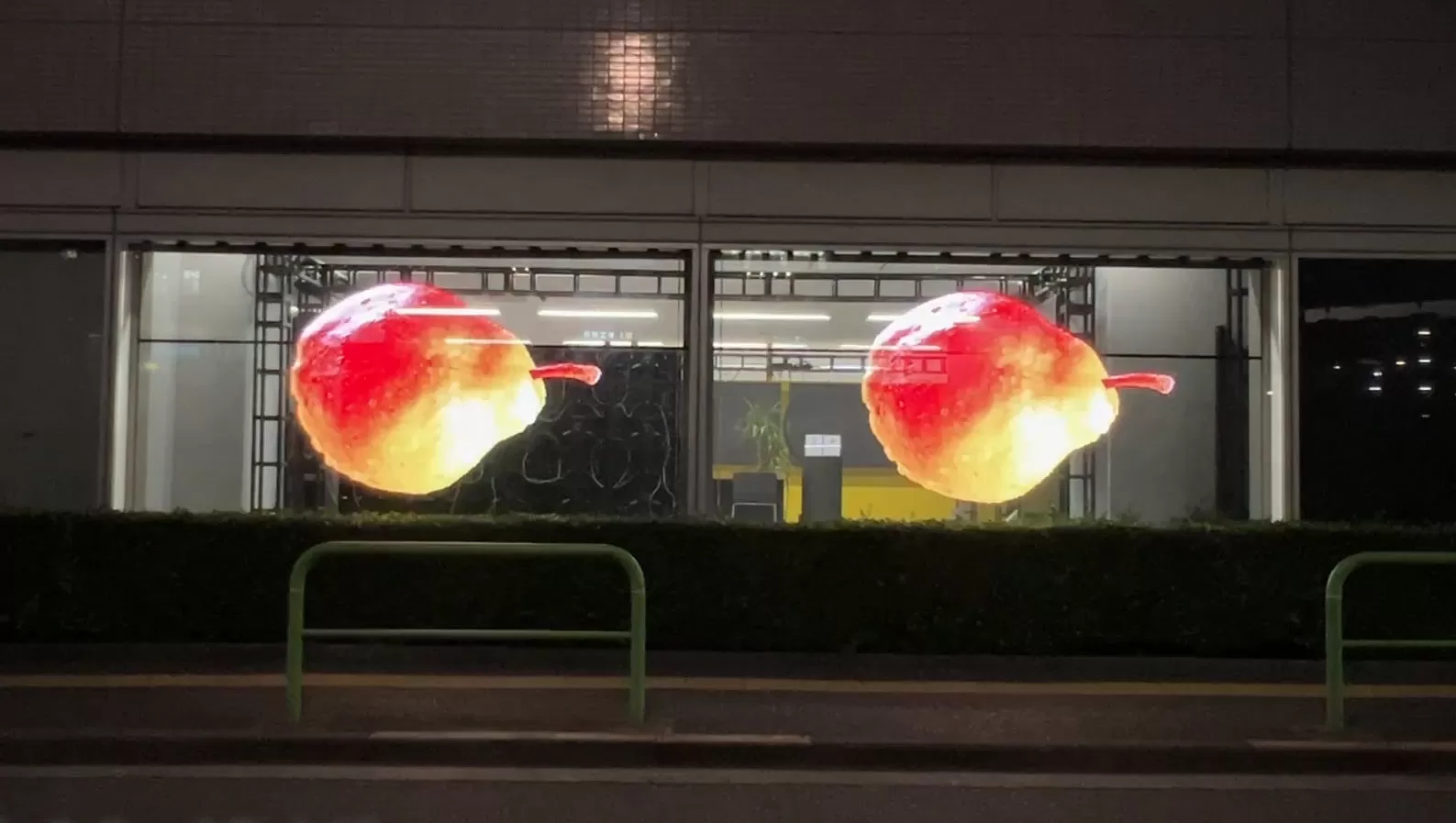

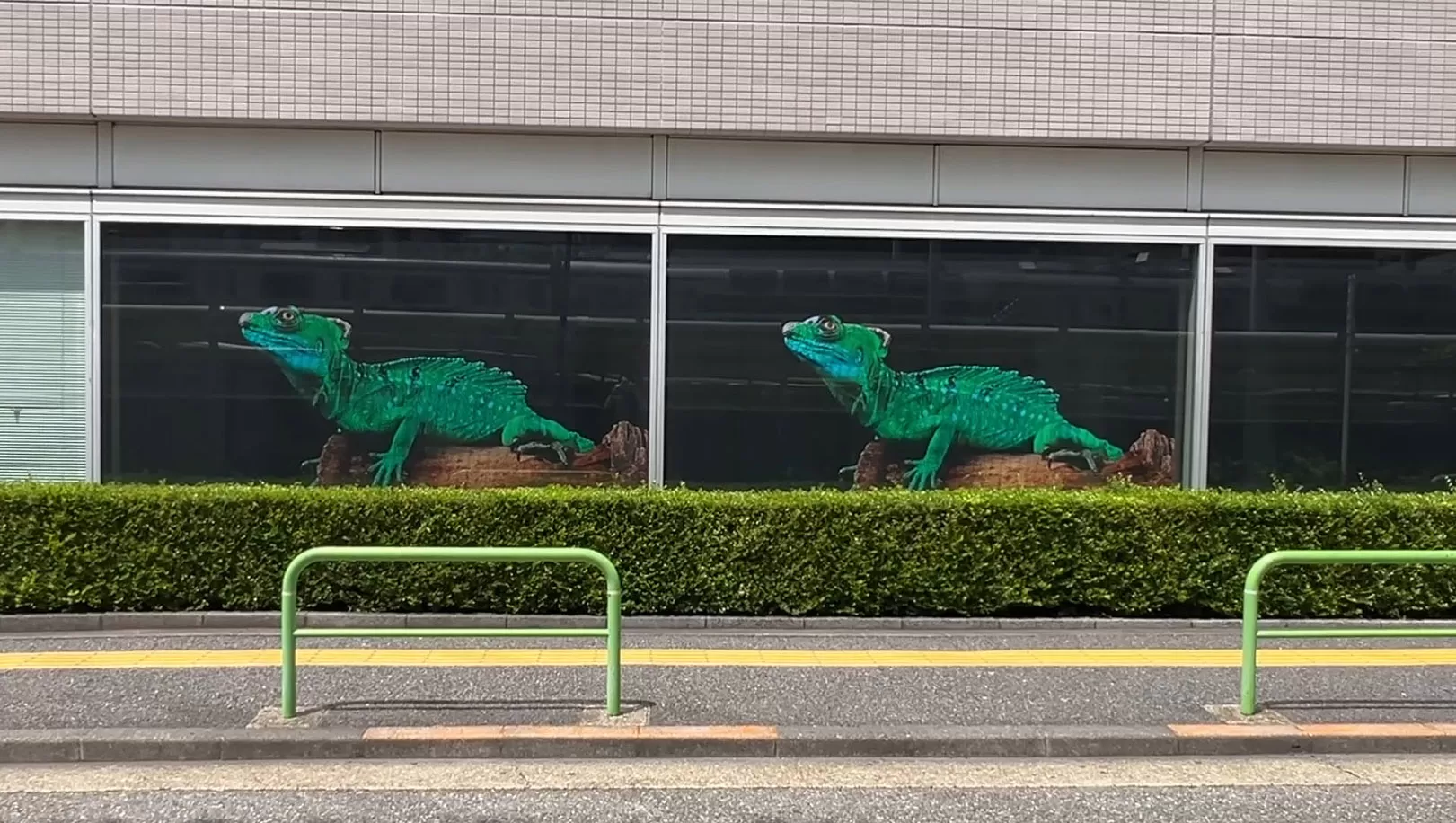

Application Photos
-

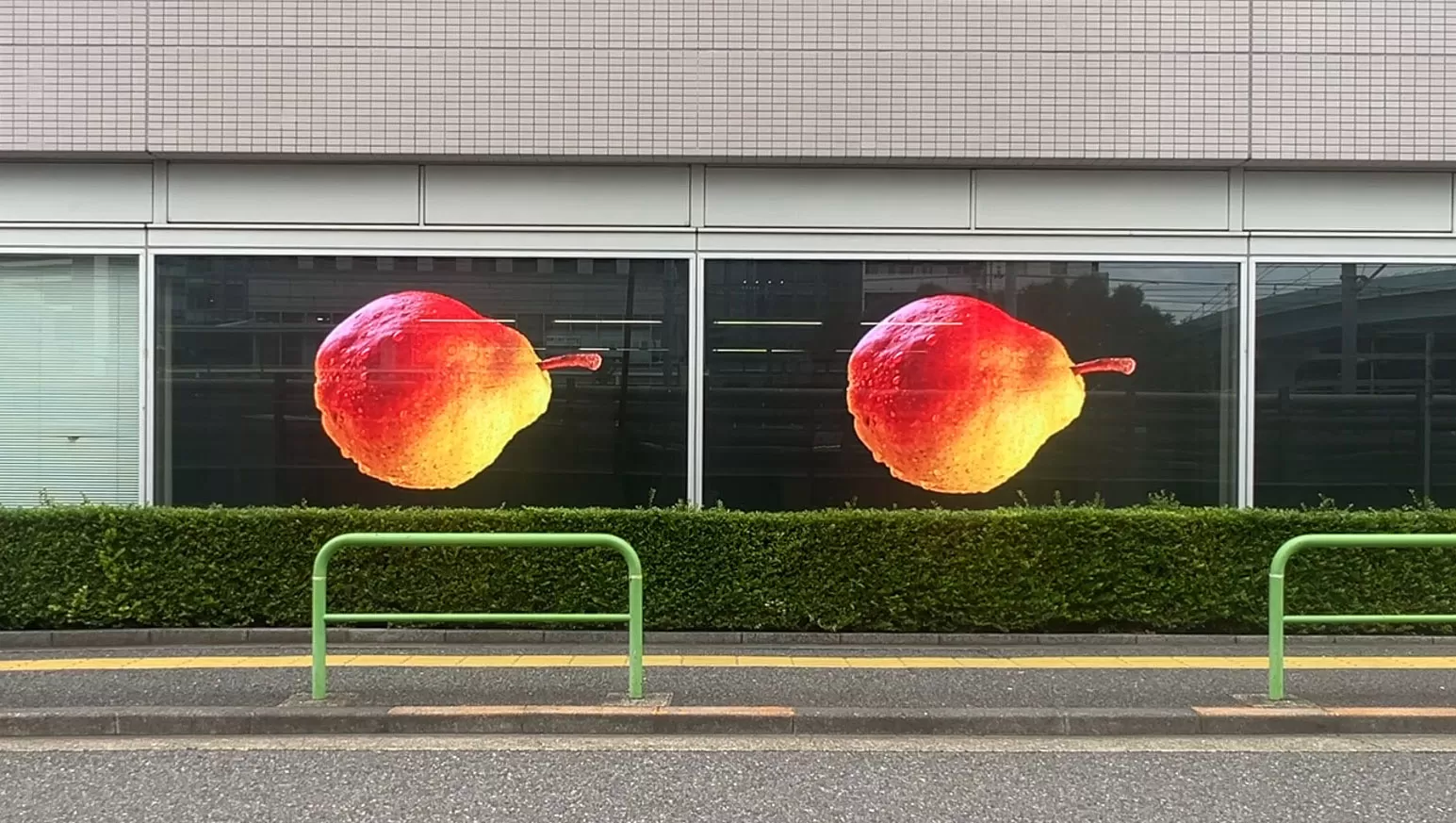

Daytime / Shade
-

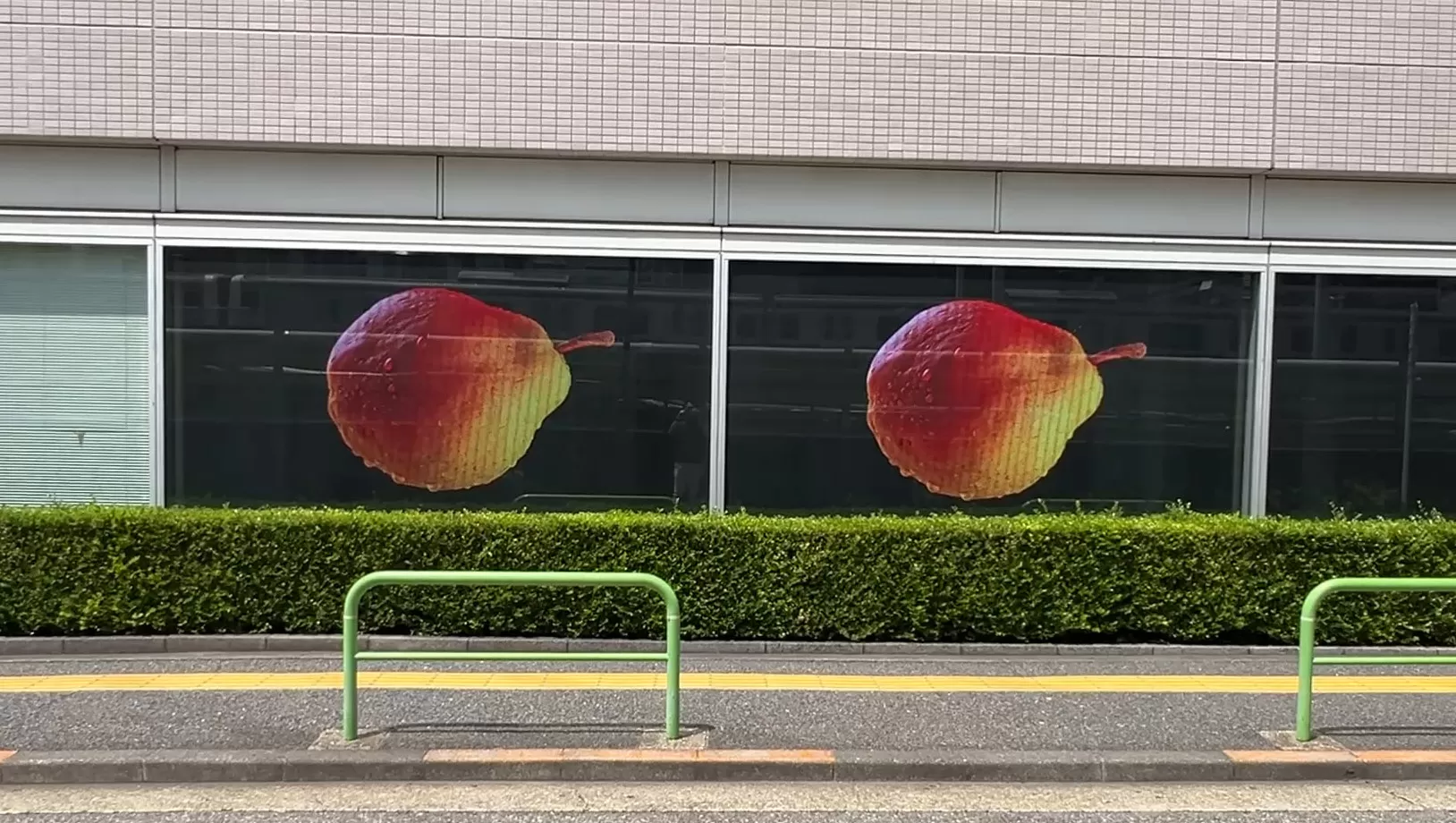

Daytime / Direct sunlight
-
Nighttime
-

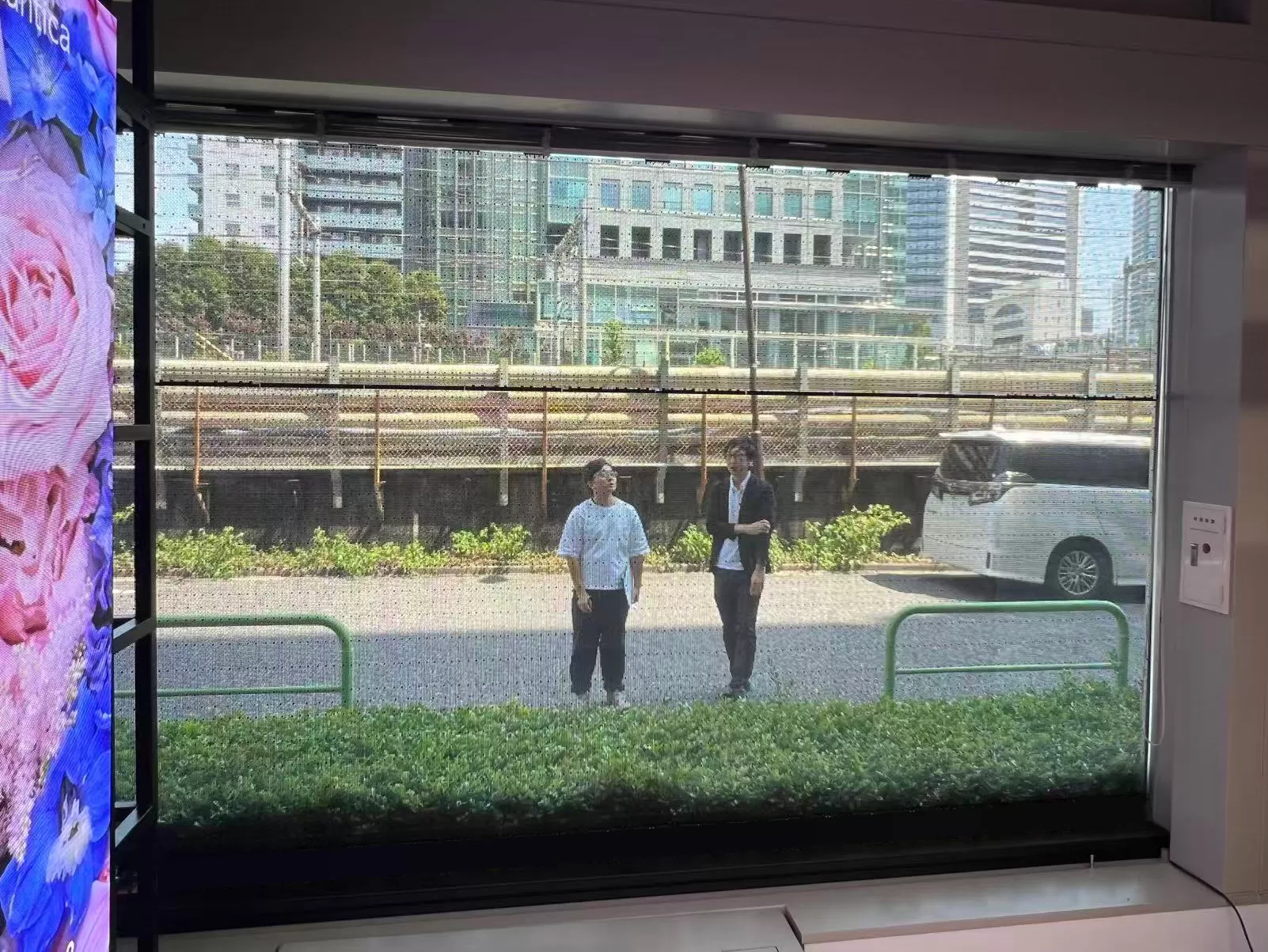

Indoor view
-

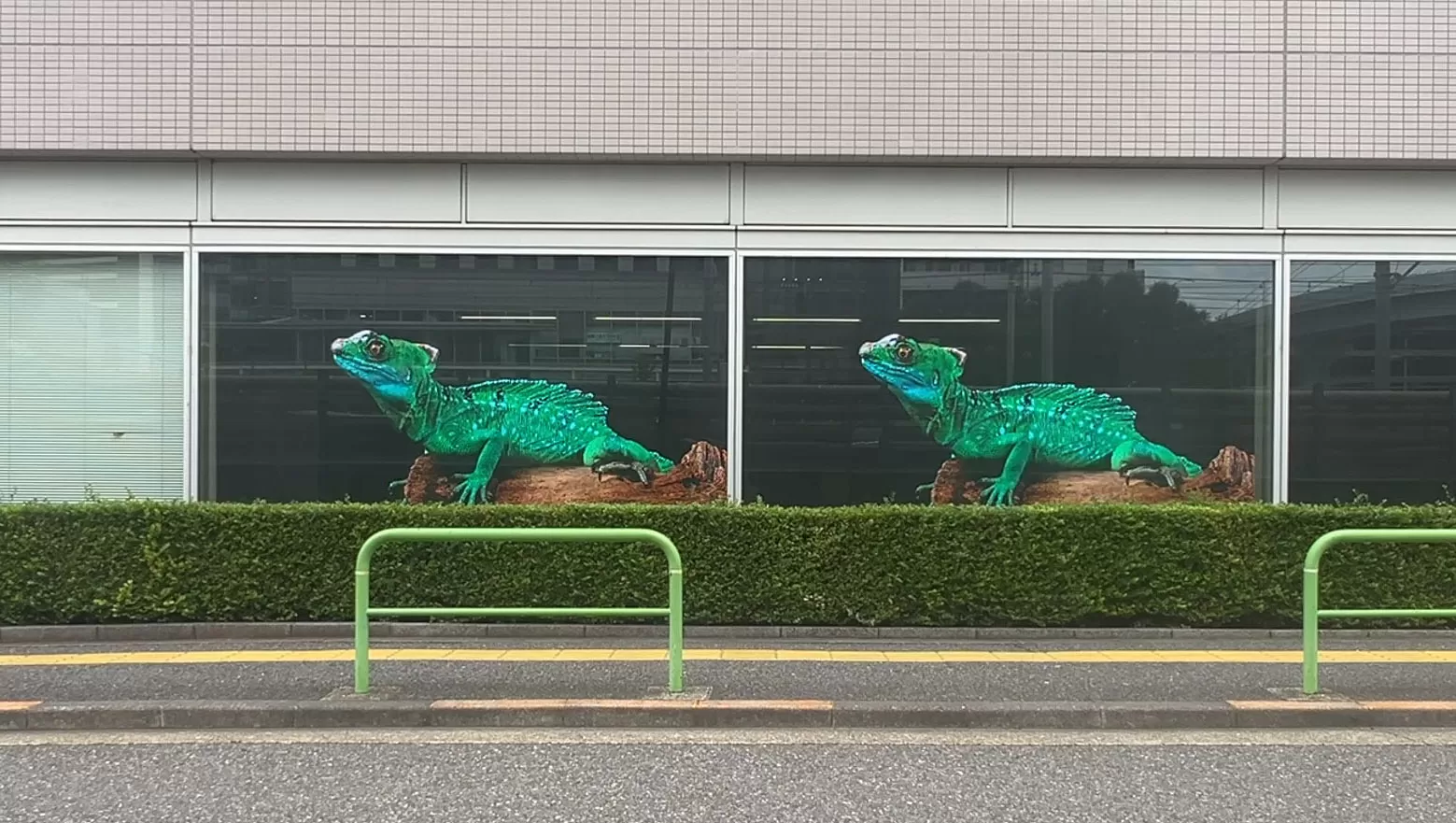

Daytime / Shade
-
Daytime / Direct sunlight
-

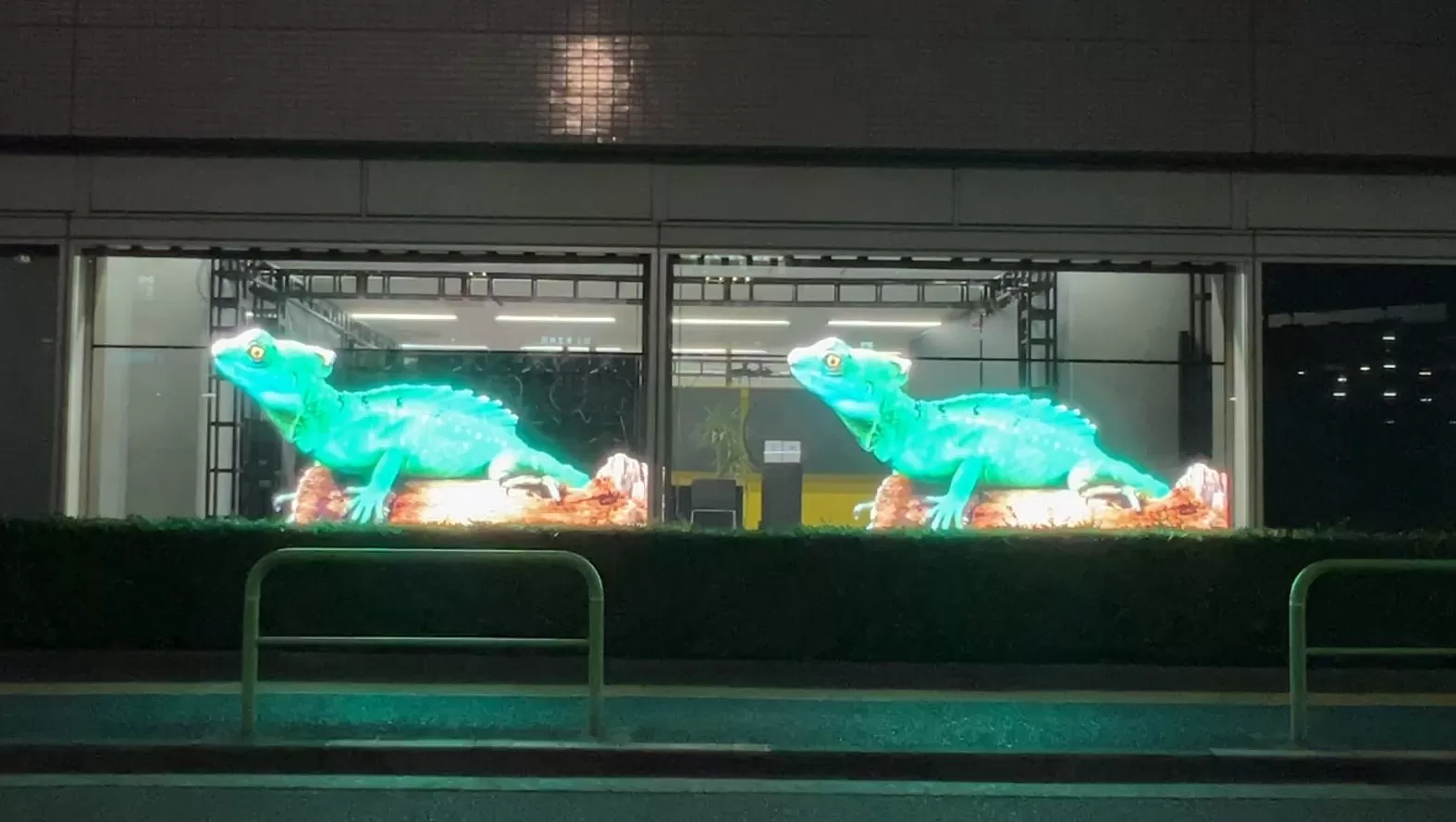

Nighttime
Product Parameter
| Riddle Series | P2.6V | P3.9 | P3.9V | P6.2 | P10.4 | |||||
| SMD Type | 1415 | 1415 | 1415 | 1921 | 2727 | |||||
| Separated | ||||||||||
| Pixel Pitch (㎜) | 2.6 Virtual | 3.9 | 3.9 Virtual | 6.25 | 10.4 | |||||
| Pixel Density (dots/m²） | 73728 | 65536 | 32768 | 25600 | 9216 | |||||
| Storage Unit Size (㎜) | 250×1000 | 250×1500 | 250×1000 | 250×1500 | 250×1000 | 250×1500 | 250×1000 | 250×1500 | 250×1000 | 250×1500 |
| Unit Definition (dot) | 96×384(V) | 96×576(V) | 64×256 | 64×384 | 64×256(V) | 64×384(V) | 40×160 | 40×240 | 24×120 | 24×144 |
| Weight (kg/unit) | 0.75 | 0.9 | 0.75 | 0.9 | 0.75 | 0.9 | 0.75 | 0.9 | 0.75 | 0.9 |
| Power Box Weight
(kg/set) |
1.5 | |||||||||
| Brightness (cd/m²) | Black LED: 3000~4500
White LED: 4500~6000 |
|||||||||
| Viewing Angle (H) | 160° | |||||||||
| Viewing Angle (V) | 140° | |||||||||
| Visual Transparency | 83% | 90% | 92% | 93% | 95% | |||||
| Max Power (W/m²) | 800 | |||||||||
| Avg Power (W/m²) | 266 | |||||||||
| Refresh Rate (Hz) | 3840 | |||||||||
| IP Rate | IP20 | IP43（Nano Coating） | |||||||||
| Operating T&H | -10～40℃ & 10 %~80 % RH（No Condensation） | |||||||||
| Storage T&H | -20～60℃ & 10 %~85 % RH（No Condensation） | |||||||||
| Installation Method | Semi-attaching | Hanging | |||||||||
