Soft Module

Soft Module

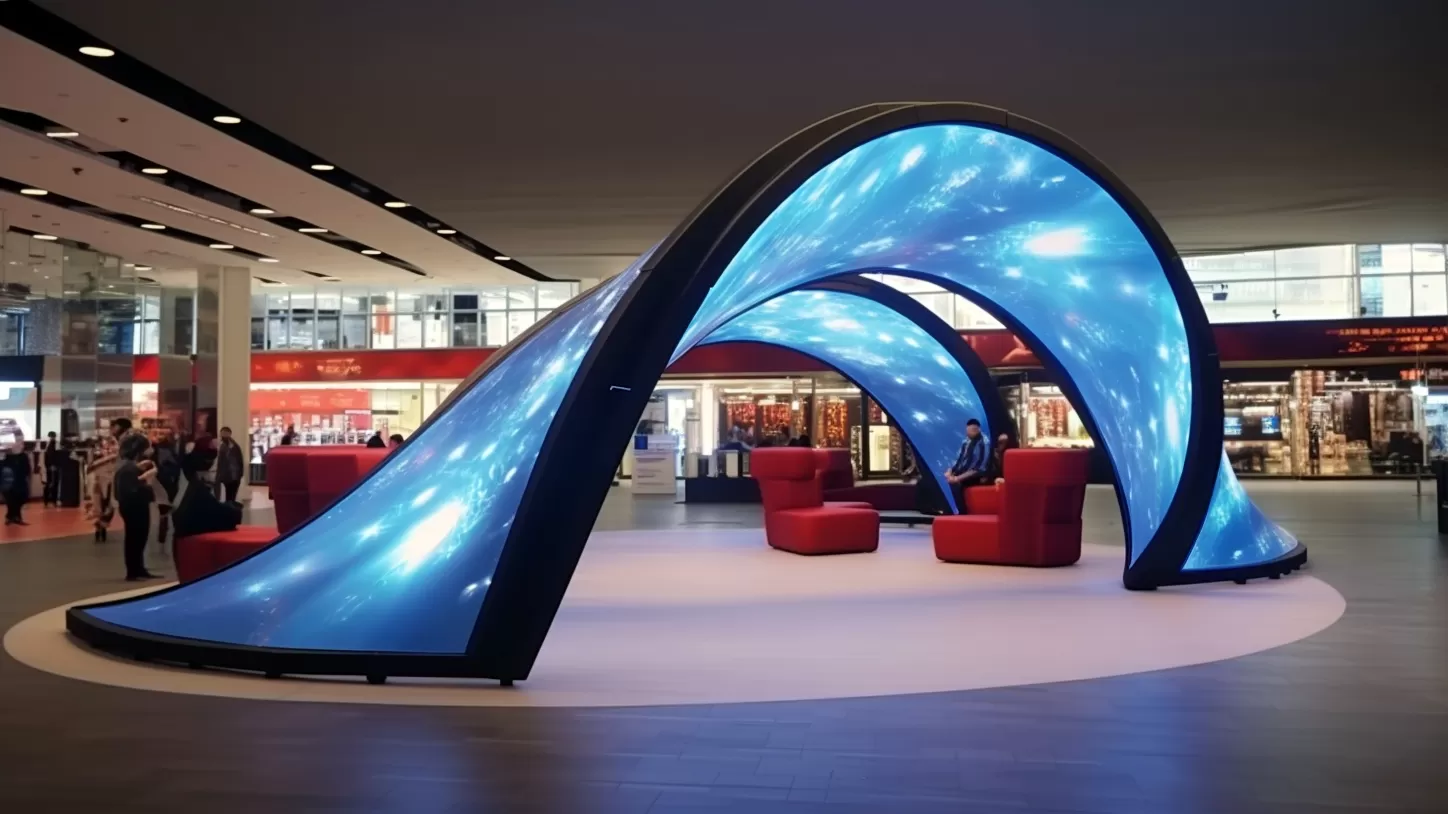

Indoor high-definition flexible LED vision allows for a variety of expressive presentations, and by using a customized LED vision, it is possible to create impactful objects as city landmarks, and other presentations that cannot be expressed with ordinary LED vision.
Supports creative design Flexible soft modules and soft PCBs allow the reproduction of all kinds of creative designs.

Soft module banner
  • Pitch(mm) :  1.2/1.8/2/2.5/3/4/5

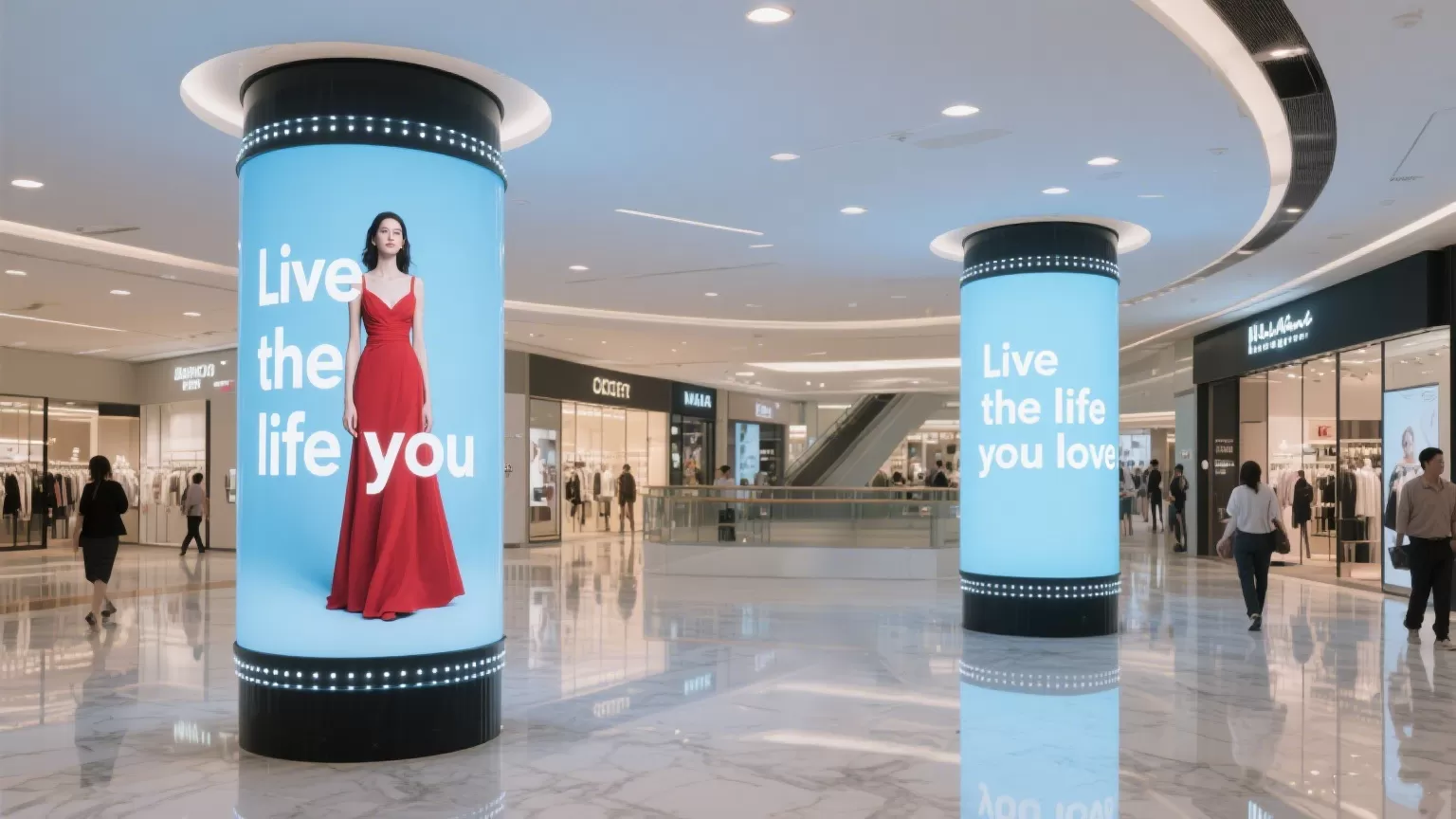

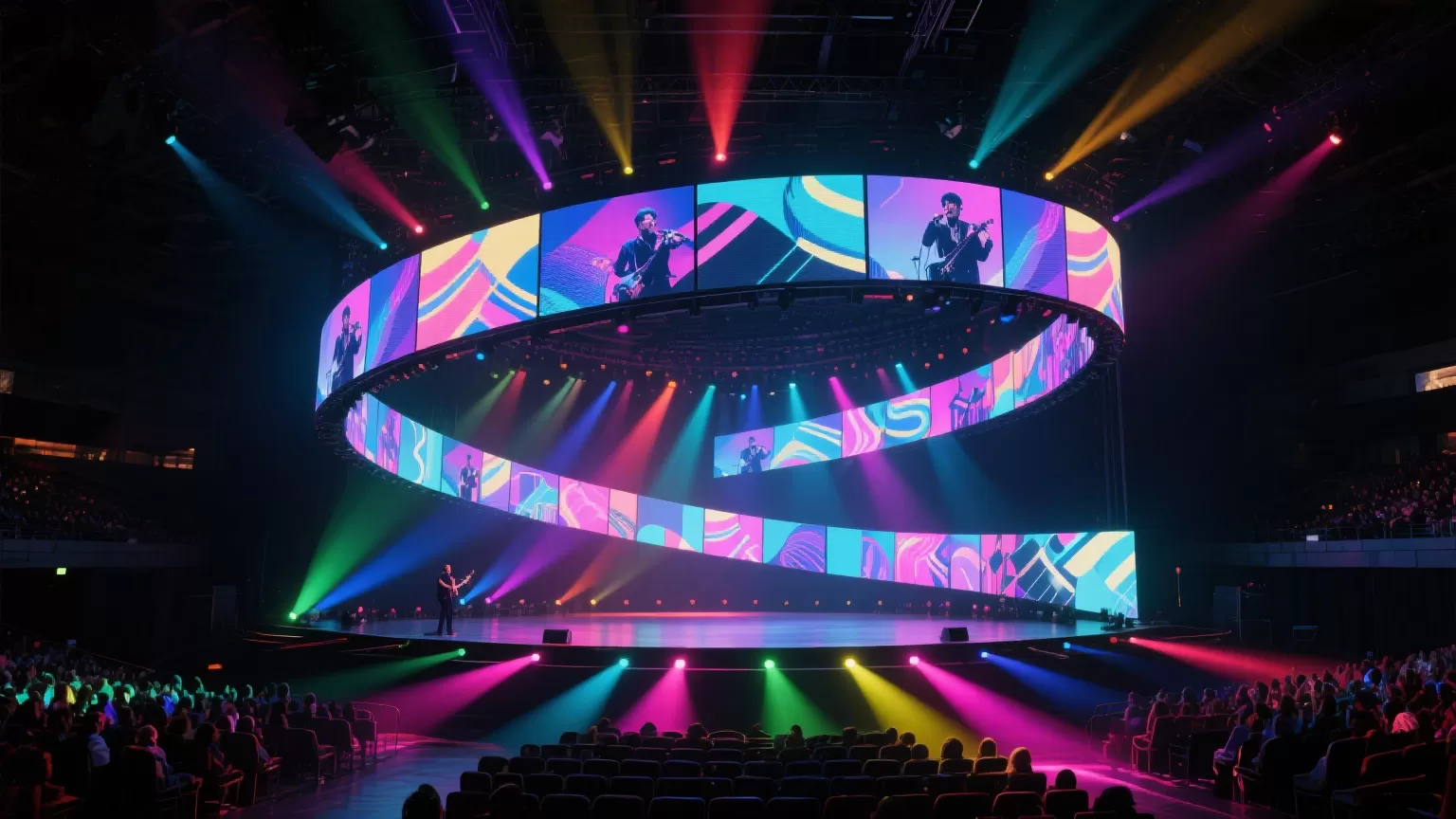

  • Applications :Curves & Cylinders/ Monuments & Objects / Spheres

Product Features

  • Soft module 1

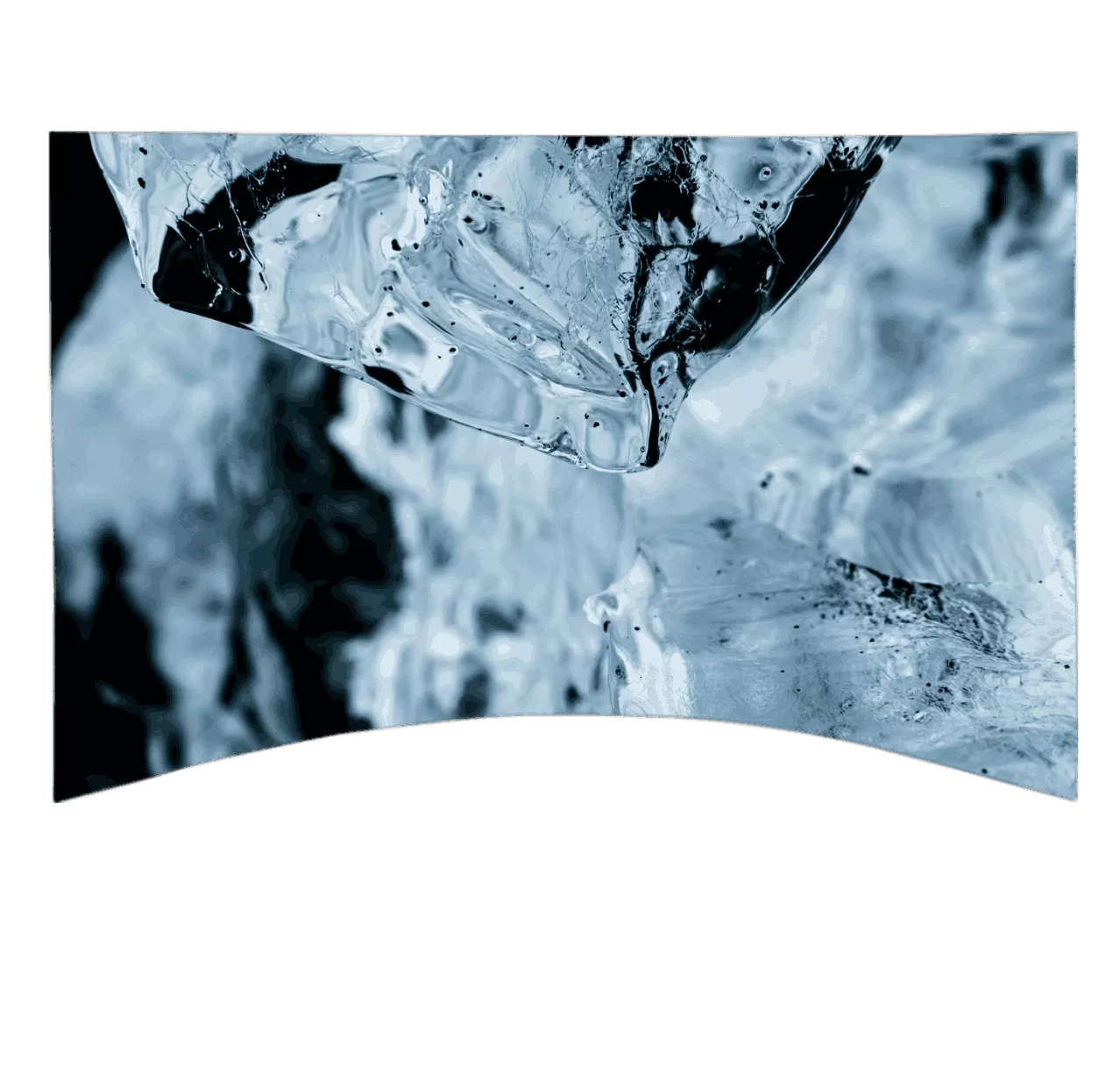

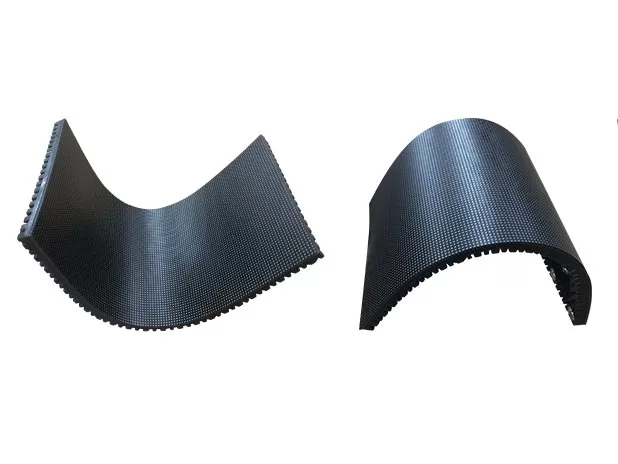

    Flexible Curved Surface Installation

    A key feature of the soft module is its ability to bend flexibly, allowing for creative installations in various shapes.

  • Soft module 2

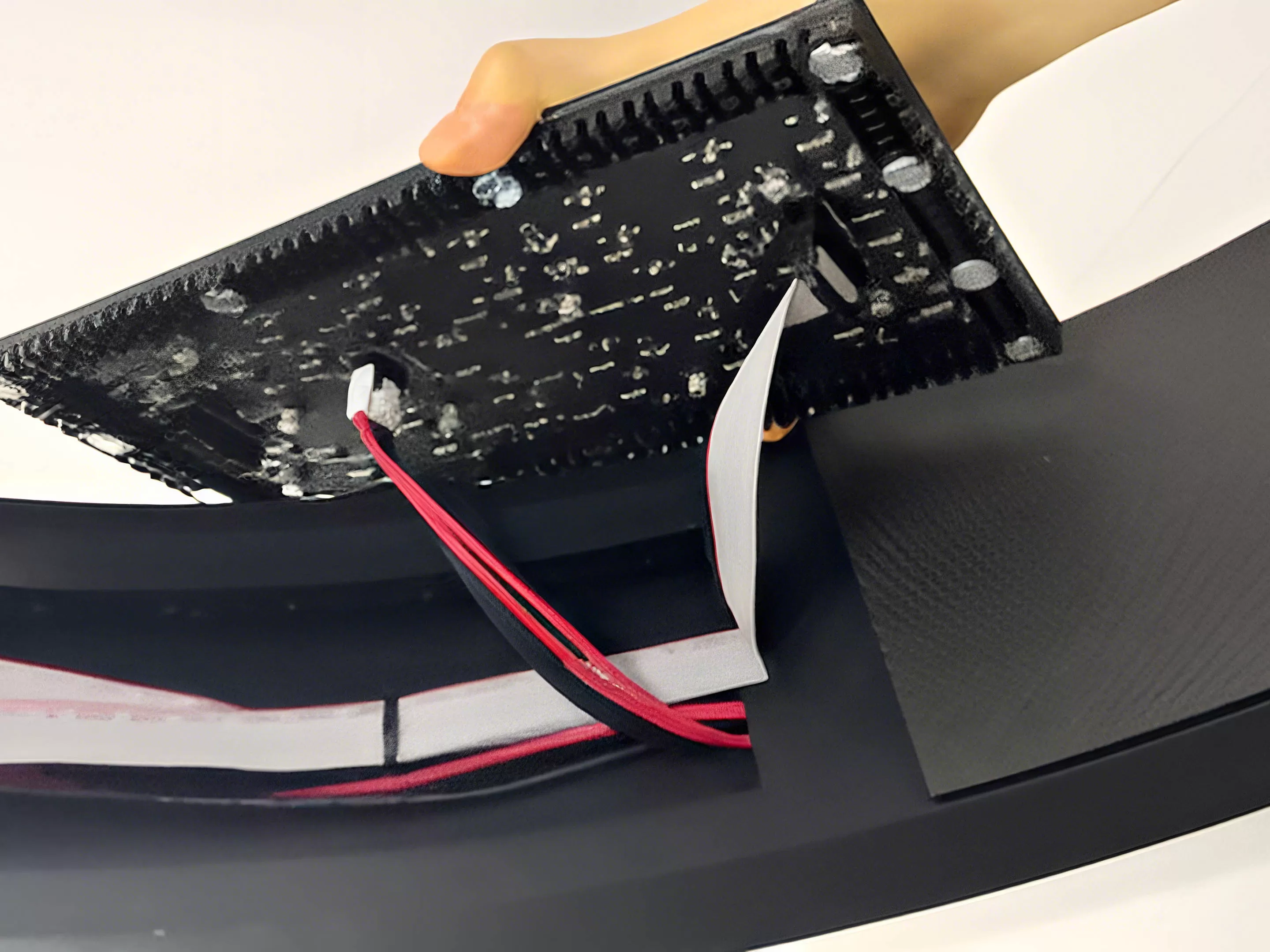

    Magnetic Installation

    As it is installed using magnets, maintenance can be easily performed without the need for special tools.

  • Soft module 3

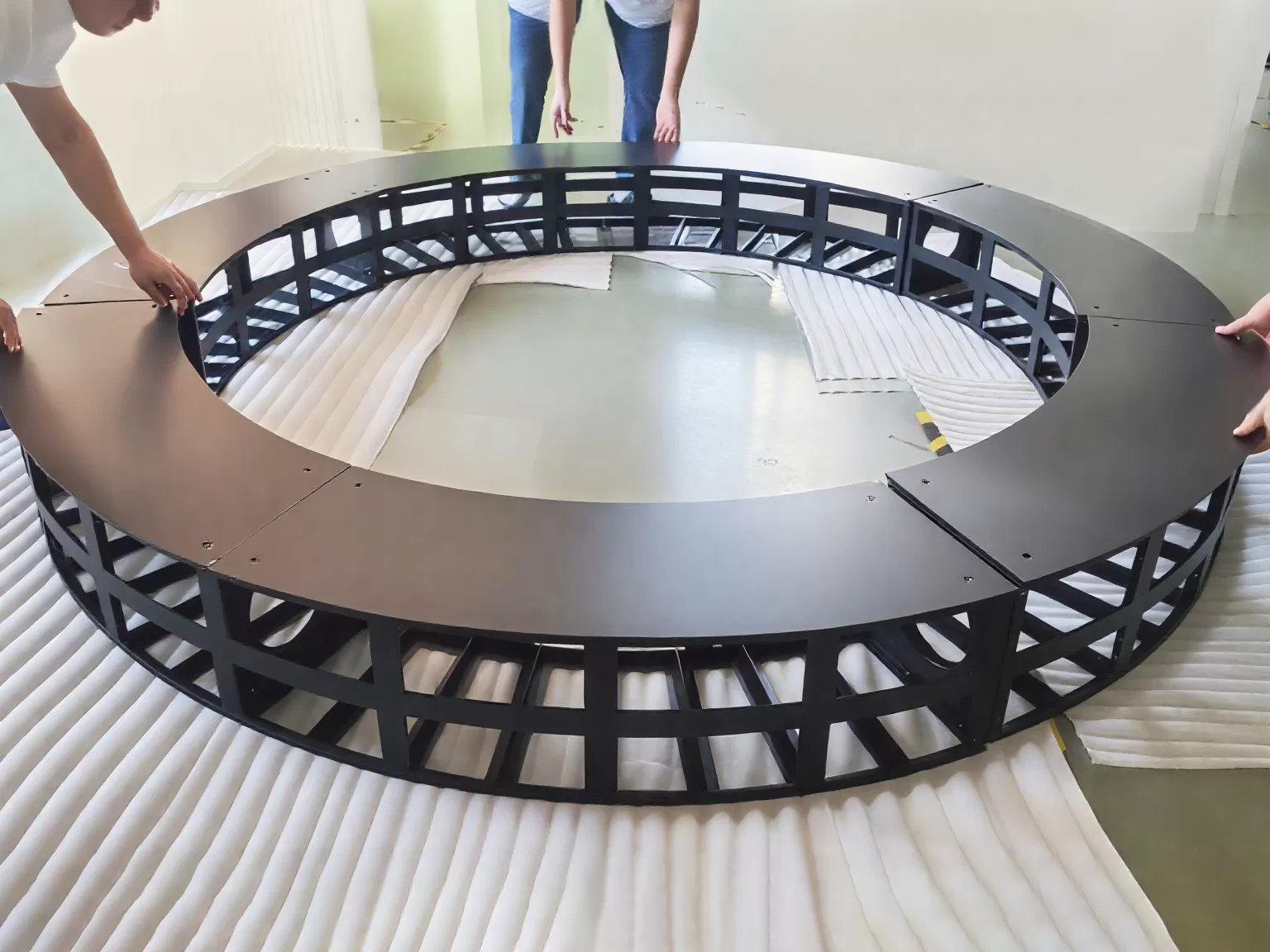

    Customizable Frame

    Original frames and cabinets can be custom-made to suit the installation requirements.

  • Soft module 4

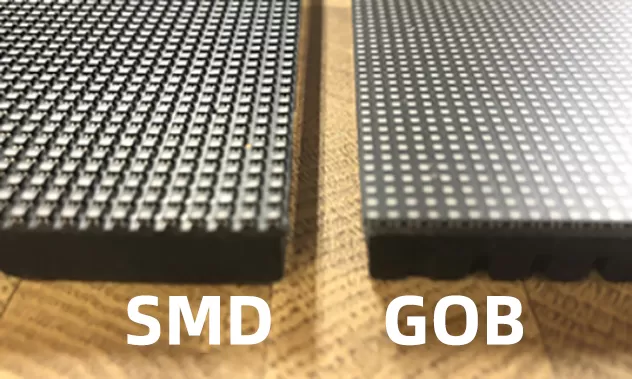

    Selectable SMD and GOB Types

    GOB coating treatment is also available according to the application. By using GOB, the surface of the LED vision is protected from impact and oxidation.

Product Parameter

  • Table1
Soft Module P1.2 P1.8 P2 P2.5 P3 P4 P5
Pixel Pitch  (㎜) 1.25 1.875 2 2.5 3 4 5
LED Type SMD
Module Size (mm) 320*160*7.3 240*120*7.3 240*120*7.3
256*128*7.3		 240*120*7.3
320*160*7.3		 240*120*7.3 240*120*7.3
256*128*7.3		 320*160*7.3
Module  Resolution(PX) 256*128 128*64 120*60
128*64		 96*48
128*64		 80*40 64*30
64*32		 64*32
Module  Weight(kg/㎡) 35
Brightness(cd/㎡) 600 800 800 1000 1000 1000 1000
Hori.& Vert. Viewing Angle (Deg) 160°/140°
Contrast Ratio 4000:01:00
Max. Power Consumption (W/㎡) 480 480 480 520 520 520 520
Refresh Rate (Hz) 3840
Maintenance Way Rear
IP Rate IP 20
Valxgymkinshicho01s
Pia hbanner
1 / 2
Cases

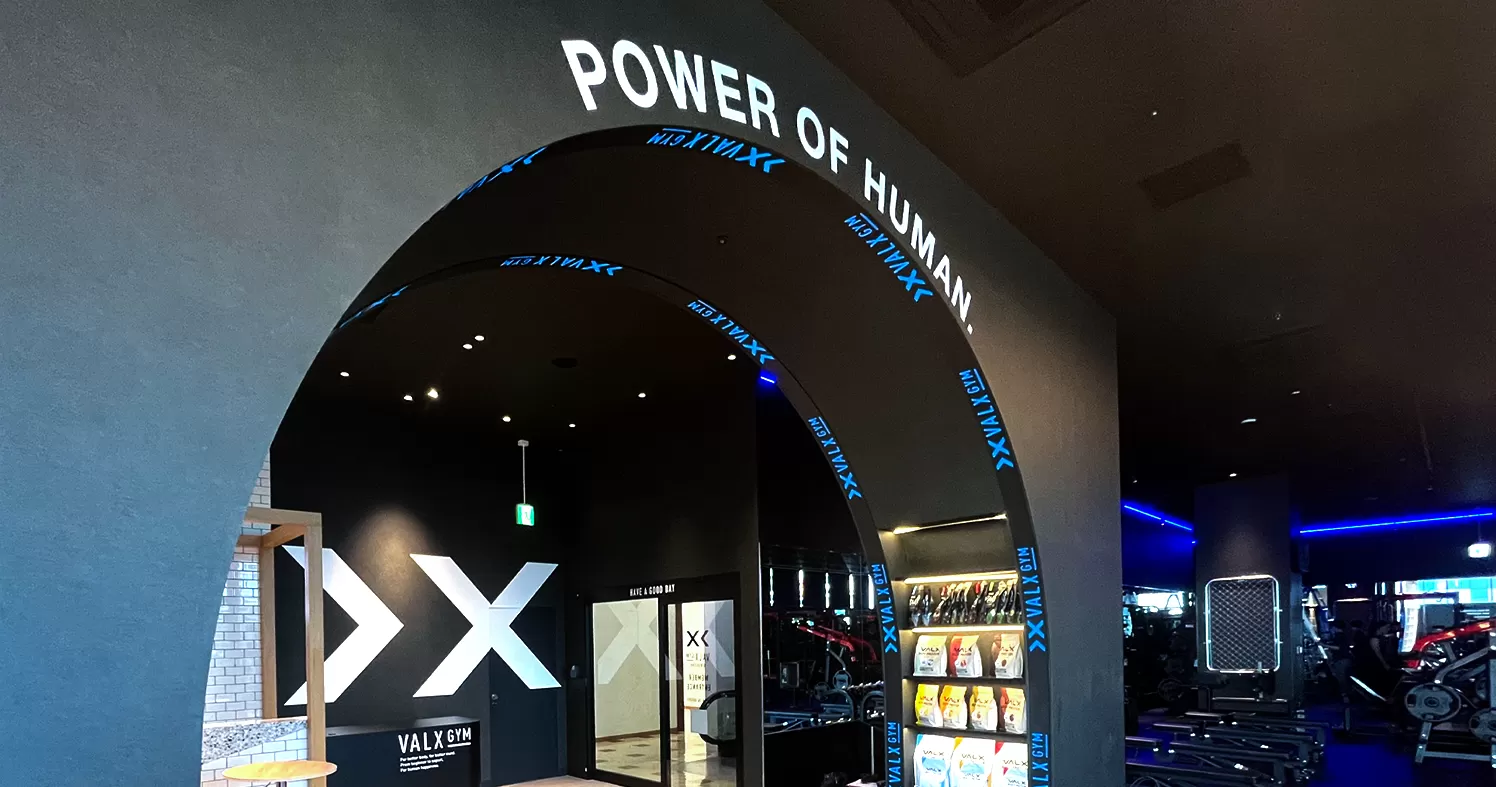

VALX GYM Kinshicho store

Soft P4

Space size:W9360 x H120mm, 2.2464㎡

View More
Cases

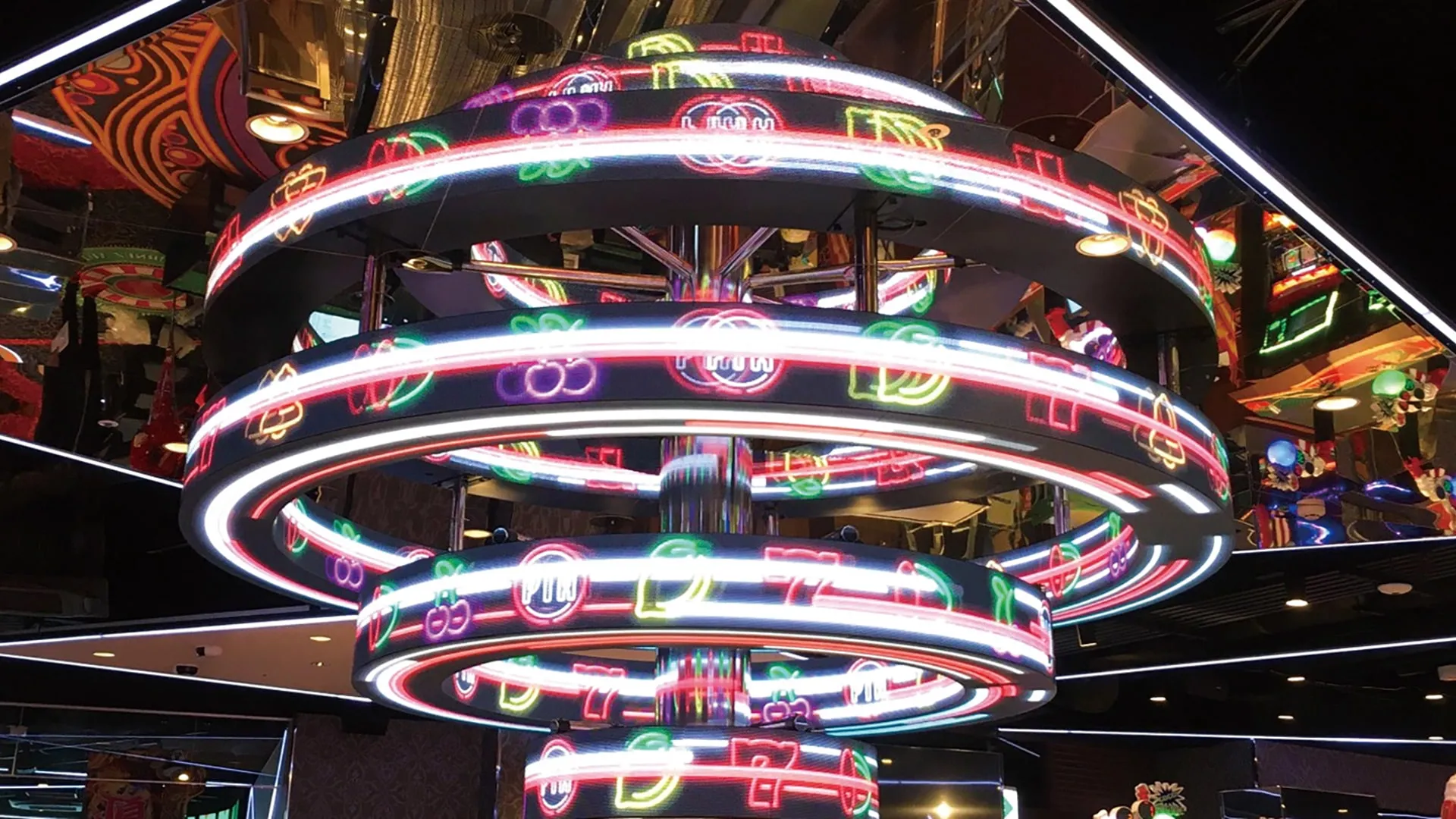

PIA Pachinko Slot in Tokyo 3

Soft P4

Space size:Customized, 32.43㎡

View More

Let’s Keep In Touch

Please leave your needs and requirements, we will
contact you as soon as possible.
