Ember series was designed for both of events and high-definition signage with upper standard of precision, strength, convenience and color performance.

Ember (pro) banner
  • Pitch(mm) :2.6/2.9/3.9/4.8
  • Applications :

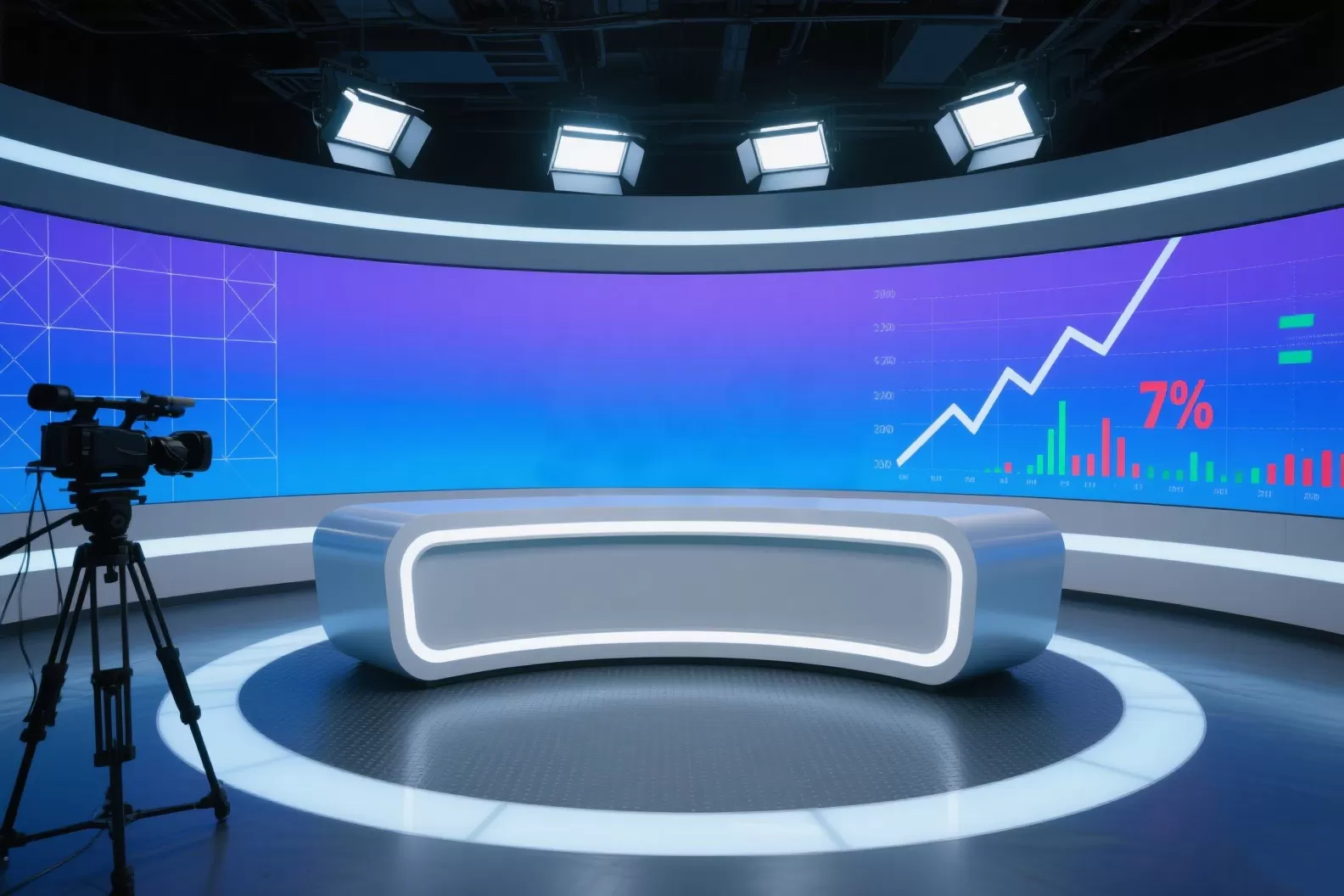

    Events & Shows/TV Studio & Broadcasting/Indoor & Outdoor High definition Signage

Product Features

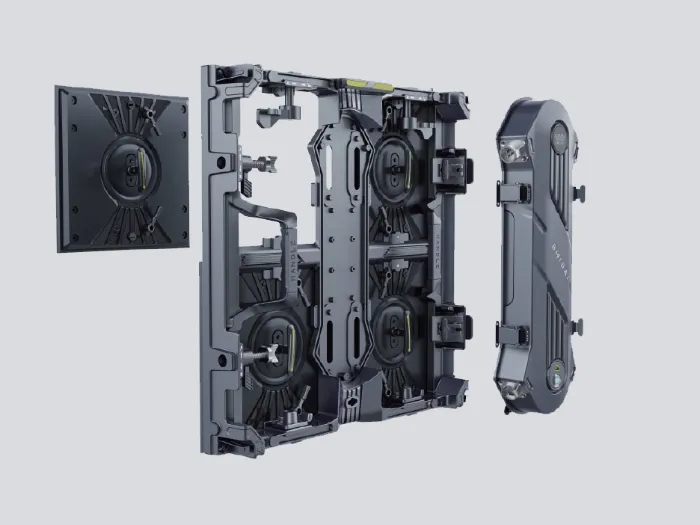

  • Ember (pro) (1)
    CONVENIENCE & VERSATILITY
    • Universal panel design for indoor & outdoor
    • Fully front & rear access with magnetic style
    • Fully front & rear intallation

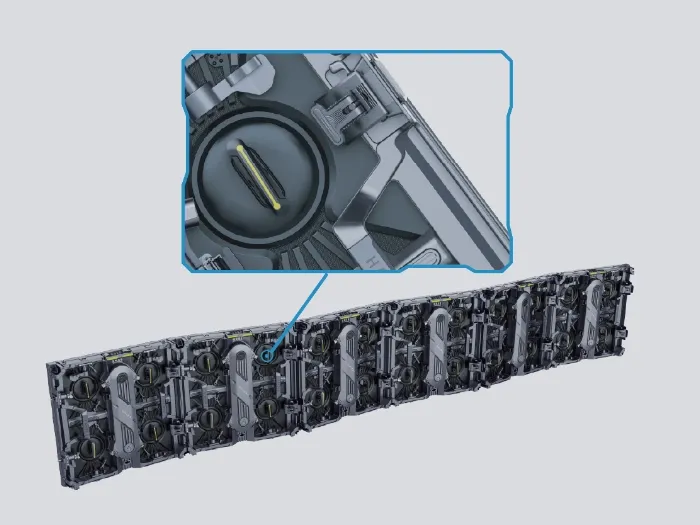

  • Ember (pro) (2)
    MULTI-CURVABLE LOCK SYSTEM

    ±2.5° ,±5°,±7.5° available, more options for concave, convex and wave shape

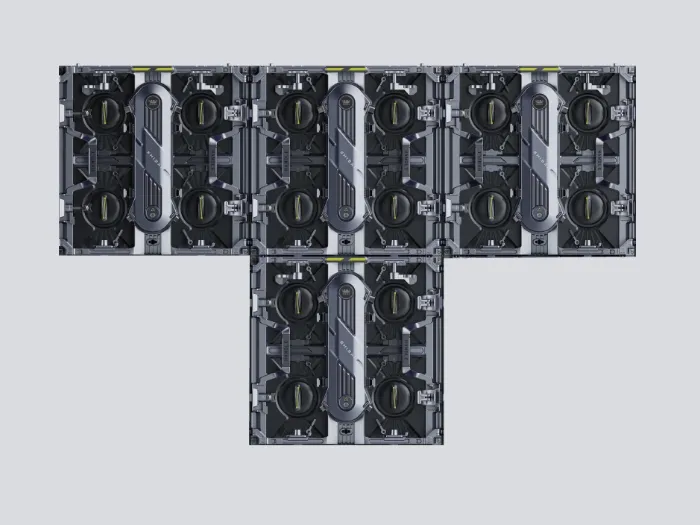

  • Ember (pro) (3)
    PRE-FIX LOCKER SYSTEM

    The panels up and down could be fixed together before locked and no need to lift it anymore during hanging installation, that makes the mounting work real "single-person-job"

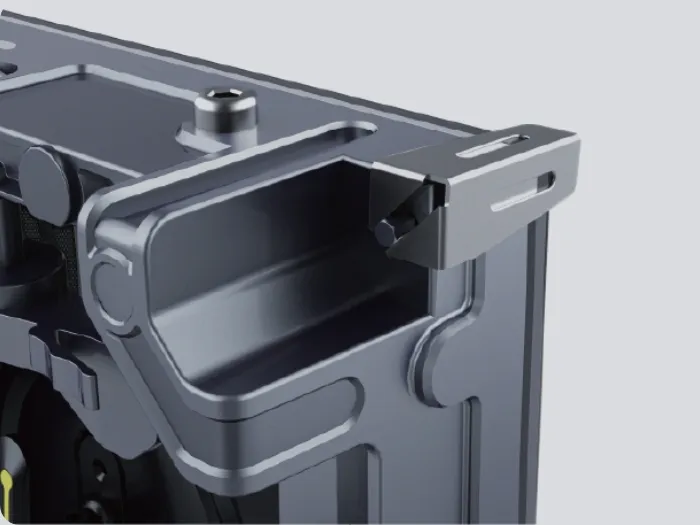

  • Ember (pro) (4)
    CORNER AND EDGE GUARD

    The spring leaf and bottom bulge protect the vulnerable corners and edges during transportation and standing.

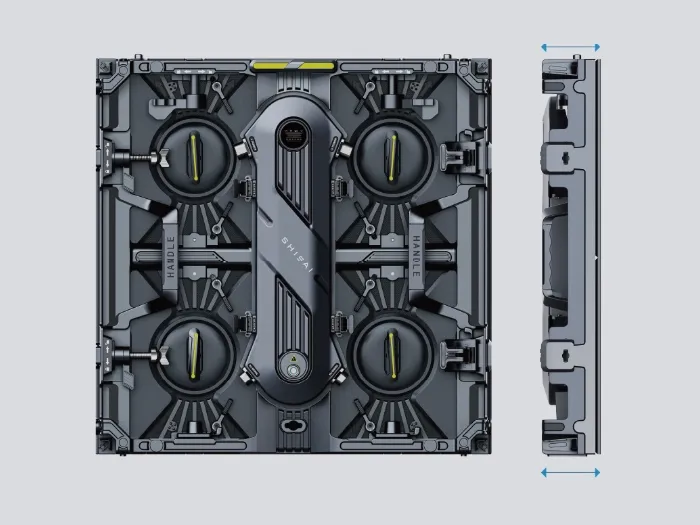

  • Ember (pro) (5)
    ULTRA SLIM AND LIGHT WEIGHT
    • 8-8.5kg/panel
    • 76mm thickness

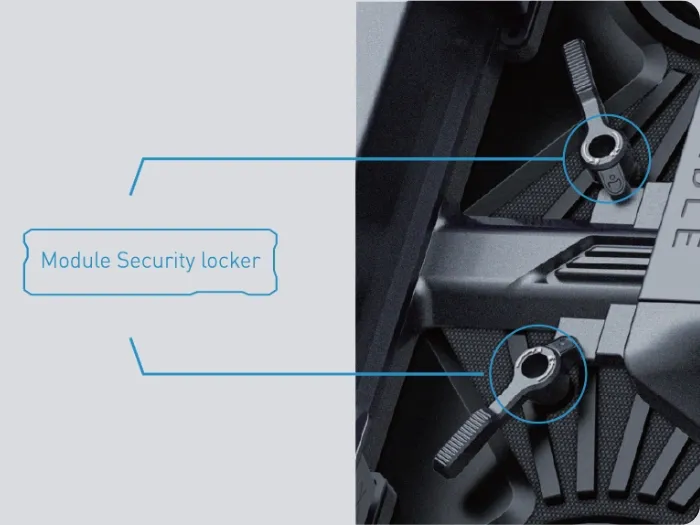

  • Ember (pro) (9)
    MODULE SECURITY LOCKER

    It prevents modules from falling off or loosening during transportation, and offers more sercurity if front access is not required.

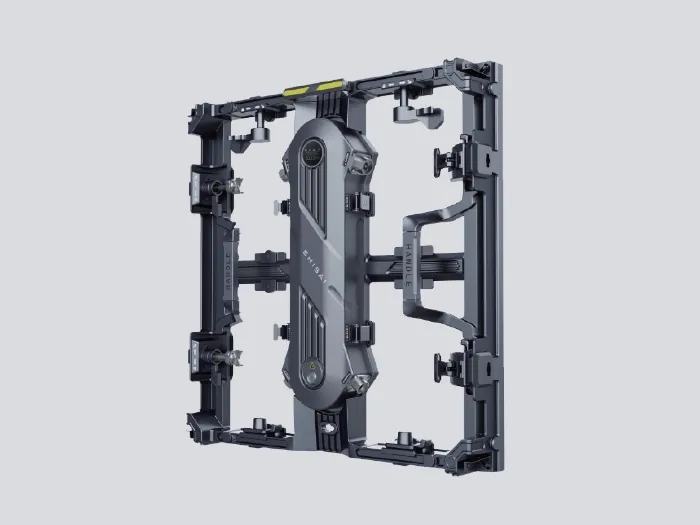

  • Ember (pro) (6)
    STRENGTHENED PANEL FRAME

    There is much less distortion and strength weakened with optimized design for the durability of panel

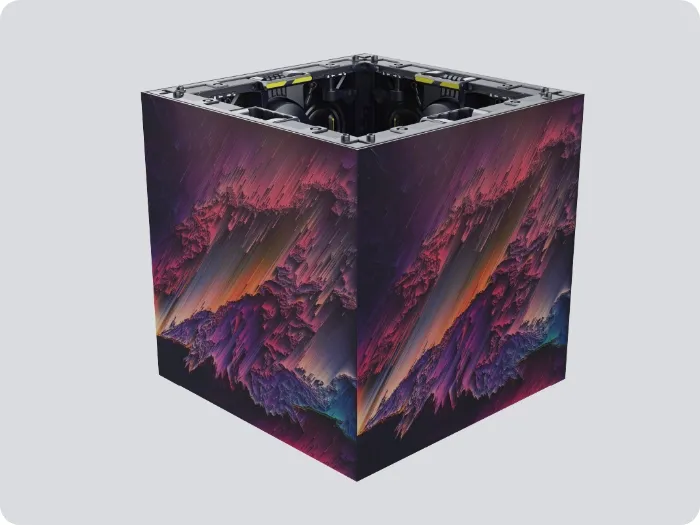

  • Ember (pro) (7)
    OPTIONAL RIGHT ANGLE

    The panel is able to achieve 45° joint for right angle shape or rectangle works

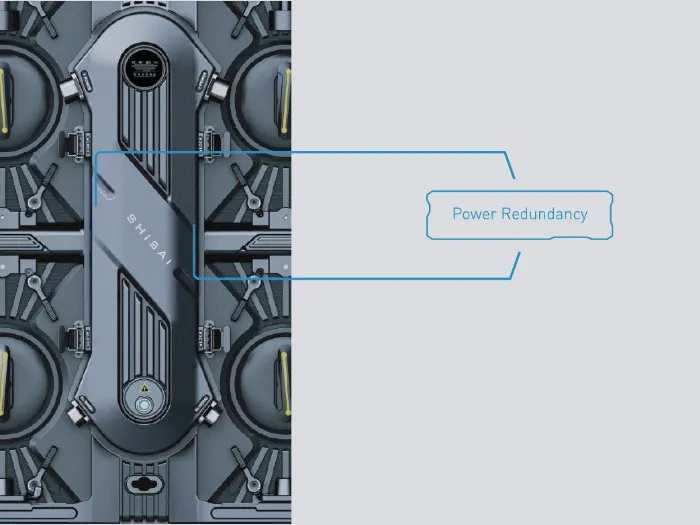

  • Ember (pro) (8)
    POWER REDUNDANCY SYSTEM

    The space for power backup has been reserved

Product Video

Product Parameter

  • Table1
  • Table2
Ember P1.5 P1.9 P2.6 P2.9 P3.9
Pixel Pitch(mm) 1.5625 1.953 2.604 2.976 3.906
LED Type SMD1010 SMD1010 SMD1515 SMD2020 SMD2020
Pixel Density (dot/㎡) 409600 262144 147456 112896 65536
Module Size(mm) 250 × 250
Panel Size(mm) 500 × 500 × 75
Panel Resolution(dot) 320 × 320 256 × 256 192 × 192 168 × 168 128 × 128
Panel Material Die Cast Aluminum
Weight(kg/pcs) 8
Brightness(cd/㎡) 600 800 1000 1000 1200
Viewing Angle (H) 160°
Viewing Angle (V) 140°
Contrast Ratio 4000:01:00
Max.& Avg. Power Consumption (W/㎡) 680/227 680/227 640/220 640/220 640/220
Refresh Rate (Hz) 3840
Maintenance Way Front or Rear
Installation Way Front or Rear
IP Rate Indoor use only
Operating T&H -10~40&10%~80%RH (No Condensation)
Storage T&H -30~60&10%~85%RH (No Condensation)
Certification CE, EMC, CCC, ETL
Ember Pro P2.6 P2.9 P3.9 P4.8
Pixel Pitch (㎜) 2.604 2.976 3.906 4.81
LED Type SMD1415 SMD1415 SMD1921 SMD2727
Pixel Density (dot/㎡) 147456 112896 65536 43264
Module Size (㎜) 250 × 250
Panel Size (㎜) 500 × 500 × 75
Panel Resolution 192 × 192 168 × 168 128 × 128 104 × 104
Panel Material Die Cast Aluminum
Weight (kg/panel) 8.5
Brightness (cd/㎡) 4000 4000 4000 5000
Viewing Angle (H) 140°
Viewing Angle (V) 110°
Max Power (W/㎡) 680 650 650 650
Avg Power (W/㎡) 227 220 220 220
Refresh Rate (Hz) 3840
IP rate IP65
Contrast Ratio 166.6673611
Installation Method Front & Rear
Maintenance method Front & Rear
Certification CE,EMC,CCC,ETL
762b99a4 5303 4190 8477 0383abab63bd
A7994ca4 ccda 42f7 9ecf 390f90034662
墨西哥户外租赁1
奥地利租赁活动
1 / 4
Cases

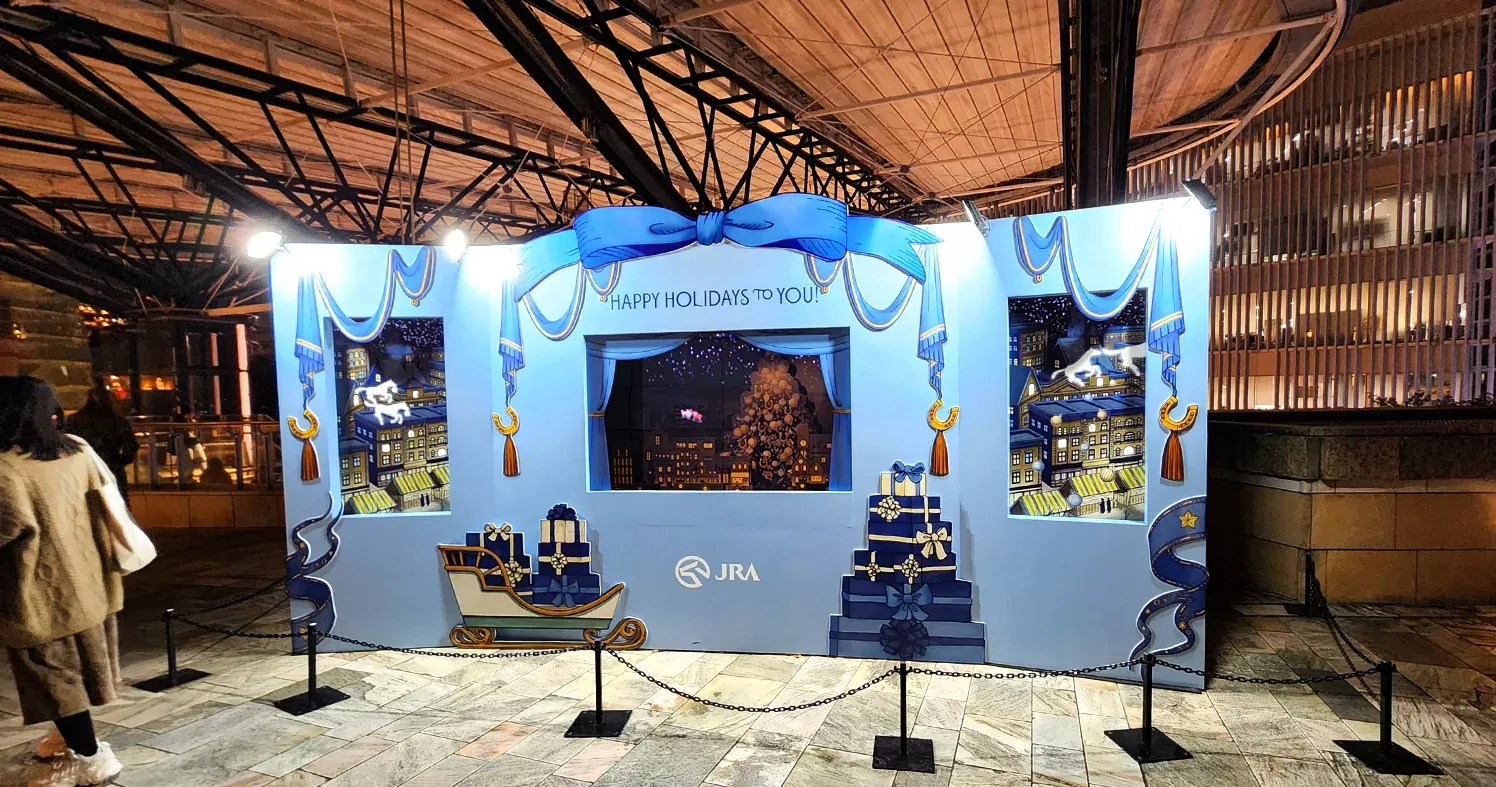

Keyakizaka Illumination 2024

Ember Pro-2.6

Space size:W2500×H2000mm, 5㎡

Cases

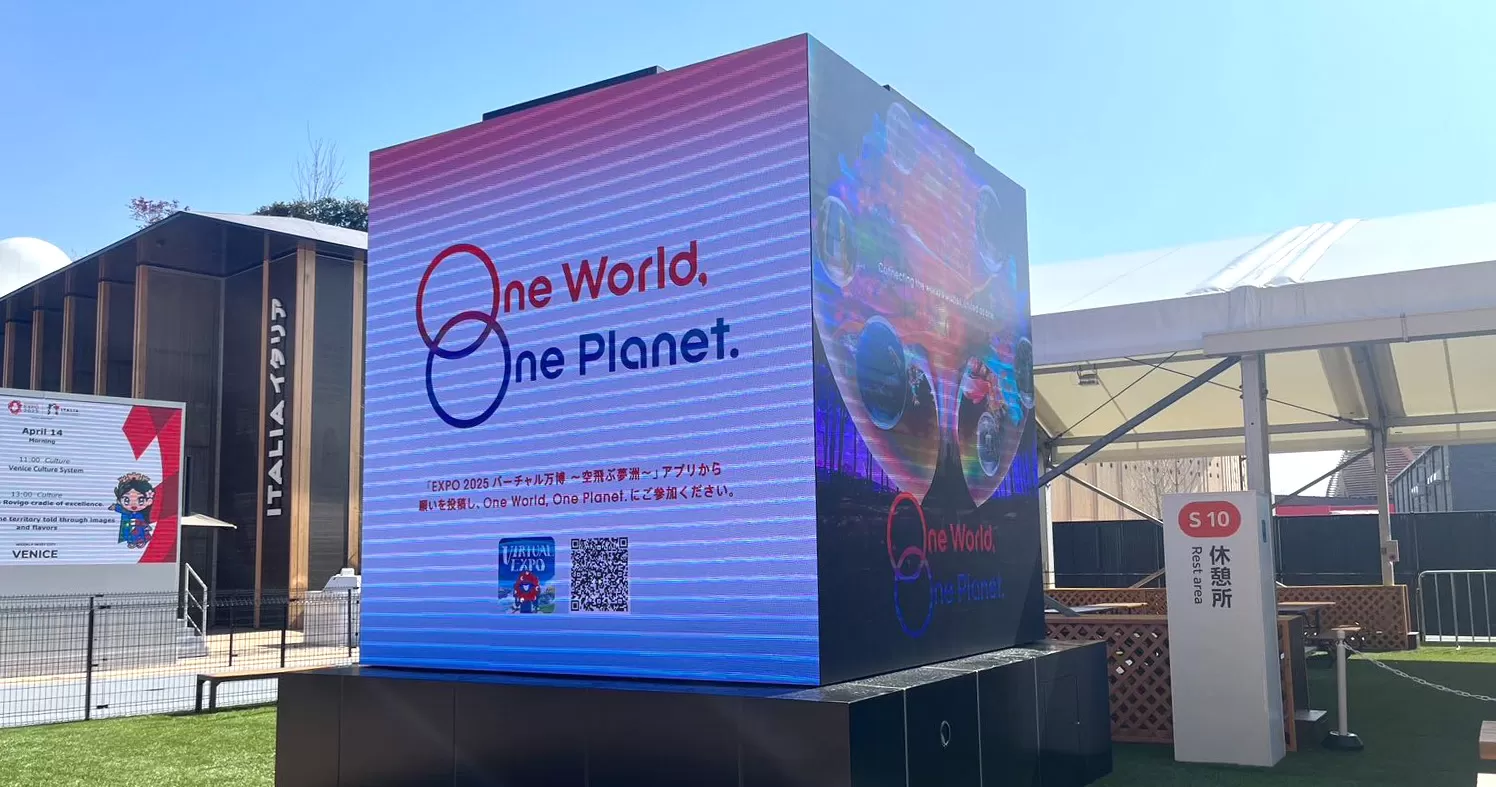

Osaka Expo One Moment Sponsorship Cube

Ember Elite-2.6

Space size:W(3000+3000+3000+3000)xH3000mm, 36㎡

Cases

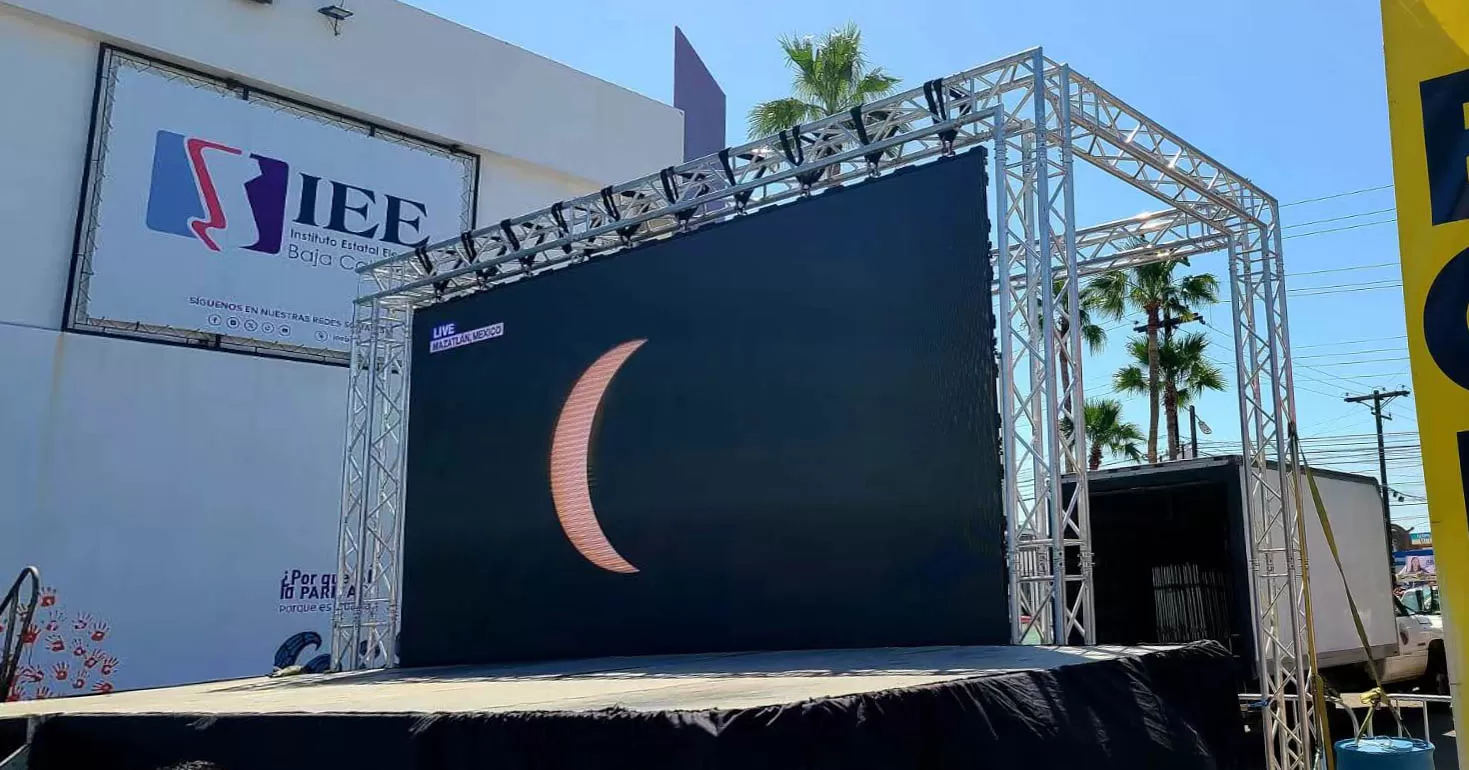

Outdoor rental activities

Ember Pro-3.9

Space size:W2500xH3500mm. 8.75㎡

Cases

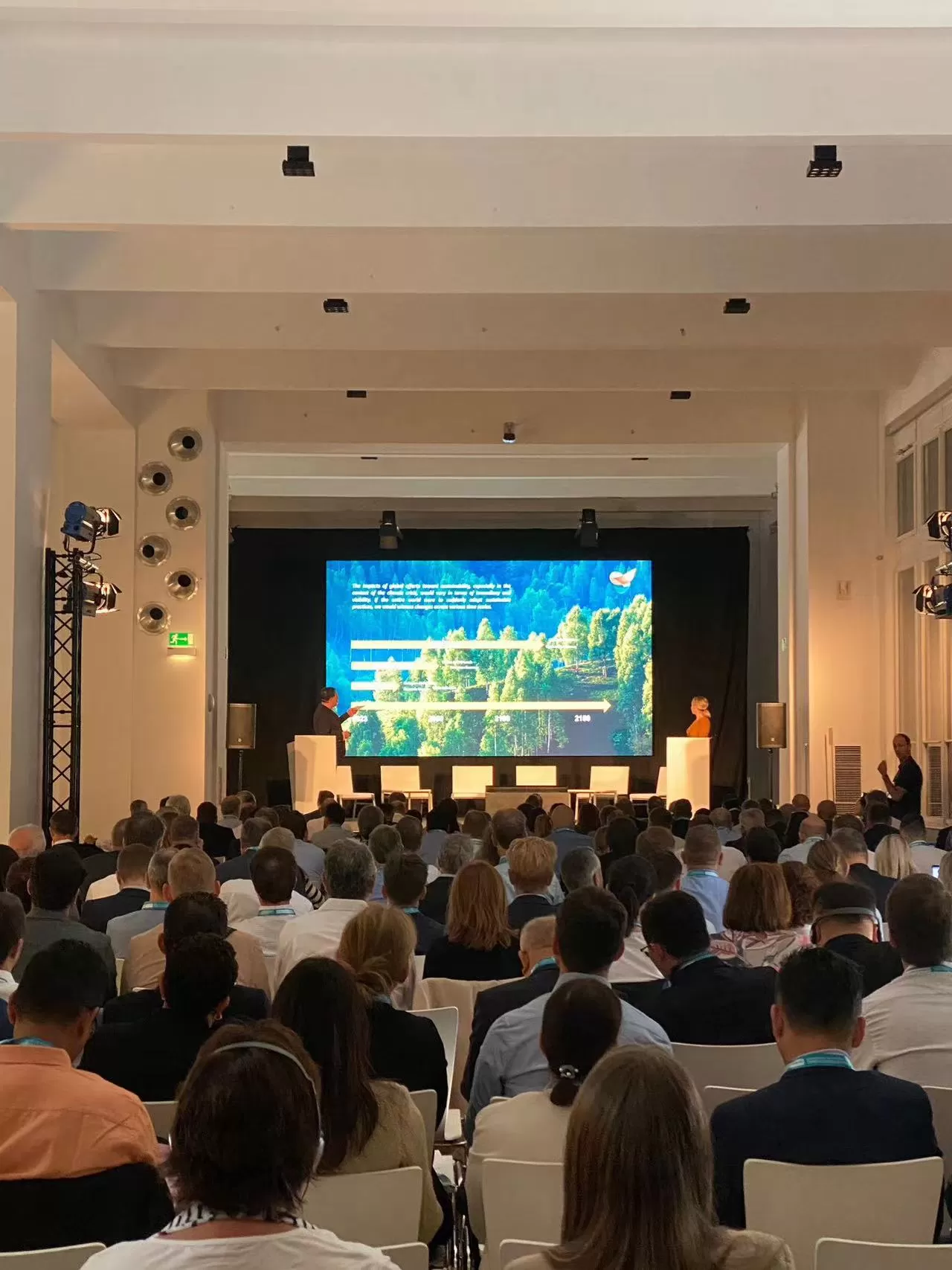

Indoor Rental Activities

Ember-1.9

Space size:W4000xH2500mm, 10㎡
