Ebony series
Ebony series
Product Overview
Product Specifications
Product Downloads

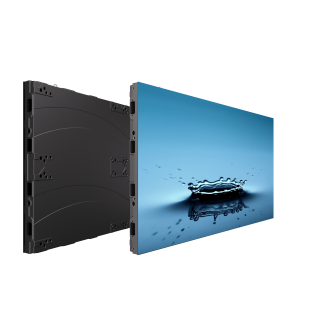

When it comes to a 16:9 ratio display with high definition, Ebony series could awalys be your first choice.  Seamless joint, convenient front access and installation, optional redundancy system are just the basic element. What Ebony series brings more is the fadility to the original color, high refresh rate ,marvelous gray scale which bring up incredible viewing experience as the most important parts. Moreover , optional GOB processing could also protect the screen from impact and oxidization that make the screen more durable in different environment.


Product Features

16:9 STANDARD PANEL SIZE
27inch panel size subjects to the standard size of 16:9

Easy to achieve FHD 2K,4K

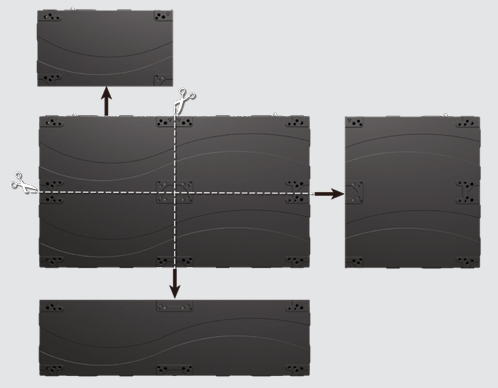

EASY TO ACHIEVE STANDARD RESOLUTION
With Ebony series panel you could easily to build standard resolution like HD,FHD ,2K ,4K.,etc . No need make complicated calculation and won't be always unable to fully reach the standard resolution.

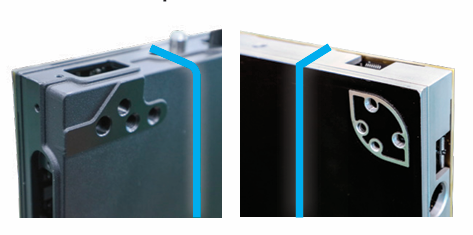

SEAMLESS FLATNESS
Ebony series panel has high-precision processing and non-shell modules which bring the perfect physical joint, and this determines the quality of viewing expereience mostly


FULL-FRONT MAINTENANCE
Magnetic attaching module easily achieve full-front access and installation together with the vaccum pad as always the basement for the convenient maintenance

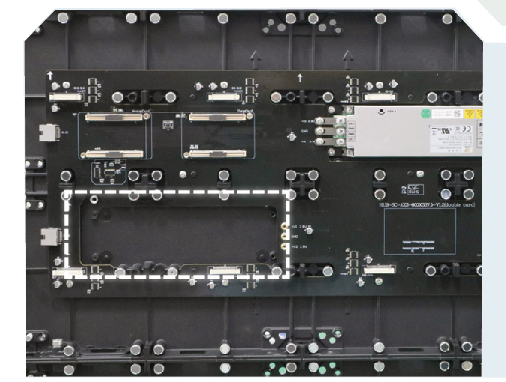

REDUNDANCY SYSTEM
Ebony series possesses the compacity of redundancy system for some strict durability requirements. Let's make a simple calculation for the probability of faulty of one panel :  Assume common faulty probability is 0.5% , then it becomes 0.5% * 0.5%=0.0025% with redundancy system.


OPTIONAL GOB PROTECTION
SHISAI offers professional GOB coating processing which could protect the screen from impact or oxidization to meet some cusomters' special requirement



Product NameEbony-1.2Ebony-1.5Ebony-1.8Ebony-2.5
Pixel Pitch(mm)1.251.561.8752.5
LED TypeSMD1010SMD1010SMD1515SMD2020
Pixel Density(dot/㎡)640,000409,600284,444160,000
Module Size(mm)150*168.75150*337.5
Panel Size(mm)600*337.5*63
Panel Resolution(dot)480*270384*216320*180240*135
Panel MaterialDie cast
Weight(kg/panel)6.2
Brightness(cd/㎡)6006008001000
H&V Viewing Angel160/140
Contrast Ratio4000:1
Max&Avg Power(W/㎡)680/227680/227560/187540/180
Refresh Rate (Hz)3840
Maintenance MethodFront
Installation MethodFront & Rear
IP RateIP20/IP20
CertificationCE, EMC , CCC, ETL
