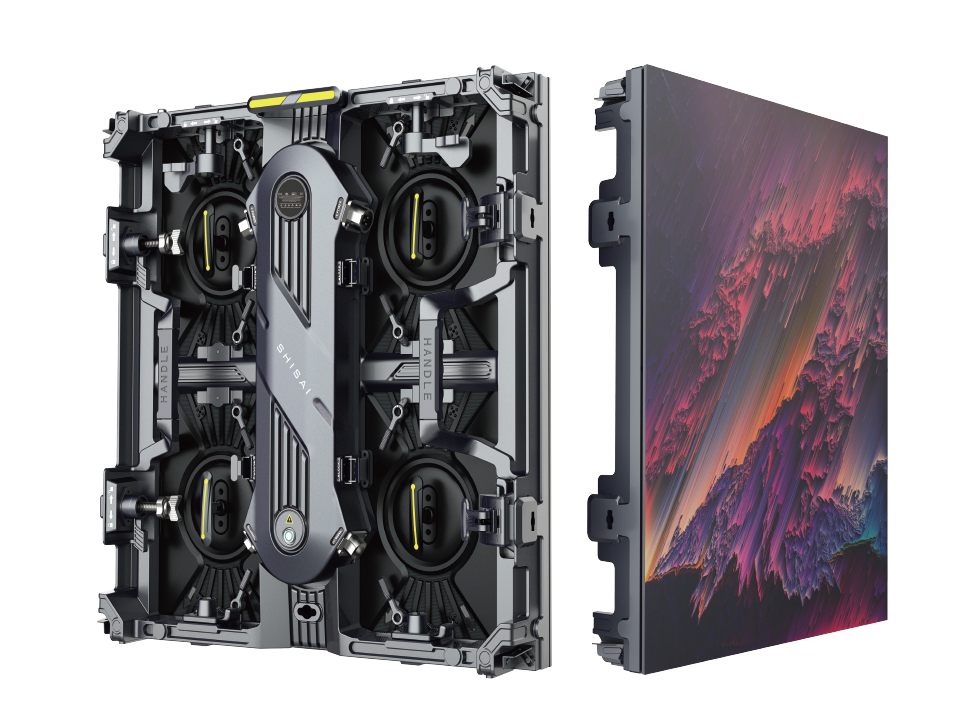

As an extension of the Ember Pro series, the Ember Elite lineup achieves outdoor-ready ultra-fine pixel pitch applications (sub-1.9mm). By integrating Mini LED technology with manufacturing process refinements, we've significantly enhanced contrast ratios to compensate for the inherent brightness limitations of ultra-dense configurations, ensuring optimal viewing performance in direct sunlight environments

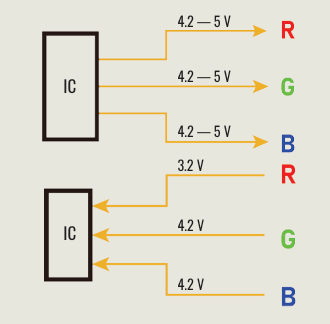

Common-Cathode Design
The Ember Elite series adopts a common-cathode configuration. This design achieves substantial power consumption reduction in screen operation while proportionally lowering resultant thermal output.

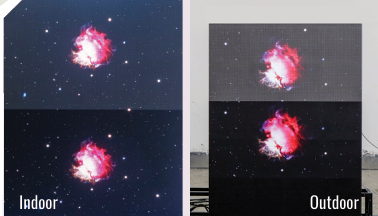

Extremely High Contrast
1. Mini LED backlight incorporates dedicated black zones that enhance contrast ratio through optimized light control.
2. LED packages employ dual-surface blackened treatment (top and substrate) for multi-dimensional contrast enhancement.
3. Circuit design implements specialized blackened PCB technology that optimizes background darkness.
4.Colorless GOB encapsulation demonstrates UV/yellowing resistance while maintaining 98%+ original luminance retention

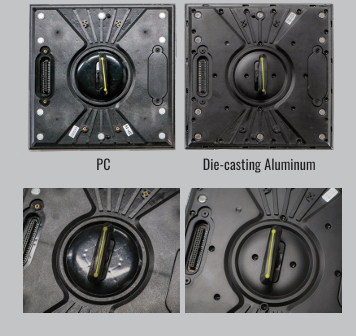

Lower Heat & Higher Precision
The die-cast aluminum module shell enhances heat dissipation and ensures seamless module alignment through its high-precision manufacturing process

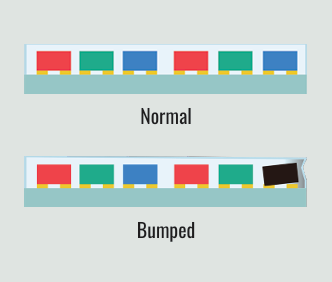

Pixel Reinforced Technology
Ember series models can optionally feature reinforced pixel protection, with specially strengthened edge pixels to withstand repeated impacts.
| Ember Elite | P1.2 | P1.5 | P 1.9 |
| LED Type | Flip Chip Mini LED | ||
| Pixel Density（dot/㎡) | 640,000 | 409,600 | 262,144 |
| Module Size(mm) | 250*250 | ||
| Panel Size(mm) | 500*500*75.4 | ||
| Panel Resolution(dot) | 400*400 | 320*320 | 256*256 |
| Panel Material | Die-Casting Aluminum | ||
| Weight(kg/pcs) | 10.5kg | ||
| Brightness(cd/㎡) | 3000 | ||
| H&V Viewing Angel | 160°/140° | ||
| Contrast Ratio | 10000:1 | ||
| Max&Avg Power(W/㎡) | 680/227 | ||
| Refresh Rate (Hz) | ≥3840 | ||
| Black Area Propotion | 96.5% | 97.8% | 98.5% |
| Installation Method | Front & Rear | ||
| Maintenance Method | Front & Rear | ||
| IP Rate | IP65/54 | ||
| Certification | CE, EMC, CCC, ETL,PSE | ||
