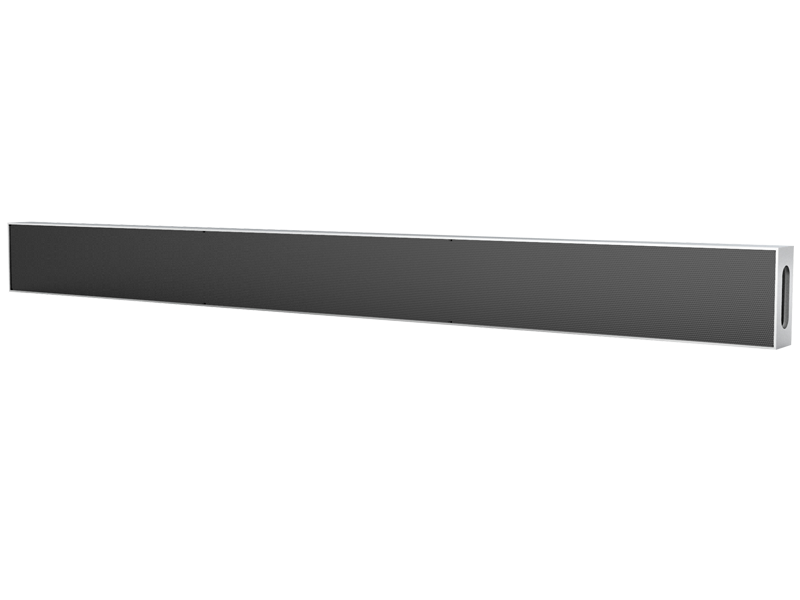

LED Shelf
LED Shelf
Product Overview
Product Specifications
Product Downloads

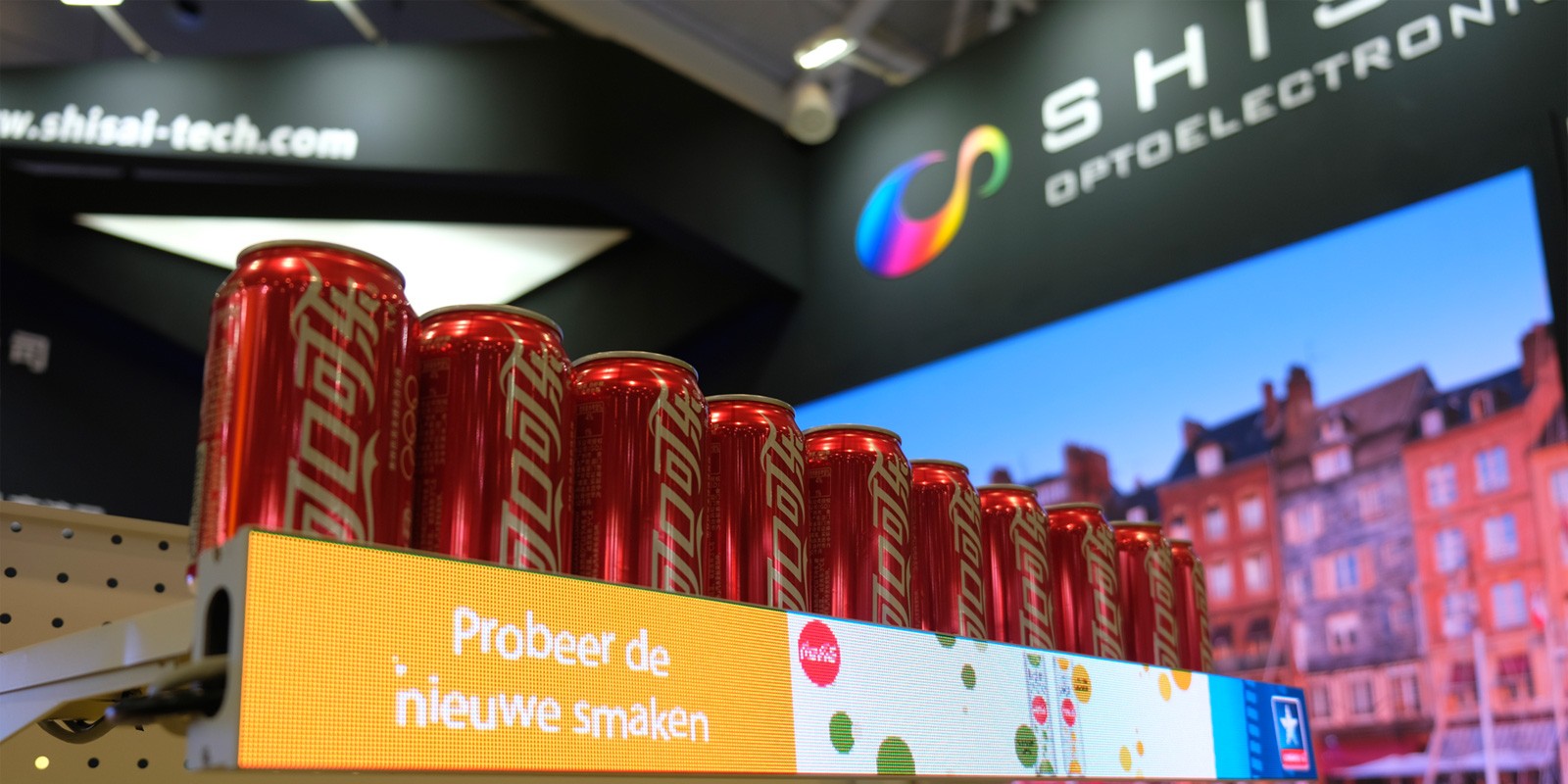

As a mini LED media, LS series helps to create the AD spaces at the best places where people will be not averse to the AD but open to it. With the features of slim body, light-weight, GOB protection, boundless joint, smart management and more brightness ,  the LED shelf would bring you the value as below:

1. Taking advantage of the superior advertising spot Where ad is taken as a reference instead of a annoying  hinder.
2. Utilizing  the perfect advertising timing Shopping time is the time to pick and pay, you wouldn’t resist the ad but might love to try the one attract and touch you.
3. Displaying  the intended information in a clear and readily acceptable form Several glance of the shelf will be way than enough to achieve the ads effect

Product Features

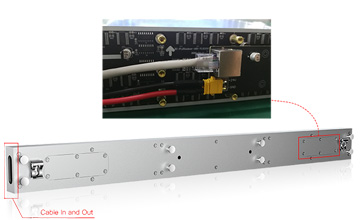

Internal Cabling Design
We decided to use inner connected data & power cable aiming to save more spaces and bringing neat cabling.

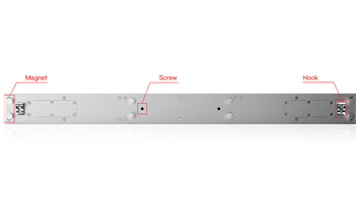

Multi Installation Methods
There are hooks , screws and magnet available to match up with many kinds of shelf or rack.

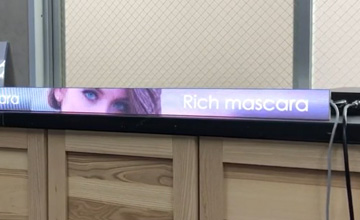

Seamless Splicing
Each led shelf strip could be connected seamlessly for the longer shelf application.

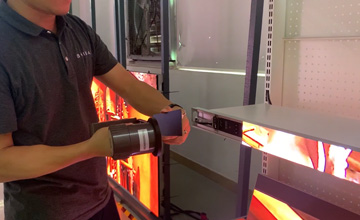

Front Access
All the magnetic module could be dismounted from the front side with vacuum pad,and be mounted back by manual snap-on as an easy way of maintenance.

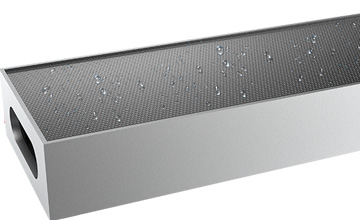

GOB protection
No doubt the LED shelf will be touched by hands at that kind of applicaiton. Our excellent GOB technology would protect your devices from collision, dust and moisture.

Product NameLS-1.2LS-1.5LS-1.8
Pixel Pitch(mm)1.251.51.875
Pixel Density (dot/m²)640,000444,444284,444
Module Size(mm)240*60
Panel Size(mm)720*60*30
Panel Resolution(dot)576*48480*40384*32
Panel MaterialAluminum
Panel Weight(kg/pcs)1.1
Brightness(cd/㎡)600600600
Hori.& Verti. Viewing Angle(Deg)160/140
Contrast Ratio5000:1
Max & Avg Power Cons(W/panel)40/1440/1440/14
Refresh Rate (Hz)3840
Maintenance MethodFront
Installation MethodRear & Front
IP RateIP20
CertificationsCE, EMC, CCC , FCC
