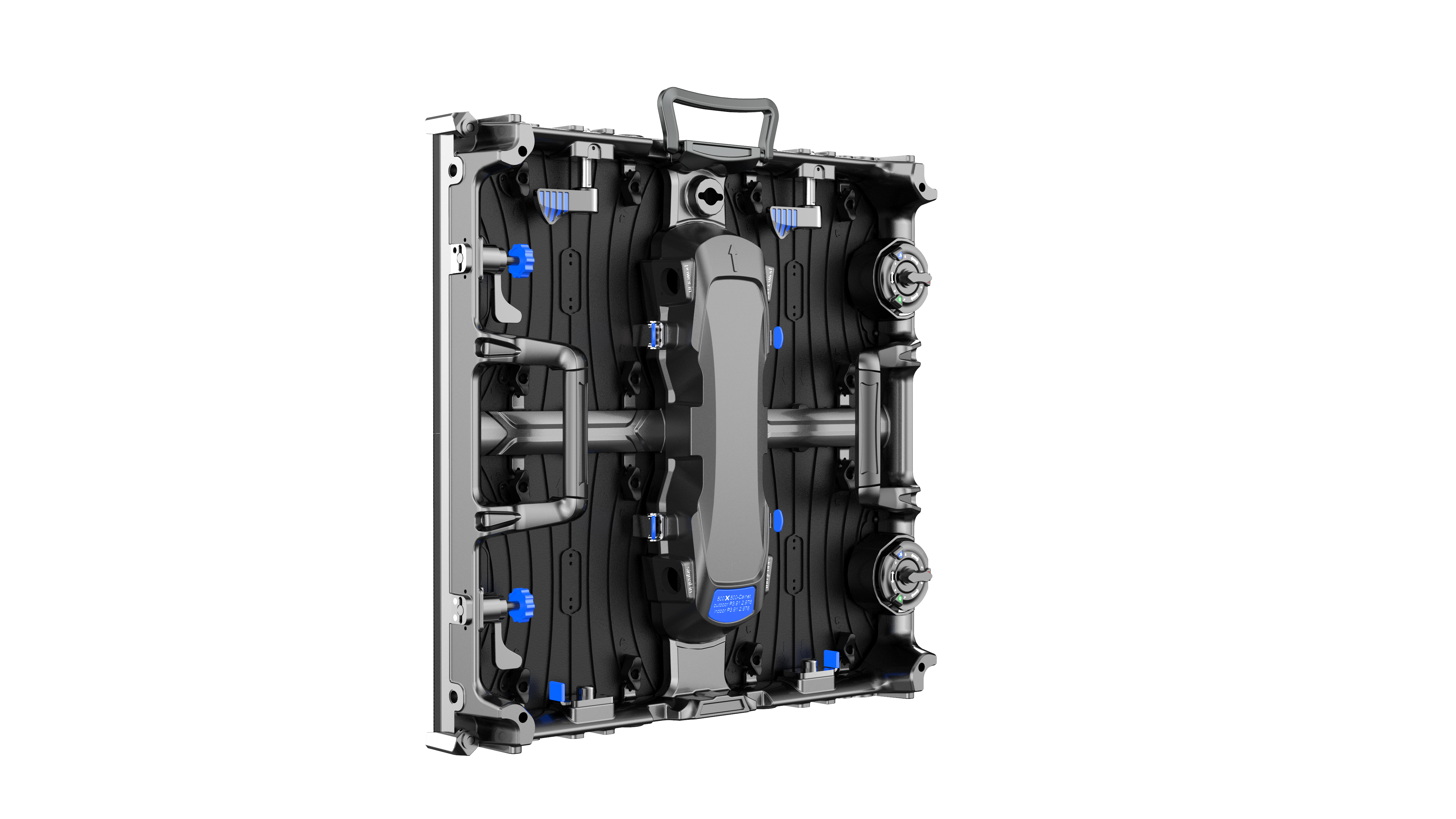

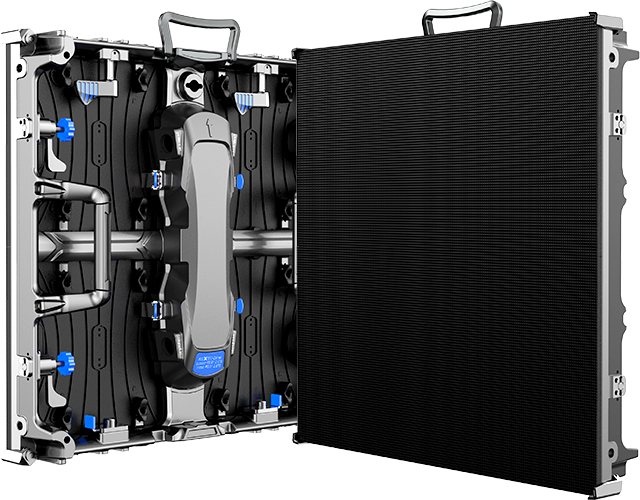

CR SERIES is for the indoor & outdoor events which require excellent waterproof capacity, light-weight, magnetic front-access and quick maintenance.
Moreover , the curvable screen and outdoor fixed installation are easy job to CR series as well.
COVENIENCE & VERSATILITY

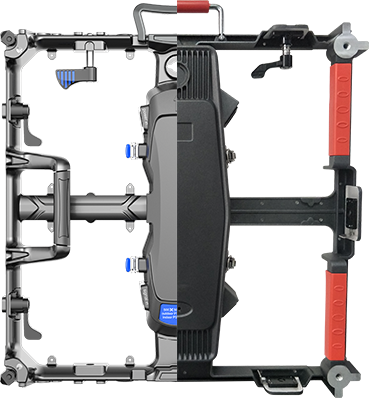

Universal modular design applicable to indoor and outdoor use. Fully front or rear access for magnetic modules and power room offer the most quick maintenance
MULTI-CURVABLE LOCKER SYSTEM
Curvable locker system makes it achieve to both of 0° and ±5°
CORNER GUARD
The vulnerable corners could be protected well during transportation

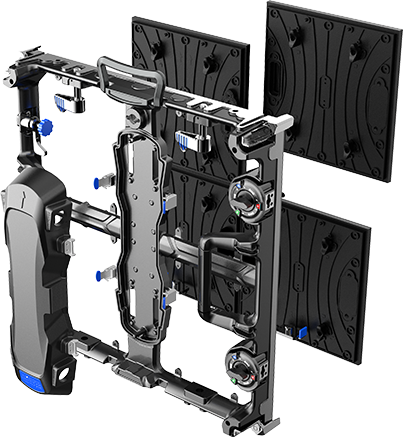

TRINITY POSITIONING SYSTEM
Magnet , pins and linear rail bring quick pre-installation and precise positioning.

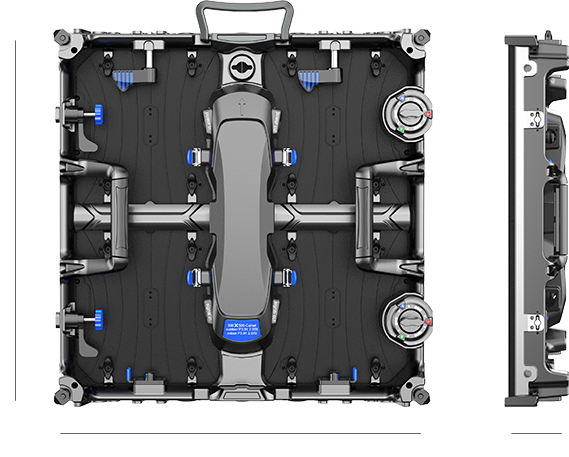

ULTRA SLIM & LIGHT-WEIGHT
8-8.5kg/panel, 82mm thickness(Including module)

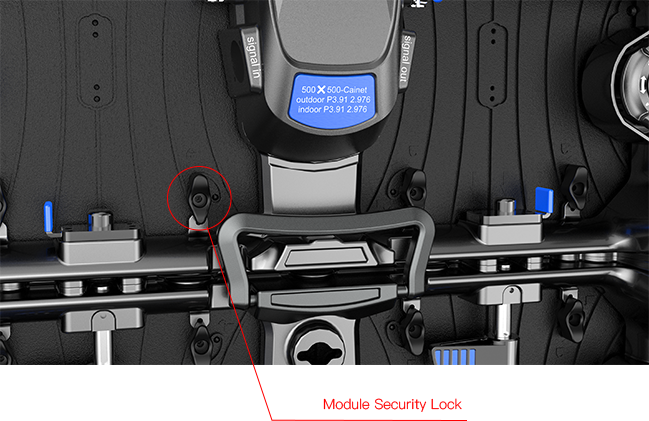

MODULE SECURITY LOCK
Prevent the modules from failling off or loosening on case of vibration or weakened magnet.
STRENGTHENED FRAME
With optimized durability of panel, the distortion could be well avoided.
| Product Name | CR-1.9 | CR-2.6 | CR-2.9 | CR PRO-2.6 | CR PRO -2.9 | CR PRO -3.9 |
| Pixel Pitch(mm) | 1.95 | 2.6 | 2.97 | 2.6 | 2.97 | 3.91 |
| LED Type | SMD1010 | SMD1515 | SMD2020 | SMD1415 | SMD1415 | SMD1921 |
| Pixel Density（dot/㎡) | 262,144 | 147,456 | 112,896 | 147,456 | 112,896 | 65,536 |
| Module Size(mm) | 250*250 | |||||
| Panel Size(mm) | 500*500*82 | 500*500*83 | ||||
| Panel Resolution(dot) | 256*256 | 192*192 | 168*168 | 192*192 | 168*168 | 128*128 |
| Panel Material | Die cast | |||||
| Weight(kg/pcs) | 8 | 8.5 | ||||
| Brightness(cd/㎡) | 800 | 1000 | 1000 | 4000 | 5000 | 5000 |
| H&V Viewing Angel | 160/140 | 140/110 | ||||
| Contrast Ratio | 4000:1 | |||||
| Max&Avg Power(W/㎡) | 680/227 | 640/213 | 640/213 | 680/227 | 650/217 | 650/217 |
| Refresh Rate (Hz) | 2880/3840 | |||||
| Maintenance Method | Front & Rear | |||||
| Installation Method | Front & Rear | |||||
| IP Rate | IP65/IP54 | |||||
| Certification | CE, EMC, CCC, PSE | |||||
