Breeze series
Breeze series
Product Overview
Product Specifications
Product Downloads

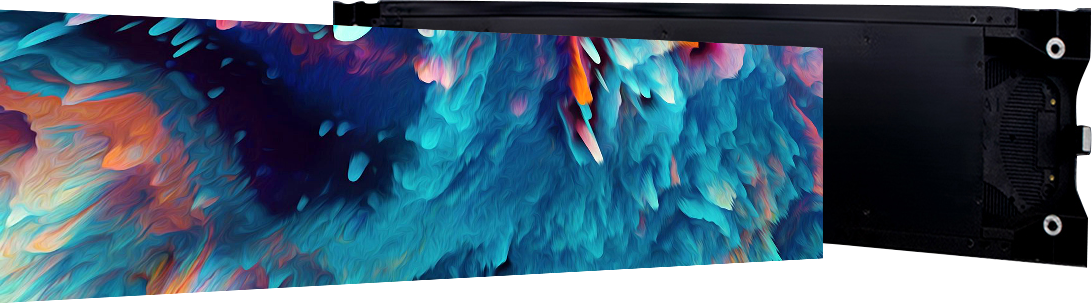

Breeze series LEDs are universal solutions for indoor fixed installations. In addition to convenient front service, slim & light panel, it can also be wall-mounted when space is limited. Moreover, it is easy to reach a 90°degree column.

Breeze series has three sizes 1000*250mm, 750*250mm, which could be built together for any irregular screen.

Product Features

SLIM & LIGHT-WEIGHT
As a space and mounting cost saver, the Breeze series uses ultra-thin bezels, and the LED signage indoor is only 6.5kg/panel and 53mm thickness.

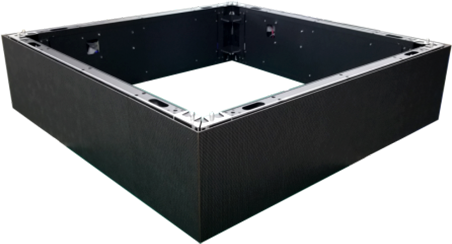

90° CORNER SHAPE AVAILABLE
The pre-processed module bevel makes 90° angle joint very easy.

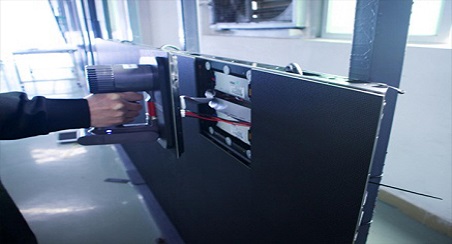

FULL-FRONT MAINTENANCE
Breeze series indoor LED walls have a magnetic attaching module. Which can easily achieve full front access and installation, as well as easy disassembly for maintenance. And that is convenient for maintenance in any situation.

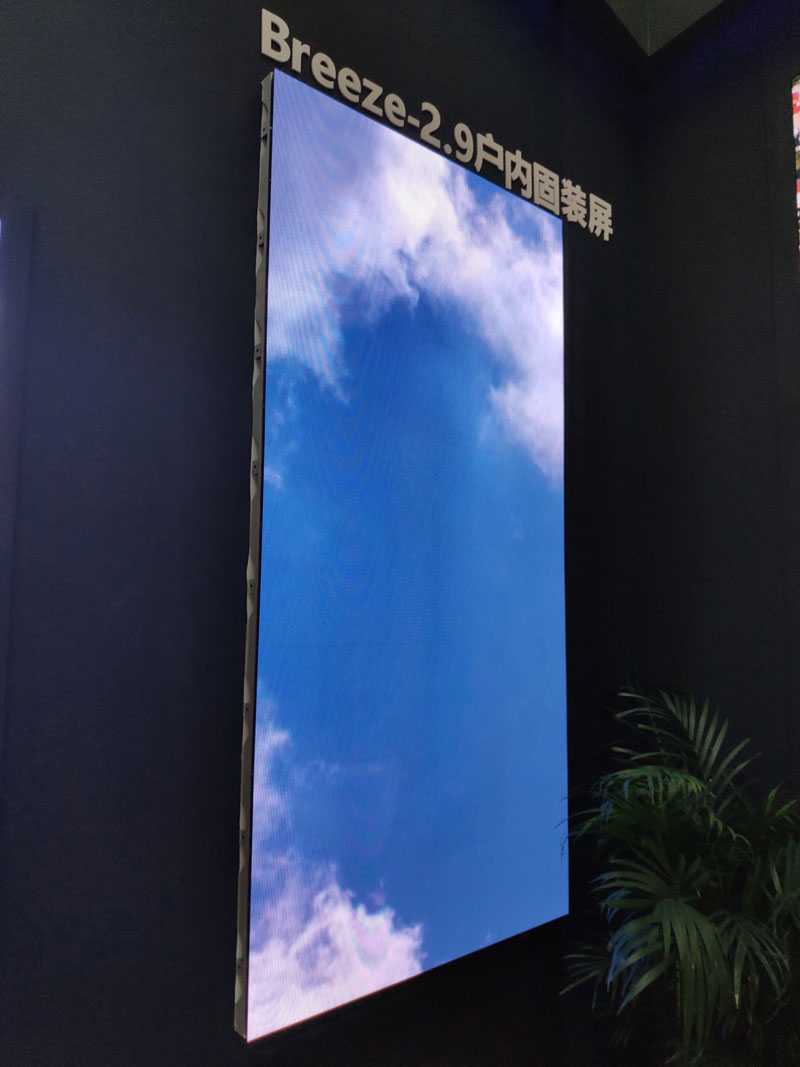

WALL MOUNTED
Breeze series of wall-mounted led panels can be directly mounted on the wall, saving rear space and providing customers with more effective space utilization. Easy to install.

Product NameBreeze-1.9Breeze-2.6Breeze-2.9Breeze-3.9
Pixel Pitch(mm)1.952.62.9763.91
LED TypeSMD1010SMD1515SMD2020SMD2020
Pixel Density(dot/㎡)262,144147,456112,89665,536
Module Size(mm)250*250

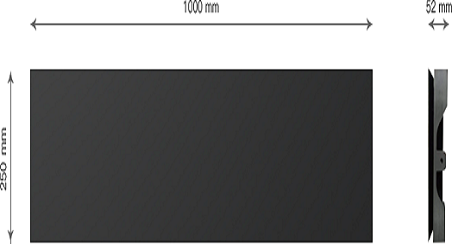

Panel Size(mm)1000*250*53 / 750*250*53
Panel Resolution(dot)512*128/384*128384*96/288*96 336*84/252*84256*64/192*64
Panel MaterialDie cast + Extruded Aluminum
Weight(kg/panel)6.5/5
Brightness(cd/㎡)800100010001200
H&V Viewing Angle160/140
Contrast Ratio4000:1
Max&Avg Power(W/㎡)680/227640/213640/213680/227
Refresh Rate (Hz)1920
Maintenance MethodFront & Rear
Installation MethodFront & Rear
IP RateIP20/IP20
CertificationCE, EMC , CCC, ETL
