Flexible Series
Flexible Series
Product Overview
Product Specifications
Product Downloads

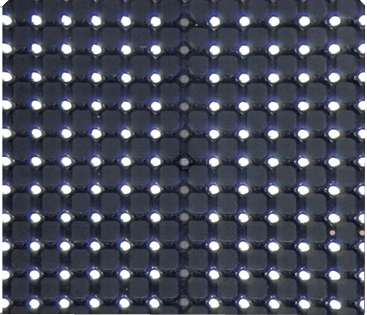

Not just video or images displaying, but when we want to give more artistic feeling to the shape of LED screen ,the flexible LED module could easily achieve this.  No matter it is concave ,convex or wave shape, the flexible series will take the job as first option.


Product Features

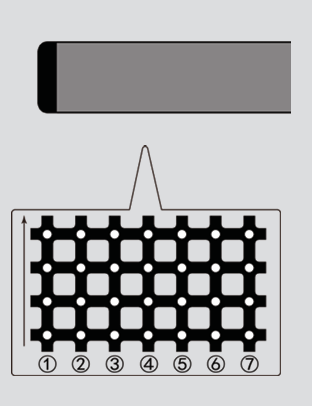

FREE CONCAVE & CONVEX BENDING
As the basic feature of flexible LED module, it allows you to reach any creative LED wall which matches up with environment.


MAGNETIC TYPE OF MAINTENANCE
Extremelly easy front or rear mainatenance without tools.

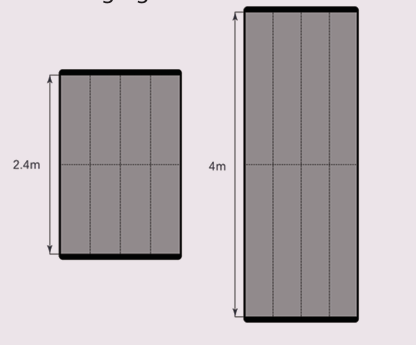

CUSTOMIZED CABINET OR FRAME
We offer the different shapes of cabinet or frame to meet any unique requirement.


OPTIONAL GOB PROTECTION
SHISAI offers professional GOB coating processing which could protect the screen from impact or oxidization to meet some cusomters' special requirement

Product NameFlex-1.8Flex-2Flex-2.5Flex-3Flex-4
Pixel Pitch(mm)1.87522.534
LED TypeSMD1515SMD1515SMD2020SMD2020SMD2020
Pixel Density(dot/㎡)284,444250,000
160,000111,11162,500
Module Size(mm)240*120
Panel Size(mm)Cutomized
Panel MaterialIron
Weight(kg/panel)TBD
Brightness(cd/㎡)80090012001000800
H&V Viewing Angel140/120
Contrast Ratio4000:1
Max&Avg Power(W/㎡)540/180540/180540/180640/210640/210
Refresh Rate (Hz)3840
Maintenance MethodFront & Rear

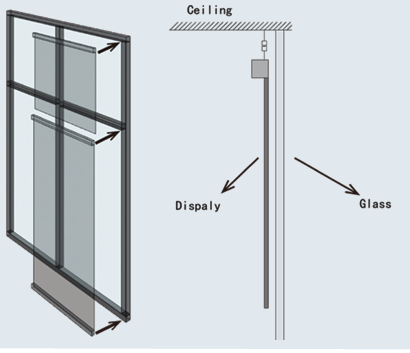

Installation MethodFront & Rear
IP RateIP20/IP20
Certification CCC, ETL


Brochure
