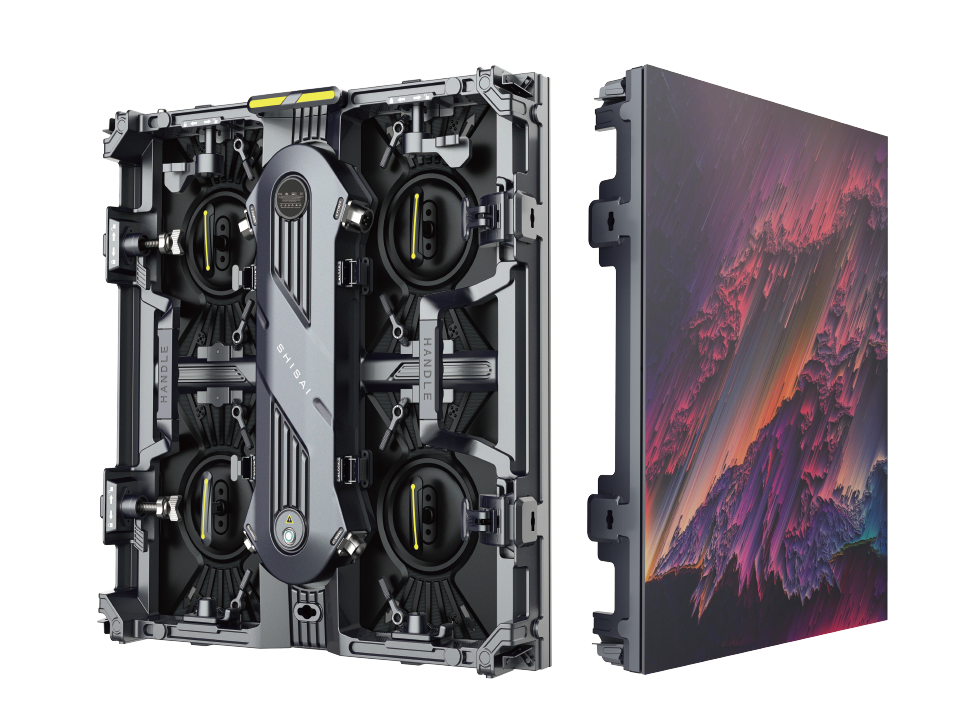

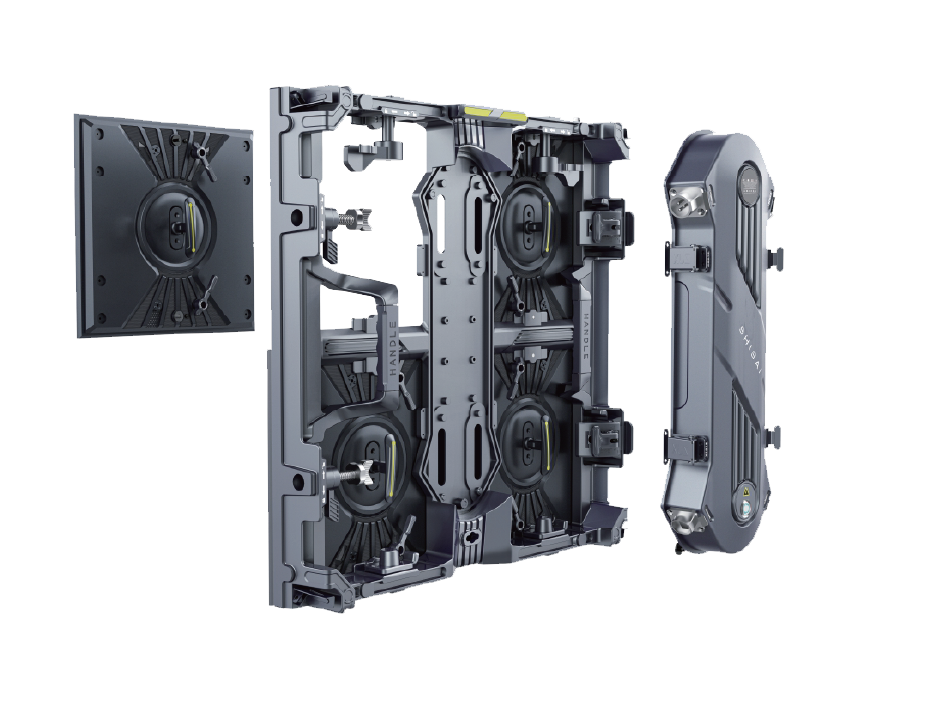

Ember series was designed for both of events and high-definition signage with upper standard of precision, strength , convience and color performance.

It stands our determination to get in the market of events even though the business was ruined by COVID.

We are still full of hope , like ember.

Product Features

CONVENIENCE & VERSATILITY
Universal panel design for indoor & outdoor
Fully front & rear access with magnetic style
Fully front & rear intallation

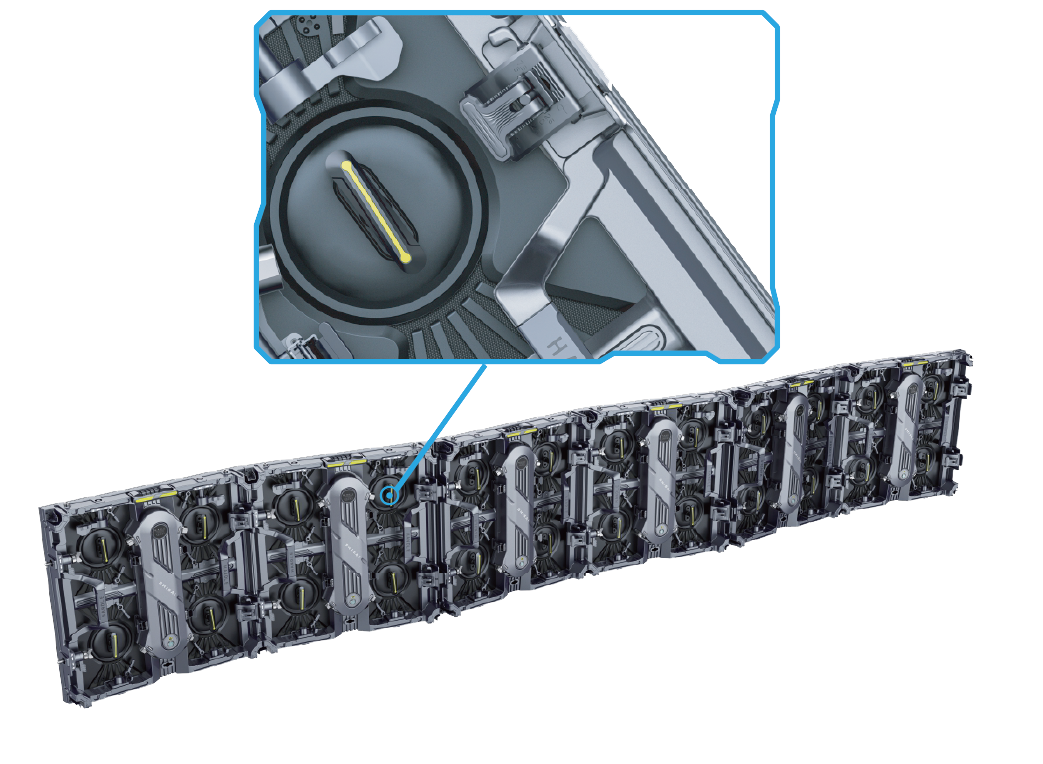

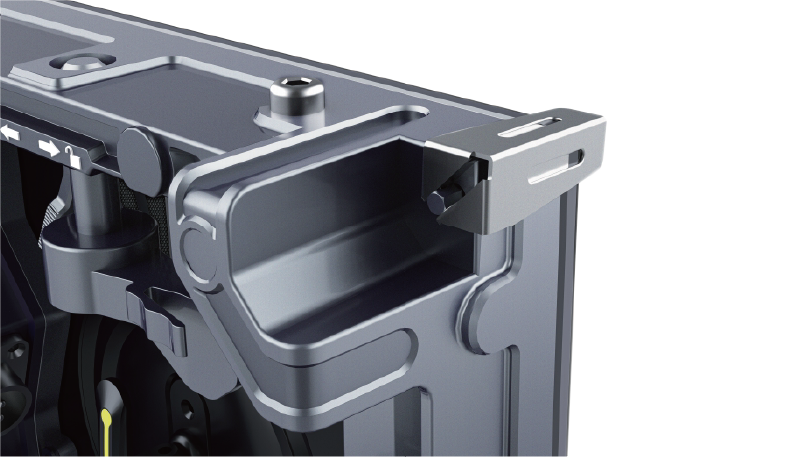

MULTI-CURVABLE LOCK SYSTEM
±2.5° ,±5°,±7.5° available, more options for concave, convex and wave shape

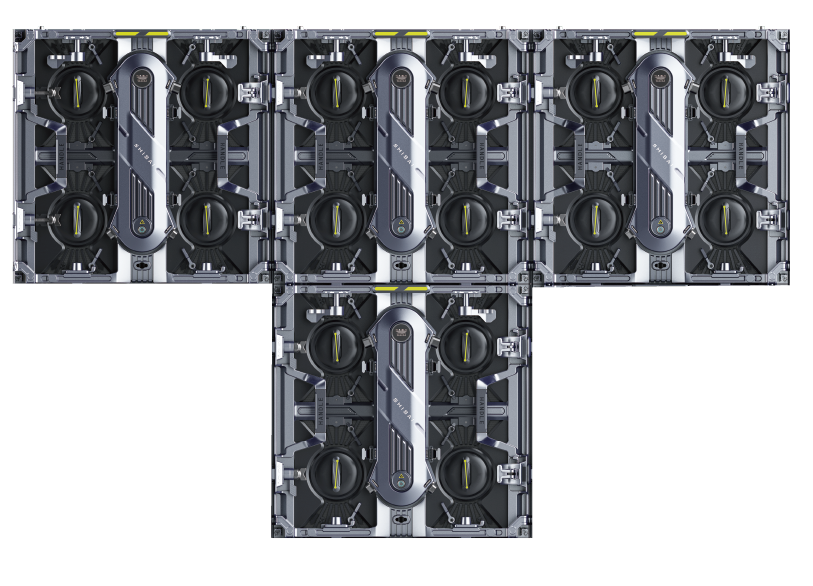

PRE-FIX LOCKER SYSTEM
The panels up and down could be fixed together before locked and no need to lift it anymore during hanging installation, that makes the mounting work real "single-person-job"


CORNER AND EDGE GUARD
The spring leaf and bottom bulge protect the vulnerable corners and edges during transportation and standing.

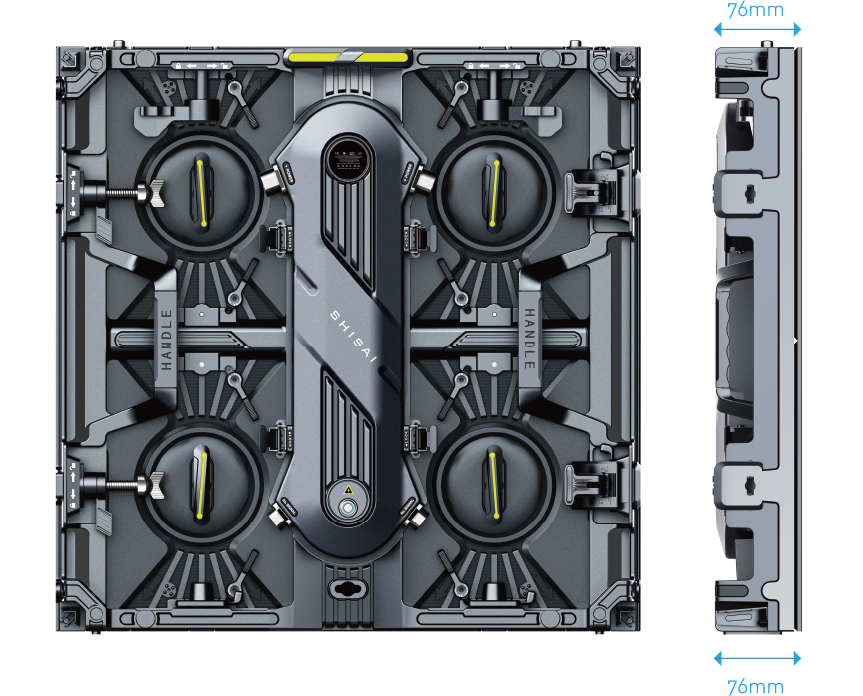

ULTRA SLIM AND LIGHT WEIGHT
8-8.5kg/panel
76mm thickness

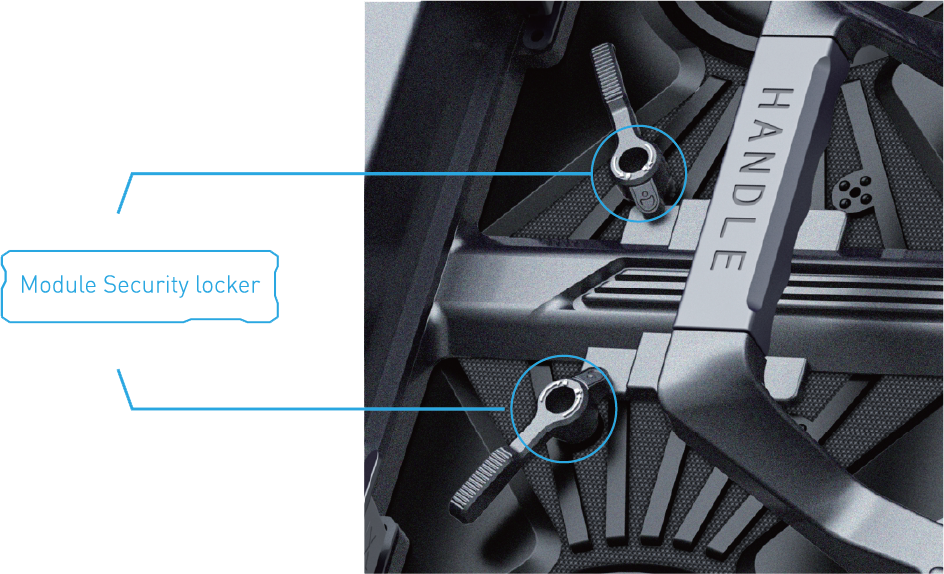

MODULE SECURITY LOCKER
It prevents modules from falling off or loosening during transportation, and offers more sercurity if front access is not required

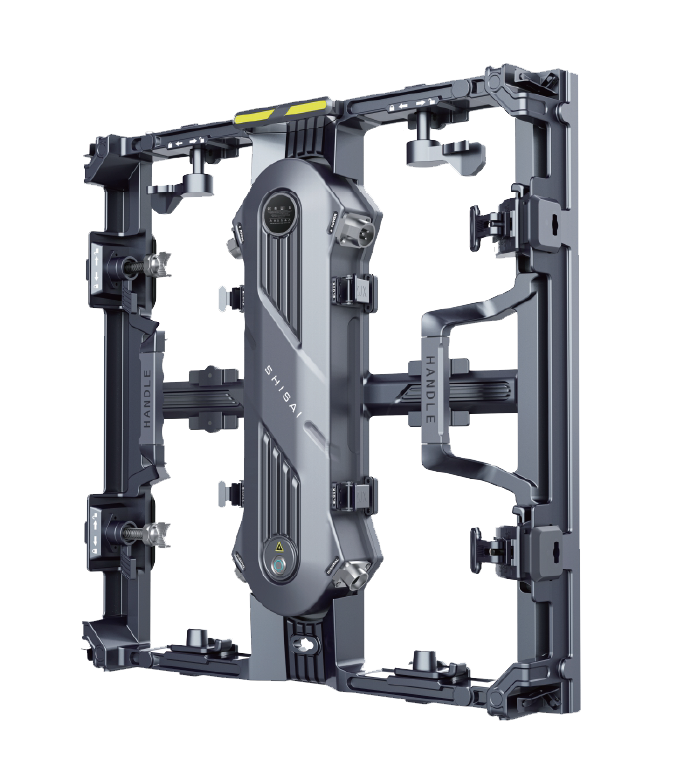

STRENGTHENED PANEL FRAME
There is much less distortion and strength weakened with optimized design for the durability of panel

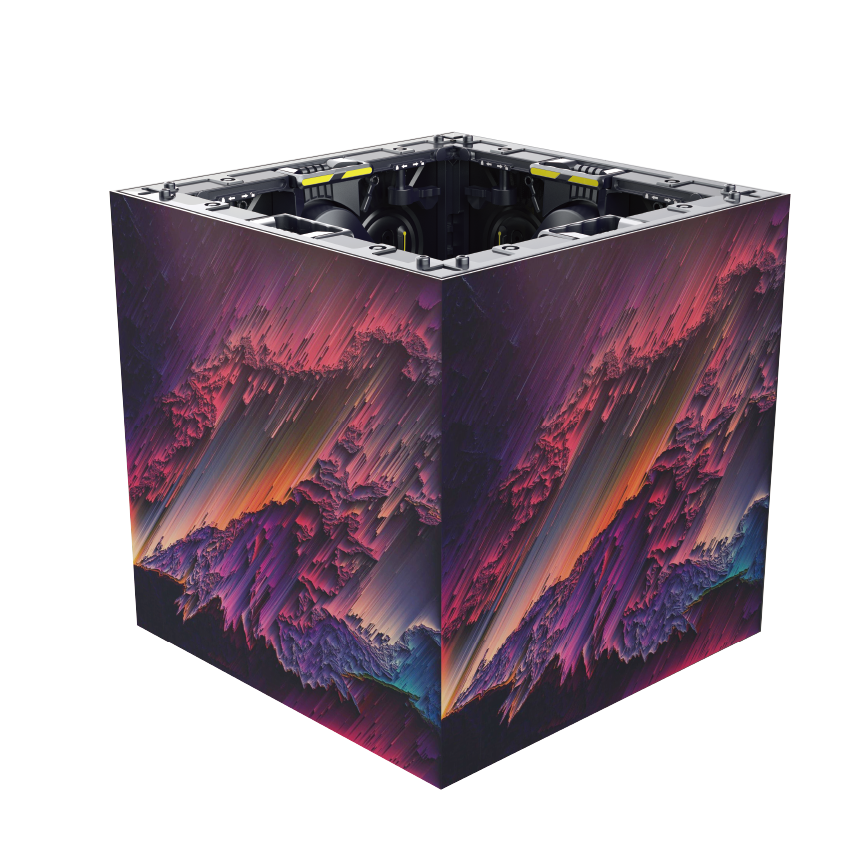

OPTIONAL RIGHT ANGLE
The panel is able to achieve 45° joint for right angle shape or rectangle works

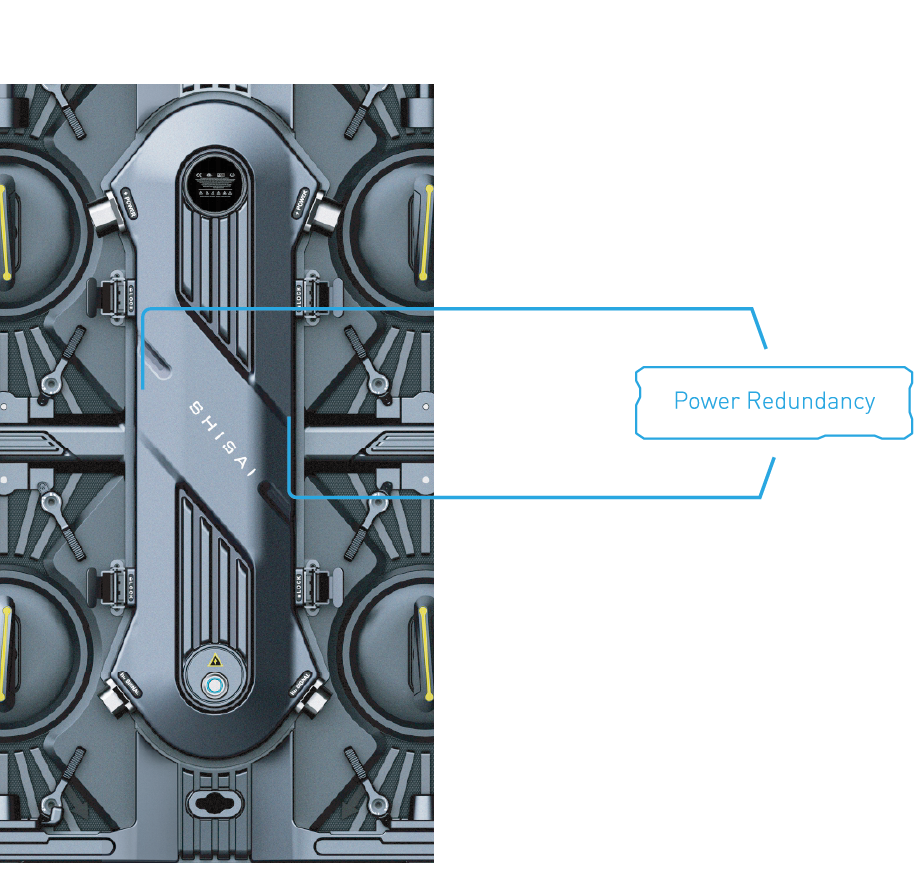

POWER REDUNDANCY SYSTEM
The space for power backup has been reserved

Product NameEmber-1.5Ember-1.9Ember-2.6Ember-2.9Ember-3.9
Pixel Pitch(mm)1.56251.9532.6042.9763.906
LED TypeSMD1010SMD1010SMD1515SMD2020SMD2020
Pixel Density(dot/㎡)409,600262,144147,456112,89665,536
Module Size(mm)250*250
Panel Size(mm)500*500*75
Panel Resolution(dot)320*320256*256192*192168*168128*128
Panel MaterialDie Cast Aluminum
Weight(kg/pcs)8kg
Brightness(cd/㎡)600800100010001200
H&V Viewing Angel160/140
Contrast Ratio4000:1
Max&Avg Power(W/㎡)680/227680/227640/220640/220640/220
Refresh Rate (Hz)3840
Maintenance MethodFront & Rear
Installation MethodFront & Rear
IP RateIndoor use only
CertificationCE, EMC, CCC, ETL


Product NameEmber Pro-2.6Ember Pro-2.9Ember Pro-3.9Ember Pro-4.8
Pixel Pitch(mm)2.6042.9763.9064.81
LED TypeSMD1415SMD1415SMD1921SMD2727
Pixel Density(dot/㎡)147,456112,89665,53643,264
Module Size(mm)250*250
Panel Size(mm)500*500*76
Panel Resolution(dot)192*192168*168128*128104*104
Panel MaterialDie Cast Aluminum
Weight(kg/pcs)8.5
Brightness(cd/㎡)4000450050005000
H&V Viewing Angel140/110
Contrast Ratio4000:1
Max&Avg Power(W/㎡)680/227650/220650/220650/220
Refresh Rate (Hz)3840
Maintenance MethodFront & Rear
Installation MethodFront & Rear
IP RateIP65/IP65
CertificationCE, EMC, CCC, ETL, PSE
