As transparent LED has been widely used for more and more industries, SHISAI developed our transparent led panel for multi application like indoor ,outdoor signage and events business.

The LED panel is made of die cast which offers precision and robustness, and it is also lighweight and slim, together with the quick locker it brings excellent experience for rental work. Morevoer our transparent LED panel has great capacity of waterproof and anti-UV with advanced silicone coating  and housing. Not like GOB which is not able to bear outdoor environment at all

Product Features

Light-weight and slim panel body
Unique light-weight and slim design with die cast or profile aluminum panel


High transparency
Outdoor series could reach 71% transparency and indoor could reach 75%


Easy maintenance
Modular design offers quick dismounting from rear and front side that much time saved during maintenance


Multiple application
Not only fixed installation, but also available for rental business with panel lockers added including hanging ,stacking, curve joint.,etc


Real for outdoor use
Modules are glue packed and coating and together with closed power room, which could reach true IP65 & 54

Product NameTL-2-5TL-3-7TL Pro-3-7TL Pro-5-10TL Pro-10
Pixel Pitch(mm)2.6 / 5.23.9 / 7.83.9 / 7.85.2 / 10.410.4
LED TypeSMD1415SMD1921SMD1921SMD1921SMD2727
Pixel Density(dot/㎡)737283276832768184329216
Panel Size(mm)1000*500*80
Panel Resolution(dot)384*96256*64256*64192*4896*48
Panel MaterialProfile aluminumDie cast alunimum
Weight(kg/sqm)4.55.57.57.57.5
Brightness(cd/㎡)40004500450045004500
H&V Viewing Angle140/140
Max&Avg Power(W/㎡)800 / 260800 / 260800 / 260800 / 260800 / 260
Refresh Rate (Hz)3840
Maintenance MethodFrontFrontFront & RearFront & RearFront & Rear

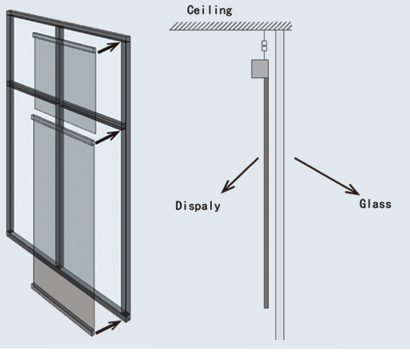

Installation MethodRear
IP RateIP30IP30IP65 / 54
IP65 / 54IP65 / 54
CertificationCE, EMC , CCC, PSE
