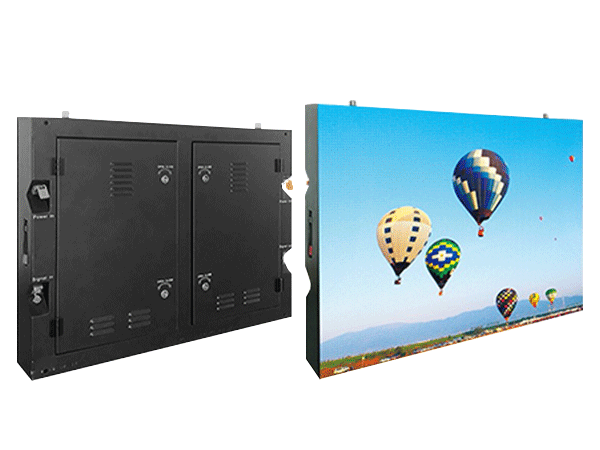

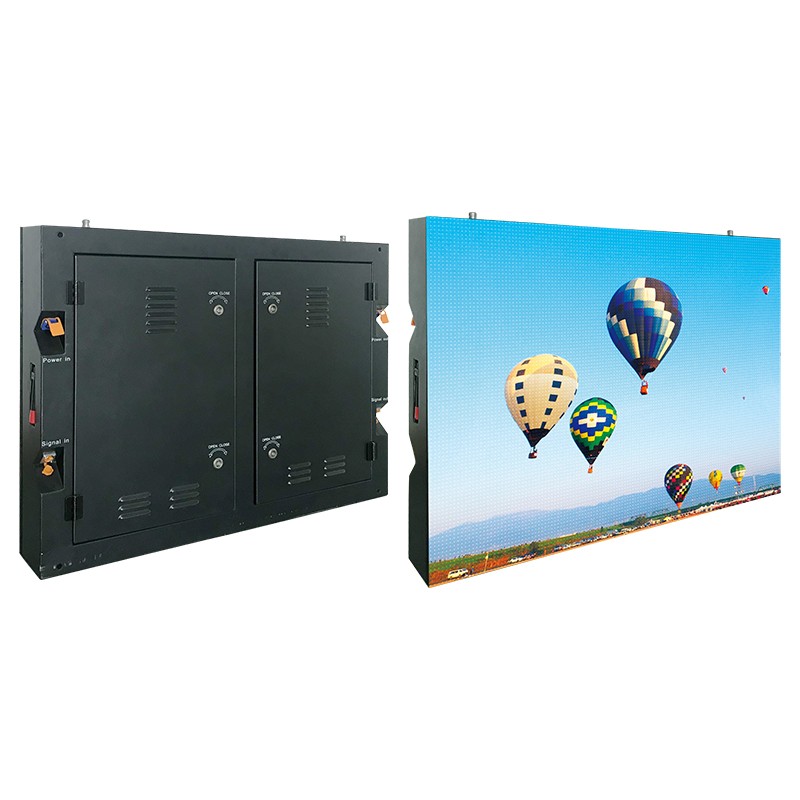

COMET SERIES is the classic common cabinet which was widely used as outdoor product for many years due to the durability and economical of it. Inspite f the cumbersome, there are still lots of client prefer to it. Especially we have magnesium alloy version for options.
Iron or Aluminum cabinet

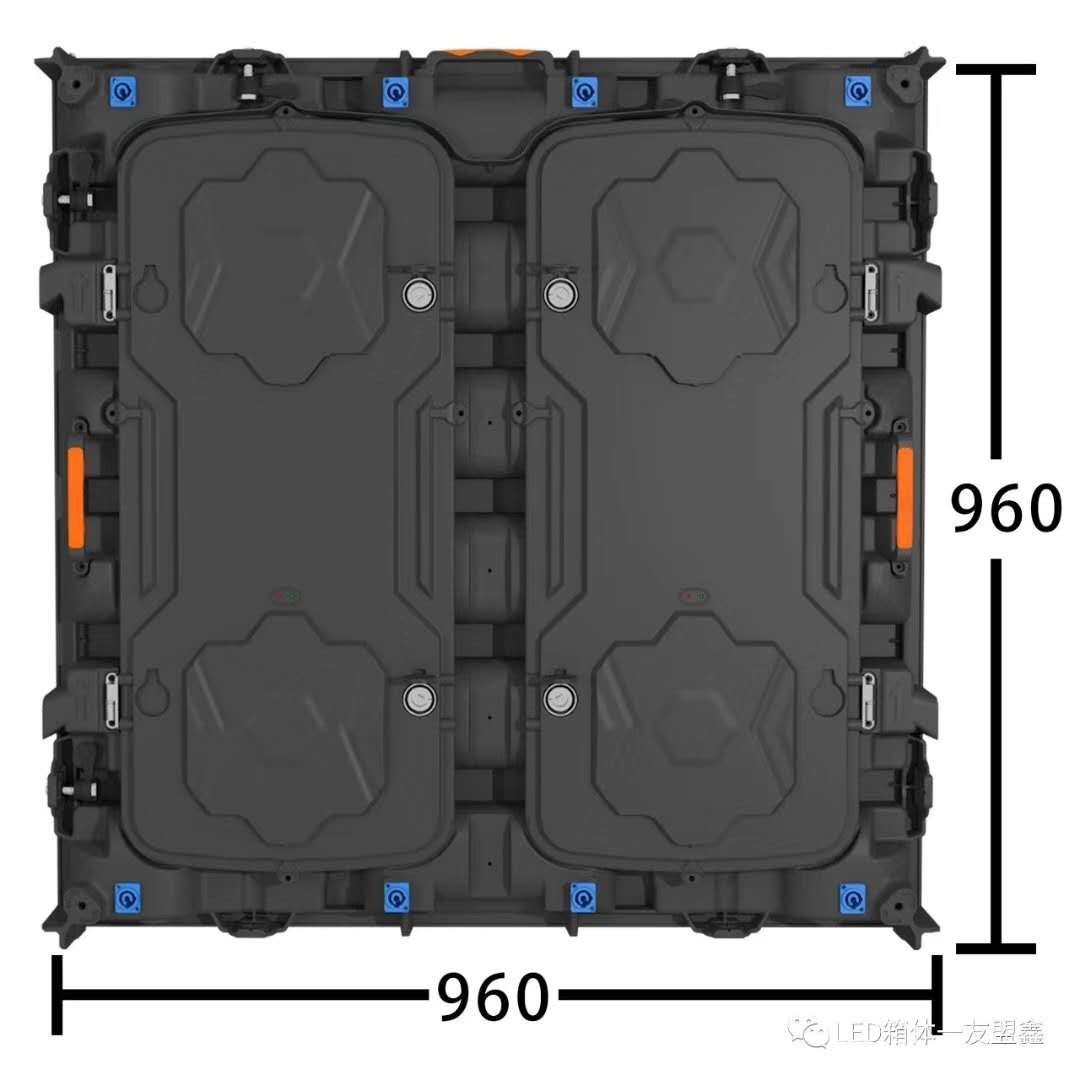

Magnesium Alloy Cabinet
| Product Name | Comet-5 | Comet-6 | Comet-8 | Comet-10 | Comet-10(D) | Comet-16(D) |
| Pixel Pitch(mm) | 5 | 6 | 8 | 10 | 10 | 16 |
| LED Type | SMD2727 | SMD2727 | SMD3535 | SMD3535 | DIP346 | DIP346 |
| Pixel Density（dot/㎡) | 40,000 | 27,777 | 15,625 | 10,000 | 10,000 | 3,906 |
| Module Size(mm) | 320*160 | 192*192 | 256*128 | 320*160 | 320*160 | 256*256 |
| Panel Size(mm) | 960*960*145 | 960*960*145 | 1024*1024*145 | 960*960*145 | 960*960*160 | 1024*1024*160 |
| Panel Resolution(dot) | 192*192 | 160*160 | 128*128 | 96*96 | 96*96 | 64*64 |
| Panel Material | Aluminum/Iron | |||||
| Weight(kg/sqm) | 38/45 | 38/45 | 38/45 | 38/45 | 38/45 | 38/45 |
| Brightness(cd/㎡) | 5500 | 6000 | 6000 | 6000 | 7000 | 7000 |
| H&V Viewing Angel | 140/110 | |||||
| Contrast Ratio | 4000:1 | 3000:1 | ||||
| Max&Avg Power(W/㎡) | 680/227 | 680/227 | 680/227 | 680/227 | 680/227 | 680/227 |
| Refresh Rate (Hz) | 3840 | |||||
| Maintenance Method | Rear | |||||
| Installation Method | Rear | |||||
| IP Rate | IP65/IP54 | |||||
| Certification | CE, CCC, | |||||
