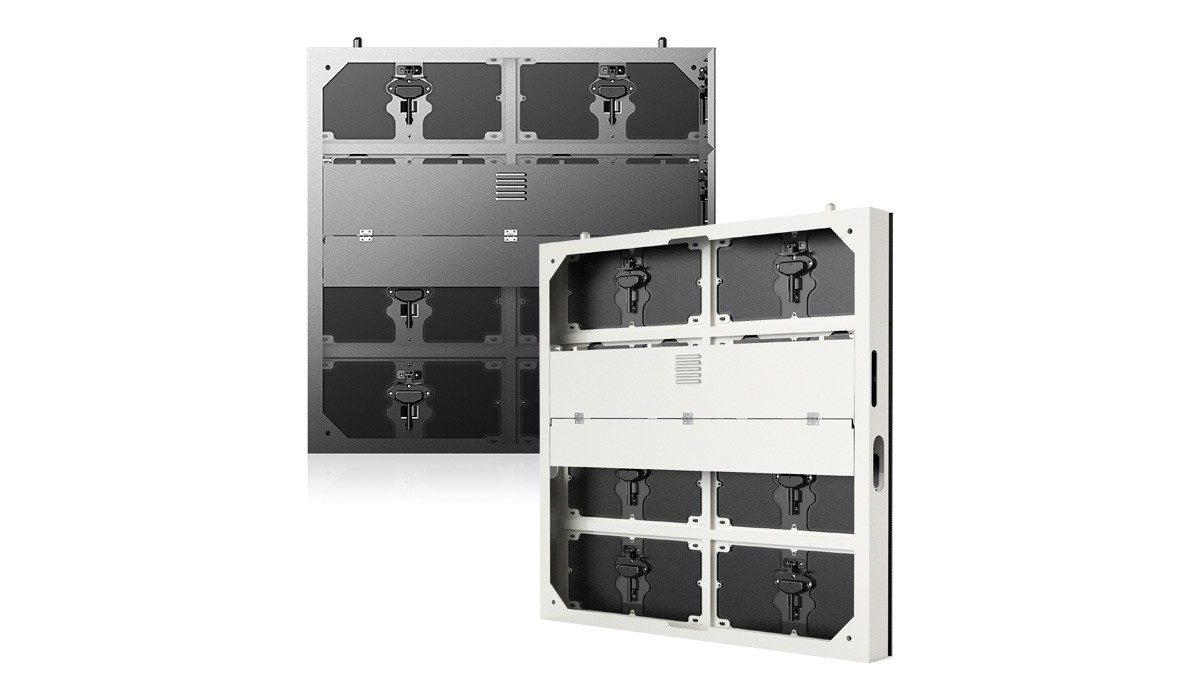

The IVORY SERIES outdoor LED video wall is specially designed for outdoor signs, billboards, hoardings, or any DOOH that requires excellent waterproof capacity, light-weight, front-access, and convenient maintenance. As a high-end outdoor LED billboard solution, the Ivory series provides the best viewing effects under the premise of durability.

Moreover, the module size and various cabinet configurations can achieve a larger LED screen and easily realize a 90° angle screen.


Product Features

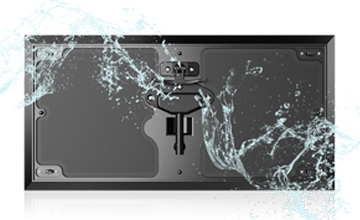

Superior water-proof module design
The enclosed design module and molded plastic plug of the outdoor led video wall make the IVORY series outdoor led billboard module reach IP67, super waterproof outdoor LED billboard can operate stably even in bad weather.

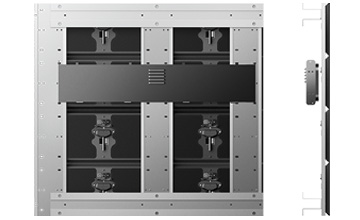

Non-cabinet installation optional
The outdoor led video wall can be directly installed on the metal frame without cabinets, saving more space and installation work for users. It can provide a more convenient smart solution for small LED billboards.

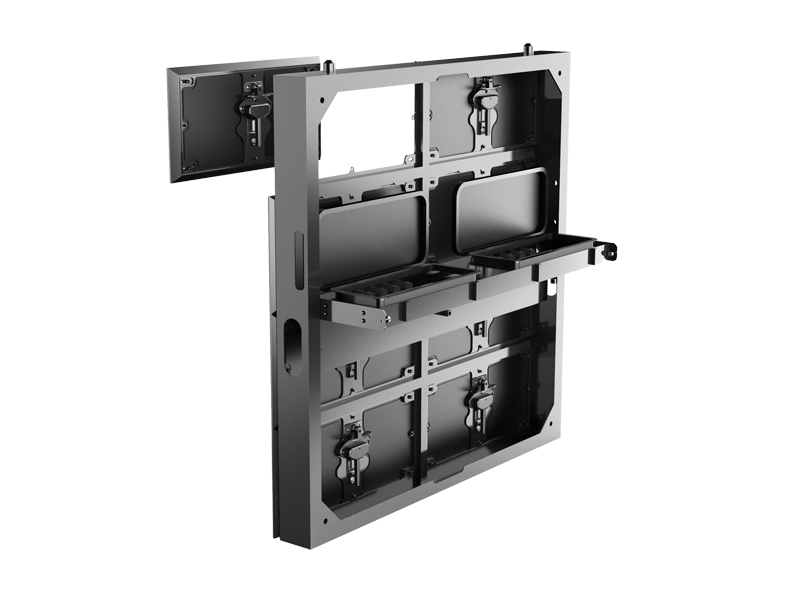

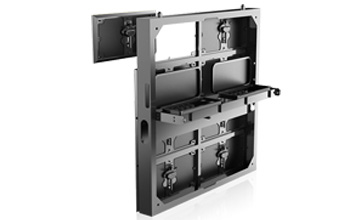

Fully front or back maintenance
The quick modular lockers and tiltable power rooms of outdoor LED billboards can realize convenient maintenance and perfectly match various installation environments.

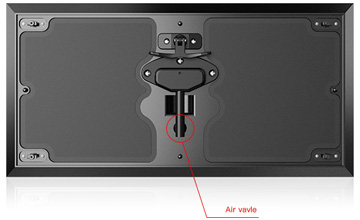

Air valve design
The outdoor fixed LED display module has an integrated air valve on the back, which can avoid the deformation of the outdoor LED billboard module caused by the air pressure difference and prolong the life of the led billboard.

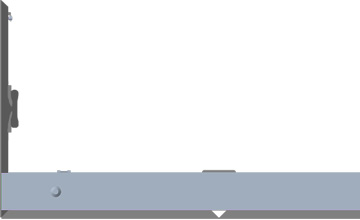

Isosceles trapezoid module shape
Outdoor LED billboards do not require any additional processing on the module, and both 90°and curved displays can be used easily, which is convenient for users to operate and meet user needs.

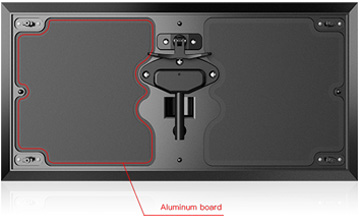

Added thermal management
The outdoor LED video wall is equipped with an additional aluminum board for intensive pixel heat dissipation, supports long-term use of the LED, and better protects the outdoor led billboard. (P4.1 only)

Product NameIvory-4Ivory-5Ivory-6Ivory-8Ivory-10Ivory-16
Pixel Pitch(mm)4.16656.258.331016.67
LED TypeSMD1415SMD1921SMD1921SMD2727SMD2727SMD2727
Pixel Density(dot/㎡)57600400002560014400100003600
Module Size(mm)400*200
Panel Size(mm)800*800*91.55
Panel Resolution(dot)192*192160*160128*12896*9680*8048*48
Panel MaterialAluminum/Iron
Weight(kg/sqm)35/4030/3530/3530/3530/3530/35
Brightness(cd/㎡)550055005500650065006500
H&V Viewing Angle140/110
Contrast Ratio4000:1
Max&Avg Power(W/㎡)930/310810/270860/290730/250730/250730/250
Refresh Rate (Hz)1920
Maintenance WayFront & Rear
Installation WayFront & Rear
IP RateIP67/IP65
CertificationCE, EMC , CCC, ETL
