Crack the Waterproof Secret of Outdoor LED Display Board

Merchants are always looking for ways to advertise their products or services, no matter indoors or outdoors. With the advent of the information age, the LED display board is an important and indispensable promotional tool for businesses. When it comes to the outdoor LED display, you have to face the topic of waterproof.

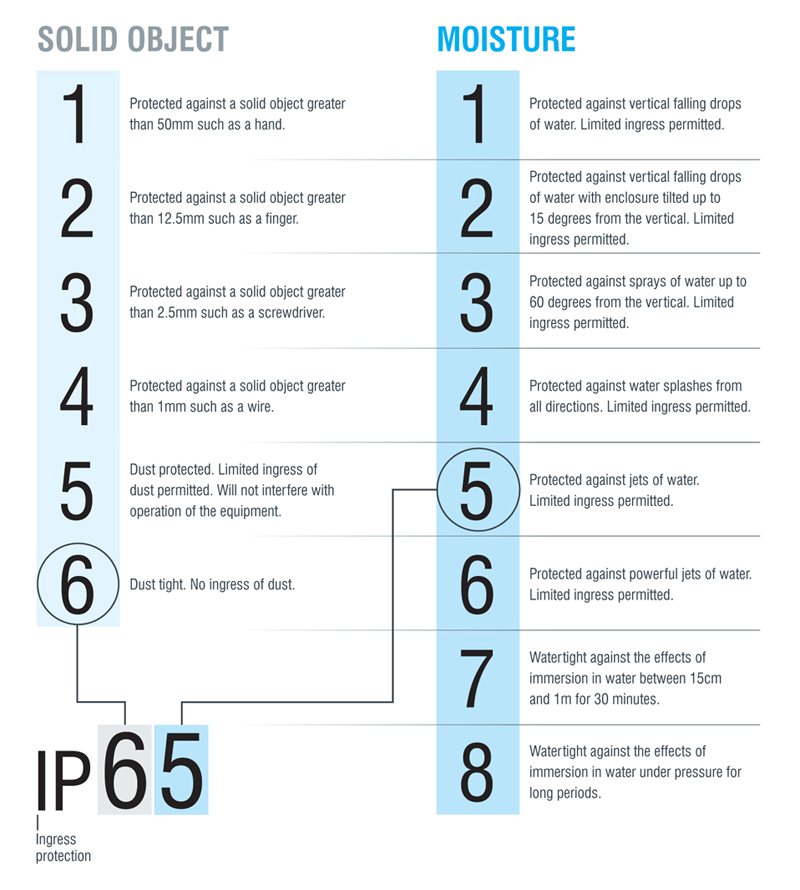

Waterproof Identification Standard: IP Rate

The IP rate is created as a waterproof standard for the goods to provide users with more detailed information. Likewise, it is also suitable to identify the waterproof capacity of the outdoor LED display boards.

The IP code has five components:

Code letters: IP (Means Ingress Protection)

First characteristic numeral: Single numeral 0-6 or letter X (Means solid particle protection)

Second digital: Single numeral 0-8 or letter X (Means liquid ingress protection)

Third digital: Single numeral 0-9 (Means mechanical impact resistance)

Additional letter: Single letter (Means other protections)

Supplementary letter: Single letter (Means other protections)

From the information shown above, it is not difficult to find that IP65 meets most outdoor LED display cases. But one thing that could not be ignored is the waterproof capacity of outdoor LED display board may change as it is always exposed to the outdoor environment like distortion, oxidization, corrosion, etc. And all these are closely relative to the manufacturing process and materials. Moreover, the waterproof of the outdoor LED display board should be viewed respectively.

Waterproof Parts of Outdoor LED Display Board

l LED Module:

1. Common module with rear exposed but coated

Mostly we meet this kind of module from the outdoor LED display with conventional cabinet. The key point of waterproof performance of the LED display is the cabinet and module fixing; the coating is the last step of defense instead.

2. Sealed module with pin interface:

This module mostly works with the die-cast panel or independent power room. It is the silicone ring at the interface which offers waterproof. Therefore the magnetic module of this type is not recommended for DOOH.

3. Sealed module with waterproof plug:

It is a relatively better module for an outdoor LED display board with excellent waterproof capacity, but the cost may be higher.

l Power room:

1. Integrated power room:

In this case, the power room is just the whole cabinet. But SHASHI's LED display screen leaves a shutter on the backside, which leads to this type reaching only IP54.

2. Independent power room:

The waterproof capacity generally depends on the silicone ring and connectors.

l Plug and connector:

Selecting a good-quality connector is the best way to ensure the LED display is waterproof.

Generally speaking, a waterproof display doesn’t just rely on simple IP rate specifications. Instead, it is consist of design, materials, manufacturing process.

At this time, choosing a competent outdoor LED display manufacturer is significant. SHISAI Ivory Series outdoor LED video wall is specially designed for outdoor use.

SHISAI Ivory Series

1. Superior waterproof module design

More than just meeting the basic IP65, SHASHI’s Ivory series outdoor led display board can reach IP67 waterproof standard. Its excellent waterproof performance is caused by the enclosed design of the board and molded plastic plugs, making it stable even in bad weather.

2. Air valve design

There are some special design integrated air valves on the back of the outdoor LED display boards, which can avoid deformation of outdoor LED billboard module due to air pressure difference and prolong the life of LED billboard.

3. Non-cabinet installation optional

SHISAI’s outdoor led TV wall can be mounted on a metal frame directly without a cabinet. This nice design not only helps save more space but also saves labor costs. Compared with the traditional cabinet installation mode, it is friendly for small door billboards as it is more convenient.

4. Isosceles trapezoid module shape

Outdoor advertising screens with 90° and curved displays can greatly facilitate user operation because they can be directly installed for direct viewing without additional processing of the module.

5. Fully front or back maintenance

Designed with outdoor installation and maintenance in mind, SHISAI’s modular lockers and tiltable power rooms are extremely user-friendly, and they can be matched to a variety of installation environments.

6. Added thermal management

SHISAI’s P4.1 outdoor LED video wall is equipped with an aluminium plate for pixel-intensive heat dissipation to support long-term LED use and better protect the outdoor LED billboard.

Make A Conclusion:

Waterproof performance has a vital role in the display effect and service life of an outdoor LED display board. Choosing a quality advertising screen display from a reliable supplier is also quite important.

As a market-leading LED display manufacturer, we at SHISAI have a technologically advanced R&D team, perfect production facilities, and mature production technology. Committed to offering our customers reliable solutions, SHISAI keeps innovating to provide more cost-effective products to our global customers. Do not hesitate to contact us for more information!
